This product has been discontinued.

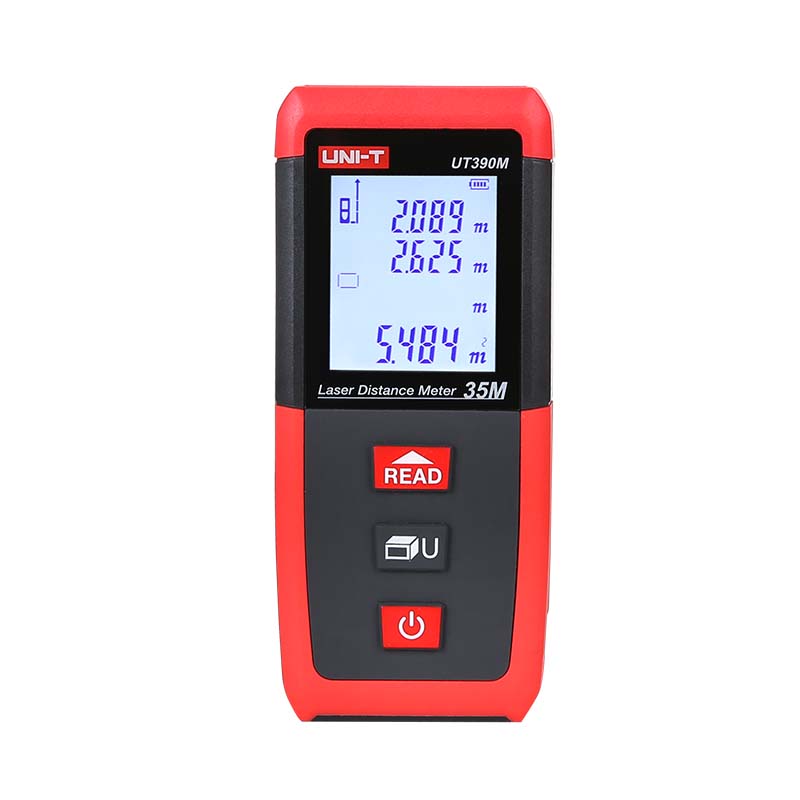

UT390M Laser Distance Meter (Discontinued)
UT390M is a light weight and easy to operate laser distance meter. Its testing range is 35m with 1.5mm accuracy. It can be used for single, continuous, area, volume and pythagorean measurement with LCD backlight.
Description
Features of UT390M Laser Distance Meter
● Accuracy: ±(5mm+d*5/100000), ‘d’ is actual distance
● Distance/area/volume measurements
● Display units: Inches, feet, and meters
● Auto power/laser off
● Audio alarm
● Battery type: 1.5V AAA Alkaline battery×2
● Battery life: 8000 times of measurement
● Size: 106mm×47mm×24mm
Specifications of UT390M Laser Distance Meter
| Function | Description |
| Range | 0.05~35m |
| Min unit | 1mm |
| Accuracy | 1.5mm±(d×5/100000) (d is the actual distance) |
| Max laser power | ＜1mW |
| Laser wave length | 635nm |
| Continuous measurement | √ |
| Area/Volume measurement | √ |
| Auto power off | 150s |
| Sound prompt | √ |
| Max battery life | 8000 times (working in single measurement mode) |
| Operating temperature | 0~40℃ |
| Storage temperature | -20~60℃ |
| Storage humidity | 20%~80%RH |
| Dimension | 106mm×47mm×24mm |
| Battery | 1.5V AAA Alkaline battery×2 |
