Specifications	Range	UT39A+	UT39C+	UT39E+
Category ratings	CAT II 1000V, CAT III 600V
DC voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+5)	±(0.5%+5)
DC voltage (V)	200mV/2V/20V/200V/1000V			±(0.05%+3)
AC voltage (V)	4V/40V/400V/750V	±(0.8%+3)	±(0.8%+3)
AC voltage (V)	200mV/2V/20V/200V/1000V			±(0.5%+10)
DC current (A)	40μA/400μA/4mA/40mA/400mA/10A	±(0.8%+3)
	400μA/400mA/10A		±(0.8%+3)
	2000uA/20mA/200mA/2A/20A			±(0.5%+5)
AC current (A)	40mA/400mA/10A	±(1%+2)
	4mA/400mA/10A		±(1%+2)
	2000uA/20mA/200mA/2A/20A			±(0.8%+10)
Resistance (Ω)	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ	±(0.8%+2)
	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ		±(0.8%+2)
	200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ			±(0.3%+2)
Capacitance (F)	10mF	±(4%+5)	±(4%+5)

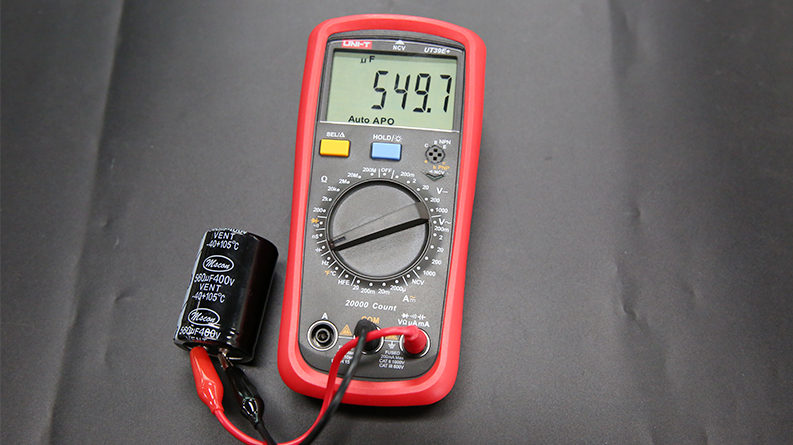

Capacitance (F)	2000uF			±(4%+20)
Frequency (Hz)	10Hz~1MHz		±(0.1%+4)
Frequency (Hz)	10Hz~2MHz			±(0.1%+3)
Temperature	-40℃~1000℃		±(1%+4)	±(1%+5)
Temperature	-40℉~1832℉		±(1.5%+5)	±(1.5%+5)
Conductance (nS)	0.1~100nS			±(1%+3)
Display count		4000	4000	20000
NCV			√	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	56.5mm x 36mm
Product net weight	330g
Product size	175mm x 83mm x 53mm
Standard accessories	Test leads, temperature probe (UT39C+/E+), English manual
Standard individual packing	Gift box
Standard quantity per carton	30pcs
Standard carton measurement	390mm x 355mm x 340mm
Standard carton gross weight	14.5kg

UT39+ Series Digital Multimeters

Description

Features

Specifications

Applications

Docs & Software

UT39A+/C+/E+ | Datasheet

UT39A+/C+ | User Manual

UT39E+ | User Manual
