This product has been discontinued.

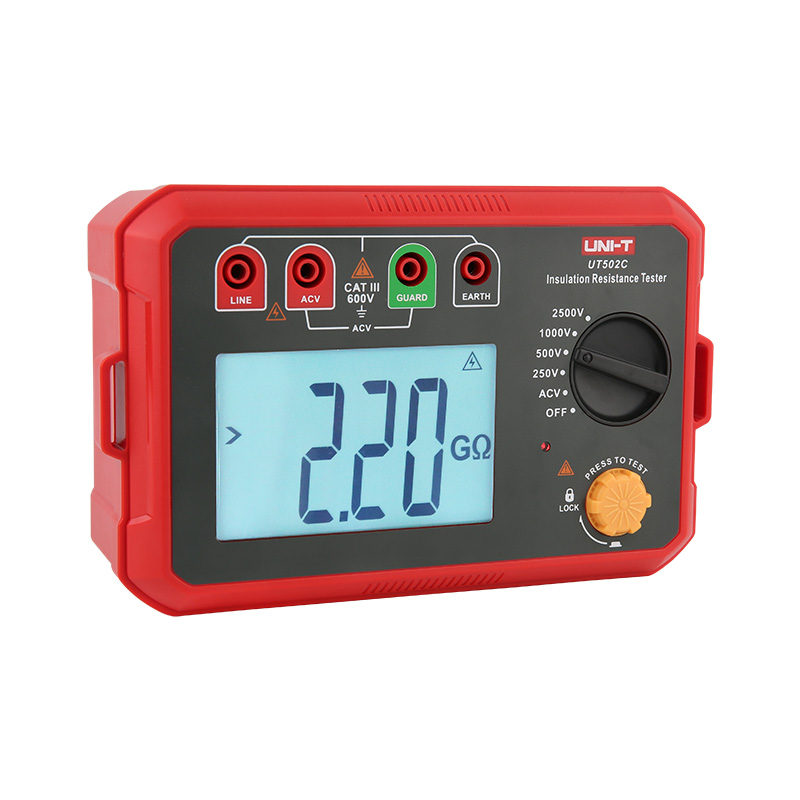

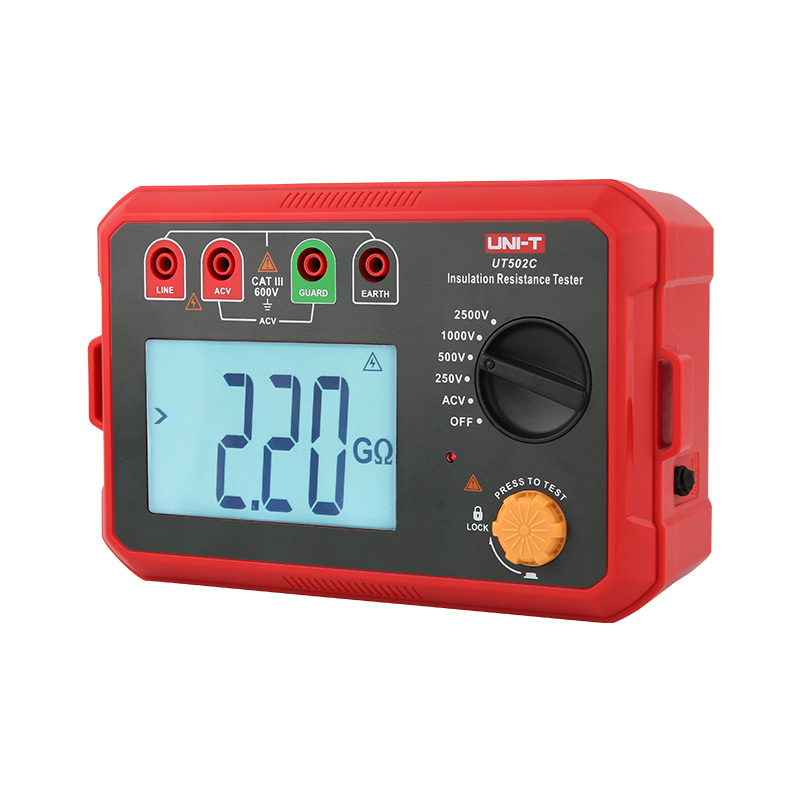

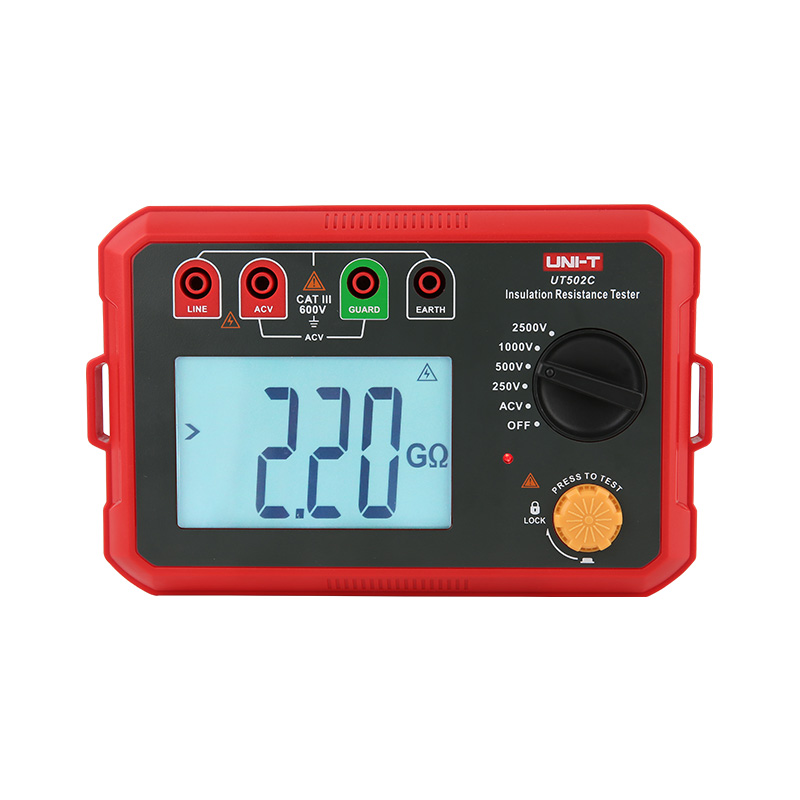

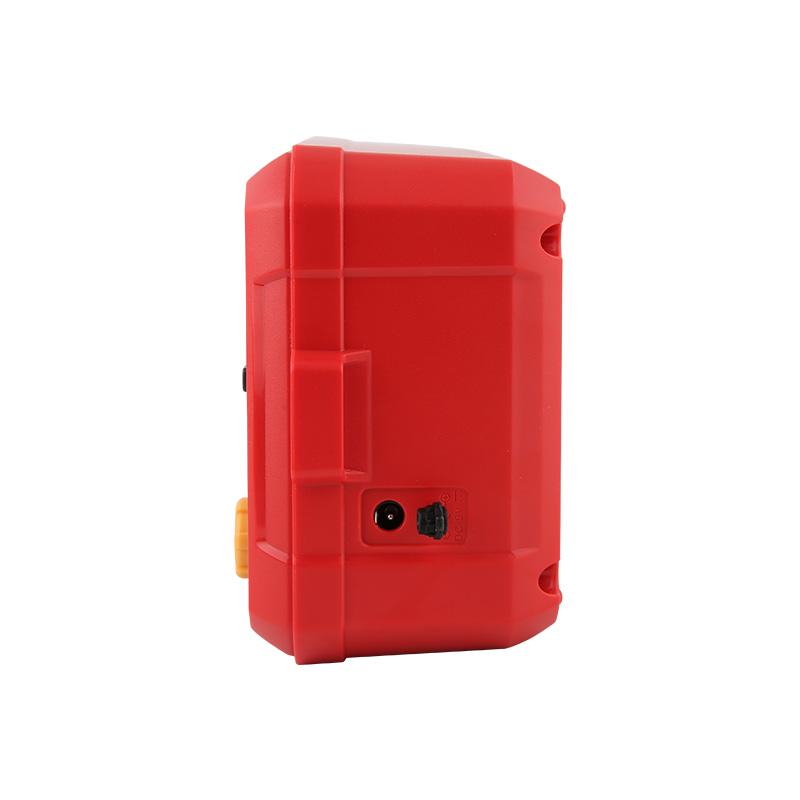

UT502C Insulation Resistance Tester (Discontinued)

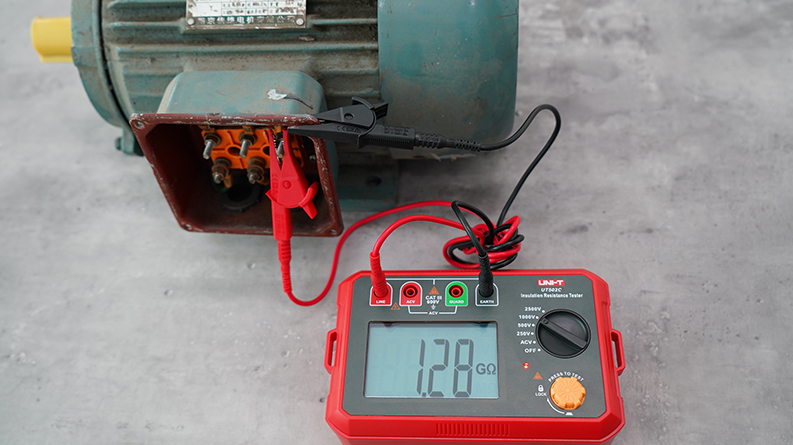

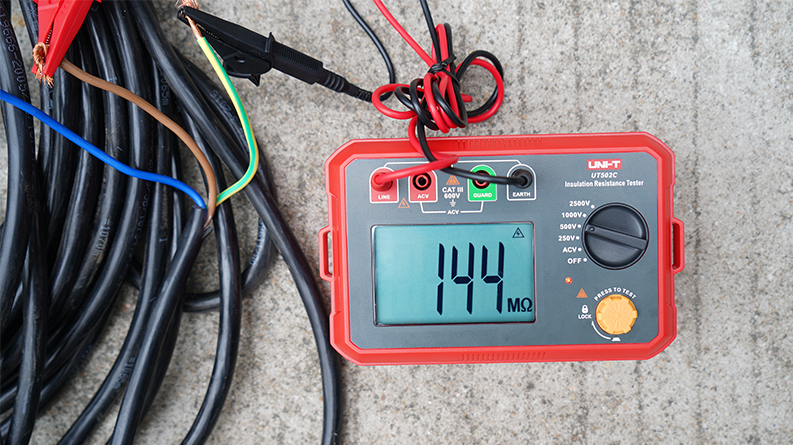

UT502C Insulation Resistance Tester, with their new design, large scale integrated circuit and digital circuit, is utilized to measure insulation resistance, alternating voltage and other parameters. The tester has features of complete functions, high accuracy, stable performances, comfortable and reliable operation. The tester is used in maintenance, test and verification for various electrical equipment and is applicable to measure insulation resistance of transformer, motor, cable, switch, electric appliances, etc.
Description
Features of UT502C Insulation Resistance Tester
● Auto power off
● Self-lock funciton
● Overrange indication
● Backlight function
Specifications of UT502C Insulation Resistance Tester
| Specifications | Output Voltage | Measurement Range | UT502C |
| Insulation Resistance Measurement | 100V | 0.00MΩ～100MΩ | |
| 250V | 0.00MΩ～500MΩ | √ | |
| 500V | 0.00MΩ～2.00GΩ | √ | |
| 1000V | 0.00MΩ～5.00GΩ | √ | |
| 2500V | 0.00MΩ～20.0GΩ | √ | |
| Accuracy | 0.00MΩ～99.9MΩ: ±(3%+5) 100MΩ～5.00GΩ: ±(5%+5) |
||
| 0.00MΩ～99.9MΩ: ±(3%+5) 100MΩ～9.99GΩ: ±(5%+5) 10.0GΩ～20.0GΩ: ±(10%+5) |
√ | ||
| Voltage Measurement Range | AC: 30V～750V (50Hz/60Hz)， ±(2%+3) | ||
| Short-Circuit Current | <2mA | ||
| Powered by | Adaptor (optional,without charging function) | ||
| 6×1.5V AA alkaline batteries | |||
| Auto Power Off | √ | ||
| Self-Lock Function | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| Auto Discharge | √ | ||
| Audible and Visual Alarm | √ | ||
| Overrange Indication | √ | ||
| Backlight function | √ | ||
| Altitude | ≤2000 m | ||
| Operating temperature and Humidity | 0℃~35℃,<75% RH | ||
| Storage temperature and Humidity | -20℃~60℃,<80% RH | ||
| Rating | CAT III 600V | ||
| General Characteristics | |||
| Product Color | Red + grey | ||
| Product Weight (Include batteries) |
0.6kg | ||
| Product Size | 183.5mmx115mmx74mm | ||
| Accessories | User manual *1 pcs；test lead *1 set；Alligator *1 set,Strap *1 pcs, 1.5V AA batteries *6pcs. | ||
| Standard Package | Gift box+ cloth bag | ||
| Package Quantity | Outer Carton：20pcs | ||
| Package Size | 345mmx335mmx245mm | ||
Documents
Tittle
Download
Related Products
-

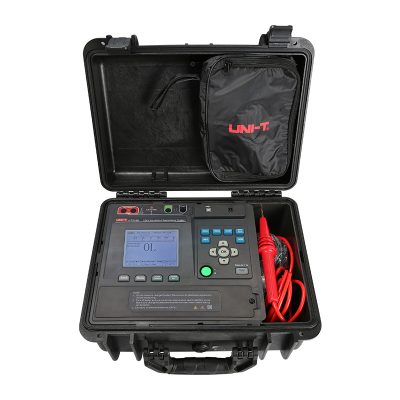

UT516B Insulation Resistance Tester
Widely used in the measurement and maintenance of power equipment and power supply circuitsLearn moreCompare ModelsCompare: -

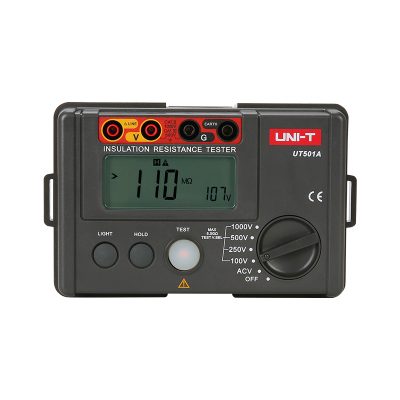

UT500 Series Insulation Resistance Testers
Used to measure the insulation resistance of electrical equipment and household appliancesLearn moreCompare ModelsCompare: -

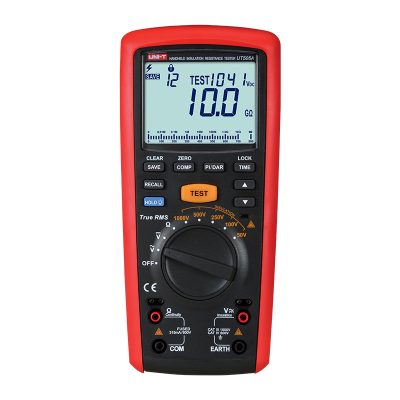

UT505 Series Handheld Insulation Resistance Testers
Combining features of a digital multimeter and insulation resistance tester in oneLearn moreCompare ModelsCompare: -

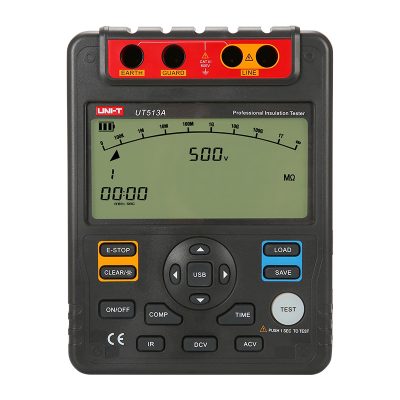

UT510 Series Insulation Resistance Testers
