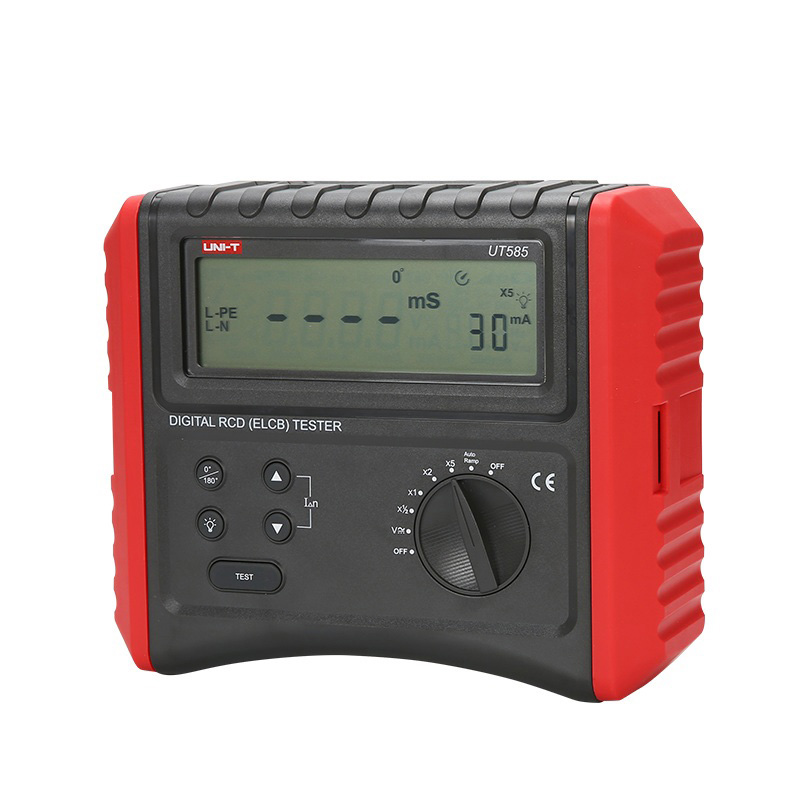

UT585/UT586 Digital RCD (ELCB) Testers (Discontinued)
UT585/586 digital RCD (ELCB) testers are necessary tools for engineering quality monitoring by measuring RCD (ELCB) trip time and current. Users can set X1/2, X1, X2, X5 the rated trip current to check RCD (ELCB) response rate under various conditions.
Models: UT585, UT586
Description
Features of UT585/UT586 Digital RCD (ELCB) Testers
● Lock measurement; automatically begin measurement after powering on
● Test lead connection check
● Phase angle selection (0°and 180°), can detect the fastest trigger time
● AUTO RAMP measurement, trip current and time real-time display
● 1A trigger test
● Fuse protection; data hold, over range indication, double insulation
Specifications of UT585/UT586 Digital RCD (ELCB) Testers
| Specifications | Range | UT585 | UT586 | ||
| RCD measurement | Range setting | Rated operating current | Trip time | ||
| x 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 1000ms | √ | ||
| 10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA | 2000ms | √ | |||
| x 1 | 10mA/20mA/30mA/100mA/300mA/500mA | 1000ms | √ | ||
| 10mA/20mA/30mA/100mA/200mA/300mA | 2000ms | √ | |||
| 500mA/1000mA | 200ms | √ | |||
| x 2 | 10mA/20mA/30mA/100mA/300mA | 1000ms | √ | ||
| 10mA/20mA/30mA/100mA/200mA/300mA/500mA | 200ms | √ | |||
| x 5 | 10mA/20mA/30mA/100mA/200mA | 300ms | √ | ||
| 10mA/20mA/30mA/100mA/200mA | 200ms | √ | |||
| AUTO RAMP | 10mA/20mA/30mA/100mA/300mA/500mA | 300ms | √ | ||
| 10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA | 300ms | √ | |||
| MANUAL RAMP | 10mA/20mA/30mA/100mA/200mA/300mA/500mA/1000mA | 300ms | √ | ||
| Trip current accuracy | ±10% | ±10% | |||
| Trip time accuracy | ±(0.6%+4) | ±(0.6%+4) | |||
| Trip time resolution | 1ms | 1ms | |||
| Operating voltage (frequency): 230V (50Hz) | ±10% | ±10% | |||
| AC voltage | 60V~400V (Frequency: 50Hz~60Hz) | ±(5%+2) | ±(5%+2) | ||
| DC voltage | ±60V~±400V | ±(5%+2) | |||
| Features | |||||
| Auto power off | √ | √ | |||
| Low battery indication | √ | √ | |||
| Data hold | √ | √ | |||
| LCD backlight | √ | √ | |||
| Contact voltage automatic detection | √ | √ | |||
| Over-temperature detection | √ | √ | |||
| Lock measurement | √ | √ | |||
| Connections check | Lamps indication | √ | √ | ||
| Fused | √ | √ | |||
| General Characteristics | |||||
| Power | 1.5V battery (R6) x 8 | ||||
| Display | 125mm x 37mm | ||||
| Product color | Red and grey | ||||
| Product net weight | 1000g | ||||
| Product size | 210mm x 175mm x 90mm | ||||
| Standard accessories | Batteries, test line, holster, gallus, tool box | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 1pcs | ||||
| Standard carton measurement | 340mm x 140mm x 340mm | ||||
| Standard carton gross weight | 3.4kg | ||||
