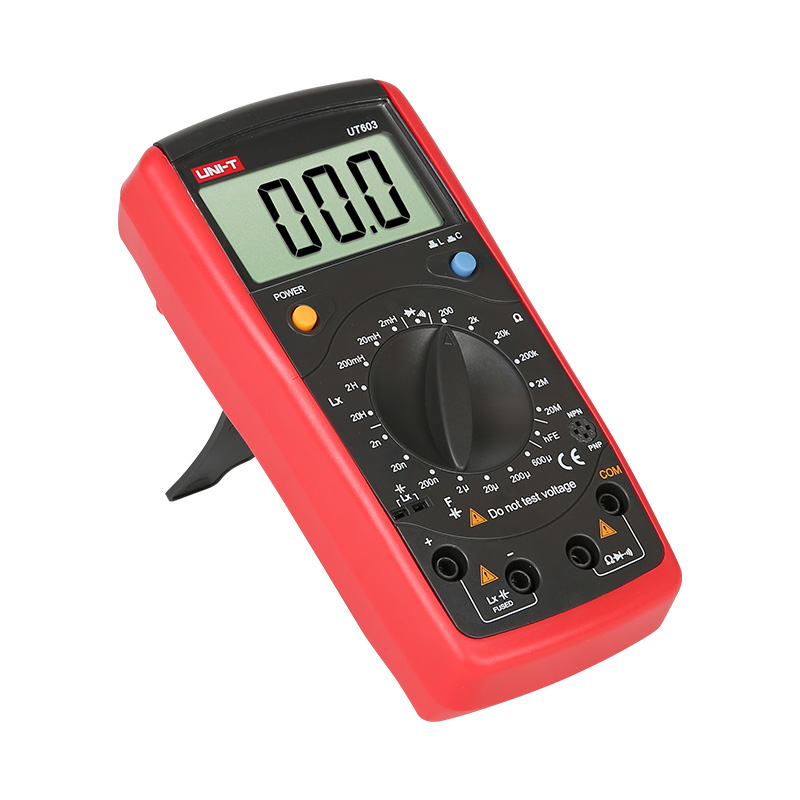

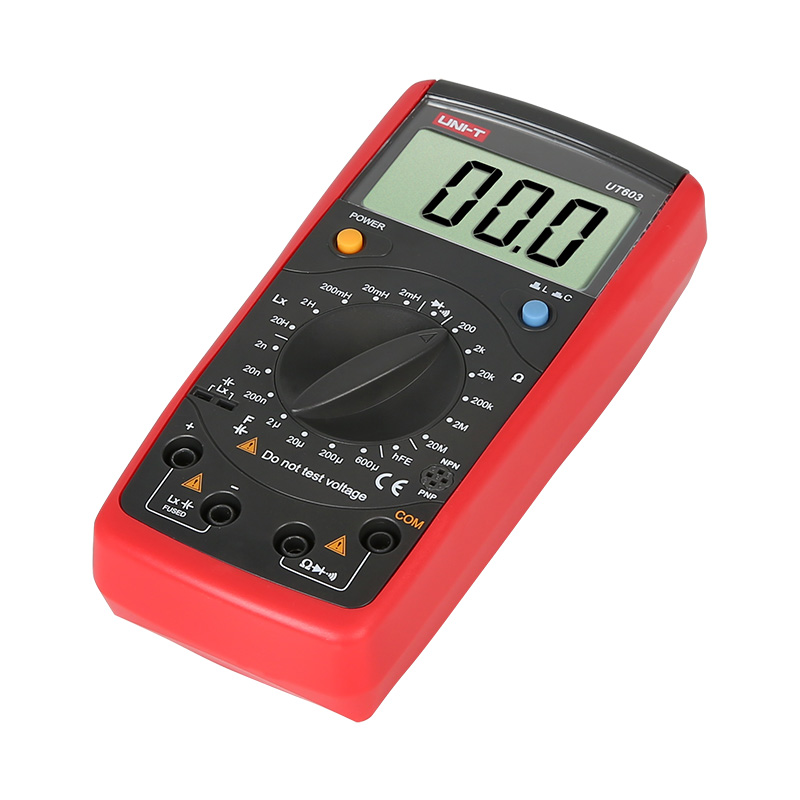

UT600 Series Digital Inductance Capacitance Meters
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Models in UT600 series: UT601, UT603
Description
Features of UT600 Series Digital Inductance Capacitance Meters
Certifications: CE, UKCA
● Manual range
● Continuity buzzer
● Diode/transistor
● Low battery indication
Specifications of UT600 Series Digital Inductance Capacitance Meters
| Specifications | Range | UT601 | UT603 |
| Resistance (Ω) | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ | ±(0.8%+1) | |
| 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ | |||
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) | ||
| Capacitance (F) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | ±(0.5%+10) | |
| 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) | ||
| Inductance (H) | 2mH/20mH/200mH/2H/20H/200H | ||
| 2mH/20mH/200mH/2H/20H | ±(2%+8) | ||
| Features | |||
| Display count | 2000 | 2000 | |
| Manual range | √ | √ | |
| Diode | √ | √ | |
| Transistor | √ | √ | |
| Continuity buzzer | √ | √ | |
| Low battery indication | √ | √ | |
| Data hold | |||
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| Display | 61mm x 32 mm | ||
| Product color | Red and grey | ||
| Product net weight | UT601/UT602: 310g, UT603: 312g | ||
| Product size | 172mm x 83mm x 38mm | ||
| Standard accessories | Battery, test leads with alligator clips, holster | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | ||
| Standard carton gross weight | 9.6kg | ||
Documents
Tittle
Download
Related Products
-

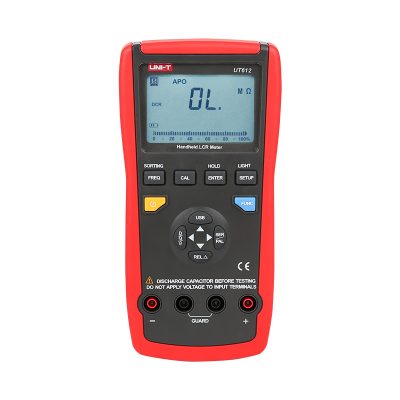

UT612 LCR Meter
