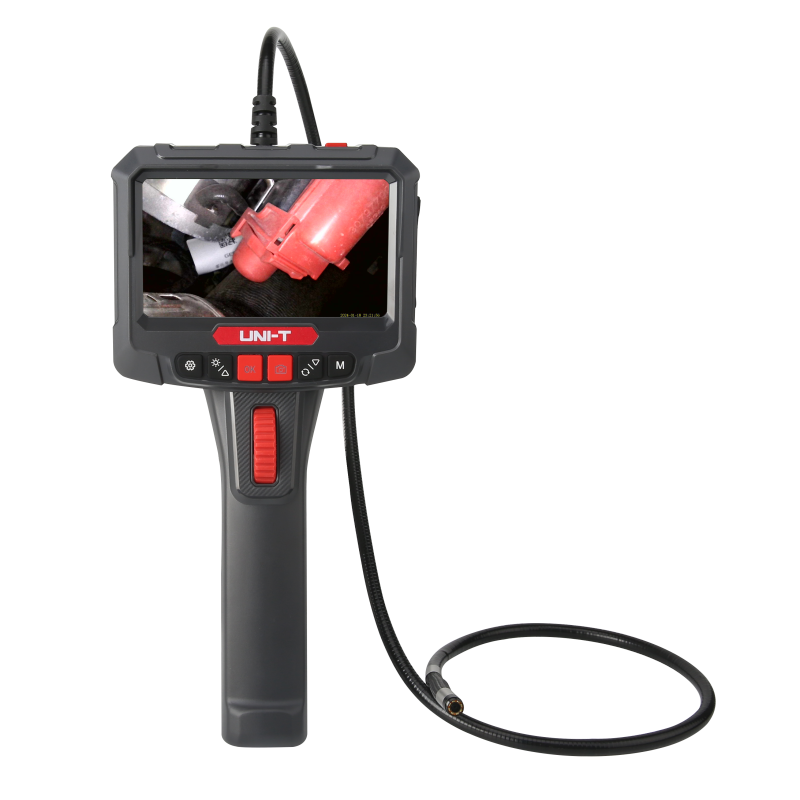

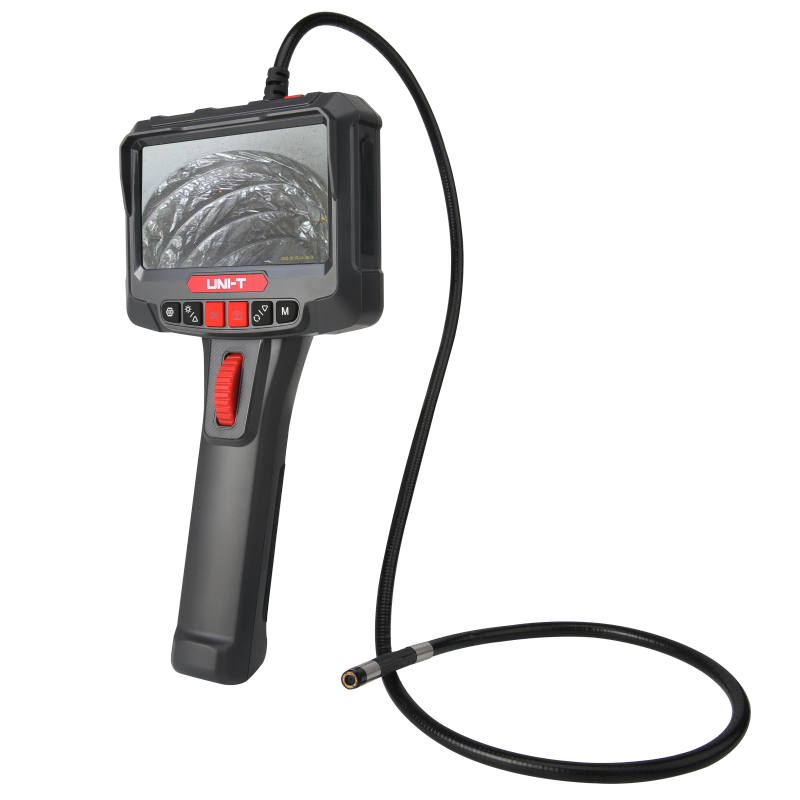

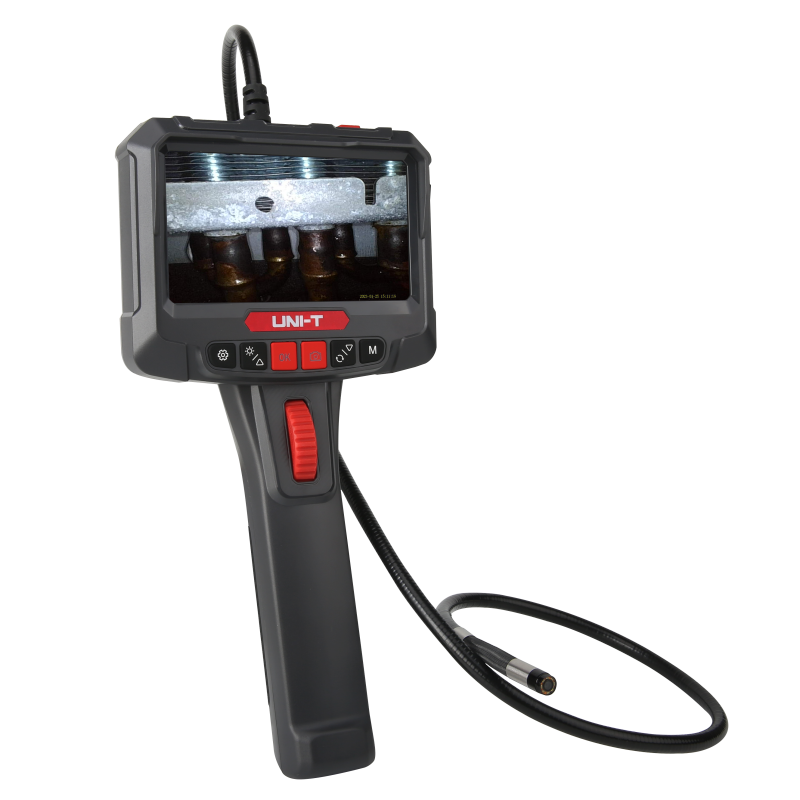

UT663B 360°Rotatable Industrial Borescope (Coming Soon)
The UT663B series industrial endoscope is specially designed and manufactured to meet the market’s demand for complex environments that are beyond the reach of the human eye. The camera features a bidirectional 180° rotation, allowing it to navigate around blind spots and adjust angles, making it suitable for various narrow and curved spaces that are difficult to access.
Description
Features of UT663B
Certifications: CE,RoHS
● 5″ Display Sreen
● 8 Adjustable Brightness LEDs

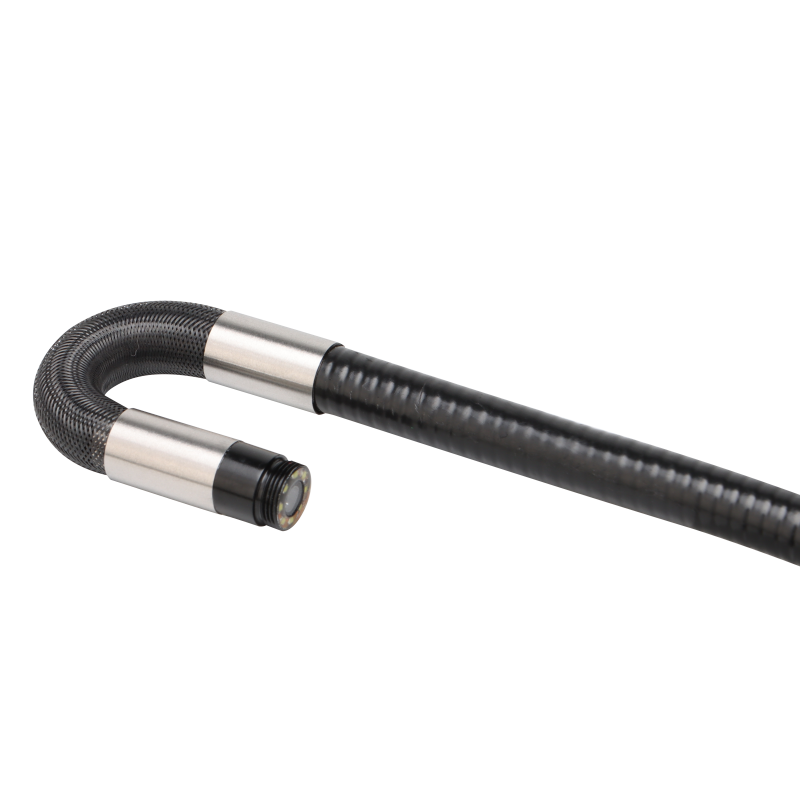

● 180° Bi-directional Rotation
● Photo-Capturing
● Large Storage of Li-ion Battery
● High Temperature Power-Off Protection
● IP67-Rated Camera
● Optional Hose Length: 1m, 2m, 3m
Specifications
| Specifications | ||||
| Models | UT663B | UT663B-2m | UT663B-3m | |
| System | Screen Size | 5.0″ | ||
| System Languages | English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Korean | |||
| Image Pixels | JPG:1920*1080 | |||
| Video Pixels | AVI: 1920*1080 | |||
| Basic Functions | Photo-capturing, Video-recording, Playback, High temperature warning protection, Image rotation, Audio recording | |||
| Storage | Standard 32GB-TF (maximum 64GB) | |||
| Hose | Rotational Angle | 180° Bi-directional | ||
| Hose Material | Medal and hard hose | |||
| Hose Length | 1m | 2m | 3m | |
| Lens | Lens Diameter | 8mm | ||
| Light Sensor Chip | CMOS | |||
| Field of View (FOV) | 70° | |||
| Depth of Field (DOF) | 20~100mm | |||
| Adjustable LED Lights | 4-Setting, 8 LEDs | |||
| Pixels | 1000K | |||
| IP Rating | IP67 | |||
| Battery | Battery | 3.7V/3000mAh | ||
| Battery Life | 4h | |||
| Working Conditions | Lens Temperature | 0°C~80°C | ||
| Working Temperature | 0°C~45°C | |||
| Humidity | <90%RH, No condensation | |||
| Characteristics | ||||

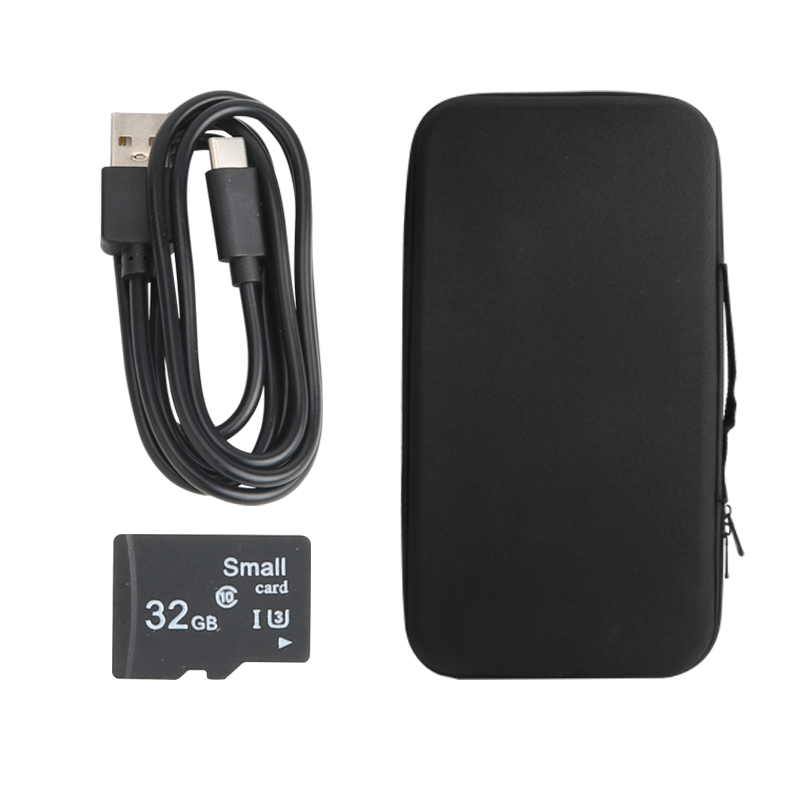

| Standrad Accessories | 360°Rotatable Industrial Borescope*1, Type-C Cable*1, User Manual*1, Gift Box*1, Cloth Bag*1,32GB-TF Card*1 | |||
| Standard Quantity Per Carton | 6pcs | |||
