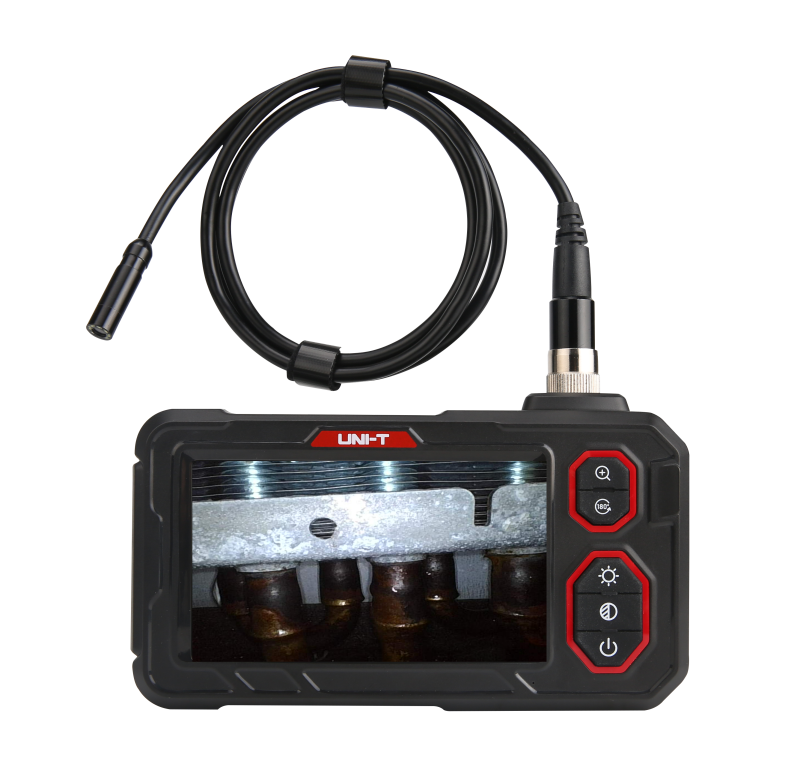

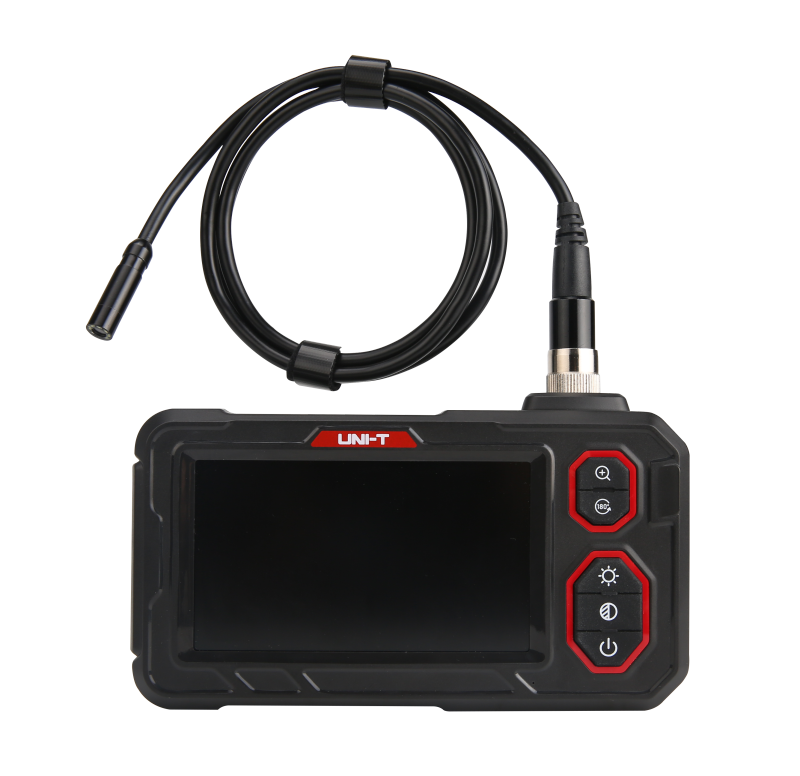

UT667 Industrial Borescope
The UT667 series large-screen industrial endoscope is specifically designed to meet the non-destructive testing needs of modern core industries. It allows for efficient and precise inspections deep inside equipment without the need to disassemble or interrupt operations. The endoscope is widely used in various sectors of modern core industries, including petrochemical, aerospace, automotive, shipbuilding, electrical, chemical, power, gas, nuclear energy, civil engineering, and more.
Description
Features of UT667 Industrial Borescope
Certifications: CE, RoHS
● 4.3″ Display Screen
● 8 Adjustable Brightness LEDs
● Large Storage of Li-ion Battery
● IP67-Rated Camera
● Image Rotation
● Aviation-Plug Hose
● Optional Hose Length: 1m, 5m, 10m
Specifications
| Specifications | ||||
| Models | UT667 | UT667-5m | UT667-10m | |
| System | Screen Size | 4.3″IPS LCD | ||
| System Languages | English | |||
| Screen Pixels | 1280*720 | |||
| Basic Functions | Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out | |||

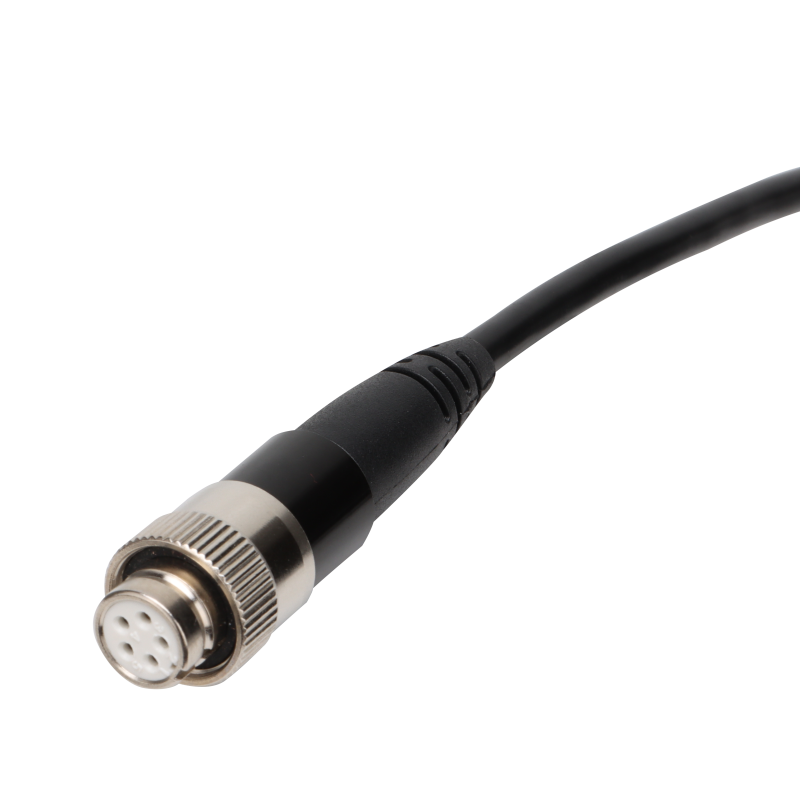

| Hose | Hose Material | Replaceable hardwire with aviation plug | ||
| Hose Length | 1m | 5m | 10m | |

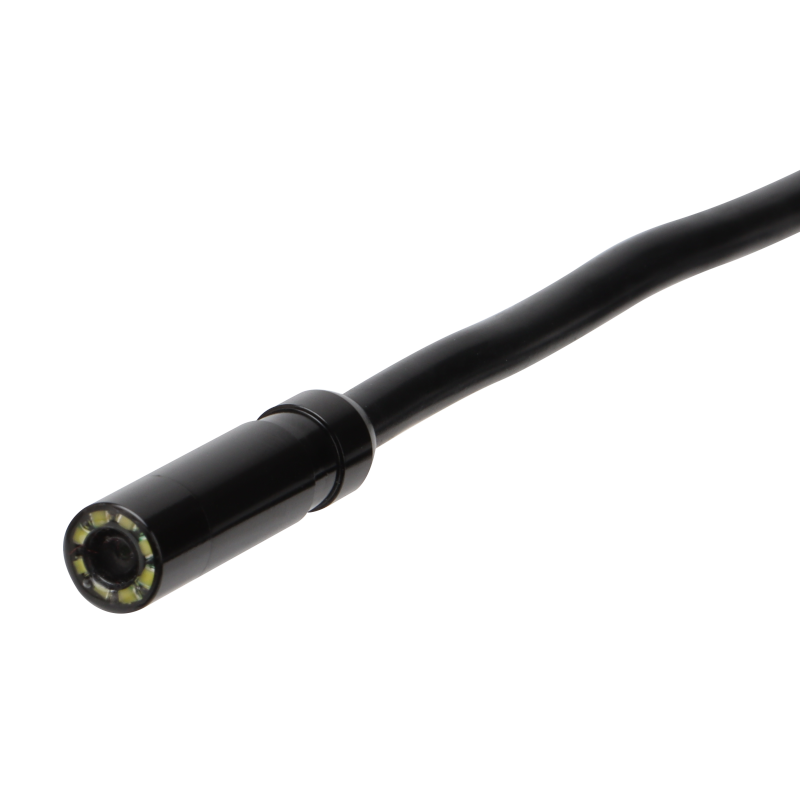

| Lens | Lens Diameter | 8mm | ||
| Light Sensor Chip | CMOS | |||
| Field of View (FOV) | 70° | |||
| Depth of Field (DOF) | 20~100mm | |||
| Adjustable LED Lights | 4-Setting, 8 LEDs | |||
| Pixels | 300K | |||
| IP Rating | IP67 | |||
| Battery | Battery | 3.7V/2000mAh | ||
| Battery Life | 5h | |||
| Working Conditions | Lens Temperature | 0°C~80°C | ||
| Working Temperature | 0°C~45°C | |||
| Humidity | <90%RH, No condensation | |||
| Characteristics | ||||

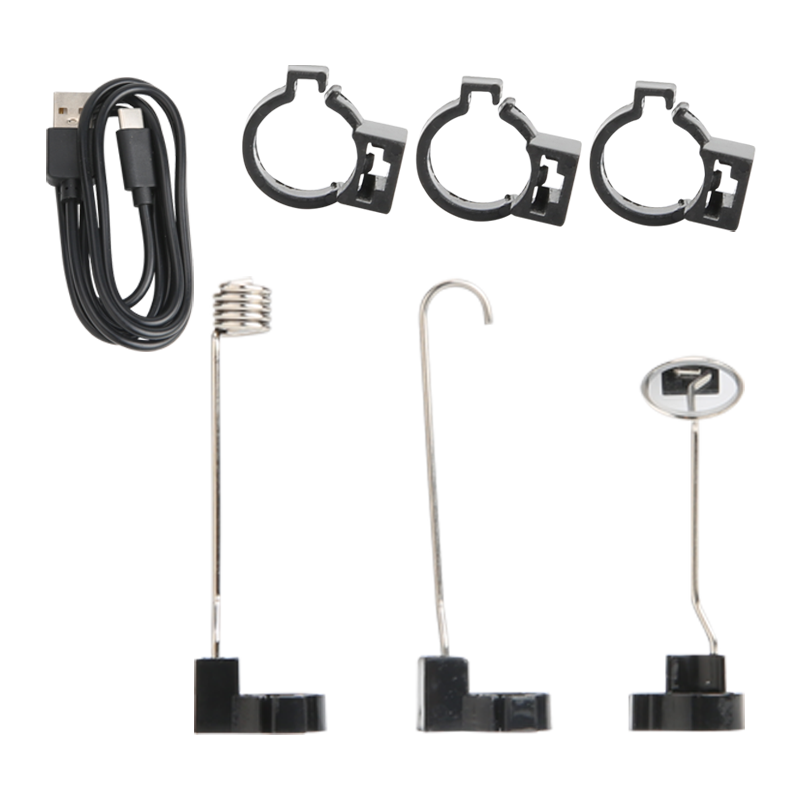

| Standrad Accessories | Handheld Single Lens Industrial Borescope*1, Type-C Cable*1, Gift Box*1, User Manual*1, Blister Tray*1, Hook*1, Side Mirror*1, Magnet*1, Fixed Buckle*3. | |||
| Standard Quantity Per Carton | 20pcs | |||
