UT673PV Solar MPPT Meter (Coming soon)

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Features of UT673PV Solar MPPT Meter

Certifications (UT673PV series only): CE, cETLus, RoHS

● Maximum power test (Pmax) 5~800W
● Peak power voltage (Vmp) 12~60V
● Peak power current (Imp) 0~35A
● Open circuit voltage (Voc) 12~60V
● Short circuit current (Isc) 0~35A
● Large screen and multiple result display
● No batteries needed, powered by the solar panel
● Equipped with MC4 test lead
● Portable and convenient

Specifications

Specification
Max power measurement 5~800W  ±(1.0%+10)
Max power current(DC) 0~35A  ±(1.5%+5)
Max power voltage(DC) 12~60V ±(1.5%+5)
Open circuit current(DC) 12~60V  ±(1.5%+5)
Short circuit current(DC) 0~35A ±(1.5%+5)
General Features
Display Large LCD (52 * 66mm)
Reverse polarity
connect Protection
Over voltage protection
Over current protection
Over temperature protection
Over power protection
Manual/Auto MPPT test
Data hold
Power supply No battery needed, powered by solar panel
Ovecategory CAT 0 60V
Certificate CE, cETLus, RoHS

Applications

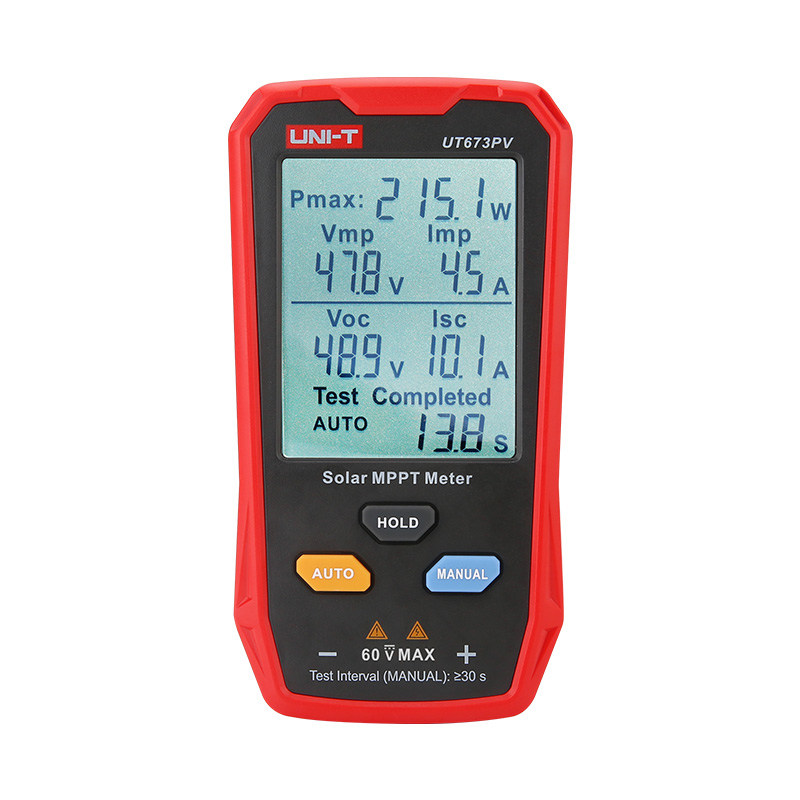

applications of UT673PV-1

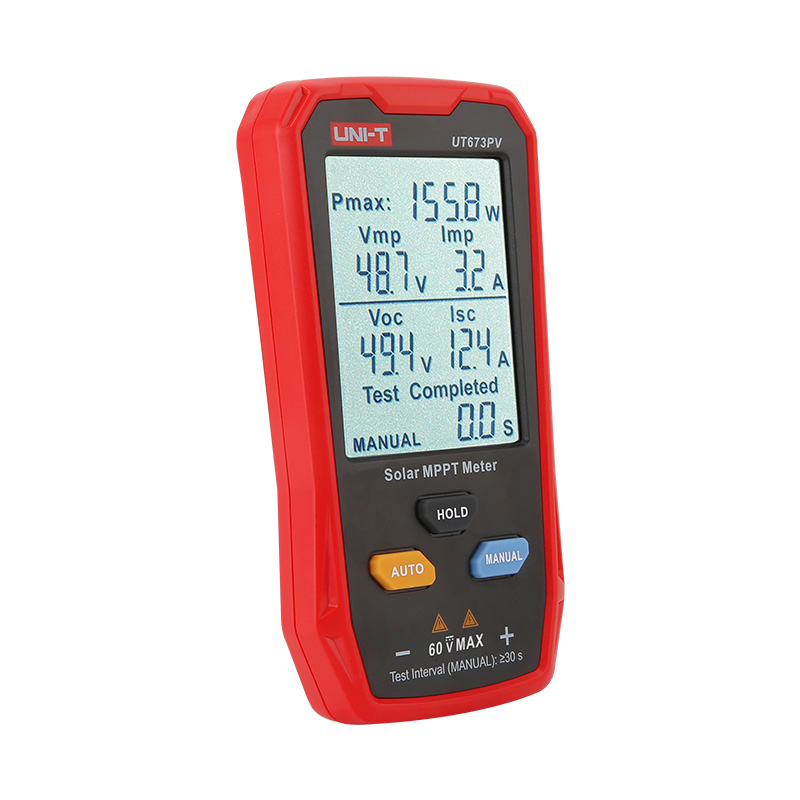

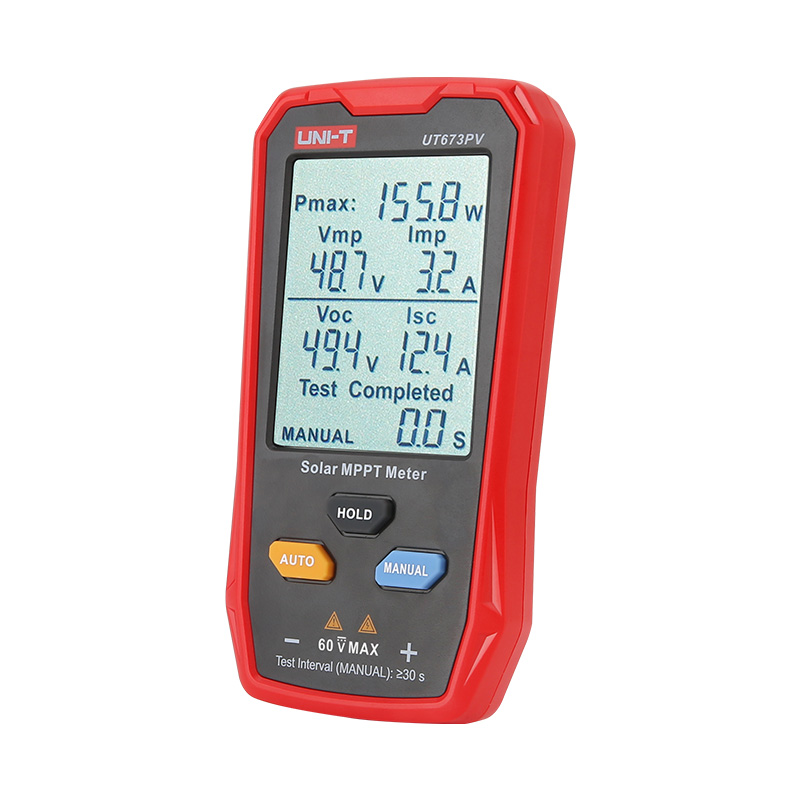

Large LCD with multiple readings:
A single measurement that displays all essential test values can significantly enhance work efficiency.
applications of UT673PV-2
Portable and lightweight design:
With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks.
applications of UT673PV-3

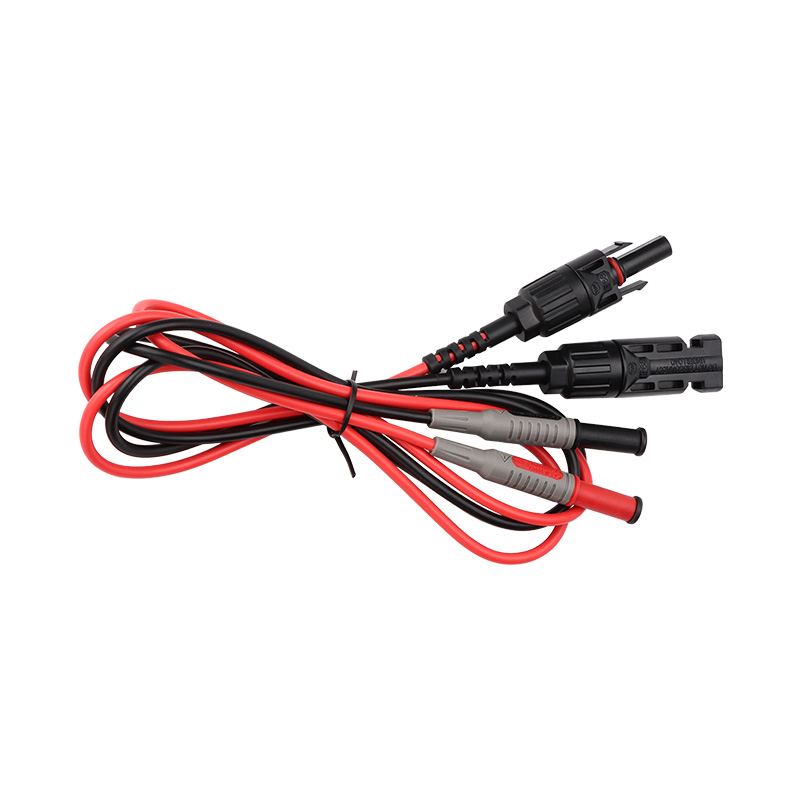

Equipped with MC4 solar panel connector:
With the MC4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly.
applications of UT673PV-4
Power supply:
There is no requirement for batteries as the measurement can be effortlessly performed for extended periods.
