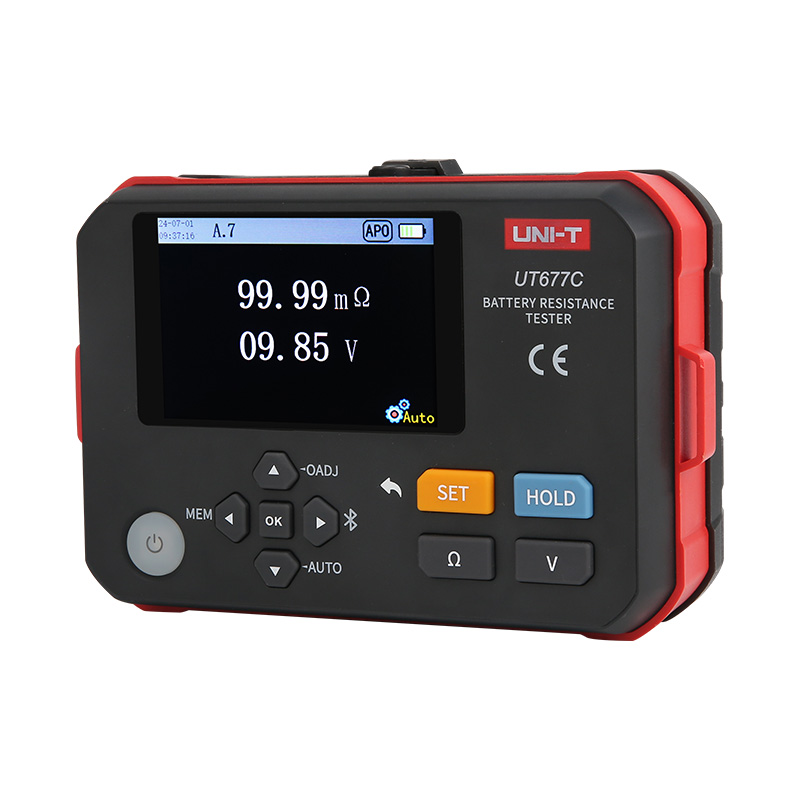

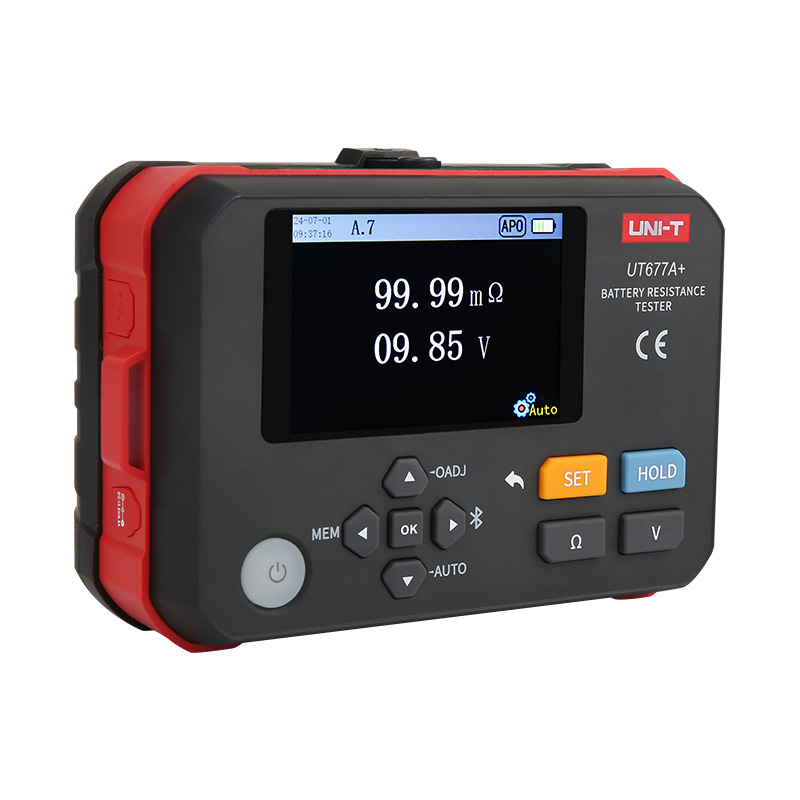

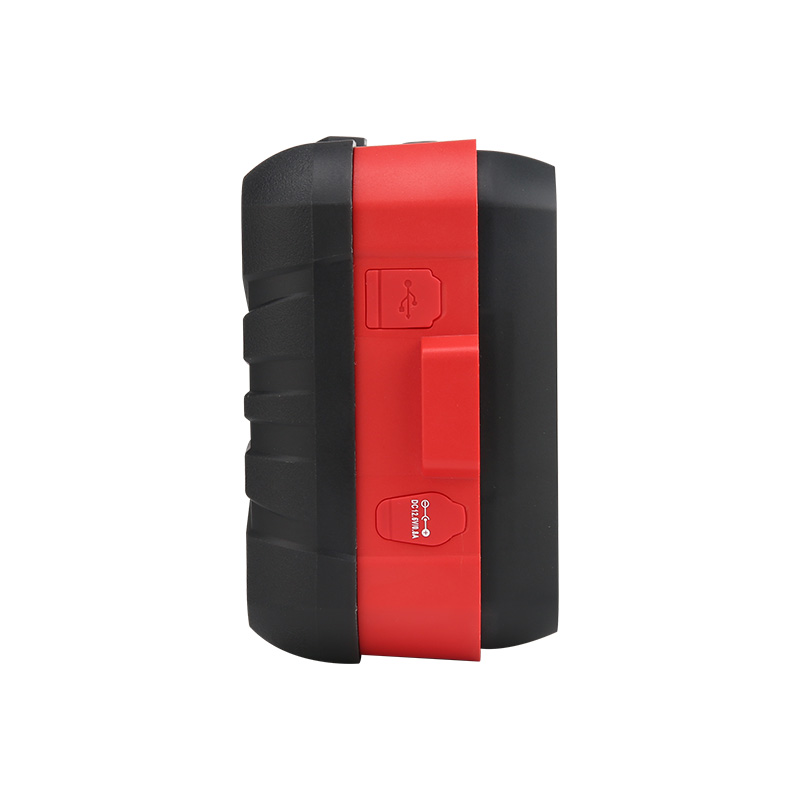

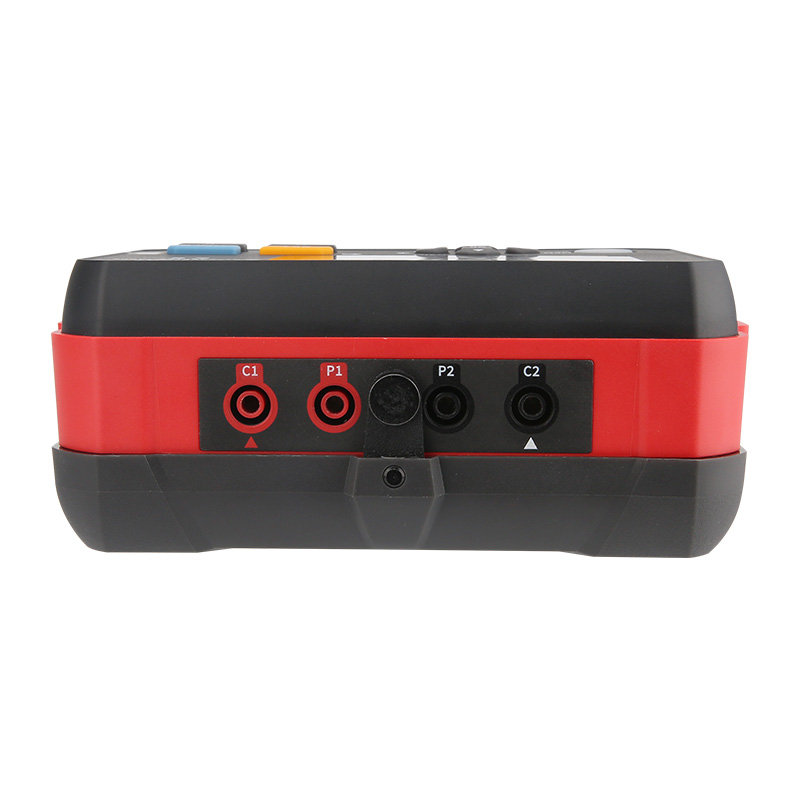

UT677A+/UT677C Internal Resistance Tester
The UT677 series are devices for assessing the condition of rechargeable batteries, including lead-acid and lithium types, by measuring their internal resistance and voltage. Using the AC four-terminal method, it accurately measures internal resistance without interference from lead resistance. Features include data storage, retrieval, alarms, auto shut-off, and strong anti-interference, making it essential for battery production, installation, and maintenance.
Description
Features of UT677 series (UT677A+/UT677C) Battery inernal resistance tester
Certifications: CE
1. Battery internal resistance: 0-3Ω(4 ranges; 1μΩ);
2. Voltage(UT677A+): 0-70V;
3. Voltage(UT677C): 0-120V;
4. Manual & auto measurement;
5. PC software and Bluetooth APP supported;
6. Rechargeable Lithium Battery: 2600mAh;
7. Auto power off and low battery indication;
8. Fast response (200ms); test time: 2s
9. Data hold and storage (500 set);
10. CE certificated
Specifications
| Technical Specifications | |||
| Function | UT677A+ | UT677C | Resolution |
| Battery Internal resistance | 0.000mΩ~3 mΩ / ±1 % fs. ±20 dgt | 0.000mΩ~3 mΩ / ±1 % fs. ±20 dgt | 1 μ Ω |
| 3.000mΩ~30 mΩ / ±0.5 % fs. ±15 dgt. | 3.000mΩ~30 mΩ / ±0.5 % fs. ±15 dgt. | 10 μΩ | |
| 3.000mΩ~300 mΩ / ±0.5 % fs. ±15 dgt. | 3.000mΩ~300 mΩ / ±0.5 % fs. ±15 dgt. | 100 μΩ | |
| 300mΩ~3 Ω / ±0.5 % fs. ±15 dgt. | 300mΩ~3 Ω / ±0.5 % fs. ±15 dgt. | 1mΩ | |
| Battery Voltage range: | 0.000V~±7 V / ±0.2 % fs. ±10 dgt. | 0.000V~±7 V / ±0.2 % fs. ±10 dgt. | 1 mV |
| 7 V~±71.00V/ ±0.2 % fs. ±10 dgt. | 7 V~100.00V/ ±0.2 % fs. ±10 dgt | 10 mV | |
| N/A | 100V~120.00V/ ±0.2 % fs. ±10 dgt | 100 mV | |
| Features | |||
| Function | 1, Battery internal resistance measurement; 2, Battery voltage measurement |
||
| Battery types | Lead-acid battery, lithium battery, and other types of batteries. | ||
| Measurement methods | Internal resistance: 1kHz AC 4-terminal test method; Open circuit terminal voltage: 3V max |
||
| Test Current：2.0mA~200mA (Varying range correspond to varying test currents. | |||
| refresh rate：5 times/s | |||
| Anti interference | Yes, Automatic frequency tuning: 920Hz~1080Hz | ||
| Power supply | DC 11.1V lithium battery 2600mAh | ||
| Max input voltage | DC 120V (between positive side and negative side) | ||
| Response time | 200ms | ||
| Screen | 3.5″（480*320 color screen） | ||
| Meter dimension | 170mm×115mm×65mm (L*W*H) | ||
| Data interface | Type C, save the testing data and upload it to PC | ||
| Bluetooth | YES | ||
| Data hold | Auto/Manual data hold | ||
| Data storage | 500 sets | ||
| Measurement judgment function | PASS, WARNING, FAIL judgment thresholds can be preset | ||
| Low battery indication | YES, 5 battery level | ||
| Auto power off | YES, Around 15 minutes | ||
| Weight(meter) | 674.0g (batteries included) | ||
| Accuracy Guaranteed Temperature Humidity | 23℃±5℃, <75%rh | ||
| Working temperature | -10℃～40℃；below 80%RH | ||
| Storage temperature | -20℃～60℃；below 70%RH | ||
| Puncture test | AC 3700V/RMS(between circuit and case) | ||
| External magnetic field | ＜40A/m | ||
| Suitable for safety regulations | IEC 61010; CE certificated | ||
