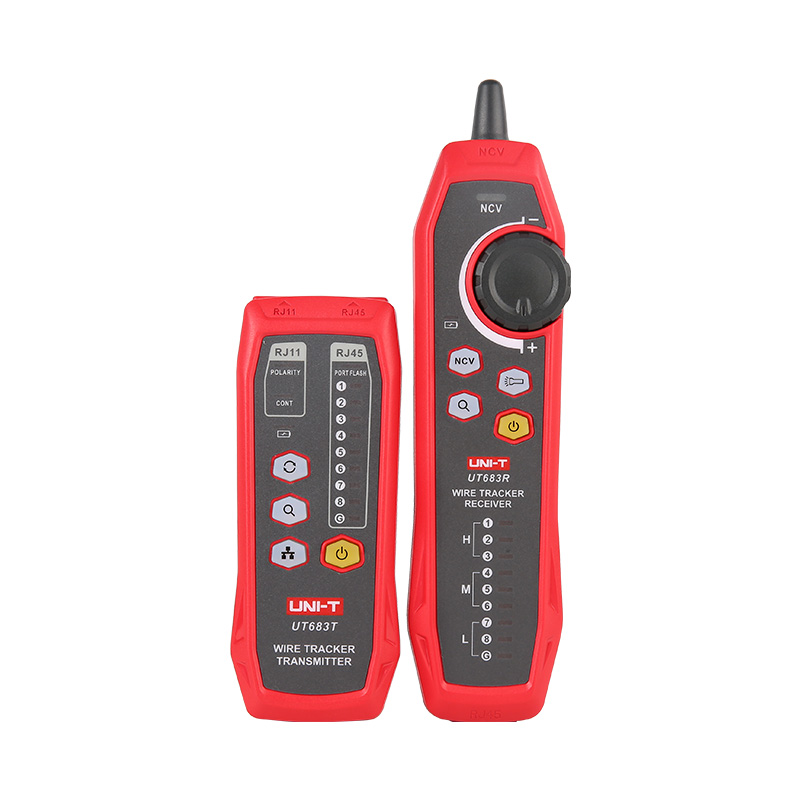

UT683KIT Wire Tracker
The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Description
Features of UT683KIT Wire Tracker
Certifications: CE, UKCA
● Line function

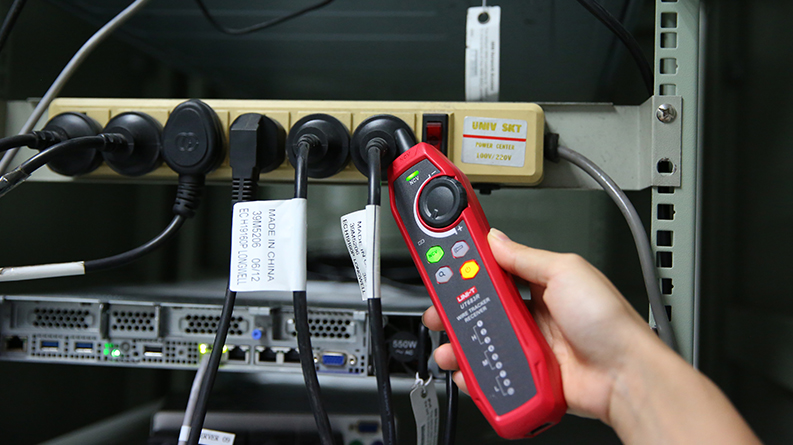

● NCV function
● Withstand voltage DC 60V
● Port flashes
Specifications of UT683KIT Wire Tracker
| Specifications | Description |
| Certificates | CE, RoHS |
| Transmitter | |
| Port flashing | √ |

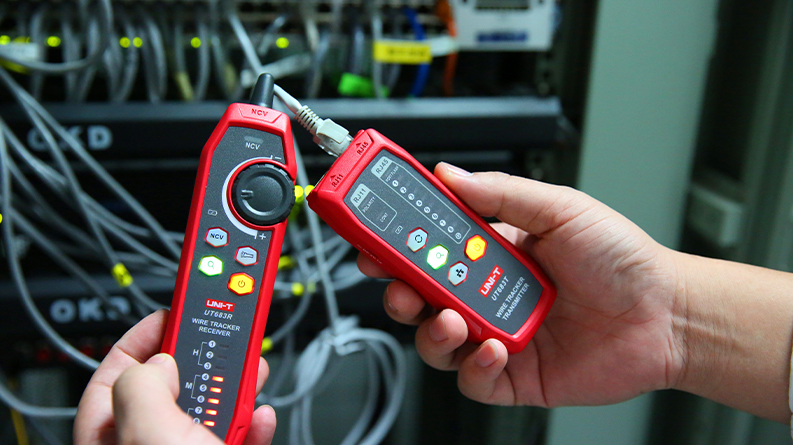

| Wire tracking | √ |
| Line alignment | √ |
| Open-short test | 10kΩ |
| Polarity test | √ |
| Operating time | ＞8 hours |
| Receiver | |
| Wire tracking | RJ11＞3000m; RJ45＞100m |
| NCV function | √ |
| Headset jack | 3.5mm |
| Low battery indication | √ |
| Operating time | ＞5 hours |
| General Characteristics | |
| Power | 1050mAh rechargeable lithium battery |
| Product net weight | Transmitter: around 95g; Receiver: around 127g |
| Product size | Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm |
| Standard accessories | USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual |
| Standard individual packing | Gift box, carrying bag |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 480mm x 370mm x 325mm |
| Standard carton gross weight | About 10kg |
