This product has been discontinued. Replaced by UT695D-10 .

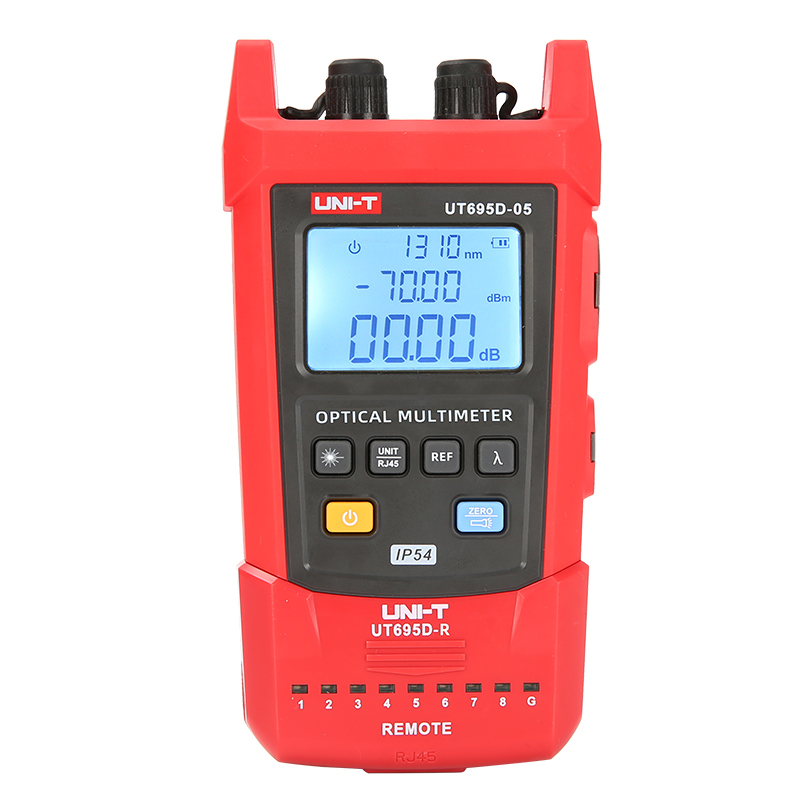

UT695D-5 Optical Multimeter (Discontinued)
UT695D-5 includes optical power meter, visual fault locator, flashlight, and remote cable tester. It is used for optical signal power measurement, optical fiber line loss test, optical device insertion loss test, optical fiber fault detection, optical fiber breakpoint location, end-to-end optical fiber identification and more. Designed with IP54 dust and water prevention function, UT695D-5 can be applied to optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV and other fields.
Description
Features of UT695D-5 Optical Multimeter
Certifications: CE, RoHS
● Flashlight
● Low battery indication
● Auto power off
● IP54/2m drop proof
Specifications of UT695D-5 Optical Multimeter
| Specifications | Range | UT695D-5 |
| Certificates | CE, RoHS | |
| Optical power meter | ||
| Wavelength range | 800nm~1700nm | √ |
| Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm | √ |
| Measurement range | -70~3dBm | √ |
| Uncertainty | ±5% | √ |
| Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | √ |
| Connector | 2.5mm universal connector | √ |
| Detector type | InGaAs | √ |
| Visual fault locator | ||
| Wavelength | 650nm±10nm | √ |
| Power | 5mW (measurable optical fiber length: approximately 2~5km) | √ |
| Mode | Continuous/pulse | √ |
| Connector | 2.5mm universal connector | √ |
| LAN cable sequence test | Line sequence measurement (LED1~8, LED_G) | |
| General Characteristics | ||
| Power | 1050mAh rechargeable battery | |
| Display | 42mm x 33mm | |
| Product net weight | 168g | |
| Product size | 132mm x 68mm x 31mm | |
| Standard accessory | USB cable, English manual | |
| Standard individual packing | Gift box | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 305mm x 270mm x 130mm | |
| Standard carton gross weight | About 2.7kg | |
