UT81 Series Scope Digital Multimeters
UT81 series handheld digital oscilloscope multimeters combine oscilloscope and digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer.
Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance.

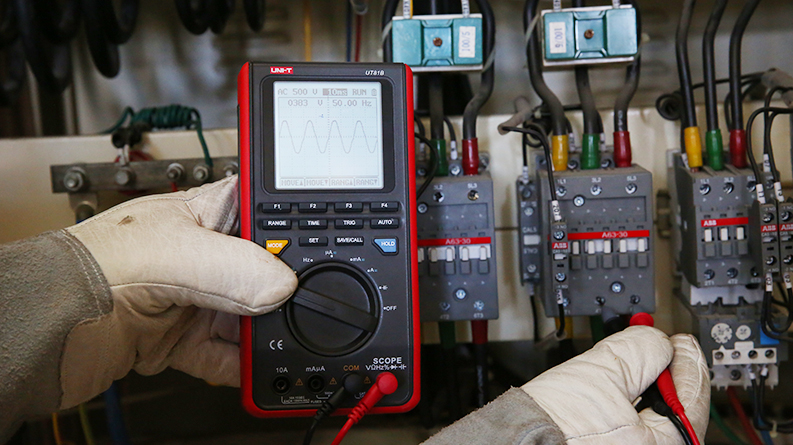

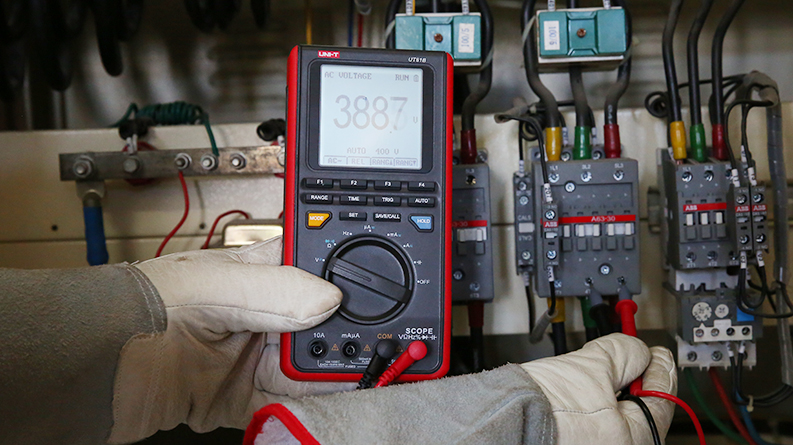

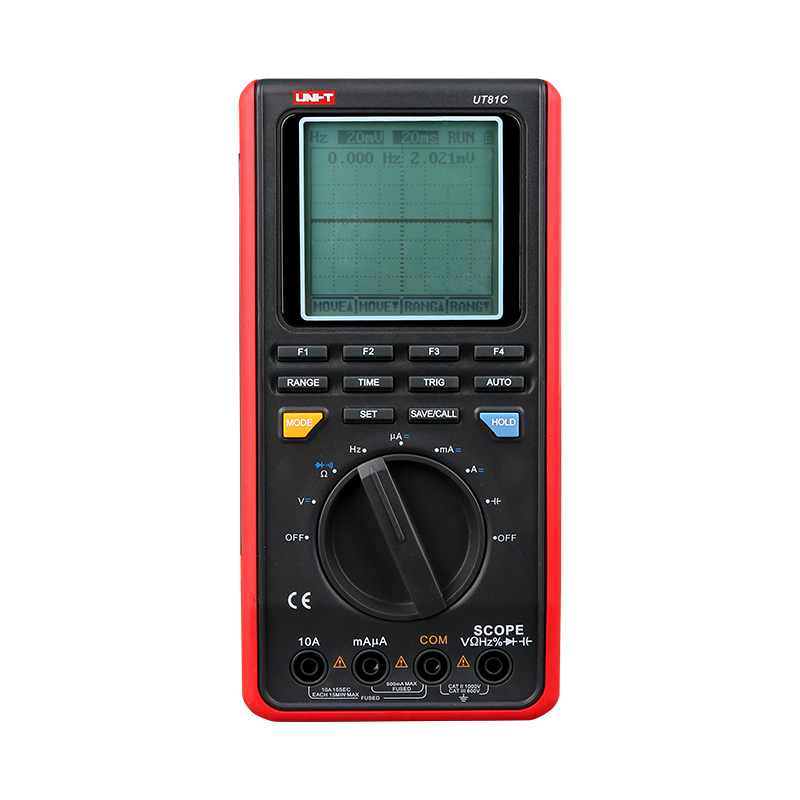

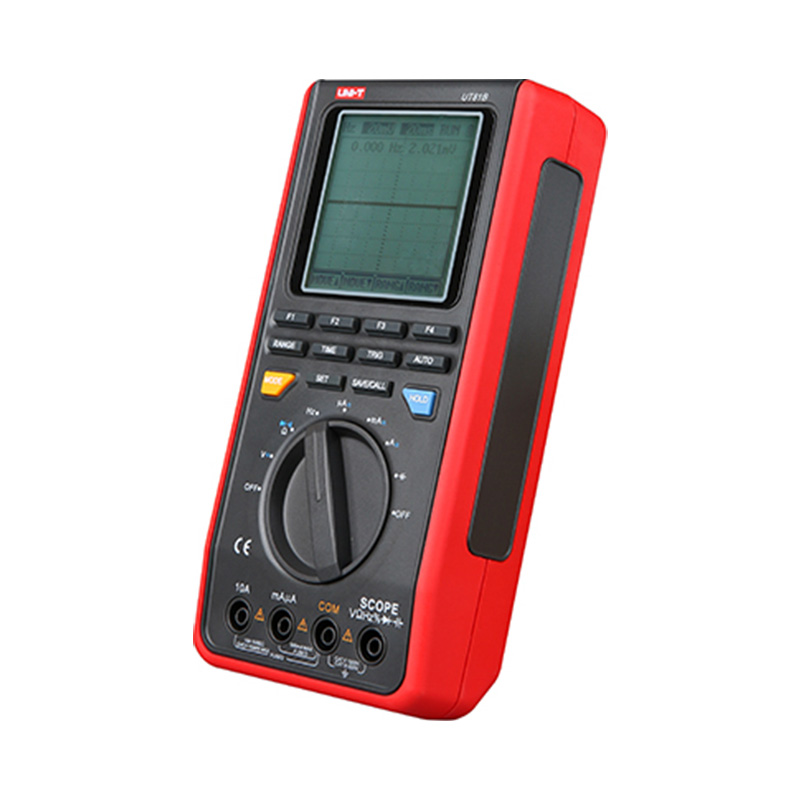

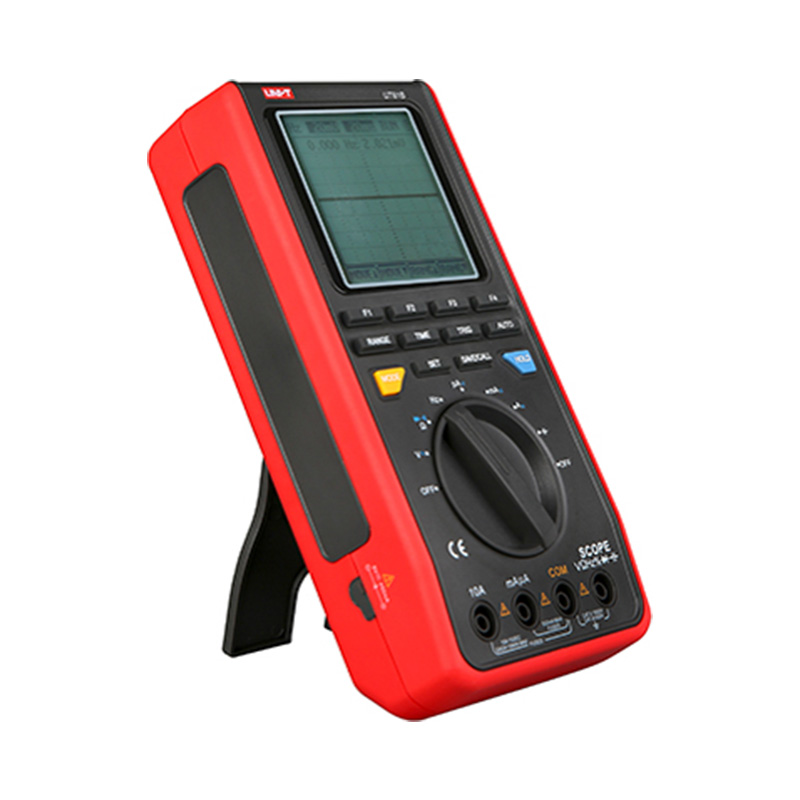

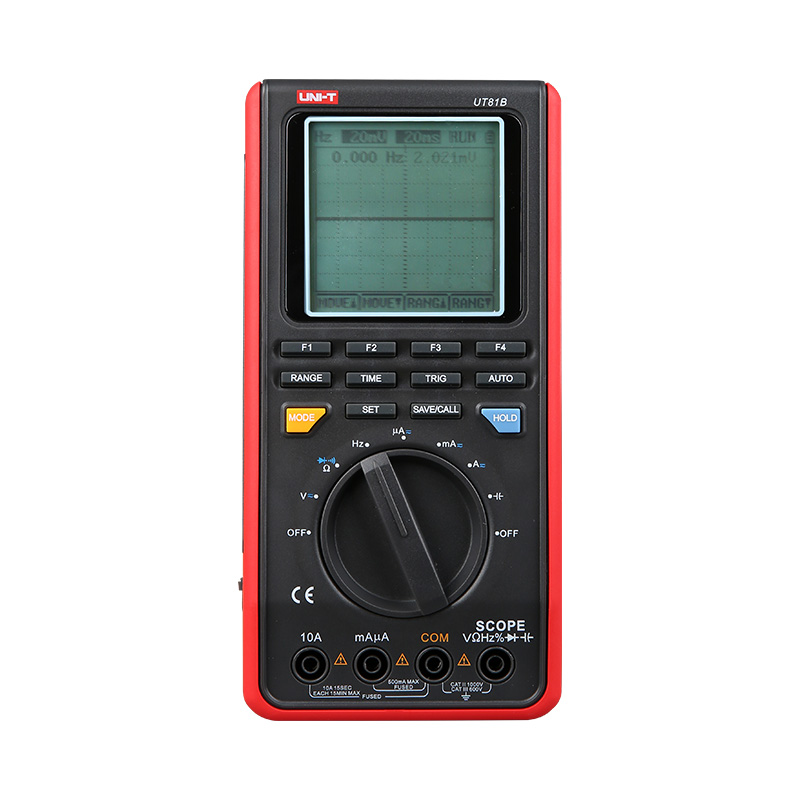

Models in UT81 series: UT81B, UT81C
Description
Features of UT81 Series Scope Digital Multimeters
Certifications: CE, UKCA
● Low battery indication
● USB interface
● Duty cycle: 0.1~99.9%
● Diode/LCD backlight
● Auto range/auto power off
● Display: 160 x 160 monochrome
● Trigger types: auto run/normal/single shot
● Memory: 10 screens and setups
● Contrast and brightness setup
● Continuity buzzer
Specifications of UT81 Series Scope Digital Multimeters
| Specifications | Range | UT81B | UT81C |
| DMM Specifications | |||
| DC voltage (V) | 1000V | ±(0.8%+8) | ±(0.8%+8) |
| AC voltage (V) | 750V | ±(1%+15) | ±(1%+15) |
| DC current (A) | 10A | ±(1%+8) | ±(1%+8) |
| AC current (A) | 10A | ±(1.5%+8) | ±(1.5%+8) |
| Resistance (Ω) | 40MΩ | ±(1%+5) | ±(1%+5) |
| Capacitance (F) | 100μF | ±(3%+8) | ±(3%+8) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.1%+3) |
| Scope Specifications | |||
| Bandwidth | 8MHz | 16MHz | |
| Sampling rate | 40MS/s | 80MS/s | |
| Vertical accuracy | ±(5%+1) | ±(5%+1) | |
| Vertical sensitivity | 20mV/div~500V/div (1-2-5) | √ | √ |
| Time-base accuracy | ±(0.01%+1) | ±(0.01%+1) | |
| Time-base range | UT81B: 100ns/div -5s/div (1-2-5) UT81C: 50ns/div – 5s/div(1-2-5) |
||
| Features | |||
| Display count | 4000 | 4000 | |
| Auto range | √ | √ | |
| Duty cycle | 0.1~99.9% | √ | √ |
| Diode | √ | √ | |
| Auto power off | √ | √ | |
| Continuity buzzer | √ | √ | |
| Display | 160 x 160 monochrome | √ | √ |
| Trigger types | Auto run/Normal/Single shot | √ | √ |
| Memory | 10 screens and setups | √ | √ |
| Contrast and brightness setup | √ | √ | |
| Low battery indication | √ | √ | |
| USB interface | √ | √ | |
| LCD backlight | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ |
| General Characteristics | |||
| Power | 1.5V battery (R6) x 4 | ||
| Display | 60mm x 60mm | ||
| Product color | Red and grey | ||
| Product net weight | 498g | ||
| Product size | 200mm x 100mm x 48mm | ||
| Standard accessories | Batteries, test lead, alligator clip, USB interface cable, PC software CD | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 12pcs | ||
| Standard carton measurement | 485mm x 450mm x 260mm (0.057CBM per standard carton) | ||
| Standard carton gross weight | UT81B: 23kg; UT81C: 16.4kg | ||
| Optional accessories | Scope probe, AC power adaptor | ||
