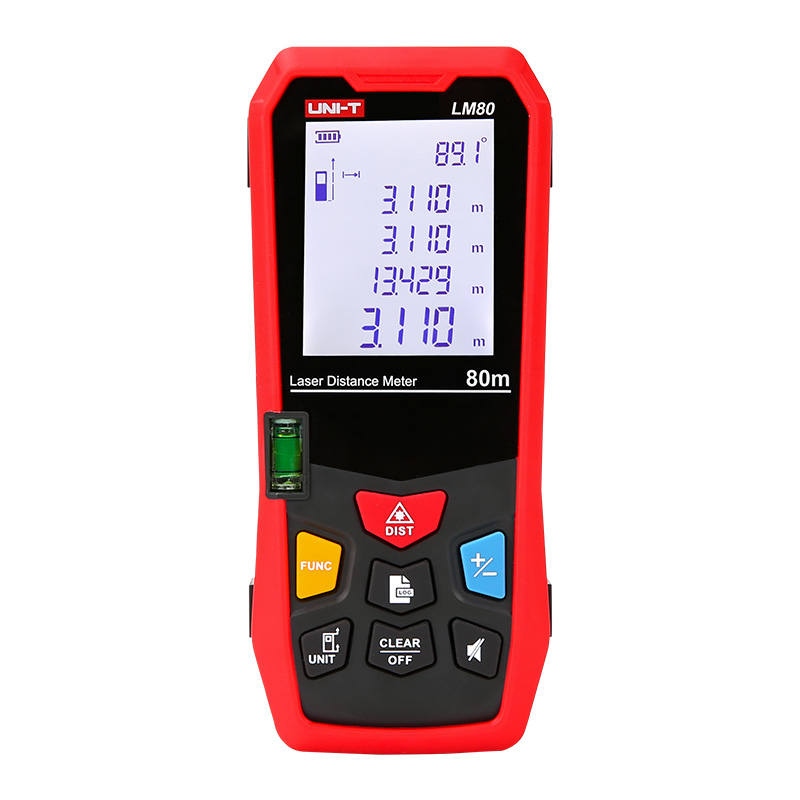

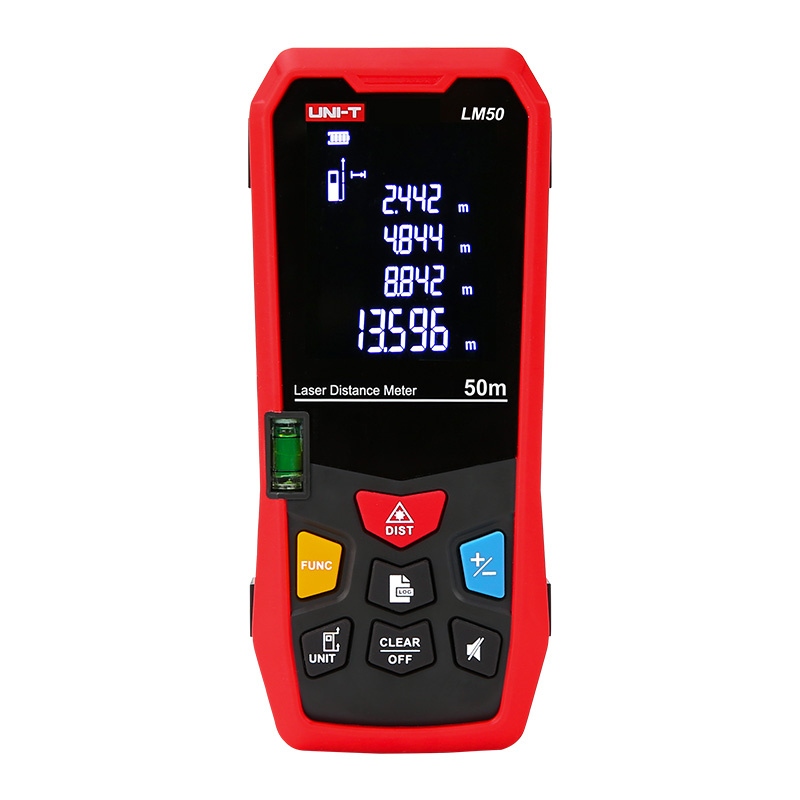

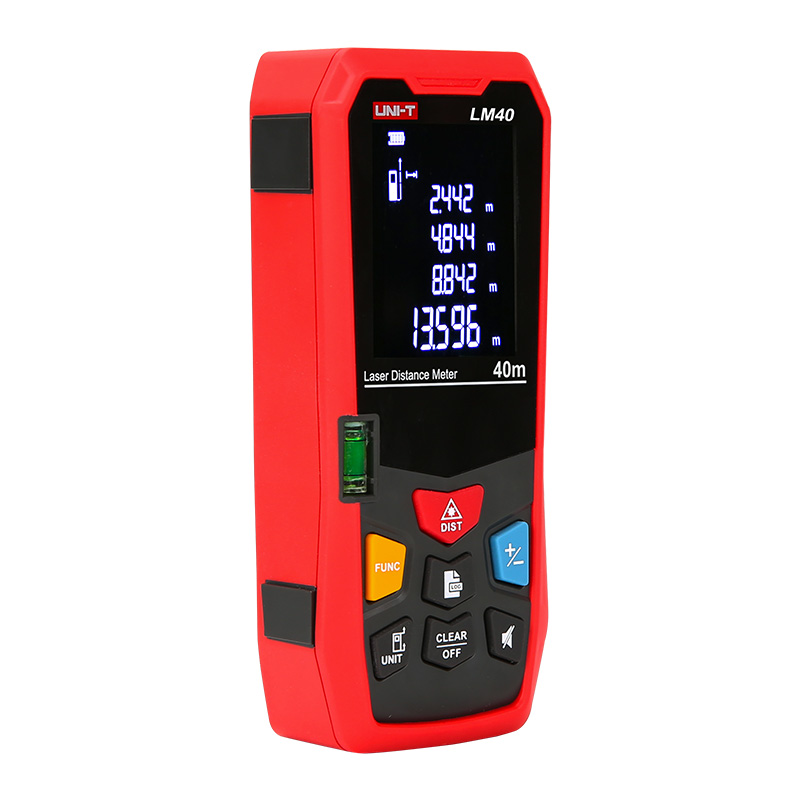

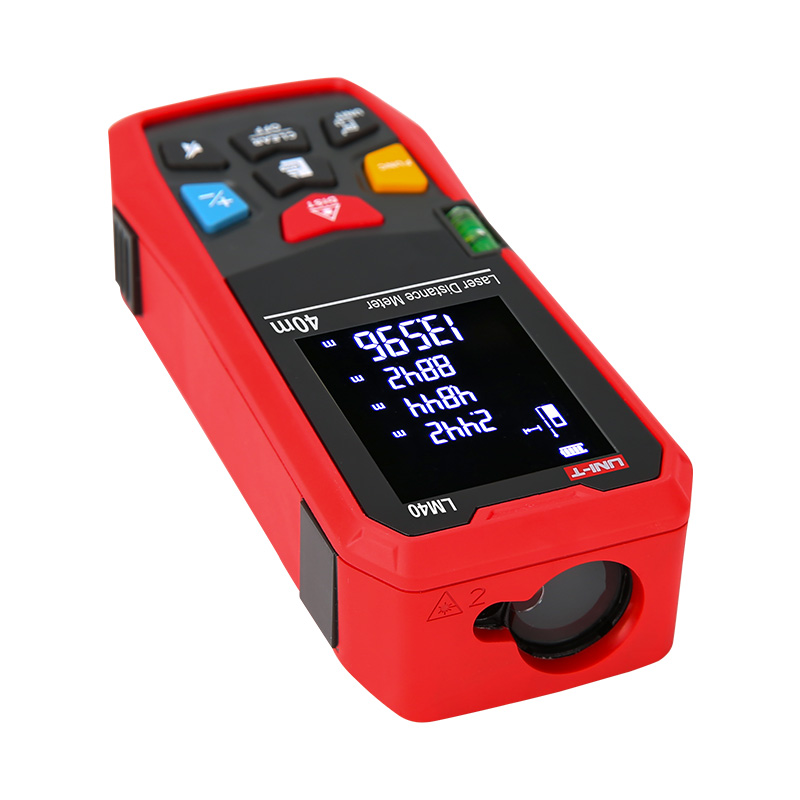

LM Series Laser Distance Meters (Discontinued)
The LM series laser distance meters are portable devices that can easily and accurately measure length, area, and volume by pressing one button. These tools can be used in interior/exterior design, construction, factory supervision, engineering inspection, traffic accident evidence gathering, real estate development, fire assessment, and more.
Models in LM Series: LM40, LM50, LM60, LM80, LM100, LM120, LM150
Description
Features of LM Series Laser Distance Meters
Certifications: RoHS
●Ergonomic exterior, comfortable handling
Specifications of LM Series Laser Distance Meters
| Specifications | LM40 | LM50 | LM60 | LM80 | LM100 | LM120 | LM150 |
| Display type | EBTN | LCD | |||||
| Display size | 2.0-inches | ||||||
| Range | 40m | 50m | 60m | 80m | 100m | 120m | 150m |
| Min. display unit | 0.001m | ||||||
| Measurement units | m/ft/in | ||||||
| Measurement basis | Front/rear | ||||||
| Accuracy | ±(2mm+5 x 10-5 D) | ||||||
| Laser class | 2 | ||||||
| Laser type | 630~670nm, ﹤1mW | ||||||
| Features | |||||||
| Single measurement | √ | ||||||
| Continuous measurement | √ | ||||||
| Max/Min/Area | √ | ||||||
| Volume | √ | ||||||
| Pythagoras | √ | ||||||
| Add/Subtract | √ | ||||||
| Data storage | 20 groups | ||||||
| Auto power off | 3 minutes without operation | ||||||
| Auto laser off | 30s without operation | ||||||
| Auto backlight off | 10s without operation | ||||||
| Audio indication | √ | ||||||
| Battery status display | √ | ||||||
| Storage temperature | -20℃~70℃ | ||||||
| Operating temperature | 0℃~40℃ | ||||||
Applications of LM Series Laser Distance Meters
These tools can be used in interior/exterior design, construction, factory supervision, engineering inspection, traffic accident evidence gathering, real estate development, fire assessment, and more.
Documents
Related Products
-
LM A Series Laser Distance Meters
Able to measure area, volume, addition, subtraction, etc easily and store 99 groups dataLearn moreCompare ModelsCompare:
Additional information
| Model | LM100, LM120, LM150, LM40, LM50, LM60, LM80 |
|---|
