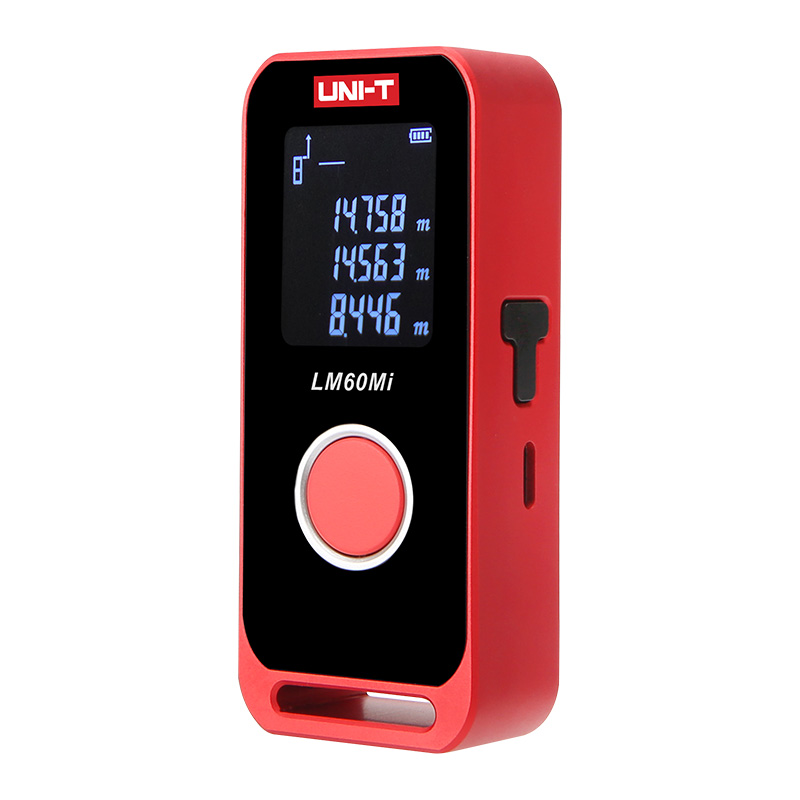

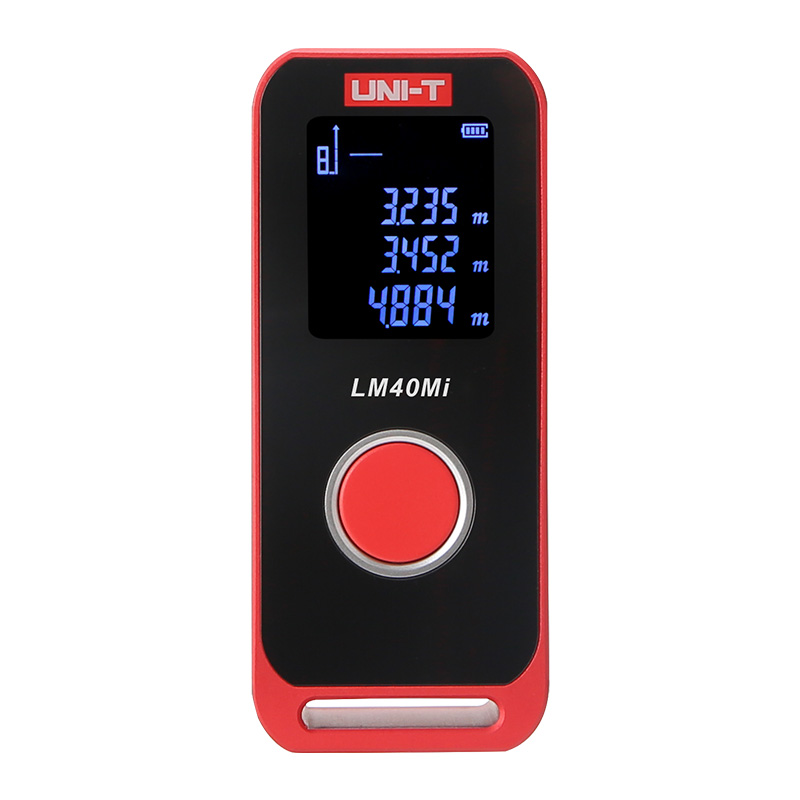

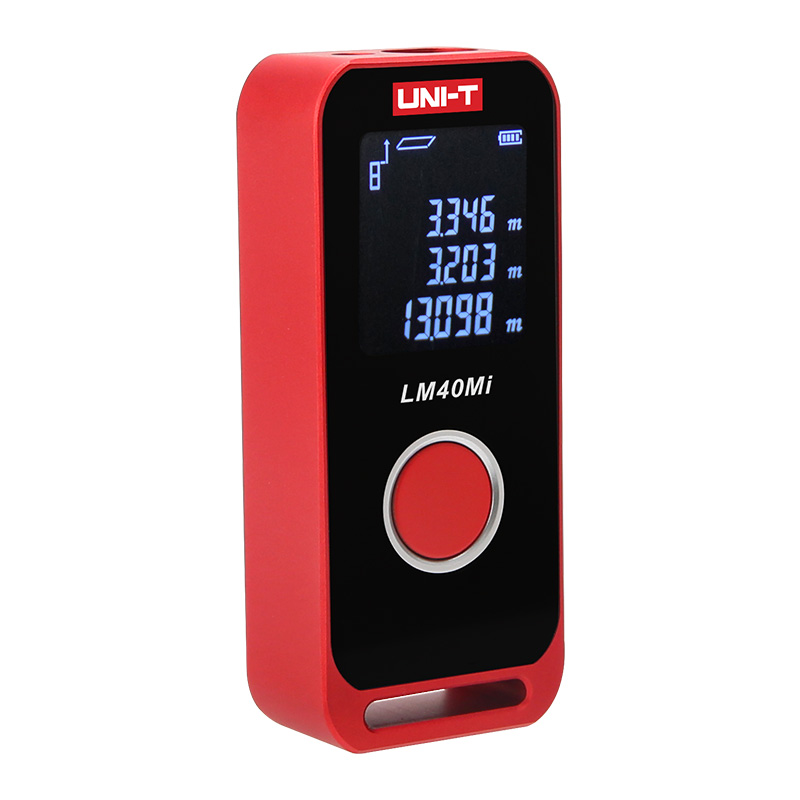

LM40Mi/LM60Mi Mini Laser Distance Meter
Mini Laser Distance Meter has smaller size and lighter weight. They are with features of high accuracy, exquisite design and multiple functions. The hard metal shell gives the user a excellent holding feeling and can be used in more harsh environments. It is widely used in the outdoors decorations, engineering projects, and etc.
Description
Features of LM40Mi/LM60Mi Mini Laser Distance Meter
Certifications: CE, RoHS
● Mini Size And Portable Design
● Multiple Measurement Modes
● High Accuracy
● Self Calibration
● LCD Backlight
● Unit Switch
Specifications
| Model | LM40Mi | LM60Mi |
| Range | 0.05~40m | 0.05~60m |
| Accuracy | ±(2.0mm＋5×10-5D) | |
| Continuous Measurement | √ | |
| Area & Volume Measurement | √ | |
| Perimeter Measurement | √ | |
| Pythagorean Measurement | √ | |
| MAX/MIN | √ | |
| Unit Switch | m, inch, ft | |
| Laser Class | CLASS Ⅱ | |
| Laser Type | 630~670nm,<1mW | |
| Auto Laser Cutting Off | 20s（Single Measurement） | |
| Auto Power Off | 150s | |
| Measurement Times in Full Charge | 8000 times | |
| Storage Temperature | -20℃~60℃ | |
| Working Temperature | 0℃~40℃ | |
| Storage Humidity | 20%~80%RH | |
| Characteristics | ||
| Power Supply | 3.7V 370mAh Li-ion Battery | |
| Product Size | 86.5×36.5×19.5mm | |
| Product Net Weight | 75g | |
| Standrad Accessories | Mini Laser Distance Meter, Type-C Cable, User Manual, Hand Strap, Gift Box. | |
| Standard Quantity Per Carton | 20pcs | |
