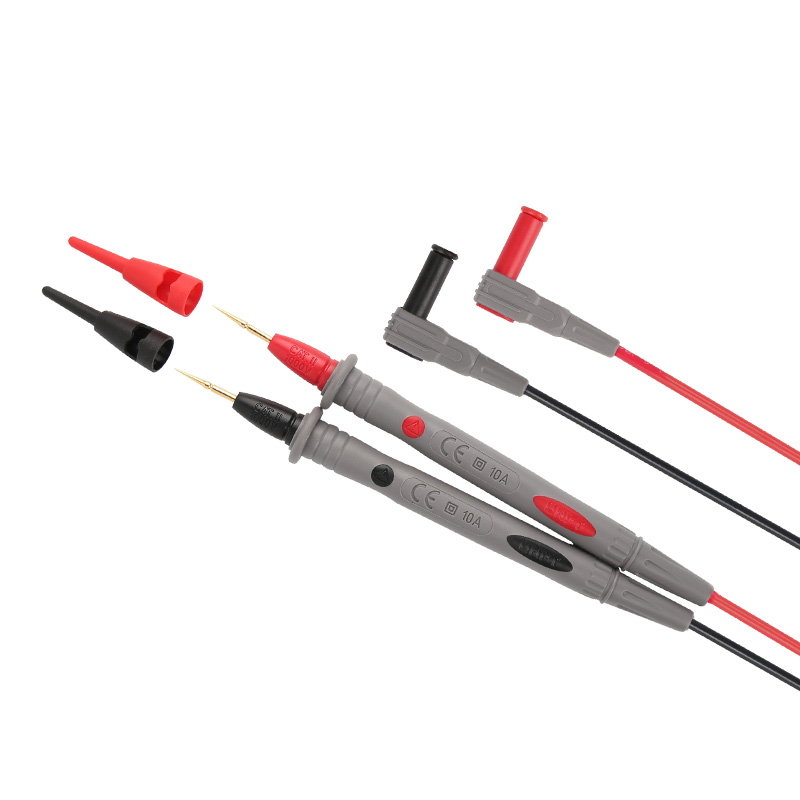

UT-L90 Test probe with Extra-Fine tip

UT-L90 is a general-purpose test probe designed with fine plating tip and protective sleeve, applicable for measuring fine components and IC pins.

Category: Accessories

Description

Features of UT-L90 Test probe with Extra-Fine tip

● Gold-plated Extra-fine tip

● Removable protective sleeve

● CAT II 1000V

● Rating current: 10A

● Long test lead: 1200mm

Specifications of UT-L90 Test probe with Extra-Fine tip

Specifications	UT-L90
Lead length	1200mm
Rod length	130mm
Tip length	17.5mm
Rating current	10A
Category rating	CAT II 1000V
Features	Gold-plated; Fine-tipped test probe; Removeable protective sleeve
Package	Plastic + Cardboard
