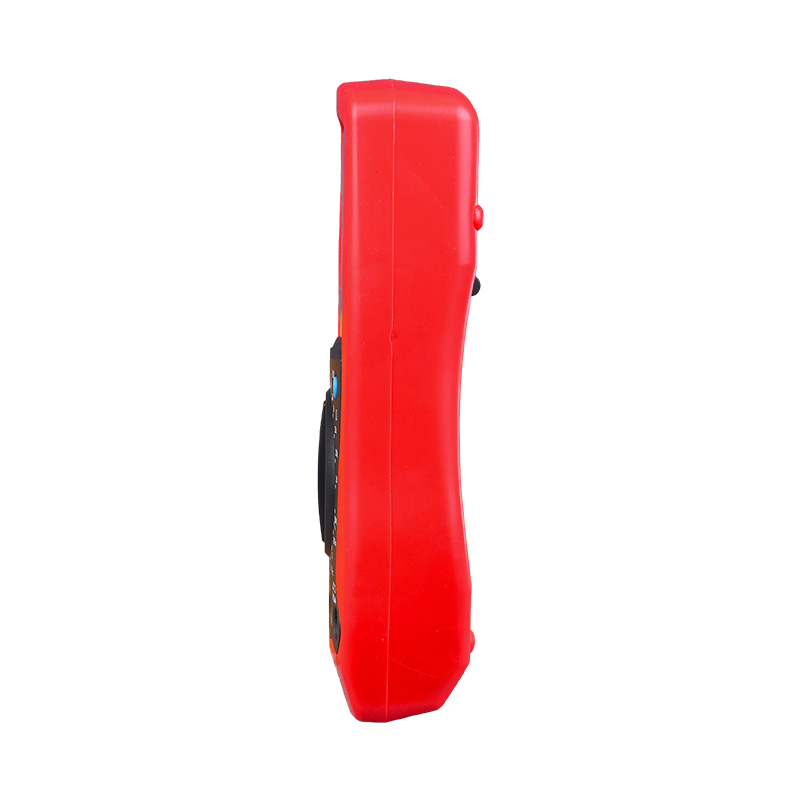

UT100 Series Automobile Multimeters
UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on fuse, switch, solenoid, relay, charging system, fuel system, engine sensing etc.

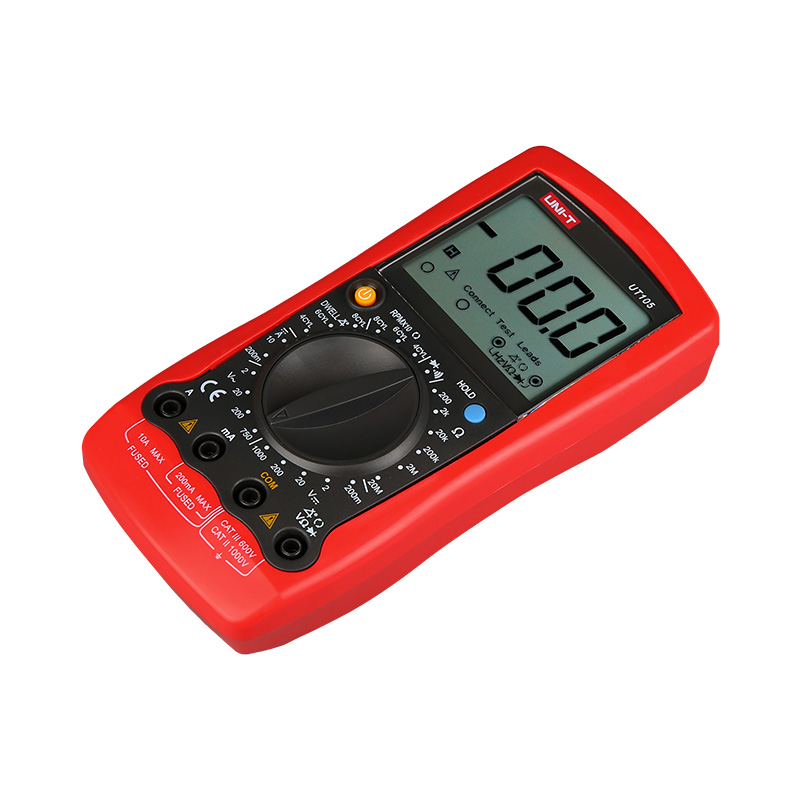

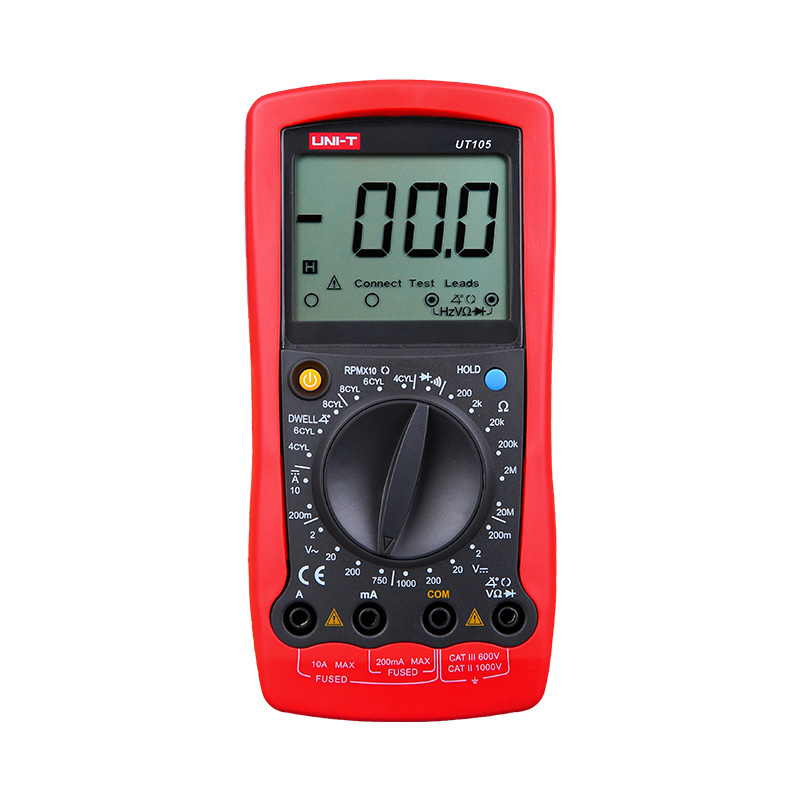

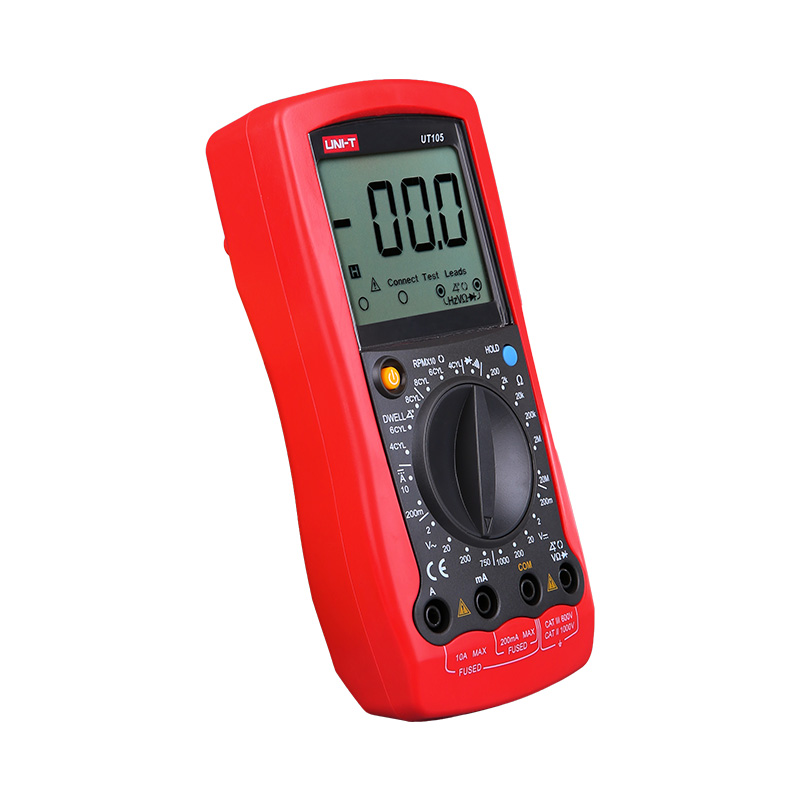

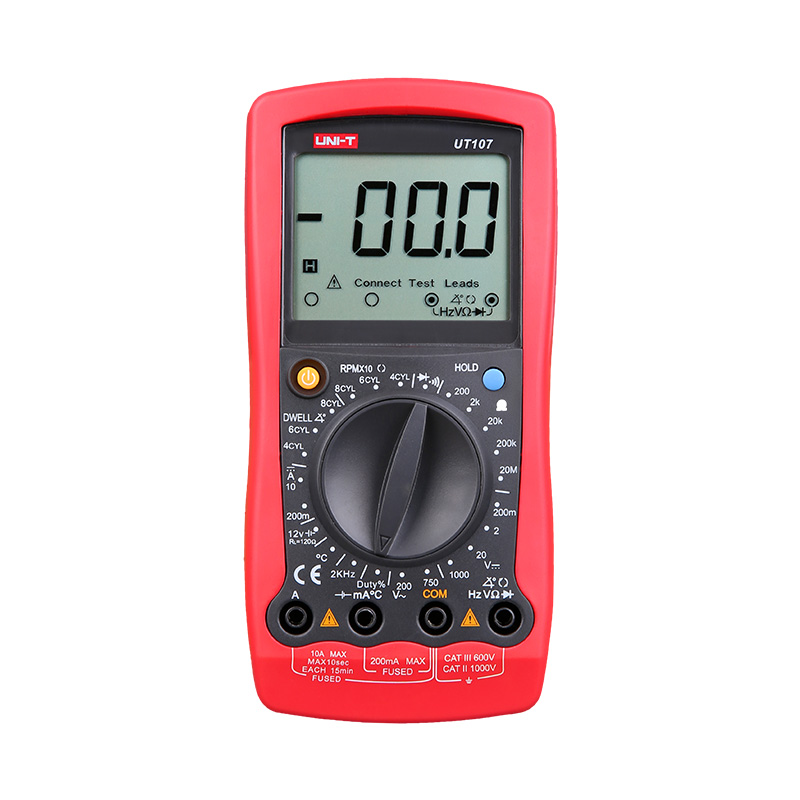

Models in UT100 Series: UT105, UT107
Description
Features of UT100 Series Automobile Multimeters

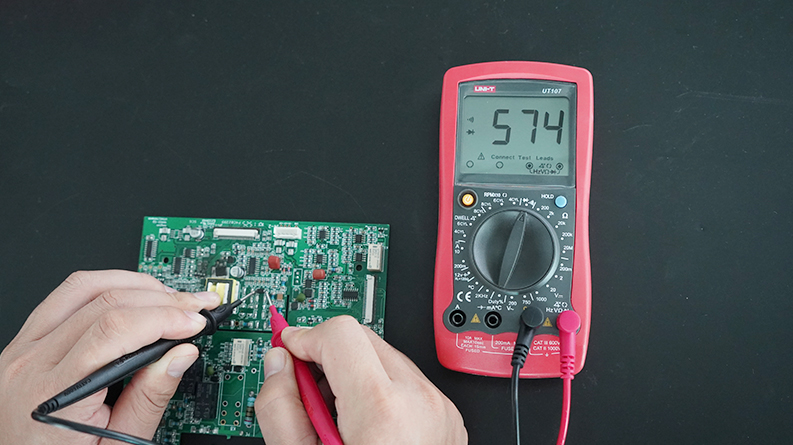

● Diode/Data hold
● Continuity buzzer
● Low battery indication
● Input protection
Specifications of UT100 Series Automobile Multimeters
| Specifications | Range | UT105 | UT107 |

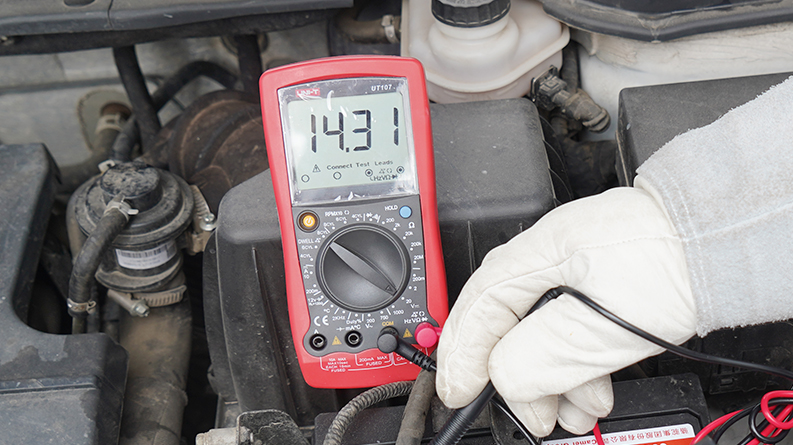

| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) | |
| 200mV/2V/20V/1000V | ±(0.5%+2) | ||

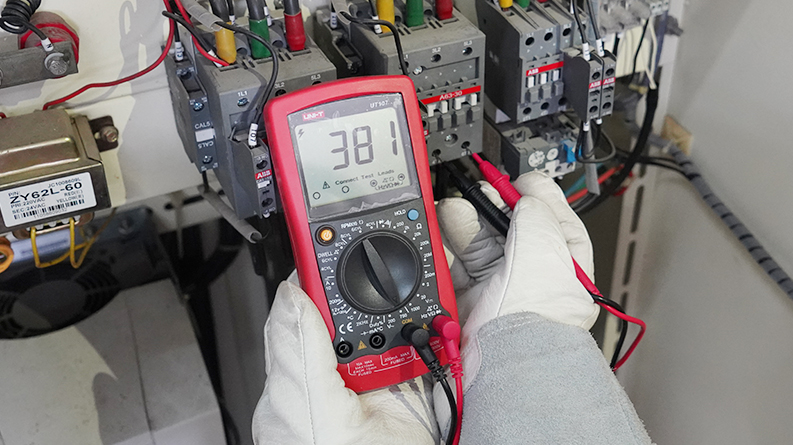

| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+5) | |
| 200V/750V | ±(0.8%+5) | ||
| DC current (A) | 200mA/10A | ±(0.8%+5) | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+5) | |
| 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) | ||
| Frequency (Hz) | 2kHz | ±(2%+5) | |
| Temperature (°C) | -40°C~1000°C | ±(2%+8) | |
| Features | |||
| Display count | 2000 | 2000 | |
| Manual range | √ | √ | |
| Battery test | 12V | ±(3%+5) | |
| Duty cycle | 1%~90% | ±(4%+5) | |
| Input impedance for DCV | Around 10MΩ | √ | √ |
| Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) | ±(3%+5) |
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| Display | 60mm x 54mm | ||
| Product color | Red and grey | ||
| Product net weight | 351g (including holster) | ||
| Product size | 179mm x 88mm x 39mm; | ||
| Standard accessories | UT105: Battery, test leads, holster UT107: Battery, test leads, holster, point contact temperature probe |
||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | UT105: 20pcs; UT107: 40pcs | ||
| Standard carton measurement | UT105: 450mm x 330mm x 340mm; UT107: 645mm x 450mm x 340mm | ||
| Standard carton gross weight | UT105: 5.9kg; UT107: 22.86kg; | ||
