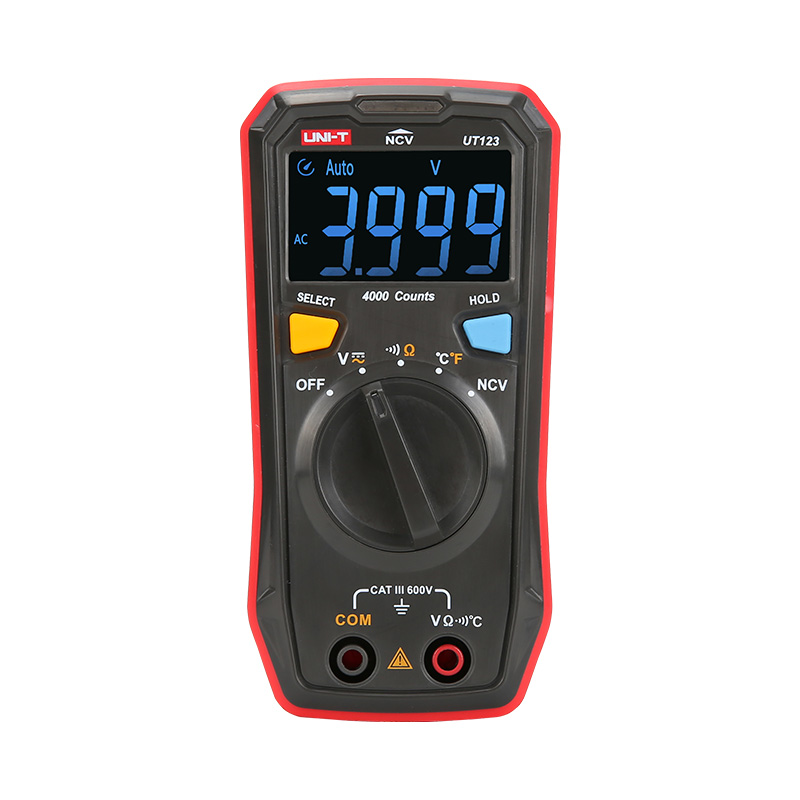

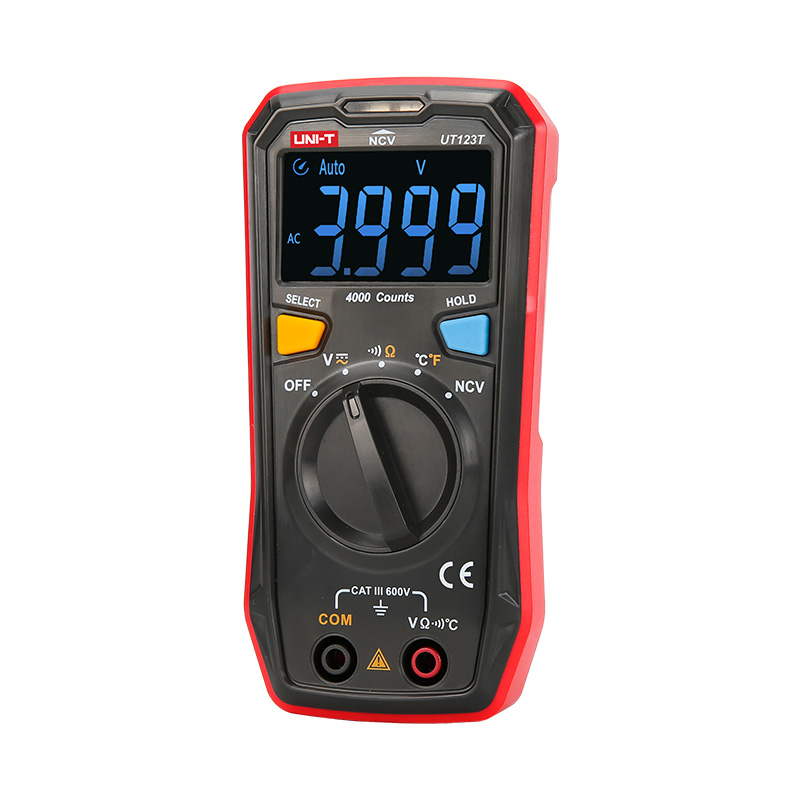

UT123/UT123T Pocket-sized Residential Multimeter
The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.
Models: UT123, UT123T
Description
Features of UT123/UT123T Pocket-sized Residential Multimeter
Certificates (UT123T only): CE, UKCA
● Auto range
● Continuity
● Data hold
● LED/buzzer indication: NCV/continuity/battery power
● NCV
● Low battery indication
● Auto power off
● Over voltage alarm: >600V
Specifications of UT123/UT123T Pocket-sized Residential Multimeter
| Specifications | Range | UT123/UT123T |
| DC Voltage | 4V/40V/400V/600V | ±（0.5%＋2） |
| AC Voltage | 4V/40V/400V/600V | ±(1.0%+3) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ | ±(0.8%+2) |
| Temperatue | –40℃～ 300℃/–40℉～ 572℉ | ±4℃ |
| Features | ||
| Display Count | 4000 | |
| Autol Range | √ | |
| NCV | √ | |
| Continuity Test | √ | |
| Acousto-optic indication(NCV/continuity/battery power) | √ | |
| Low Battery Indication | ≤2.7V | √ |
| Data Hold | √ | |
| Auto Power Off | 15Min | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT III 600V | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 44mm × 26mm | |
| Product color | Red and grey | |
| Product net weight | 130g | |
| Product size | 130mm x 65m x 28mm | |
| Standard accessories | Batteries, Thermocouple | |
| Standard individual packing | Gift Box, Manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 480mm x 340mm x 325mm | |
| Standard carton gross weight | 15.5kg | |
