UT133 Series Digital Multimeters
UT133 series is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

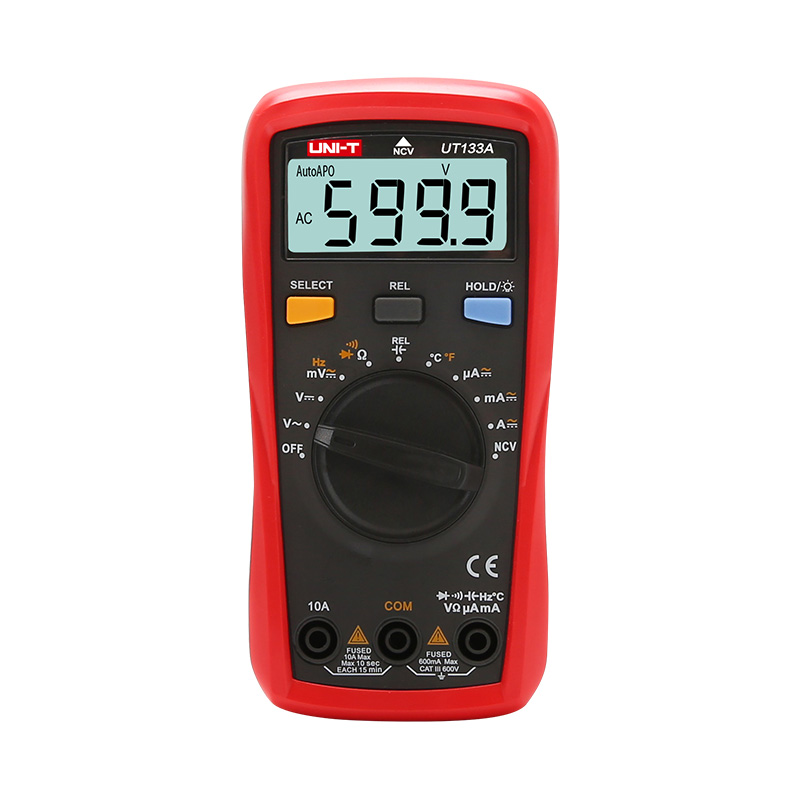

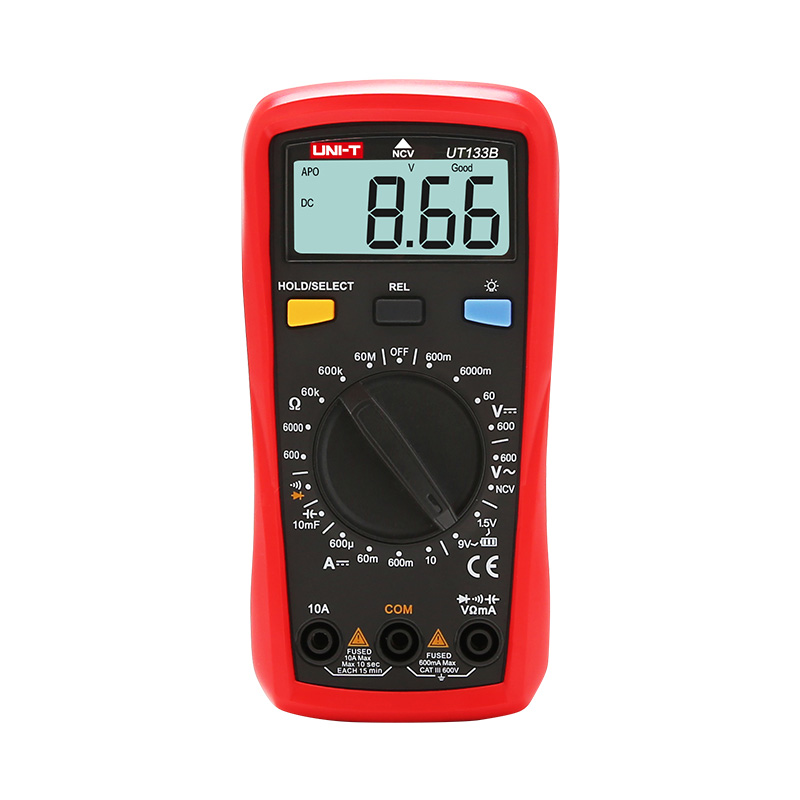

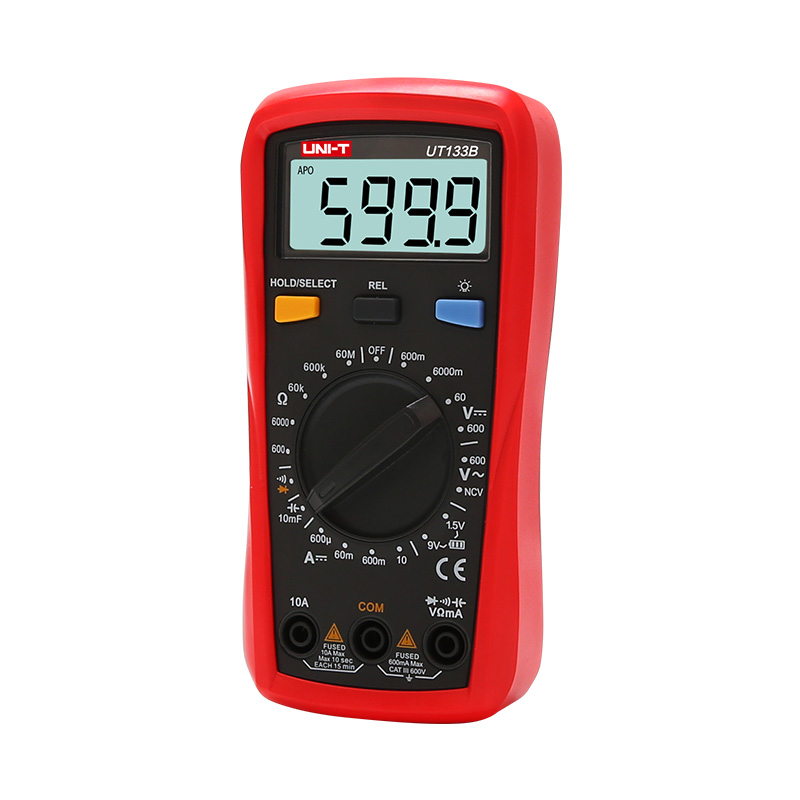

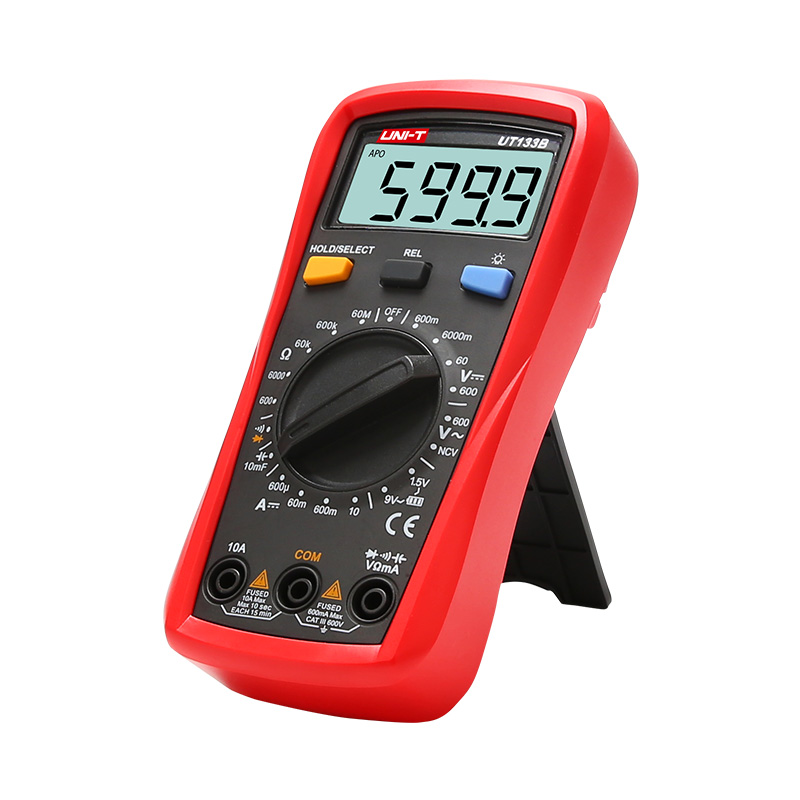

Models in UT133 Series: UT133A, UT133B
Description
Features of UT133 Series Digital Multimeters
Certifications: CE, UKCA, cETLus
● Over voltage/current audible alarm
● High voltage warning
● Auto power off (can be disabled)
● Low power consumption

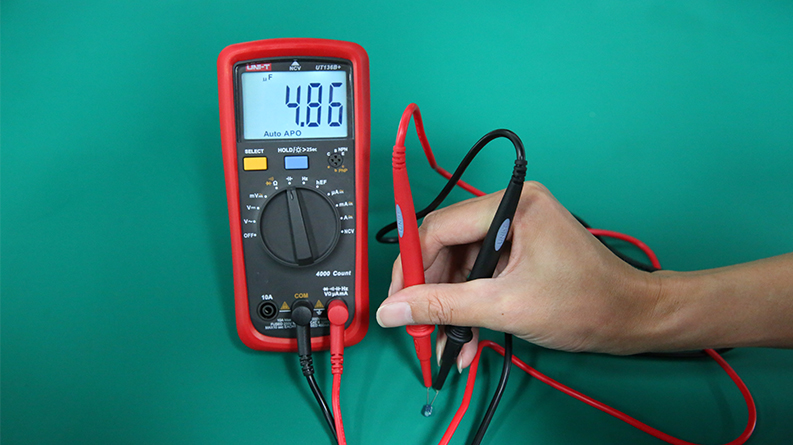

● Fast and accurate capacitance measurement
● 2m drop proof
Specifications of UT133 Series Digital Multimeters
| Specifications | Range | UT133A | UT133B |
| DC voltage (V) | 600mV/6000mV/60V/600V | ±(0.5%＋3) | ±(0.5%＋3) |
| AC voltage (V) | 600V | ±(0.7%+3) | ±(1.2%+3) |
| DC current (A) | 600uA/60mA/600mA/10A | ±(1%+3) | ±(1%+2) |
| AC current (A) | 10A | ±(1.2%+3) | |
| Resistance (Ω) | 600Ω/6000Ω/60kΩ/600kΩ/60MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance (F) | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF | ±(4%+5) | ±(4%+5) |
| Frequency (Hz) | 10.00Hz~1.000MHz | ±(0.1%+5) | |
| Temperature (℃) | ‒40℃~1000℃ | ±(1%+4) | |
| Temperature (℉) | ‒40℉~1832℉ | ±(1.5%+5) | |
| Features | |||
| Display count | 6000 | 6000 | |
| Range selection | Auto | Manual | |
| Diode | √ | √ | |
| Continuity buzzer | √ | √ | |
| Battery test | Tests 1.5V and 9V batteries and displays ‘good’, ‘low’, ‘bad’ status |
√ | |
| NCV | √ | √ | |
| LCD backlight | √ | √ | |
| Test probe holder | √ | √ | |
| Data hold | √ | √ | |
| Low battery indication | √ | √ | |
| Overload indication | √ | √ | |
| General Characteristics | |||
| Power | 1.5V battery (R03) x 2 | ||
| Display | 56.8mm x 36.1mm | ||
| Product color | Red and grey | ||
| Product net weight | 255g (with batteries) | ||
| Product size | 155mm x 76.5mm x 49mm | ||
| Standard accessories | Manual, test leads, K-type thermocouple (UT133A) | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 350mm x 335mm x 318mm | ||
| Standard carton measurement | 30pcs | ||
| Standard carton gross weight | 12.5kg | ||
