This product has been discontinued. Replaced by UT133 Series .

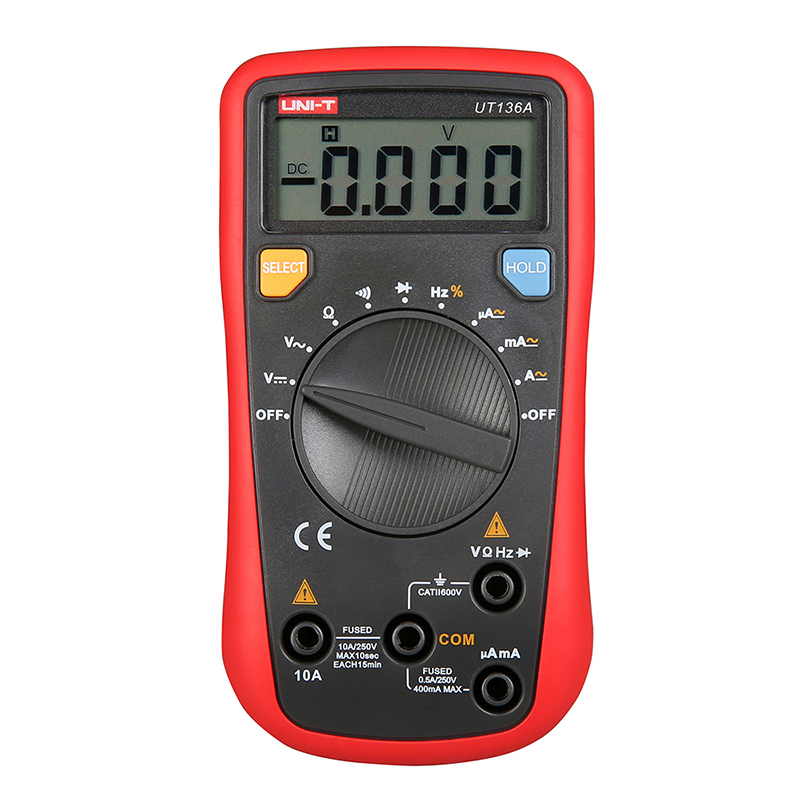

UT136 Series Digital Multimeters (Discontinued)
UT136 series digital multimeters are general type auto ranged meters. The series is small in size, handy for all operating environments. Its 4000 count auto range feature allows quick and effective measurements. UT136 series are great tools for electricians and DIYers.
Models in UT136Series: UT136A, UT136B, UT136C, UT136D
Description
Features of UT136 Series Digital Multimeters
Certificates: CE
● Auto range: 4000 display count
● Auto power off
● Auto range
● Modern appearance, palm size design, comfortable grip, easy to carry
Specifications of UT136 Series Digital Multimeters
| Specifications | Range | UT136A | UT136B | UT136C | UT136D |
| DC voltage (V) | 400mV/4V/40V/400V/500V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| AC voltage (V) | 400mV/4V/40V/400V/500V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC current (A) | 400μA/4mA/40mA/400mA/4A/10A | ±(1.0%+2) | ±(1.0%+2) | ±(1.0%+2) | ±(1.0%+2) |
| AC current (A) | 400μA/4mA/40mA/400mA/4A/10A | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+2) | ±(1.0%+2) | ±(1.0%+2) | ±(1.0%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4.0%+3) | |||
| Temperature (℃) | -10℃~1000℃ | ±(2.5%+3) | |||
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| Duty cycle | 0.1%~99.9% | √ | √ | √ | √ |
| Features | |||||
| Diode | √ | √ | √ | √ | |
| Continuity Buzzer | √ | √ | √ | √ | |
| NCV | √ | ||||
| Auto power off | √ | √ | √ | √ | |
| Low battery display | √ | √ | √ | √ | |
| Input impedance for voltage measurement | Around 10MΩ | √ | √ | √ | √ |
| Data Hold | √ | √ | √ | √ | |
| Max. Display | 3999 | 3999 | 3999 | 3999 | |
| General Characteristics | |||||
| Power | 9V battery (6F22) | ||||
| Display | 49mm × 18mm | ||||
| Product net weight | About 200g (Battery included) | ||||
| Product color | Red and grey | ||||
| Product size (W x H x D) | 72mm × 137mm × 35mm | ||||
| Standard accessories | UT136A/B/D: Test leads, Battery; UT136C: Test leads, battery, point contact, temperature probe | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 60pcs | ||||
| Standard carton measurement | 540mm × 310mm × 350mm | ||||
| Standard carton gross weight | About 22kg | ||||
