UT136+ Series Digital Multimeters
The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.

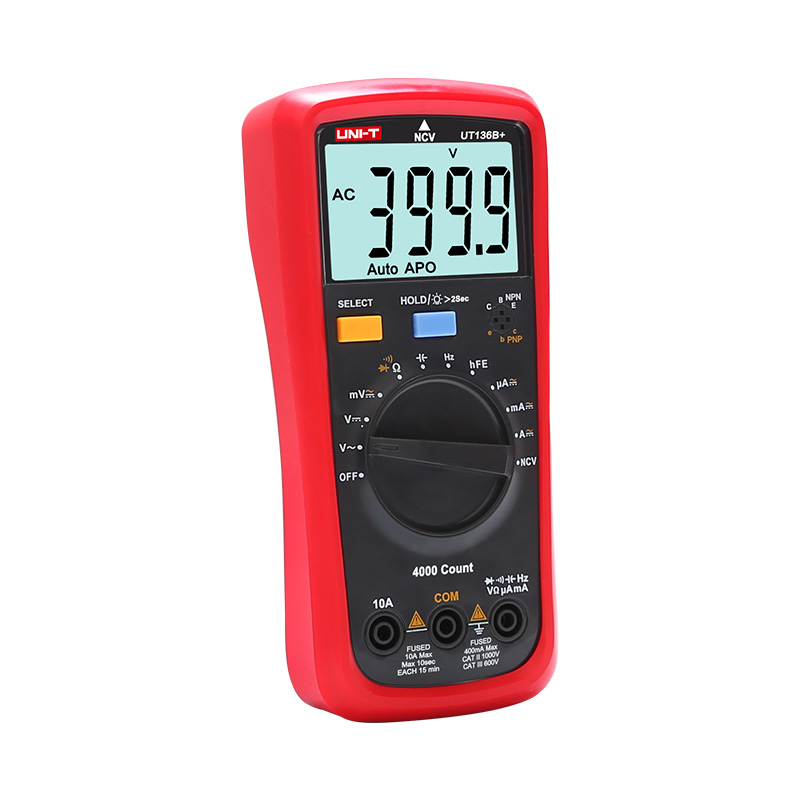

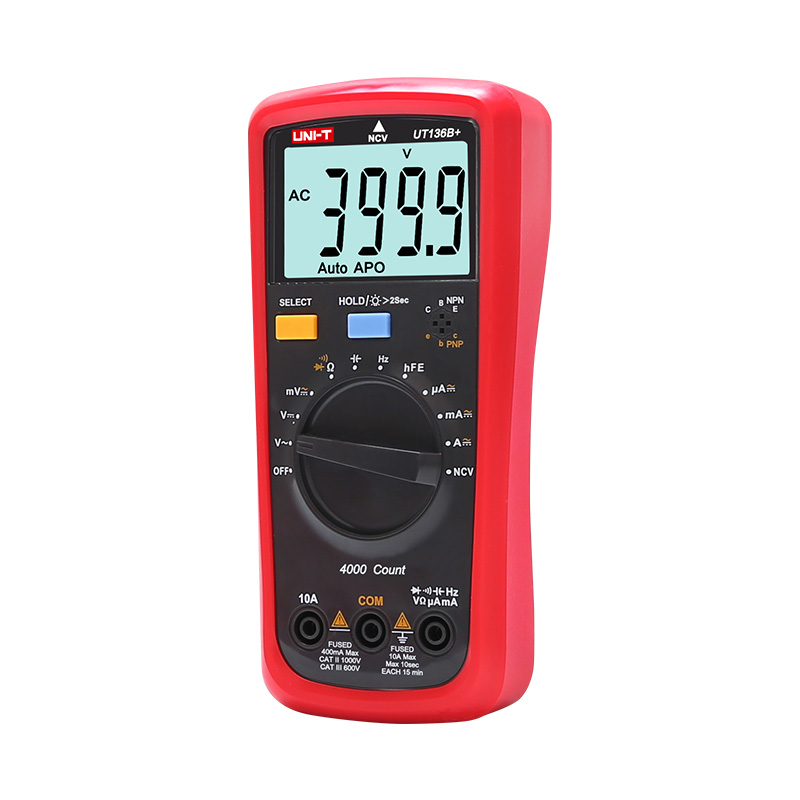

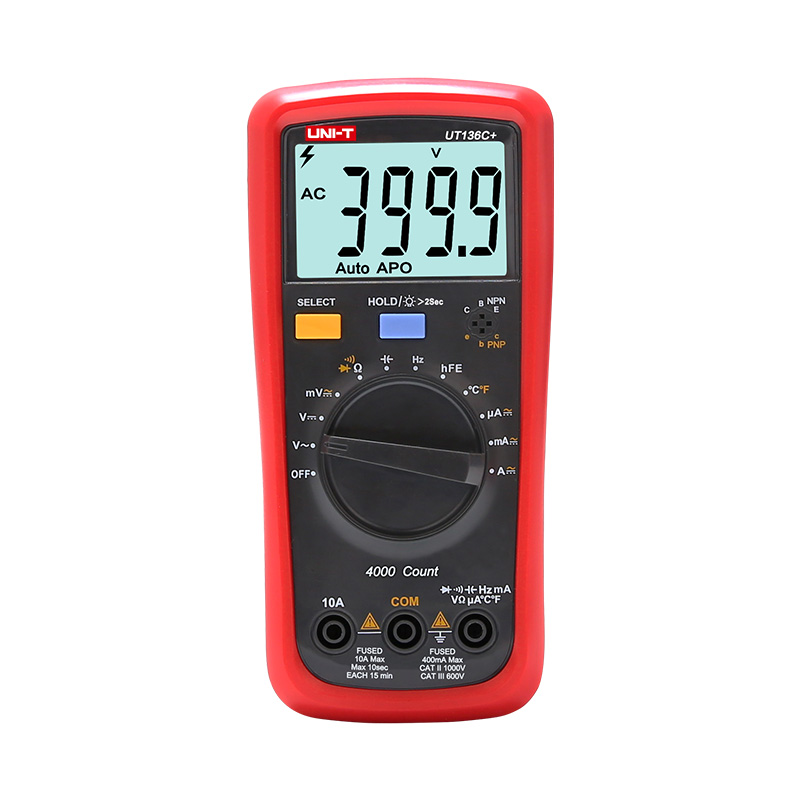

Models in UT136+ series: UT136B+, UT136C+
Description
Features of UT136+ Series Digital Multimeters
● Measures up to 1000V and 10A AC/DC voltage and current

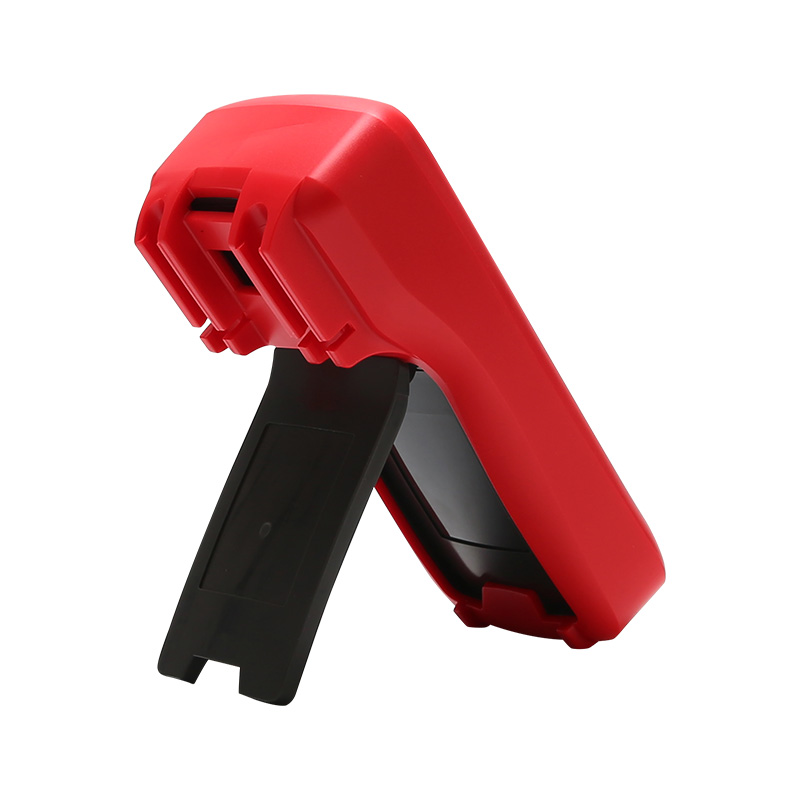

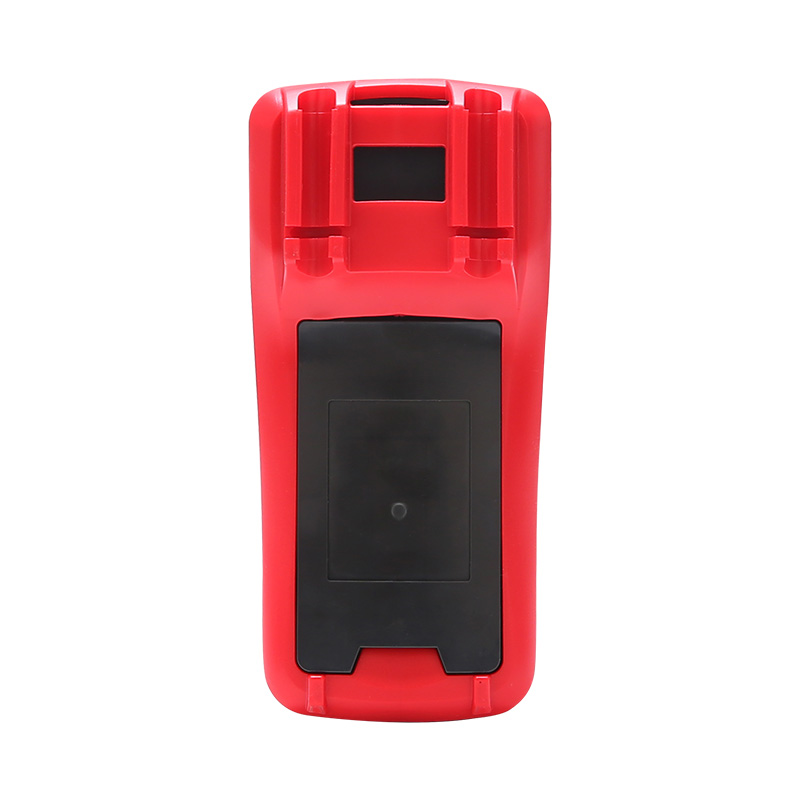

● Equipped with 3mm protective sleeve; 2 meters drop proof
● Large LCD display; Overload alarm
● Quick sampling rate, up to 4 times/s
● Quick capacitor measurement (measures 1mF in 4 seconds)
● Low power consumption and auto power saving function; long battery service life (>500hrs)
Specifications of UT136+ Series Digital Multimeters
| Specifications | Range | UT136B+ | UT136C+ |
| DC voltage (V) | 1000V | ±(0.7%+3) | ±(0.7%+3) |
| AC voltage (V) | 1000V | ±(1%+3) | ±(1%+3) |
| DC current (A) | 10A | ±(1%+3) | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+5) | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(3%+5) | ±(3%+5) |
| Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) | ±(0.1%+4) |
| Temperature (°C) | -40~1000℃ | ±(1%+4) | |
| Temperature (℉) | -40~1832℉ | ±(1.5%+5) | |
| Features | |||
| Display count | 4000 | 4000 | |
| hFE | Transistor measurement | √ | √ |
| NCV | Non-contact voltage detection | √ | |
| Diode/transistor | √ | √ | |
| Continuity buzzer | √ | √ | |
| Data hold/Auto power off | √ | √ | |
| Low battery/Indication | √ | √ | |
| LCD backlight | √ | √ | |
| Safety rating | CAT Ⅱ 1000V, CAT Ⅲ 600V | √ | √ |
| Drop test | 2m | √ | √ |
| General Characteristics | |||
| Power | 1.5V battery (R6) x 2 | ||
| Display | 56.5mm x 36mm | ||
| Product color | Red and grey | ||
| Product net weight | 330g | ||
| Product size | 175mm x 83mm x 53mm | ||
| Standard accessories | Batteries, test leads, temperature probe (UT136C+) | ||
| Standard individual packing | Gift Box, English manual | ||
| Standard quantity per carton | 30pcs | ||
| Standard carton measurement | 390mm x 335mm x 340mm | ||
| Standard carton gross weight | 12.75kg | ||
