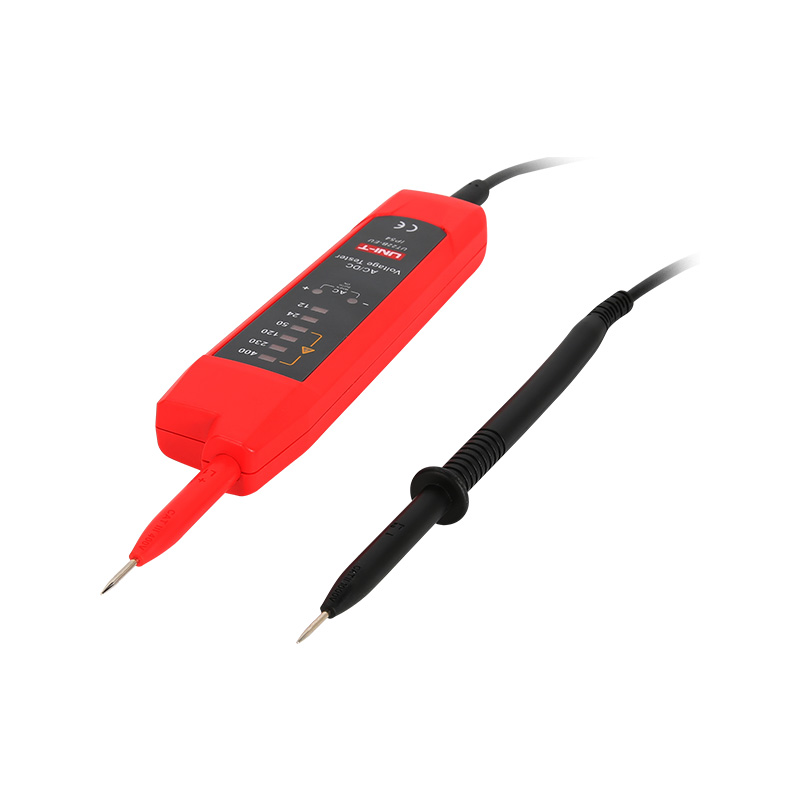

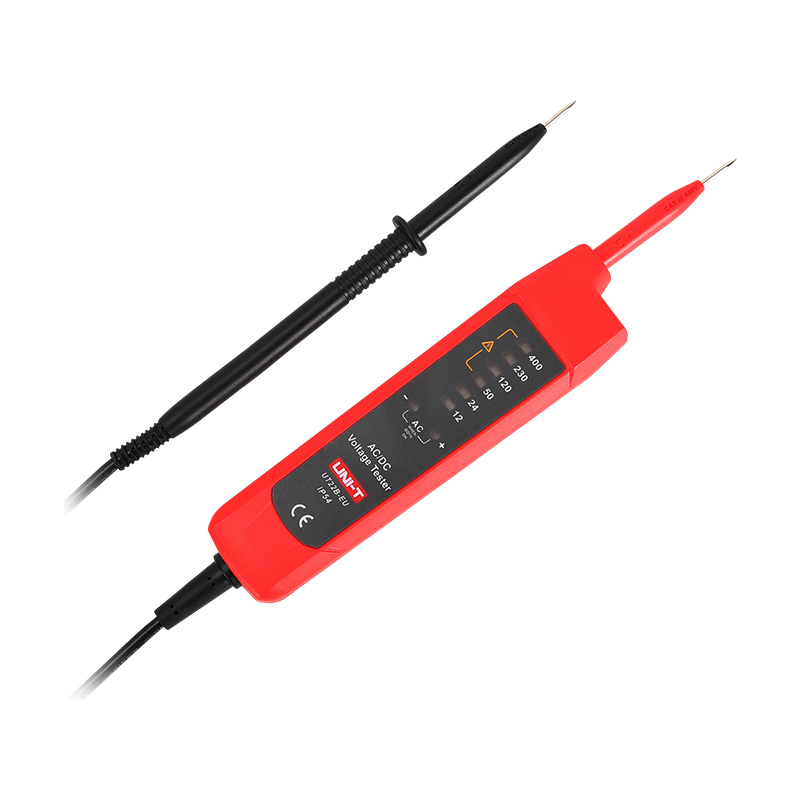

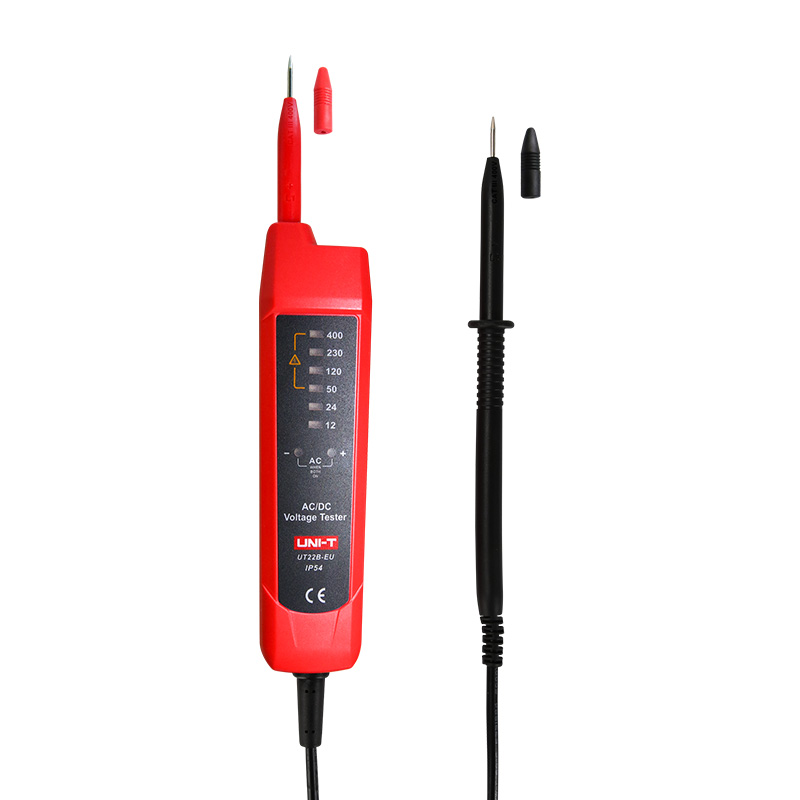

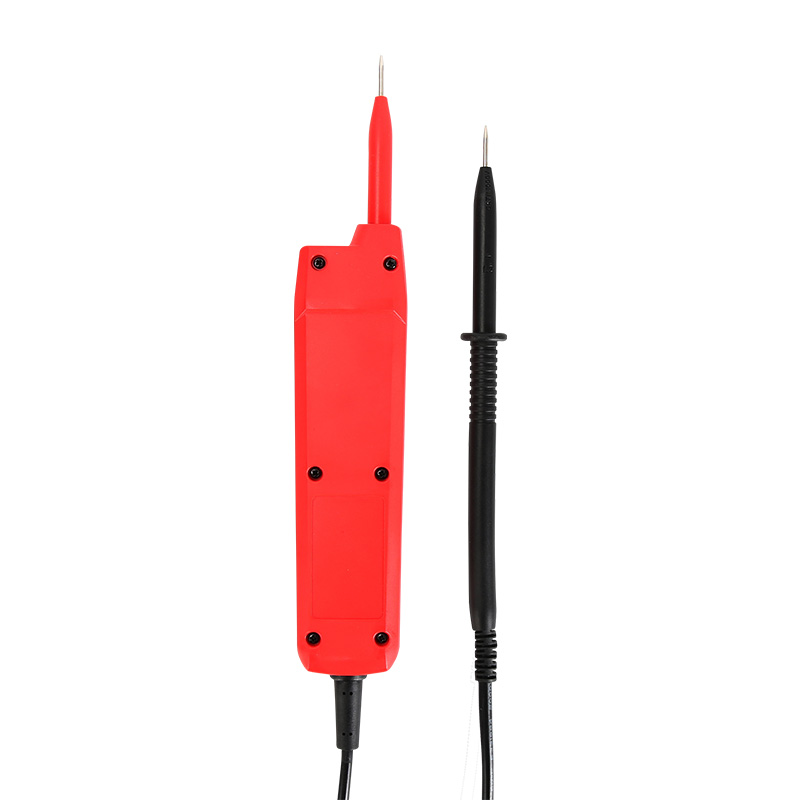

UT22B-EU Voltage Tester
The UT22B-EU voltage tester is a simple to use tool for electricians and DIYers to measure AC/DC voltage. This voltage tester is IP54 rated, and designed to withstand a 2-meter drop. The great thing about this product is that it does not require any battery, its power is supplied by the voltage being tested! UT22B can automatically distinguish between AC and DC voltage, indicated by the number of LED lights.
Description
Features of UT22B-EU Voltage Tester
Certifications: CE, UKCA
● Automatically detect AC/DC voltage
● Automatically indicate DC polarity (+/-)
● Hazardous voltage indicator when voltage >50V
● Auto detection of AC/DC
● Input protection
Specifications of UT22B-EU Voltage Tester
| Specifications | Range | UT22B-EU |
| Voltage indication (V AC/DC) | 12V | 6V~12V |
| 24V | 17V~24V | |
| 50V | 35V~50V | |
| 120V | 84V~120V | |
| 230V | 161V~230V | |
| 400V | 280V~400V | |
| Features | ||
| Frequency(AC) | 50/60Hz | √ |
| Voltage indication | LED | |
| Auto detection of AC/DC | √ | |
| Input protection | √ | |
| Drop test | 2m | |
| IP54 | √ | |
| General Characteristics | ||
| Power | None, powered by external source | |
| Product color | Red and grey | |
| Product net weight | 150g | |
| Product size | 116mm x 33mm x 22mm | |
| Standard individual packing | Gift box | |
