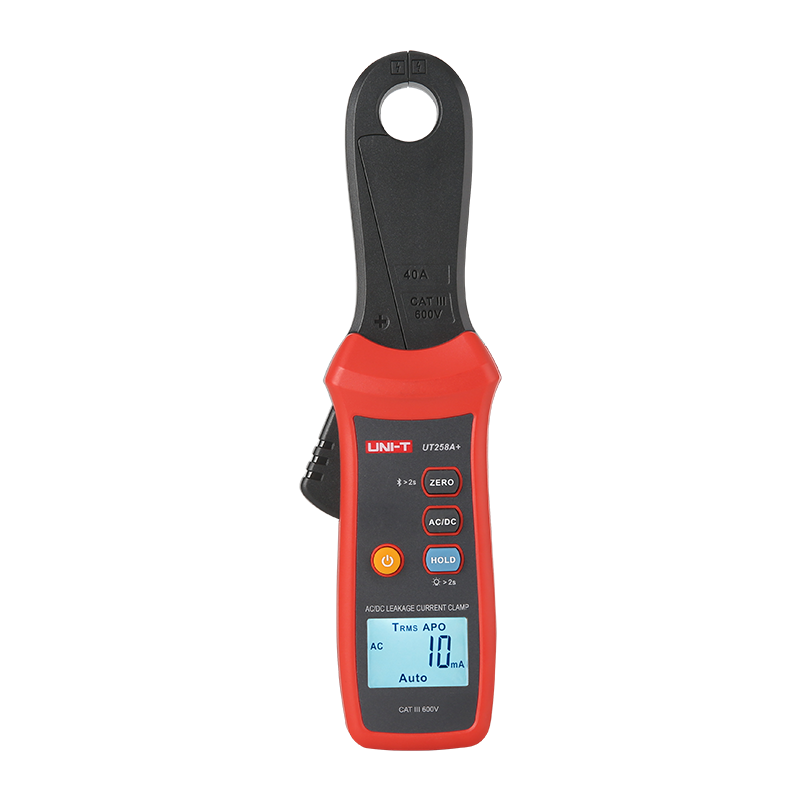

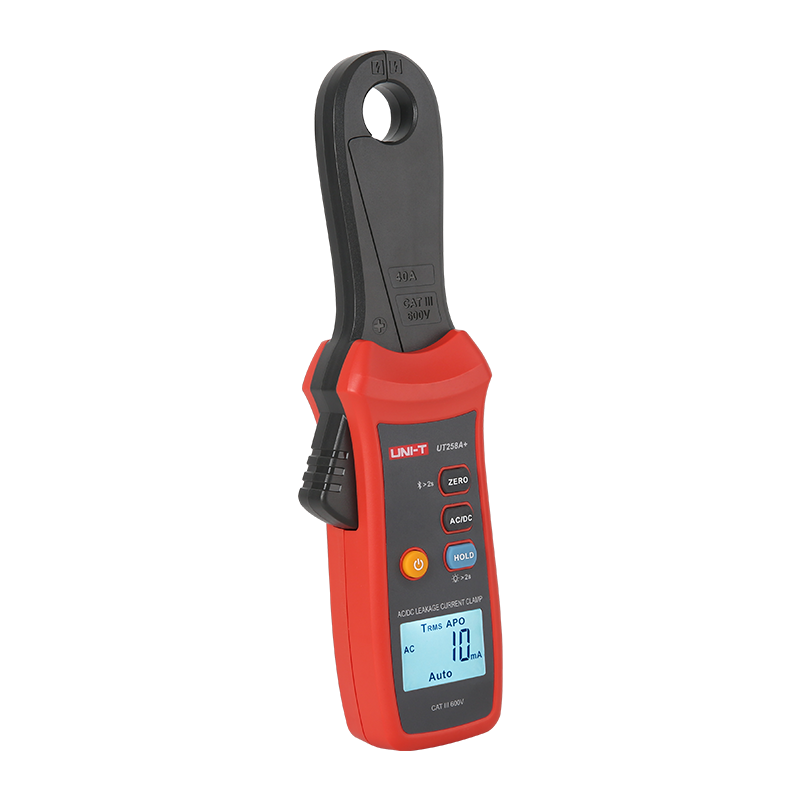

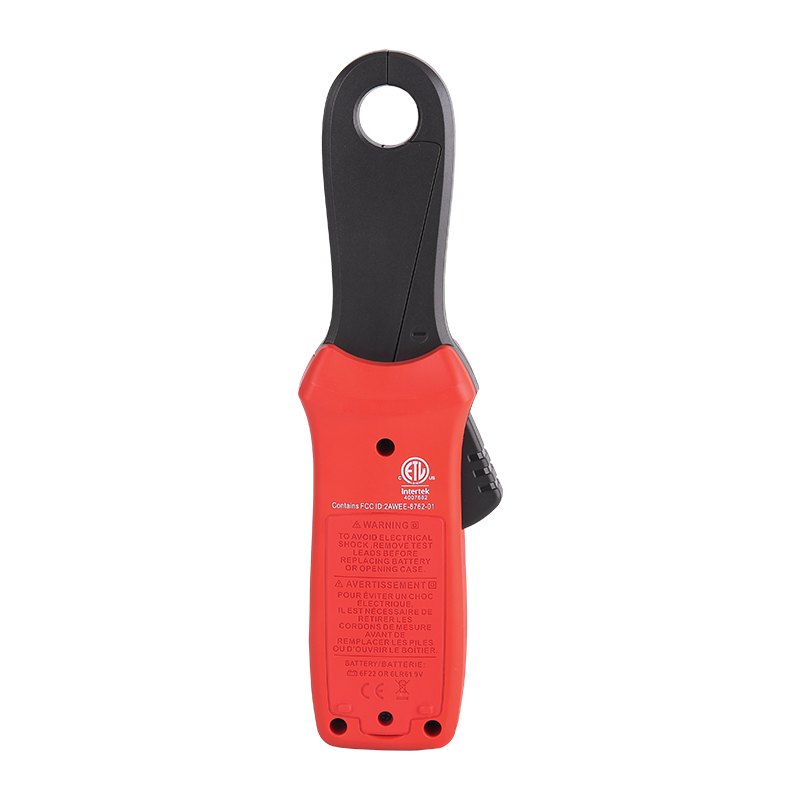

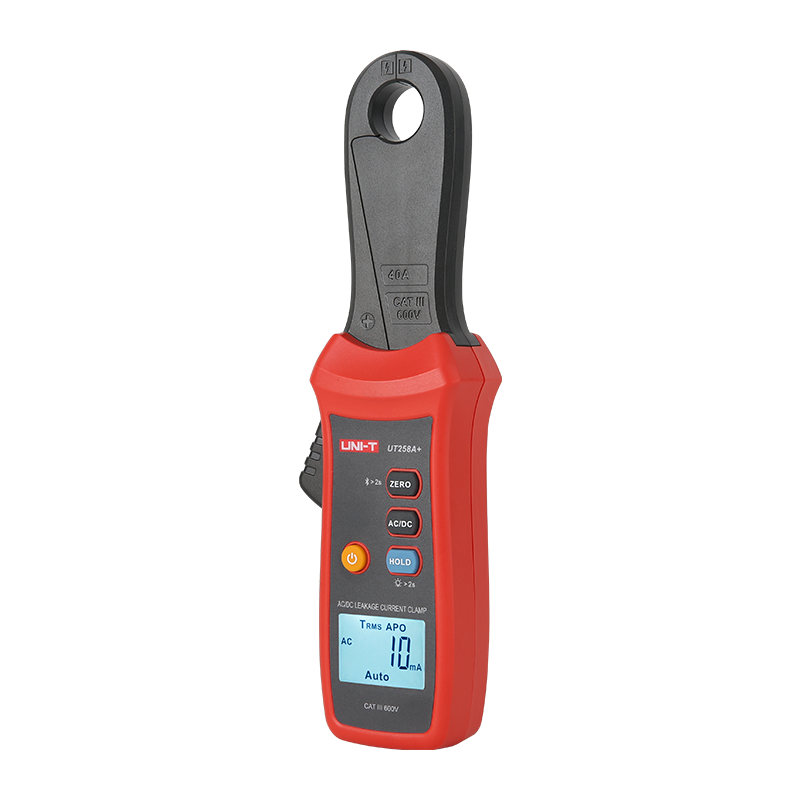

UT258A+ 20mm AC/DC LEAKAGE CURRENT CLAMP

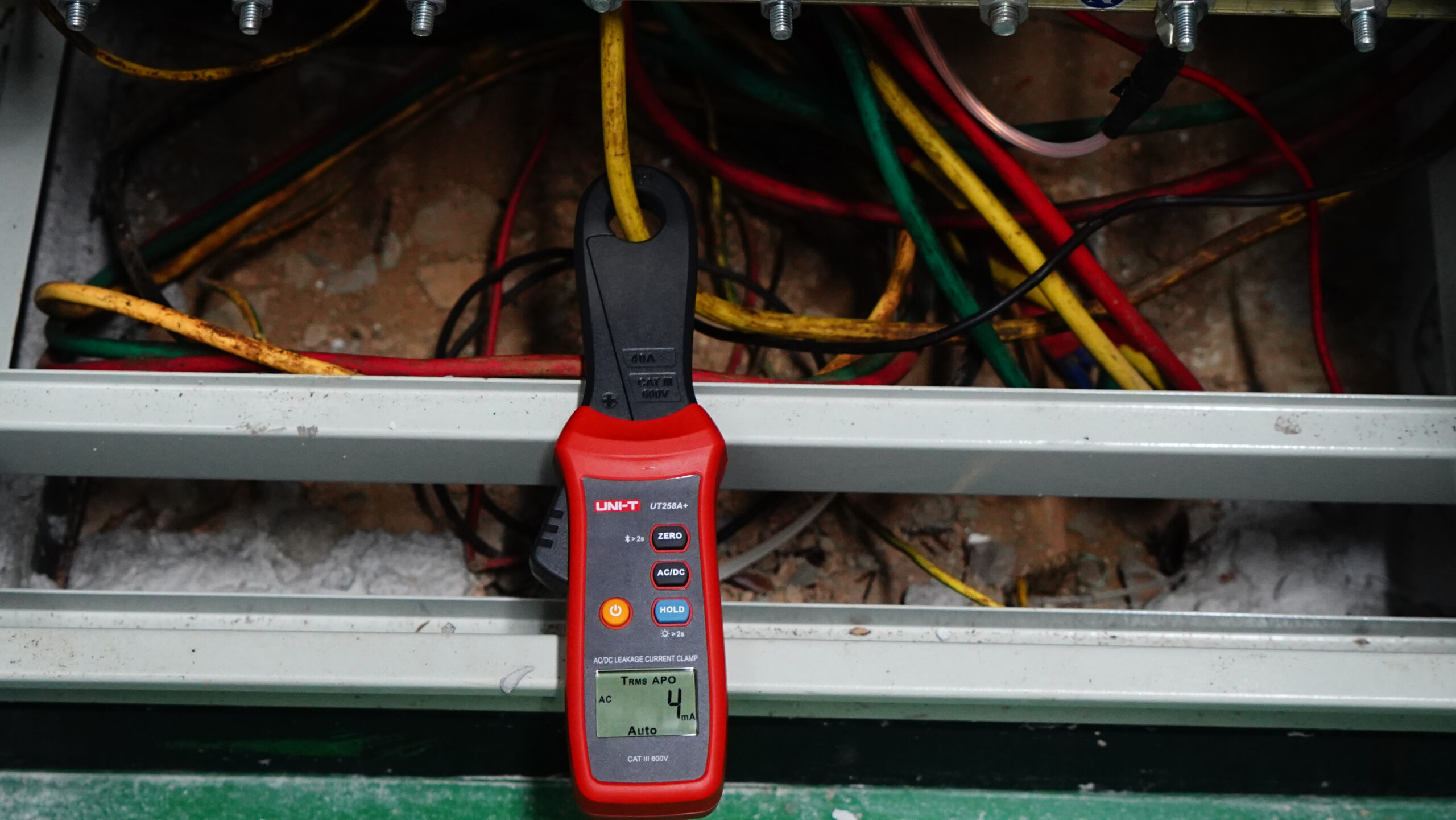

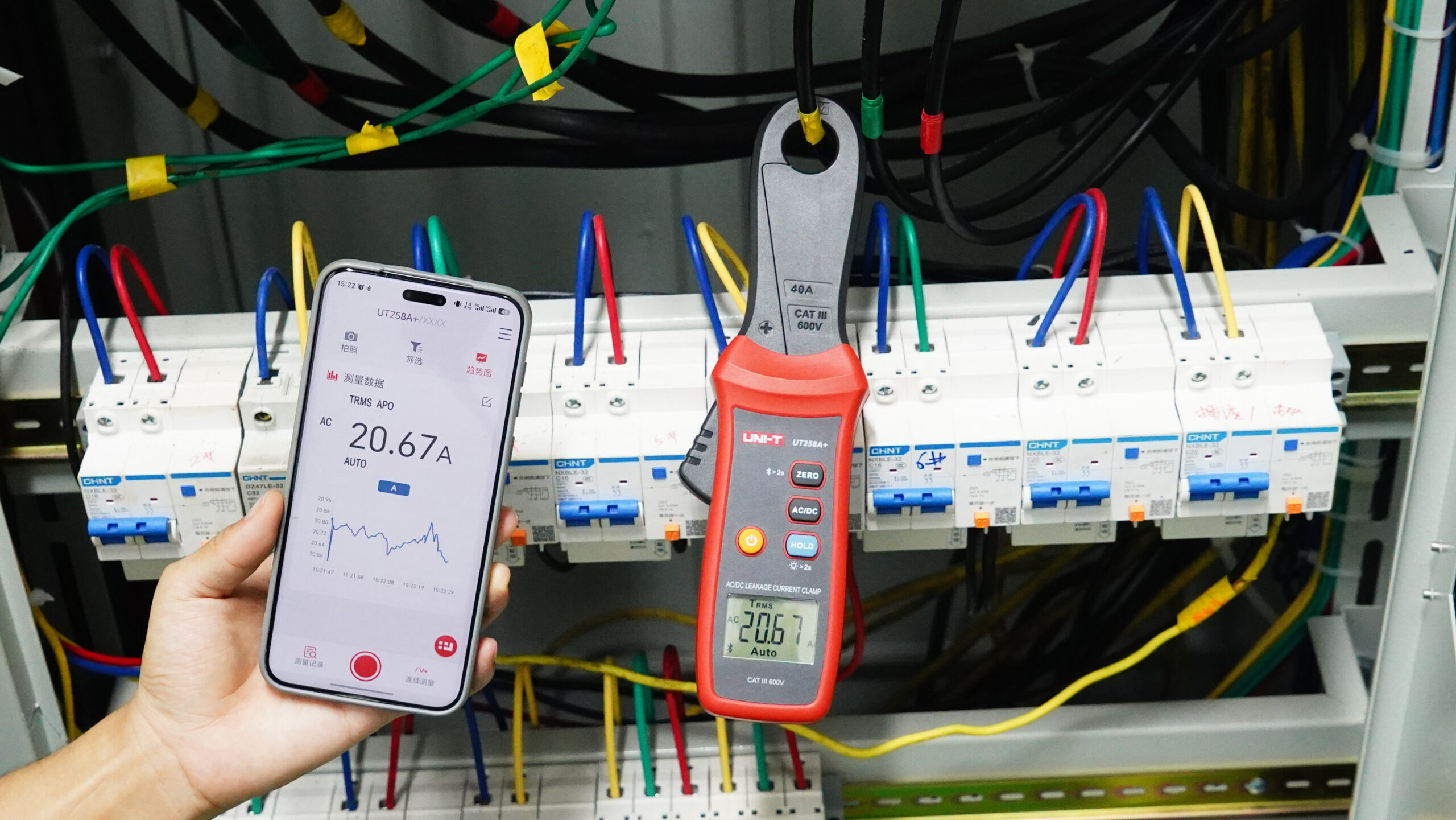

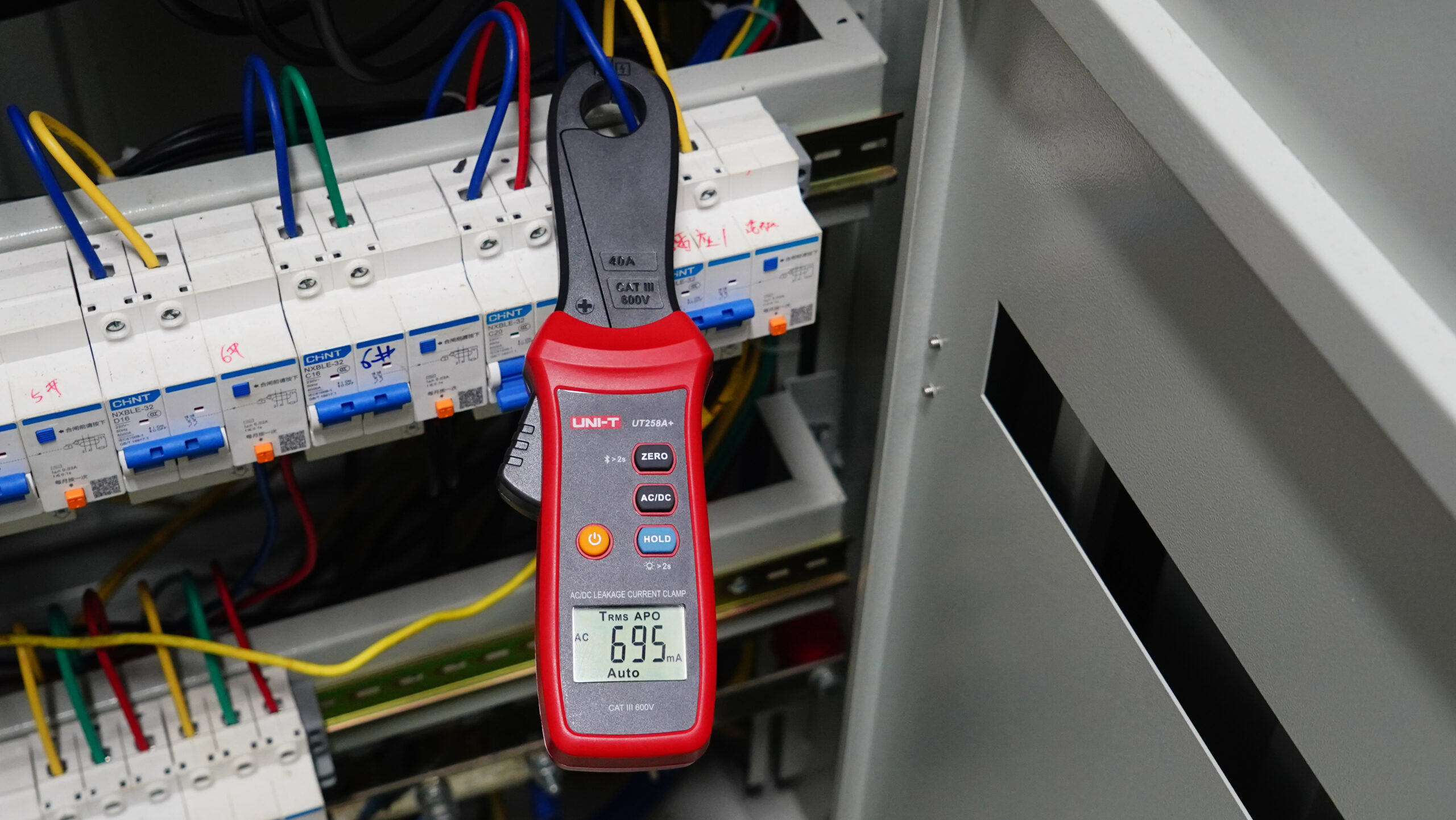

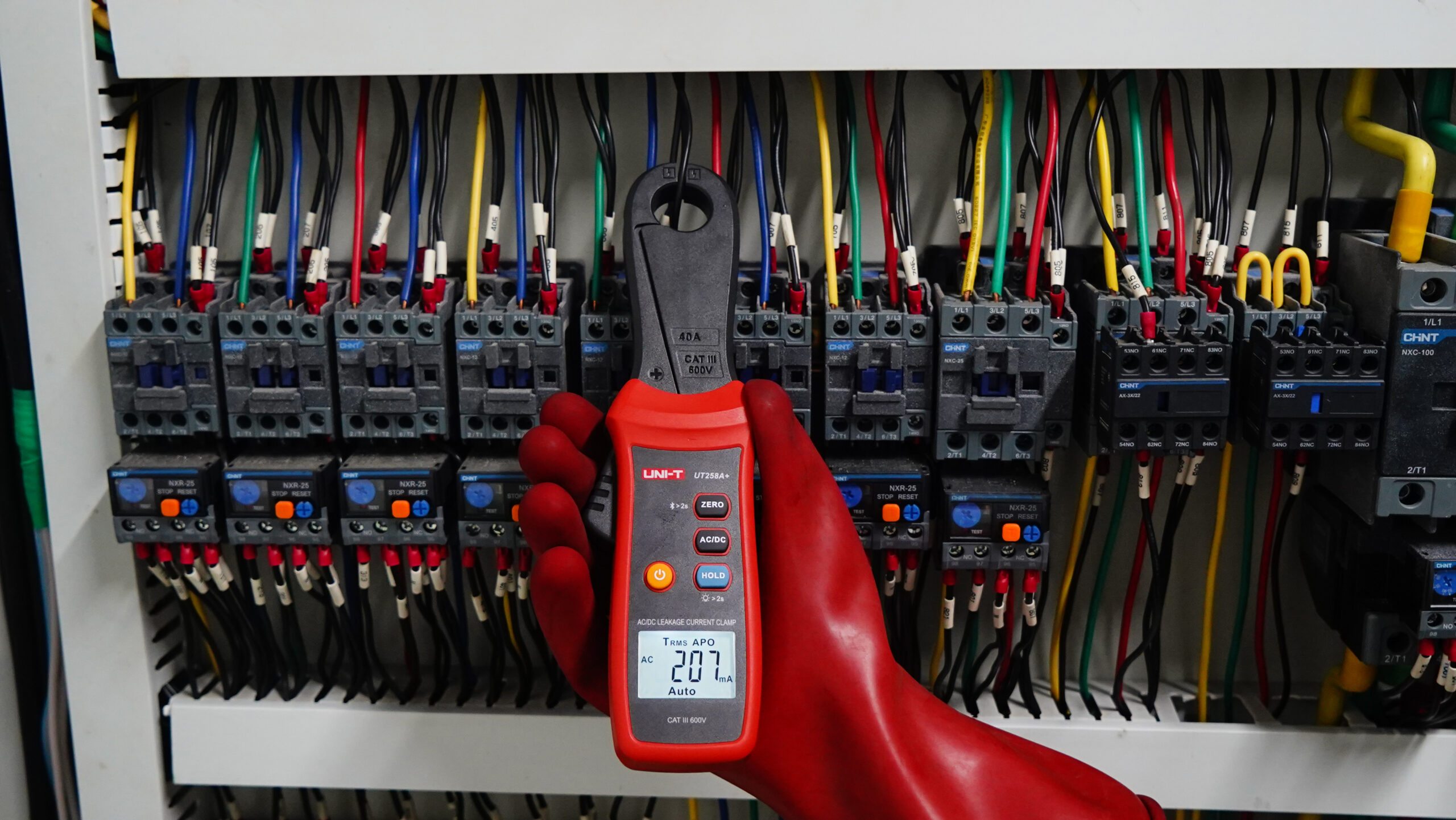

The UT258A+ is a professional AC/DC leakage clamp meter for electricians in data centers, commercial buildings, and renewable energy plants. It detects both AC and DC leakage—unlike AC-only meters—making it ideal for solar farms, DC UPS, and EV charging. With True RMS, Bluetooth remote monitoring, and CE/cETLus certification, it’s a reliable tool for leakage troubleshooting and preventive maintenance in mixed AC/DC environments.
Description
Features of UT258A+ 20mm AC/DC LEAKAGE CURRENT CLAMP
Certifications (UT258A+ only): CE, ETL, RED, FCC
- Jaw size: 20mm
- AC/DC current: 40A
- Auto range measurement
- BT App: UNI-T Smart Measure
- Auto-polarity test
- CAT III 600V
Specifications
| UT258A+ | |||
| Function | Range | Resolution | Accuracy |
| AC Current (A) | 4000mA | 1mA | ±(1.5%+5) |
| 40.00A | 0.01A | ±(1.3%+5) | |
| DC Current (A) | 4000mA | 1mA | ±(1.5%+5) |
| 40.00A | 0.01A | ±(1.3%+5) | |
| Features | |||
| True RMS | yes | ||
| Jaw size | 20mm | ||
| Display count | 4000 Counts | ||
| Sampling rate | 2 times/s | ||
| Auto range | yes | ||
| MAX/MIN/AVG. | N/A | ||
| Dual display | N/A | ||
| Auto-polarity | YES, DCA measurement | ||
| LCD display | HTN LCD | ||
| Backlight | yes | ||
| Data storage | N/A | ||
| Blutooth | BT5.X | ||
| Over-range indication | YES | ||
| Low battery indication | yes | ||
| Auto power off | Around 15 minutes | ||
| Power supply | 6LR61 9V | ||
| Safety regulation | EN 61010-1：2010+A1:2019； EN IEC 61010-2-032:2021+A11：2021； EN 61326-1:2013, EN61326-2-2:2013 |
||
| Working environment | 0℃～40℃ ；≤75%RH Altitude < 2000m | ||
| Storage environment | Storage Temperature: -10℃ ~ 60℃ Storage Humidity: <80%RH | ||
| Pollution degree | Class 2 | ||
| Overvoltage category | CATⅢ 600V | ||
| Certification | CE, ETL | ||
