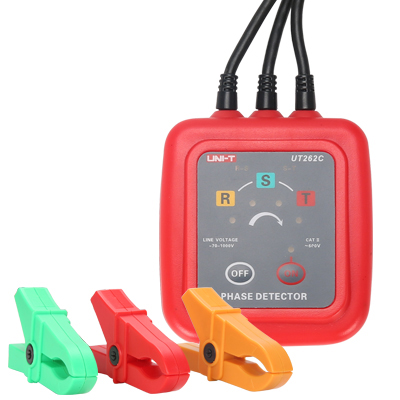

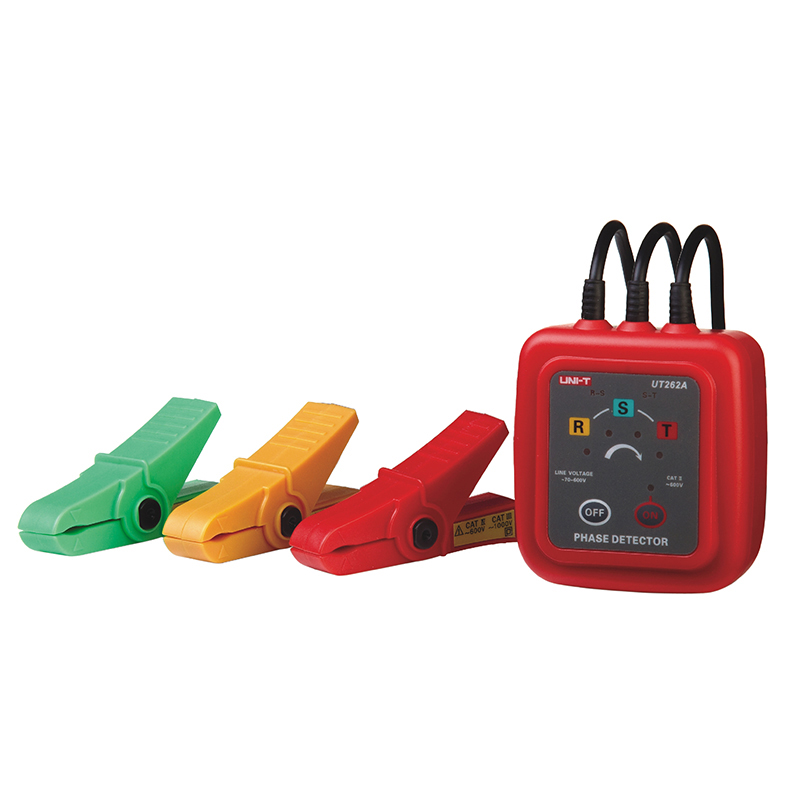

UT262A/UT262C Non-Contact Phase Detectors
UT262A/C are clamp type non-contact phase detectors. Users do not need to be in contact with high-voltage, reducing risk of electrical shock to electricans and other professional personnels. Beside phase sequence detection, UT262 series can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, and wire breaker searching. It is a perfect tool for phase sequence detection, motor mounting, and wires maintenance.
Models: UT262A, UT262C
Description
Features of UT262A/UT262C Non-Contact Phase Detectors
● Clamp opening 1.6~16mm
● Power on indication
● Auto power off (Automatically switch off after three minutes)
● LED, buzzer indication
Specifications of UT262A/UT262C Non-Contact Phase Detectors
| Specifications | Range | UT262A | UT262C |
| Phase sequence | [Positive phase] four phase lights on clockwise, and beeping sound | √ | √ |
| [Negative phase] four phase lights on anti-clockwise, and solid sound | √ | √ | |
| Missing phase detection | R-S or S-T light off | √ | √ |
| Live power detection | R-S or S-T light on | √ | √ |
| Circuit break detection | R-S or S-T light off | √ | √ |
| Voltage detection | R-S or S-T light on | √ | √ |
| AC voltage range (V) | 70V~600V | 70V~1000V | |
| Frequency range (Hz) | 40Hz~70Hz | √ | √ |
| General Characteristics | |||
| Power | 1.5V battery (R6) x 2 | ||
| Product color | Red and grey | ||
| Product net weight | 180g | ||
| Product size | 70mm x 75mm x 30mm | ||
| Standard accessories | Batteries | ||
| Standard individual packing | Blister, English manual | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 670mm x 315mm x 190mm | ||
| Standard carton gross weight | 4.6kg | ||
