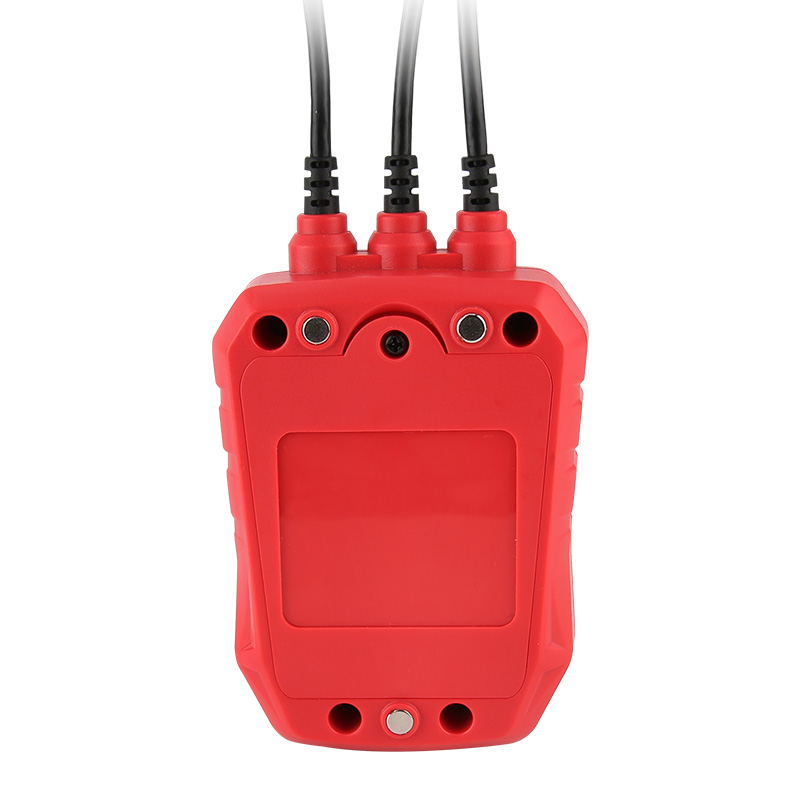

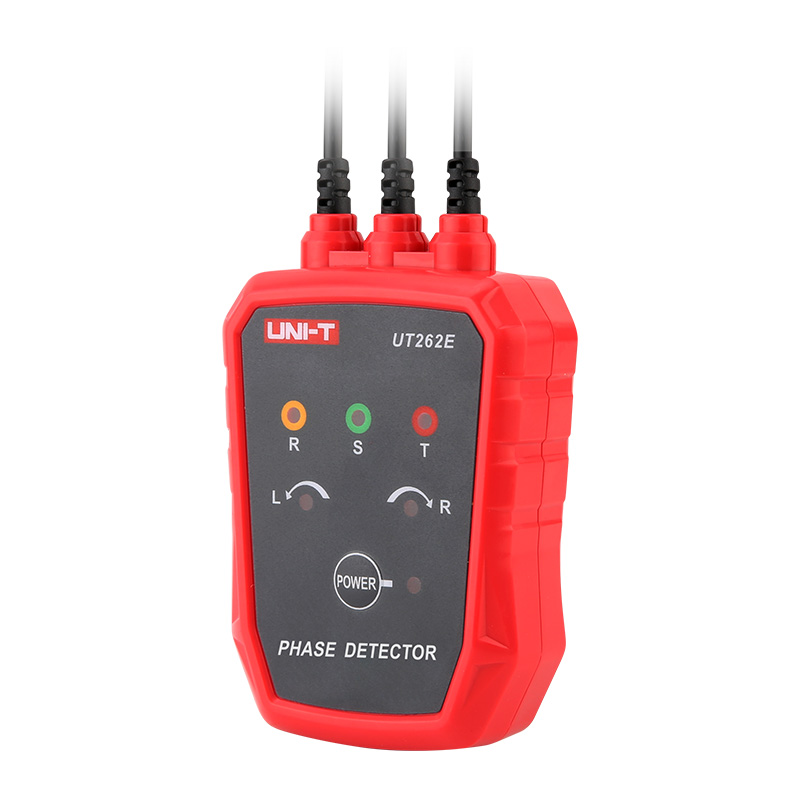

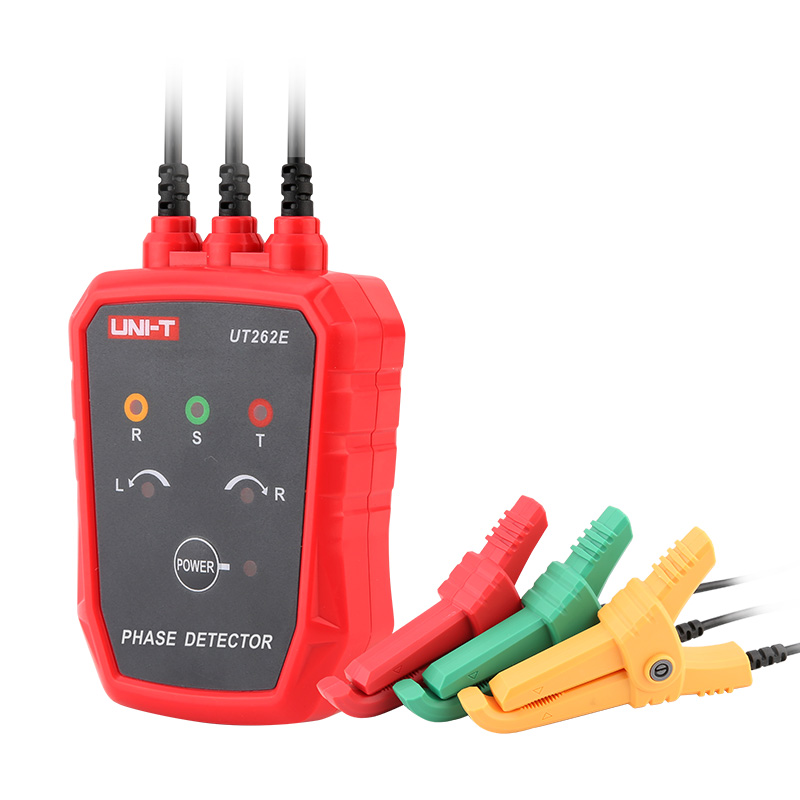

UT262E Non-Contact Phase Detector
UT262E is a clamp-type non-contact phase detector. It can avoid electric sparks due to contacting with bare wires, reducing the risk of electrical shock to electricians and other professional personnel. UT262E can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, wire breaker searching, and positive or negative states through audio and visual indication.
It is a perfect tool for phase sequence detection, motor mounting, and wires maintenance. It improves the safety of field testing, ensures the safety of operators and increases productivity.
Description
Features of UT262E Non-Contact Phase Detector
Certificates: CE, UKCA
Specifications of UT262E Non-Contact Phase Detector
| Models | UT262E | |||||||
| Function/Application | Phase detection, live wire examination, power inspection, phase loss judgment, breakpoints finding, breakpoints positioning. | |||||||
| Measurement method | Non-contact detection | |||||||
| Phase wire position | Put the wires at the position between “▲” and “▼” marked on the clamp | |||||||
| Voltage range | Three-phase voltage, 70-1000V AC （45Hz ～ 66Hz) | |||||||
| Operating frequency | 50Hz/60Hz（±10%） | 50Hz/60Hz, Automatically identify within the range of frequency error of standard power grid, the frequency range of other variable-frequency power supply is not examined. | ||||||
| Test method | Non-contact clamping | Diameter of wires can be clamped: ø2mm～ø40mm Double-insulated LDPE clamp (0.5mm²*1C+B), OD: 3.5mm, extension wire length: 0.6m. |
||||||
| Power supply | 1.5V AA*2 alkaline batteries | Continuous working time: more than 20 hours | ||||||
| Power consumption | Power-off current is less than 10uA @3V | Maximum average working current: 70mA @3V | ||||||
| Low battery indication | <2.4V | The indicator light flashes slowly to indicate low battery. | ||||||
| <2V | The buzzer beeps twice to indicate power off. | |||||||
| Auto power off | After the detector is turned on for about 5 minutes, it will power off automatically and the buzzer will beep twice. | |||||||
| Operating temperature | 32～122°F (0～50°C) | |||||||
| Operating humidity | >85% (Non condensing) | |||||||
| Storage temperature | 4～140°F (-20～60°C) | |||||||
| Altitude | < 2000m | |||||||
| Button life | 10000 cycles | |||||||
| Insulation intensity | 3.7kVrms | |||||||
| Buzzing decibel | 65～70dB | |||||||
| IP rating | IP52 | |||||||
| Safety certification | CE, UKCA | EN61010-1: 2001, EN61010-031: 2002 | ||||||
| Safety rating | Pollution Class 2, CAT Ⅳ (600V), CAT III(1000V), 8000V transient overvoltage (Only for the clamp) | |||||||
| General Characteristics | ||||||||
| Product Color | Red, black | |||||||
| Product weight (include batteries) | 237.7g (including batteries); 191.5g (excluding batteries,REF) | |||||||
| Product Dimension | 88mm*30mm*66mm (REF) | |||||||
| Standard accessories | User manual: 1 pc Carrying bag: 1 pc Warranty card: 1 pc Inspection Certificate: 1 pc AA alkaline battery: 2 pcs |
|||||||
| Standard package | Gift box, carrying bag | |||||||
| Standard quantity per carton | 5pcs | |||||||
| Standard carton Dimension | 345X195X200mm | |||||||
| Standard carton gross weight | 238 g | |||||||
