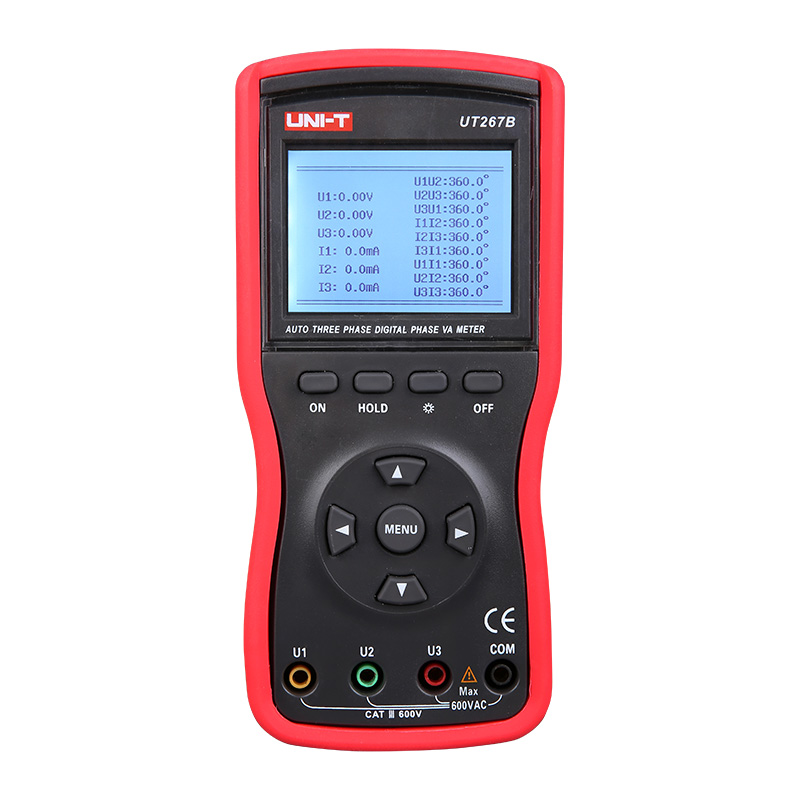

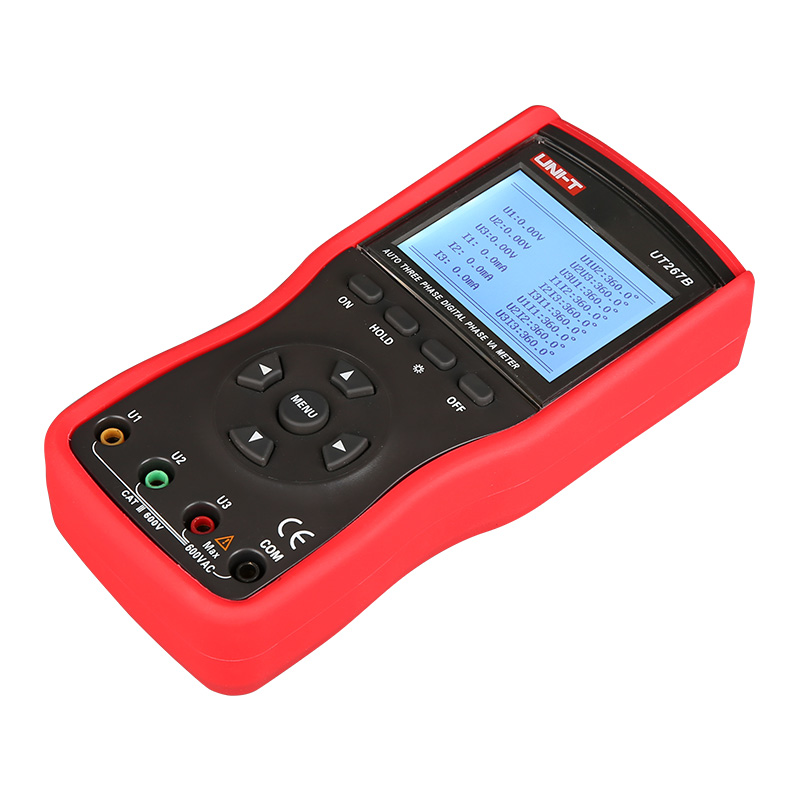

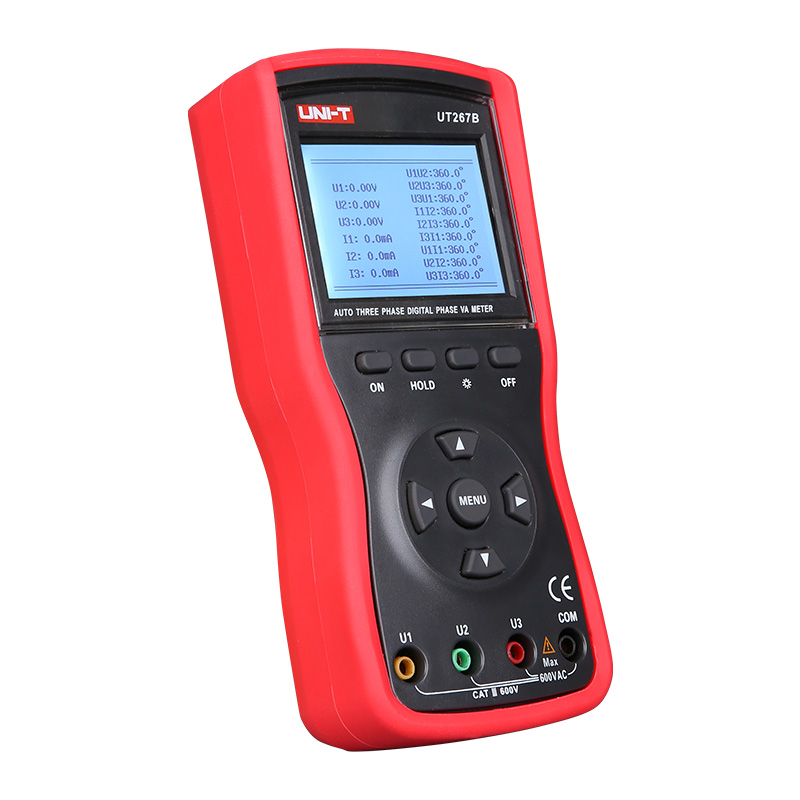

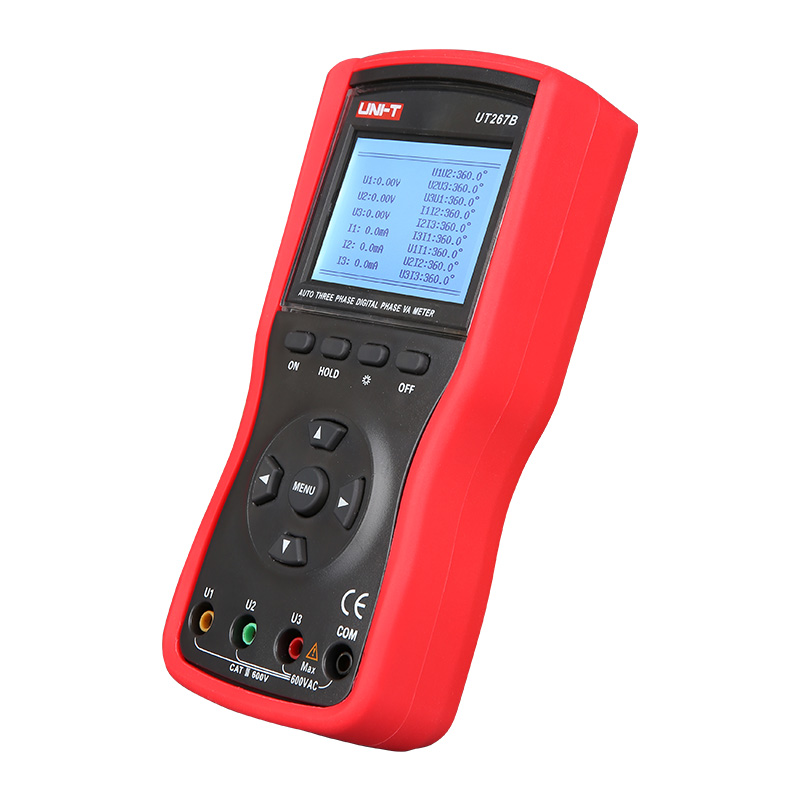

UT267B Intelligent 3 Phase Voltammeter
UT267B is an economical 3 phase meter. The meter is able to simultaneous measure 3 phase systems and display phase diagram on the LCD screen. The meter can be used to monitor electric distribution box, suitable for electricians, electrical maintenance, repair, and training personnel.
Description
Features of UT267B Intelligent 3 Phase Voltammeter
Certificates: CE, UKCA
● Measures voltage, current, power, frequency, relationships between U-U, U-I, I-I all at the same time
● Auto range, 2/s sampling rate
● Data hold
● RS-232 interface
● Low power consumption (40mA), low battery indication
● Auto power off; LCD backlight
● Anti-vibration, anti-skidding, high-insulation case
● LCD: 240×160 pixel display
● Comes with 0.5A current clamp
Specifications of UT267B Intelligent 3 Phase Voltammeter
| Specifications | Range | UT267B |
| AC current (A) | 0mA~20A | ±(1.5%+3) |
| AC voltage (V) | 0V~600V | ±(1.5%+3) |
| Frequency (Hz) | 45Hz~65Hz | ±(2%+3) |
| Active power (W) | 0W~12kW | ±(3%+3) |
| Apparent power (VA) | 0VA~12kVA | ±(3%+3) |
| Reactive power (VAR) | 0VAR~12kVAR | ±(3%+3) |
| Power factor | -1~+1 | ±0.03 |
| Phase angle (°) | 0°~360° | ±1° |
| Current vector sum | 0mA~60A | √ |
| Phase sequence test | Forward rotation, U1-U2-U3 or I1-I2-I3; reverse rotation, U1-U3-U2 or I1-I3-I2 |
√ |
| Features | ||
| Display mode | LCD: 240 dots×160 dots | √ |
| Clamp size | Acuminate current clamp: 7.5mm×13mm (optional) Round jaw current clamp: 35mm×40mm (optional) |
|
| Auto range | √ | |
| RS-232 | √ | |
| Data storage | 99 | |
| LCD backlight | √ | |
| Data hold | √ | |
| Input impedance for DCV | ≥2MΩ | √ |
| Auto power off | About 15 minutes | √ |
| Low battery indication | √ | |
| Sampling rate | About 0.5 times/s | √ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 6 | |
| Product color | Red and grey | |
| Product net weight | 550g | |
| Product size | 196mm x 92mm x 54mm | |
| Standard accessories | Batteries, current clamps (3pcs), test leads (1 yellow, 1 green, 1 red, 1 black) | |
| Standard individual packing | Gift box, tool box, English manual | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 337mm x 136mm x 333mm | |
| Standard carton gross weight | 3.3kg | |
Applications of UT267B Intelligent 3 Phase Voltammeter
The UT267B can be used to monitor power distribution box, suitable for electricians, electrical maintenance, repair, and training personnel.
