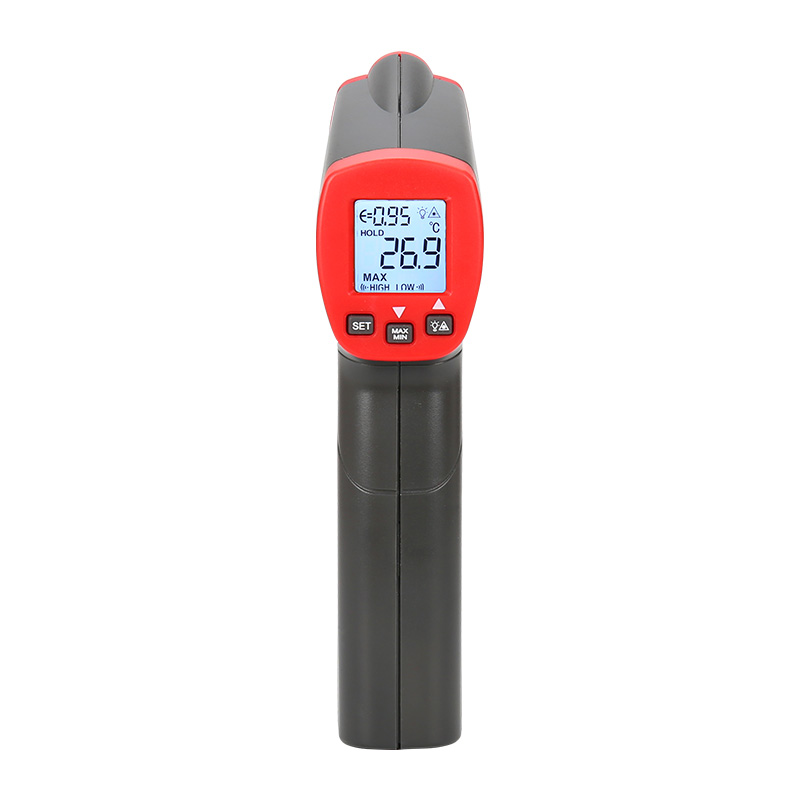

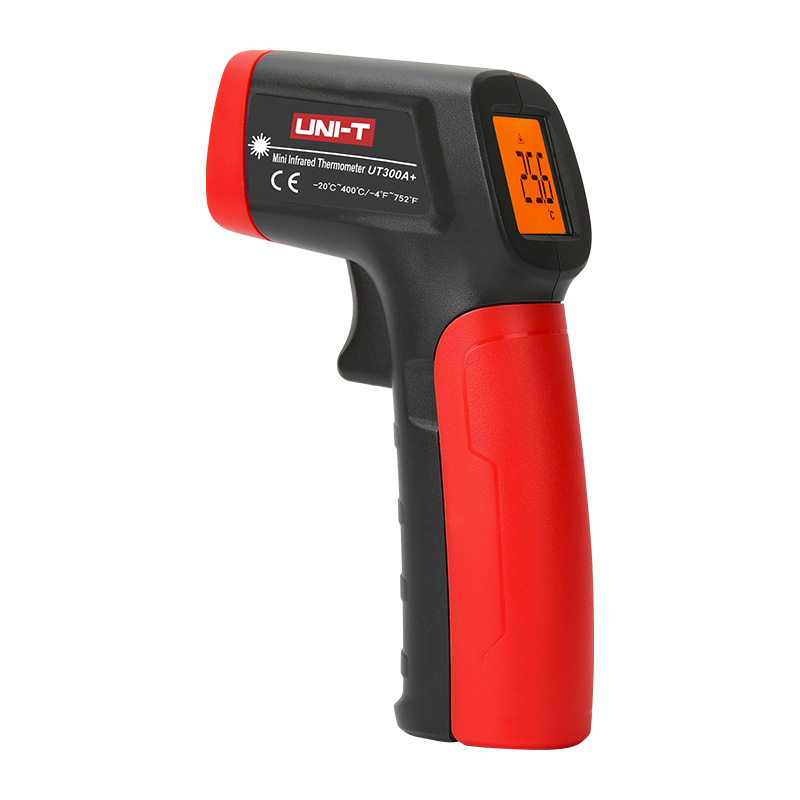

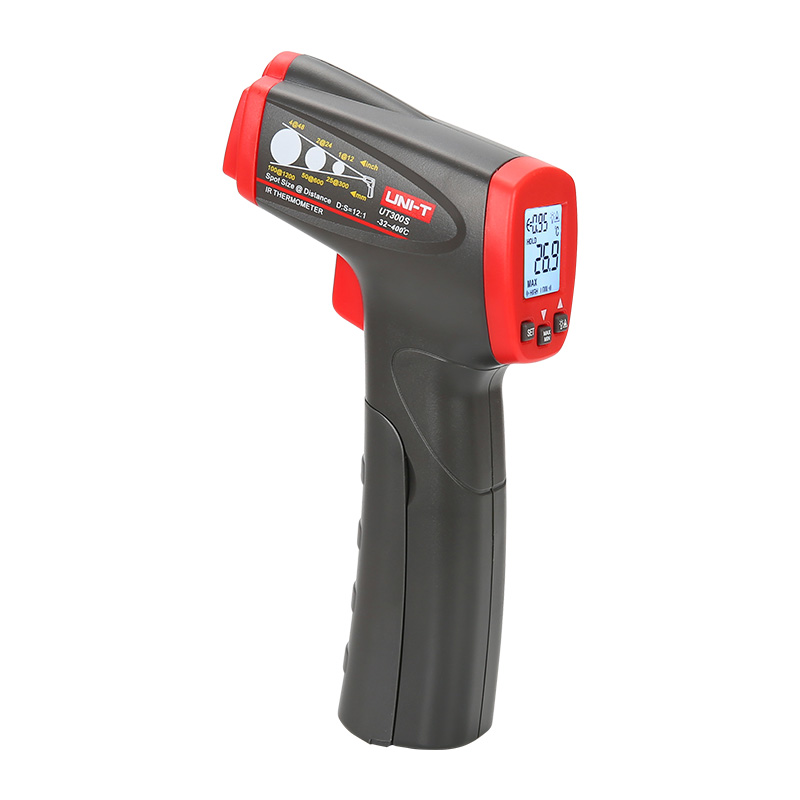

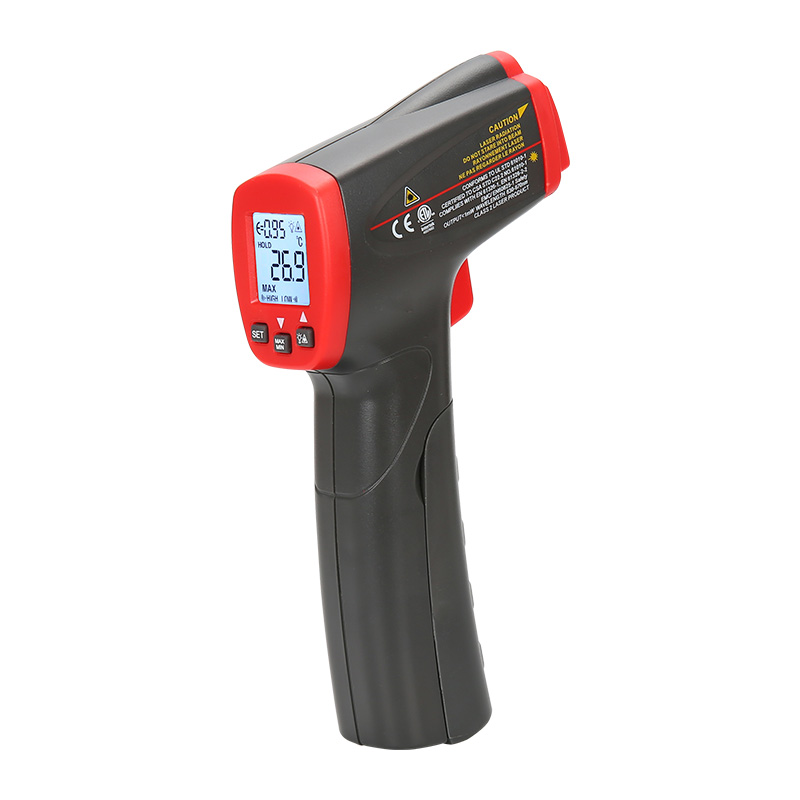

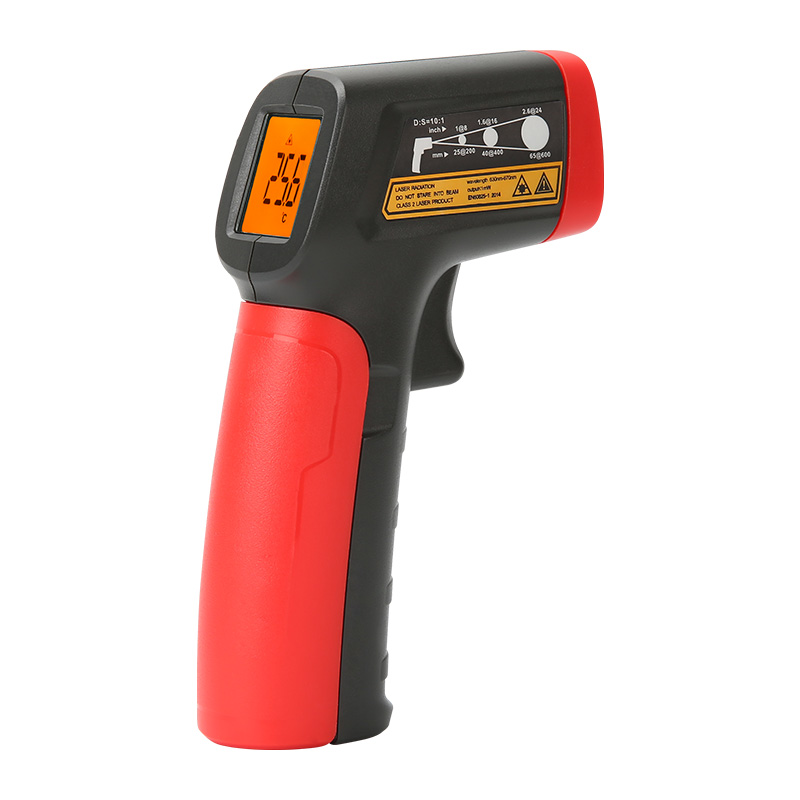

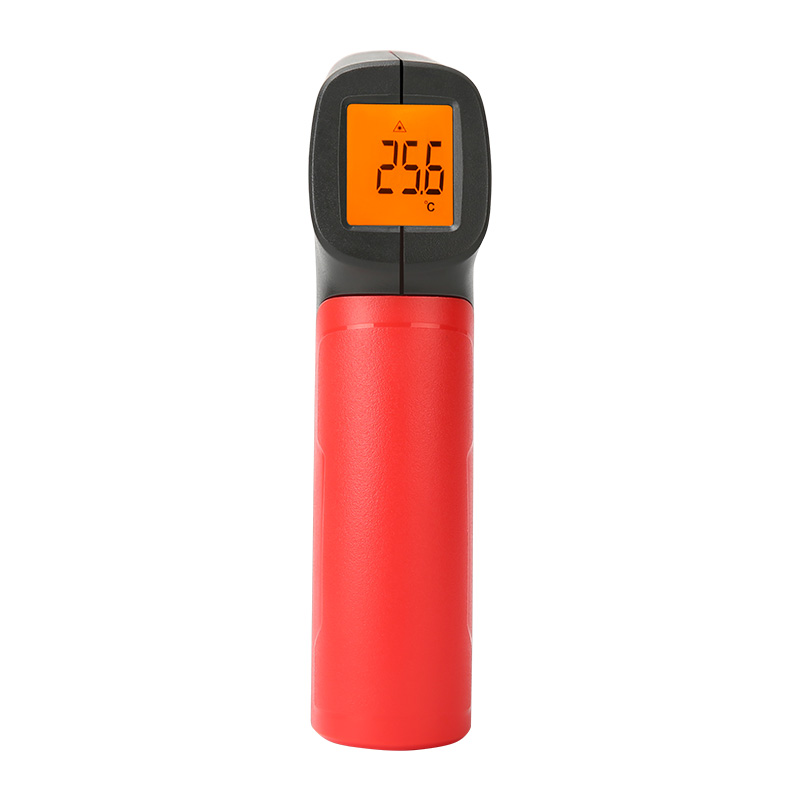

UT300 Series Infrared Thermometers

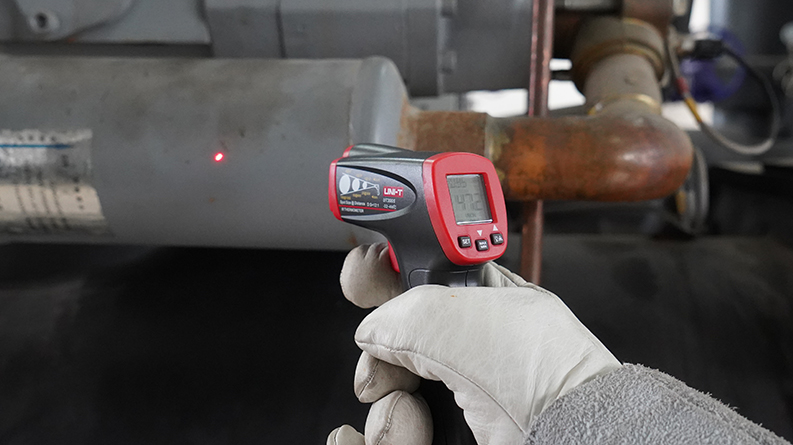

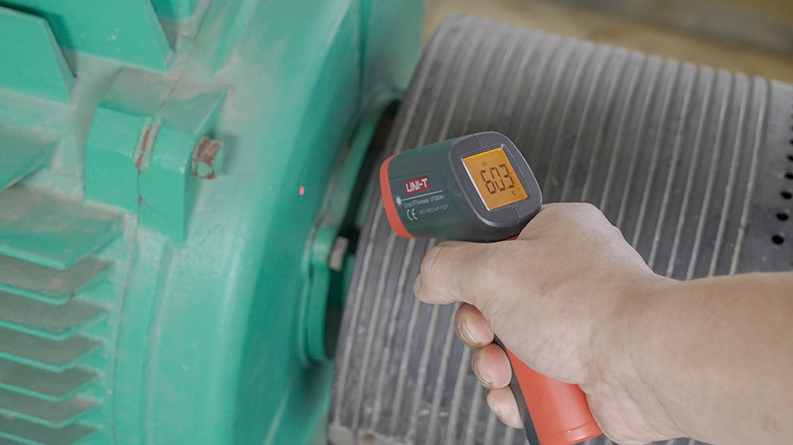

UT300 series is an economical infrared thermometer. Its compact and simple design makes it easier for users to carry and operate. Designed with high accuracy, high repeatability, quick response, long measuring distance, and more features, UT300A+ is suitable for measuring the surface temperature of hard-to-reach or dangerous objects.
Models in UT300 Series: UT300A+, UT300S
Description
Features of UT300 Series Infrared Thermometers
Certificates: CE, UKCA
● Simple one button operation
● Data hold
● Backlight
● D:S ratio: 10:1 (UT300A+); 12:1 (UT300S)
● Temperature range: -20℃～400℃ (UT300A+); -32℃～400℃ (UT300S)
Specifications of UT300 Series Infrared Thermometers
| Specifications | UT300A+ | UT300S |
| Temperature range | -20℃~400℃ | -32°C～400°C |
| -4℉~752℉ | -25.6°F～752°F | |
| Accuracy | >0℃: ±2.0℃ or ±2%; ≤0℃: ±(2.0℃+0.1℃/℃) | ±2°C or ±2% |
| >32℉: ±4.0℉ or ±2%; ≤32℉: ±(4.0℉+0.1℉/℉) | ||
| Repeatability | 1℃ or 1.0% (2℉ or 1.0%) | ±0.5°C or ±0.5% |
| D:S ratio | 10:1 | 12:1 |
| Response time | ≤500ms (95% of reading) | 500ms |
| Emissivity | 0.95 | 0.10~1.00 Adjustable |
| Spectral response | 5.5um~14um | 8μm～14μm |
| Laser power | < 1mW | ＜1mW |
| Features | ||
| Auto power off | 8s | 8s |
| Low battery indication | √ | √ |
| Data hold | √ | √ |
| ℃/℉ selection | √ | √ |
| Backlight | √ | √ |
| Laser | √ | √ |
| Operating temperature | 0℃~50℃ (32℉~122℉) | |
| Storage temperature | -20℃~60℃ (-4℉~140℉) | |
| Operating humidity | <90% RH (non-condensing) | |
| Drop test | 1m | |
| General Characteristics | ||
| Power | 1.5V battery (LR03) x 2 | 9V Battery (6F22) |
| Display | 20mm x 24mm | 22mm X 22mm |
| Product color | Red and grey | |
| Product net weight | 146g | 185g |
| Product size | 135mm x 94mm x 36.5mm | 153mm X 108mm X40mm |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 20pcs | 48pcs |
| Standard carton measurement | 430mm x 265mm x 300mm | 590×530×360mm (0.11 CBM Per Standard Carton) |
| Standard carton gross weight | 6.97kg | 14.8kg |
Documents
Tittle
Download
Related Products
-

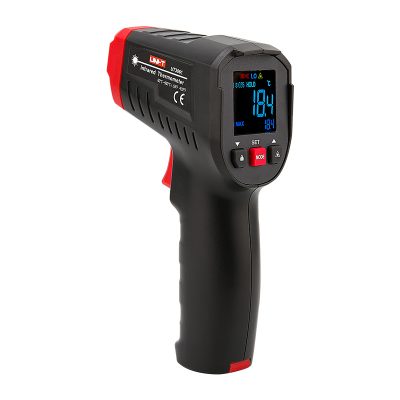

UT306 Series Infrared Thermometers
Widely used in food industry, machine maintenance, metal working, cold storage, and other industrial fieldsLearn moreCompare ModelsCompare: -

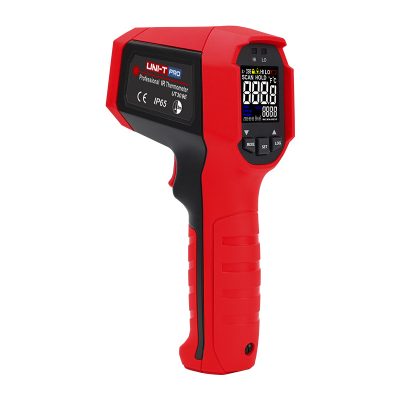

UT309 Series Professional Infrared Thermometers
