UT320 Series Mini Contact Type Thermometers

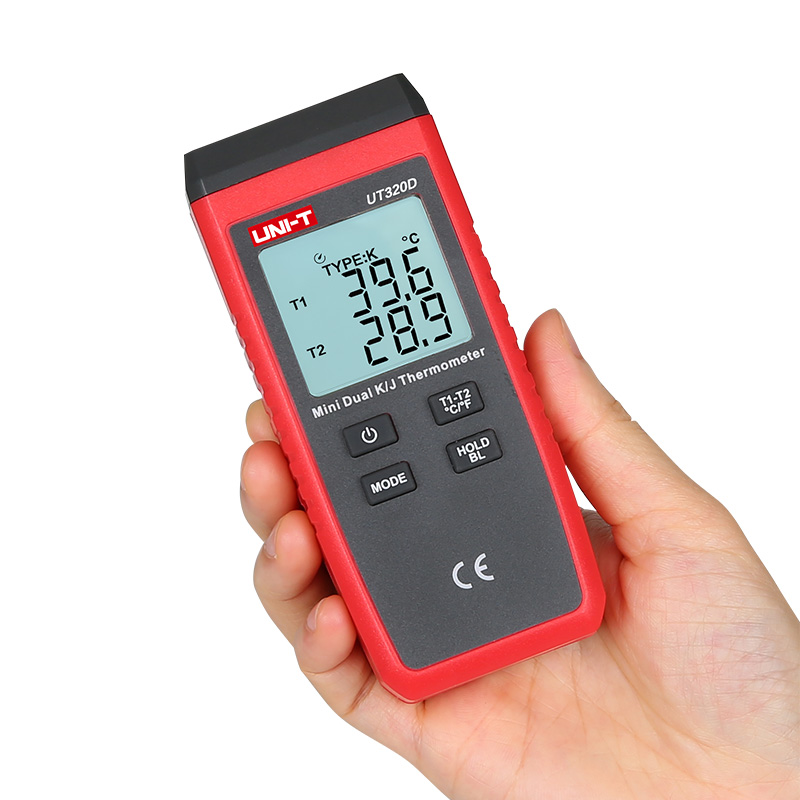

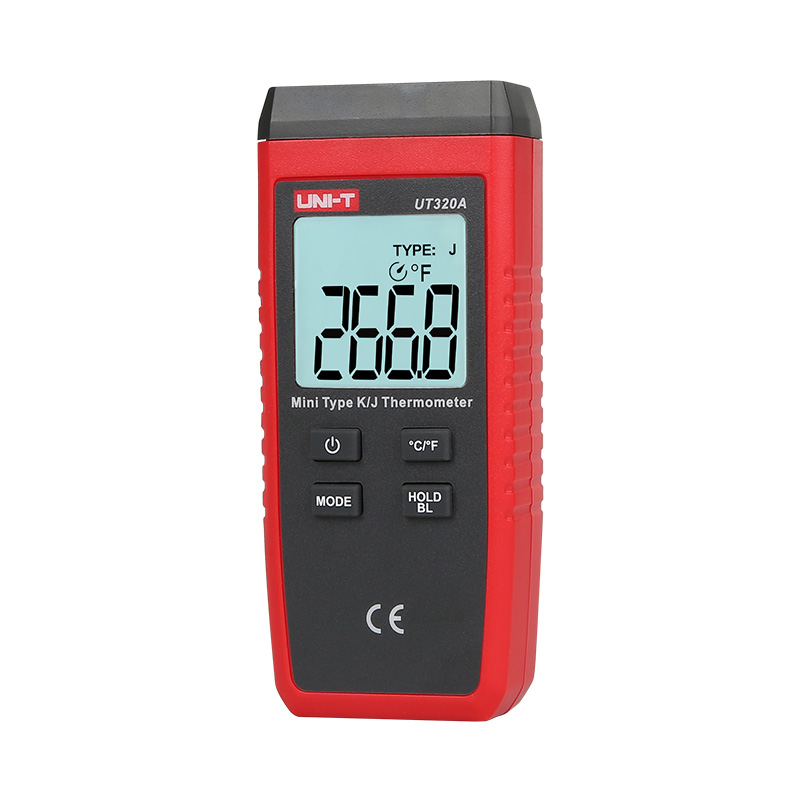

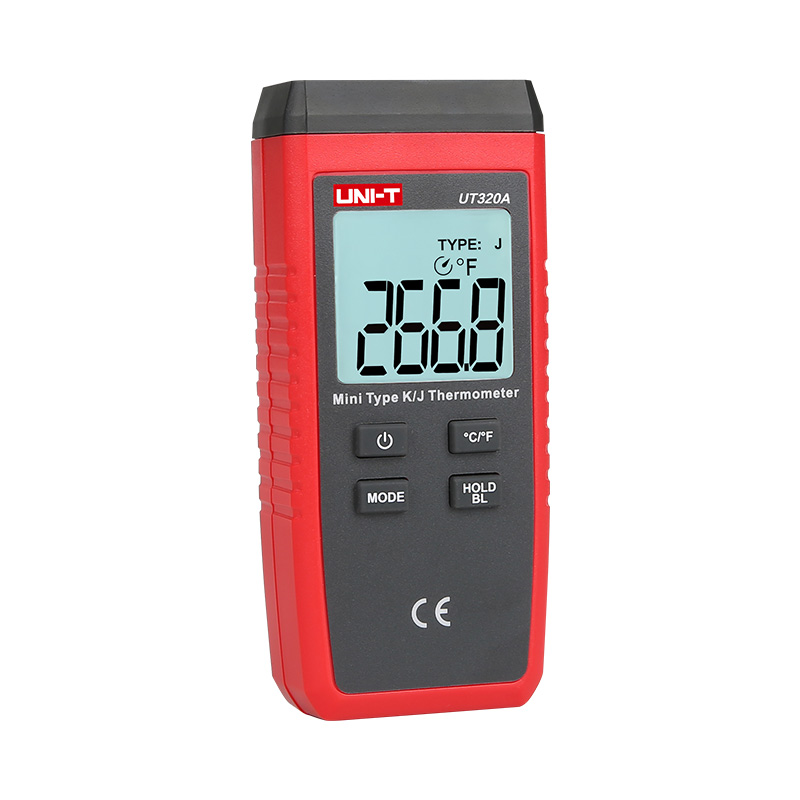

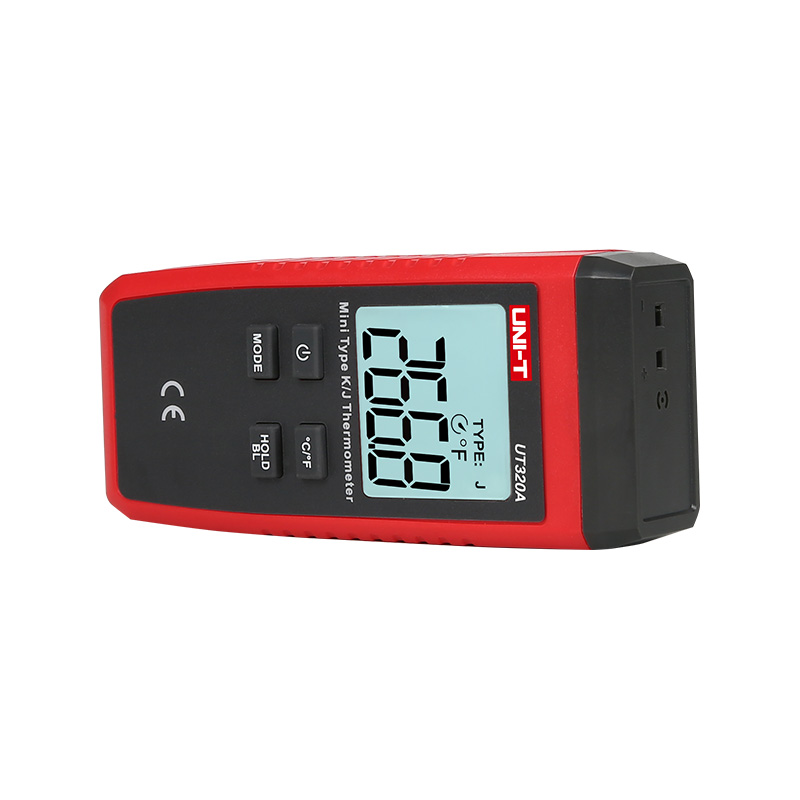

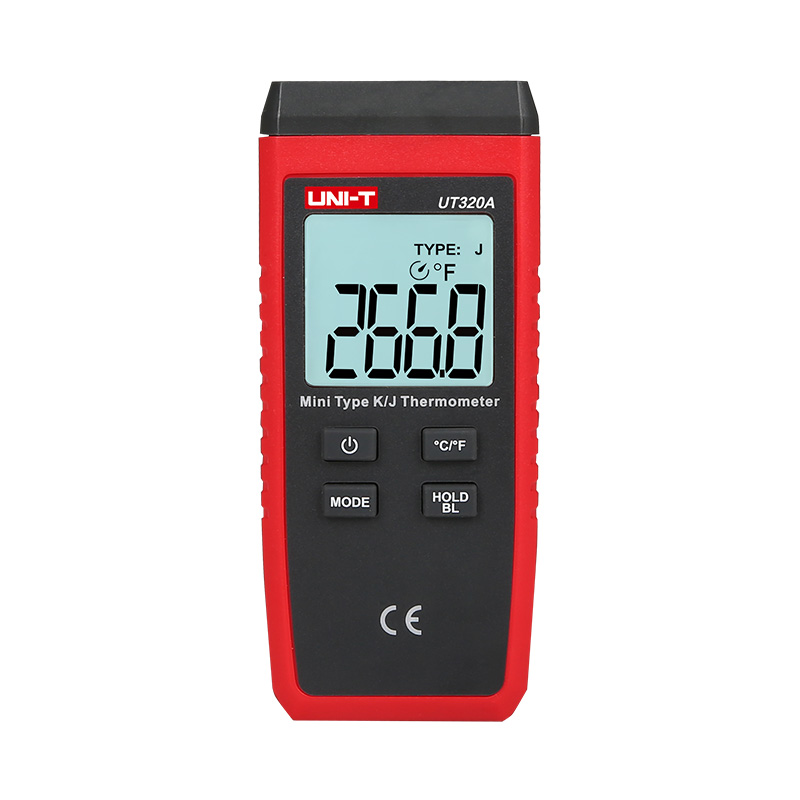

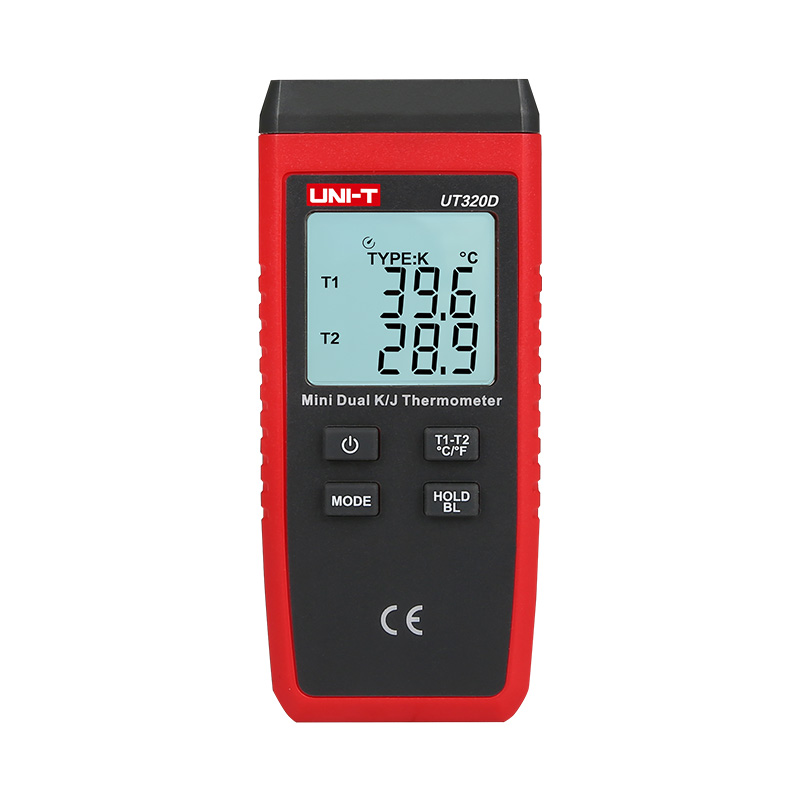

UT320A and UT320D are single and double channel contact type thermometers respectively. These highly accurate thermometers have a wide temperature range. UT320D can also calculate the temperature difference of its two channels. UT320 can be used with any K or J temperature probe.
Models in UT320 Series: UT320A, UT320D
Description
Features of UT320 Series Mini Contact Type Thermometers
Certificates: CE, UKCA
● 1m drop proof
● 4 times/s sampling rate
● Maximum/minimum/average
● Data hold
● LCD backlight
● Wide range, high accuracy
● K/J thermocouple probe selection
● Auto power off
● Low battery indication
Specifications of UT320 Series Mini Contact Type Thermometers
| Specifications | Range | UT320A | UT320D |
| Temperature measurement (K) | -50℃~1300℃ | ±(0.5%＋1) | ±(0.5%＋1) |
| Temperature measurement (J) | -50℃~1200℃ | ±(0.5%＋1) | ±(0.5%＋1) |
| Features | |||
| Display mode | Single | Dual | |
| Auto power off | √ | √ | |
| Low battery indication | √ | √ | |
| Difference measurement (T1-T2) | √ | ||
| Data hold | √ | √ | |
| ℃/℉ selection | √ | √ | |
| MAX/MIN/AVG | √ | √ | |
| Mode selection (K/J) | √ | √ | |
| Backlight | √ | √ | |
| Drop test | 1m | √ | √ |
| Operating temperature | 0℃~40℃ | ||
| Operating humidity | ≤80%RH | ||
| General Characterisitics | |||
| Power | 1.5V battery (R03) x 3 | ||
| Display | 37.4mm x 36.4mm | ||
| Product color | Red and grey | ||
| Product net weight | 60g | ||
| Product size | 120mm x 53mm x 28mm | ||
| Standard accessories | K-type temperature probe, batteries | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 332mm x 225mm x 200mm | ||
| Standard carton gross weight | 3.4kg | ||
