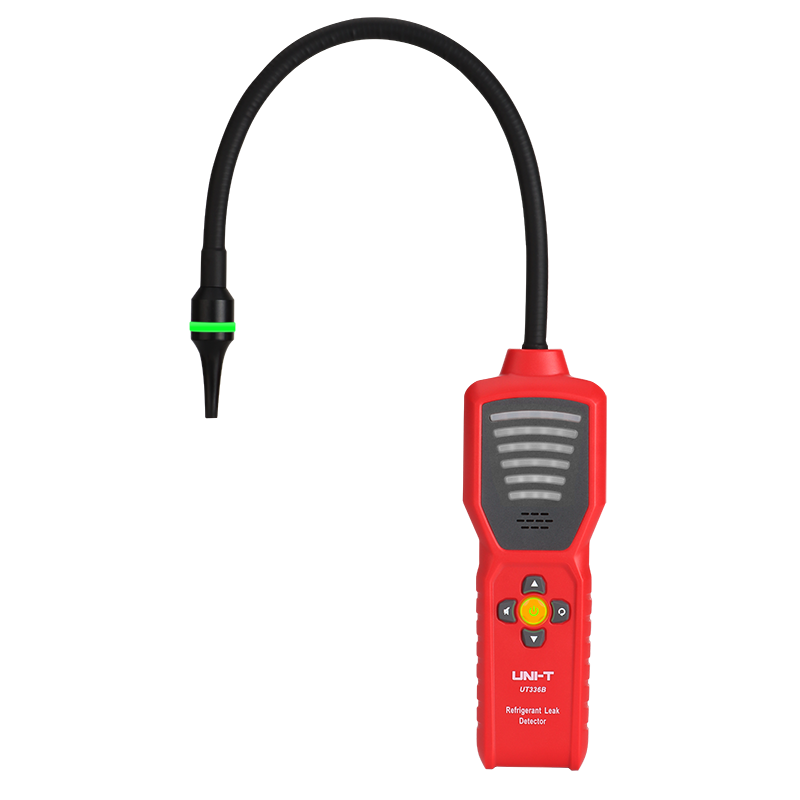

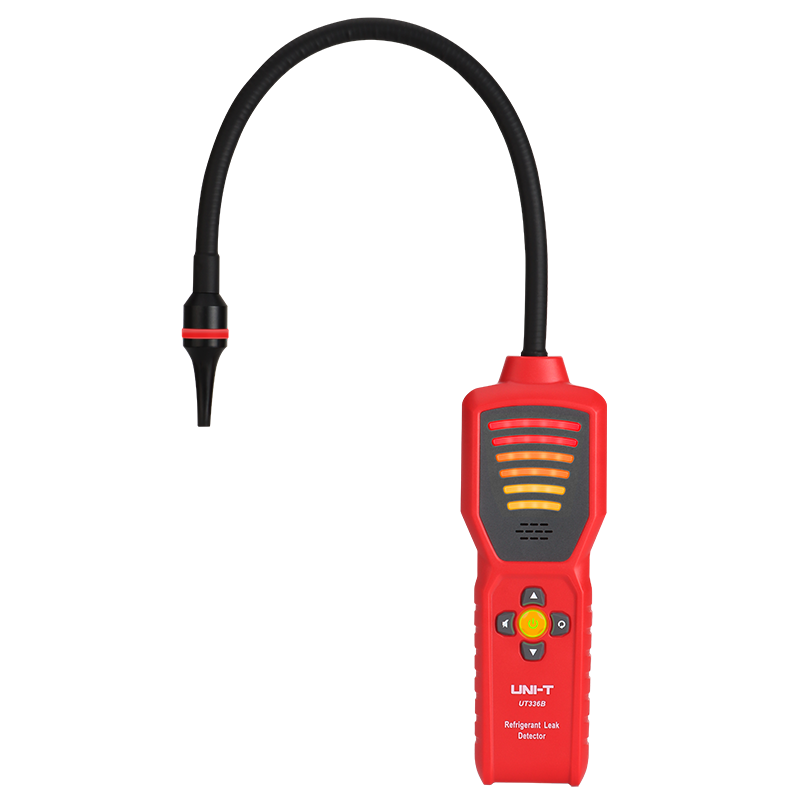

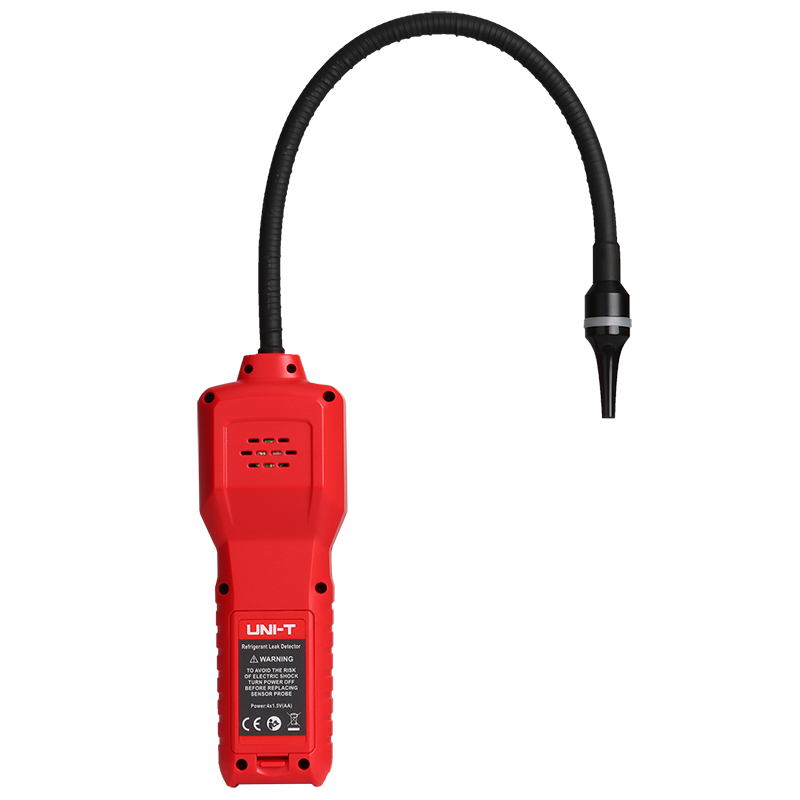

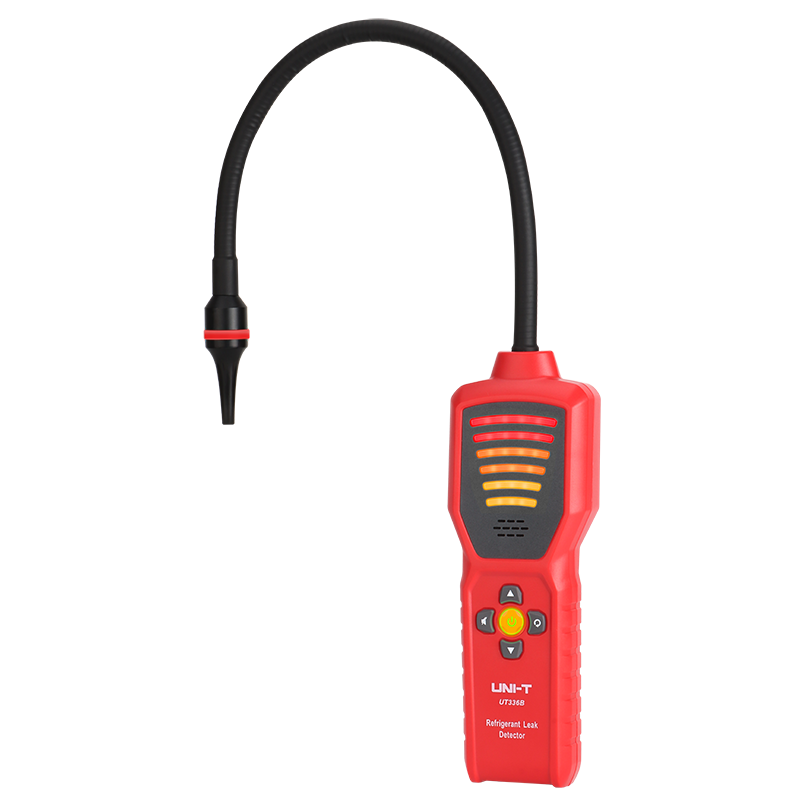

UT336B Refrigerant Leak Detector

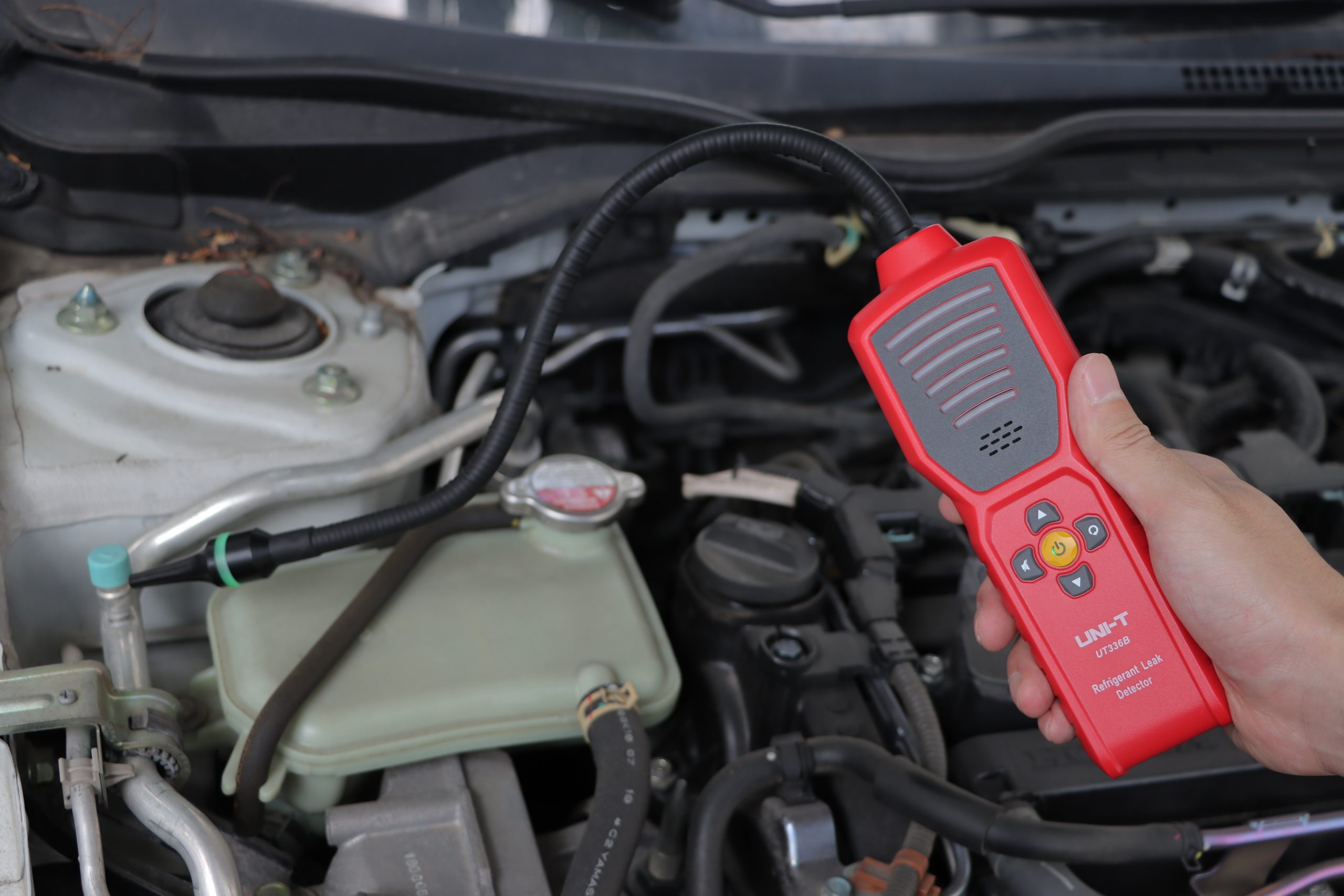

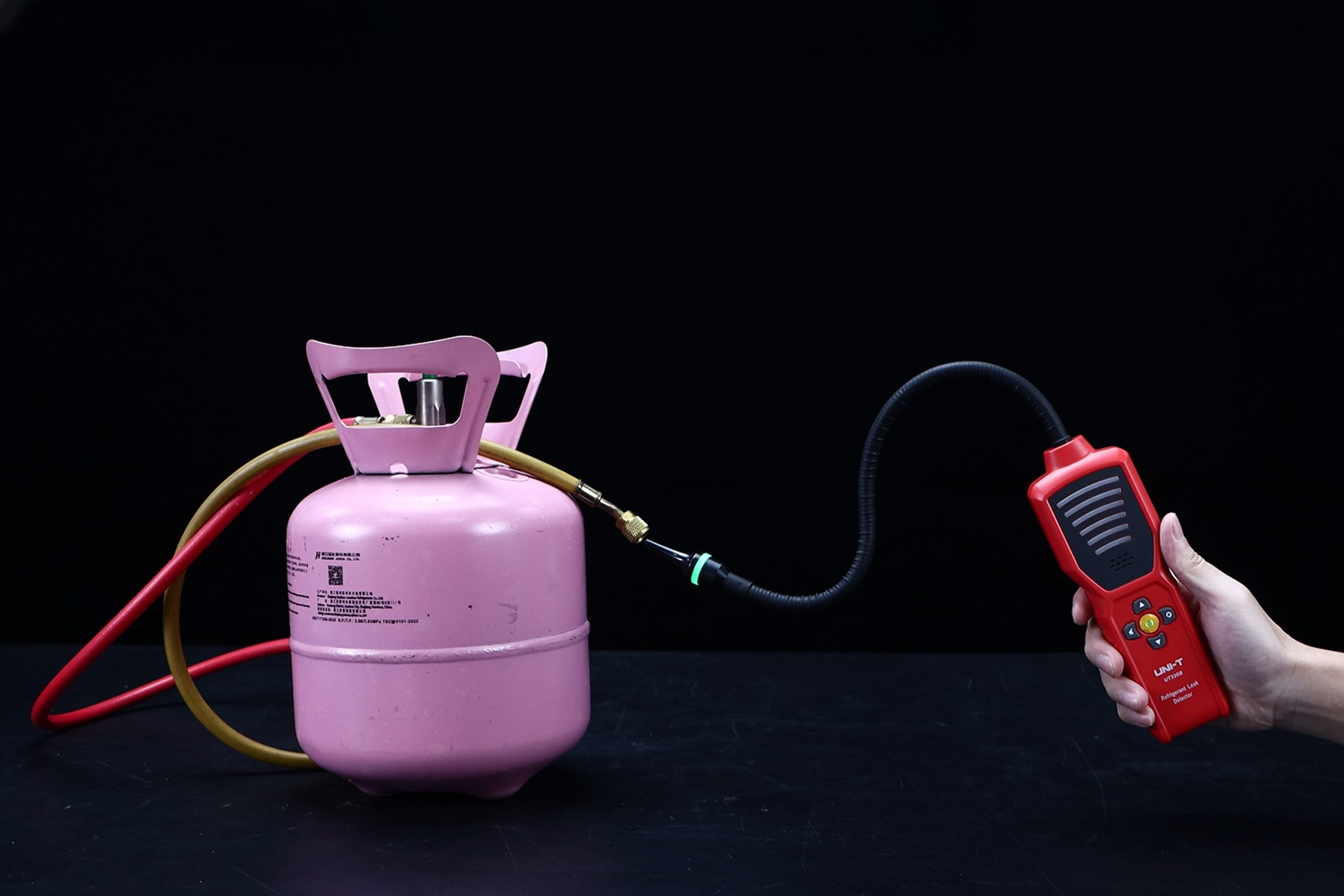

UT336B Refrigerant Leak Detector is designed with high-sensitivity semiconductor sensor, features quick response, high-accuracy detection, high reliability, easy-to-use, etc. The probe light is made with creative design and synchronously follows the color change of alarm lights in device. It is widely used in the refrigeration industries of air-conditioner maintenance, vehicle repair, refrigeration equipment inspection, refrigerator maintenance and others need to use refrigerants.
Description
Features of UT336B Refrigerant Leak Detector
Certifications: CE,RoHS
Language: EN, FR, DE, IT, ES, SV, PL, CZ
● Semiconductor Sensor
● Audible and visible alarm
● Power-on Auto-reset
● 6-Sensitivity Adjustment

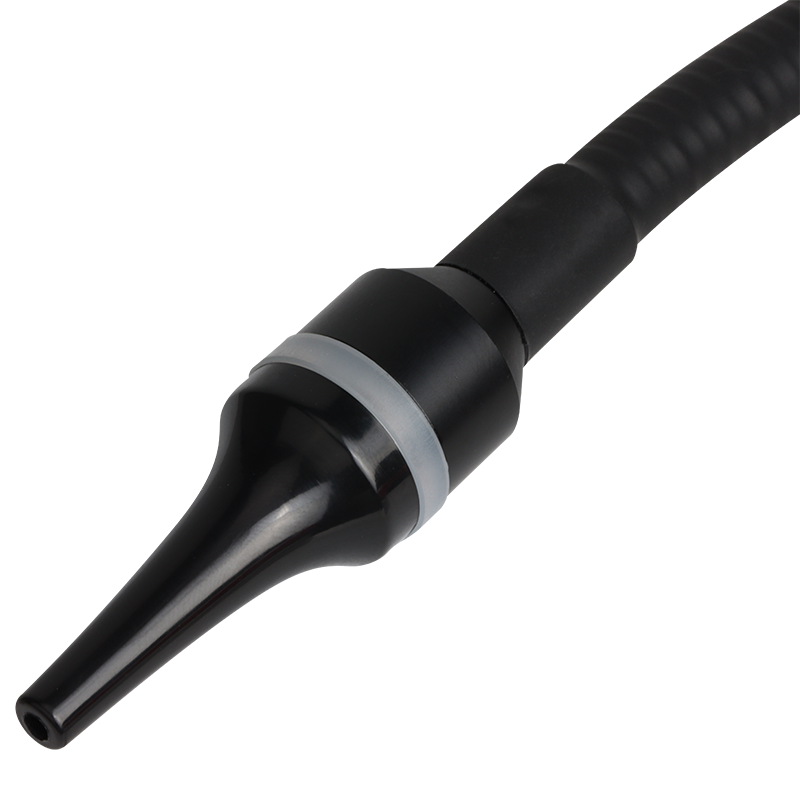

● Come with Probe Light
● Long Sensor Life
● Easy-to-use Operation
● Supports different types of halogenated refrigerants: CFCs, HCFCs, HFCs
Specifications
| Specifications | |
| Sensor | Semiconductor Sensor |
| Maximum Sensitivity | 3g/a |
| Warm-Up Time | 60s |
| Sensitivity Adjustment | 6 Levels |
| Alarm Light | 6 Levels |
| Battery Status | √ |
| Zero reset | √ |
| Probe Light | √ |
| Mute | √ |
| Battery Life | 10h |
| Auto Power Off | √ |
| Probe Life | About 2yr(Calculate as per 2.5h per day) |
| Operating temperature and humidity | 0℃-50℃，＜95%RH(non-condensing) |
| Characteristics | |
| Power Supply | AA Alkaline Battery *4 |
| Product Size | 190x65x43mm(Not probe rod included) |
| Product Net Weight | 282g(Not battery included) |
| Standrad Accessories | Refrigerant Leak Detector, Quick Start Guide, Safety Guideline,AA Alkaline Battery*4, Cloth Bag*1 |
| Standard Quantity Per Carton | 5pcs |
