UT377B Pin Moisture Meter
UT377B is a stable, safe, and reliable pin moisture meter featuring an LCD screen for clear and intuitive moisture content readings. It offers multiple wood species selections and building material options. Equipped with environmental temperature compensation, it minimizes measurement errors significantly. With rapid detection capability, low power consumption, and high precision, this instrument is widely used for fast moisture measurement in wood materials, papermaking, plywood, wood drying, furniture decoration, and building materials.
Description
Features of UT377B Pin Moisture Meter
Certifications: CE, RoHS
Language: EN, FR, DE, IT, ES, SV, PL, CZ

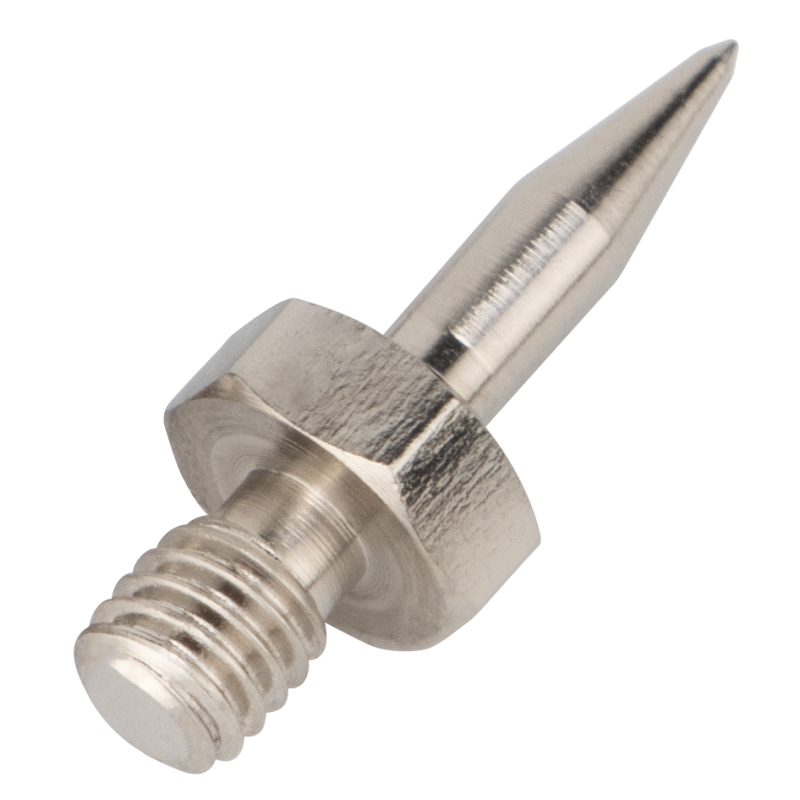

1. Pin-type measurement
2. Wood and building materials measurement
3. Audible buzzer and analog bar alarm
4. 7 modes selectable

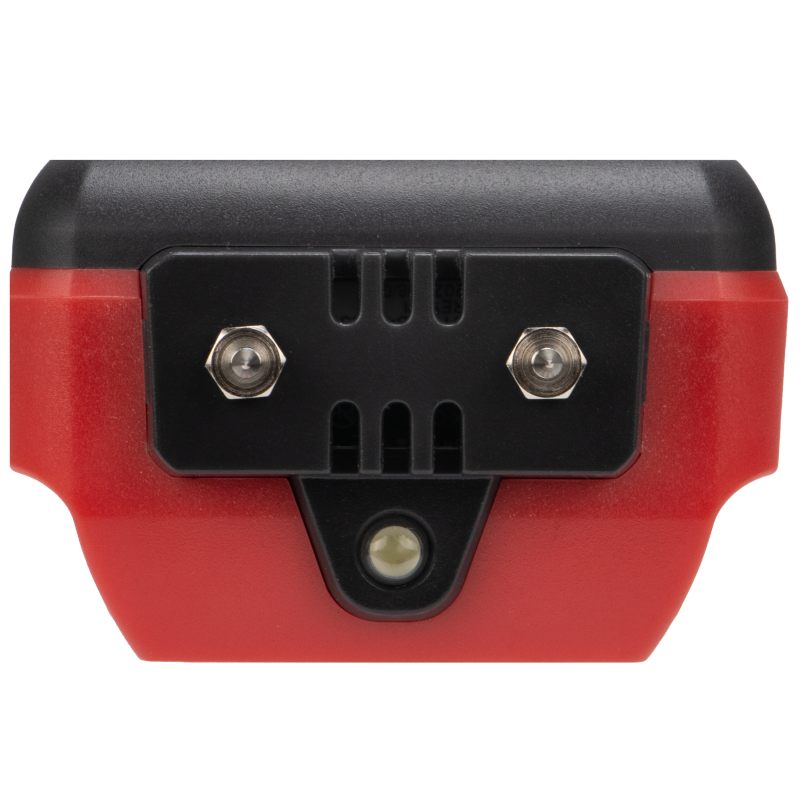

5. LED flashlight
6. Ambient temperature measurement
7. Self-test function
8. 2-meter drop protection
Specifications
| Specifications | ||
| Range | Accuracy | |
| Moisture Content Measurement of Wood | 7.0～54.8% | ±1% |
| Moisture Content Measurement of Building Materials | 0.0～22.1% | ±0.5% |
| Ambient Temperature Correction Range | -5～+50℃ | / |
| Refresh Rate | 0.5s | |
| MAX/MIN | ✔ | |
| Data Hold | ✔ | |
| High Moisture Alarm | ✔ | |
| Auto Power Off | 5 min | |
| Self-Test Mode | ✔ | |
| Low Battery Indication | ✔ | |
| LED light | ✔ | |
| Working Environment | -5～50℃，≤80%RH | |
| Storage Environment | -40～70℃, ≤70%RH | |
| Drop-Proof | 2m | |
| Characteristics | ||
| Power Supply | 2×AAA battery | |
| Product Size | 195mm×55mm×35mm | |
| Product Net Weight | About 140g | |
| Standard Accessories | Pin Moisture Meter, Quick Start Guide, AAA Alkaline Battery*2, Safety Guide | |
| Standard Quantity Per Carton | 10pcs | |
