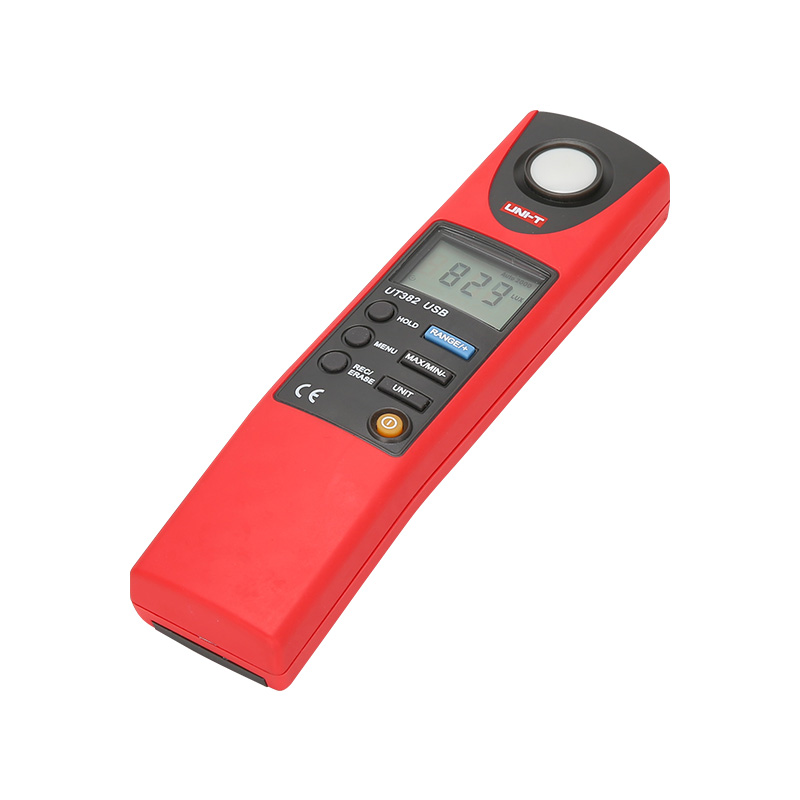

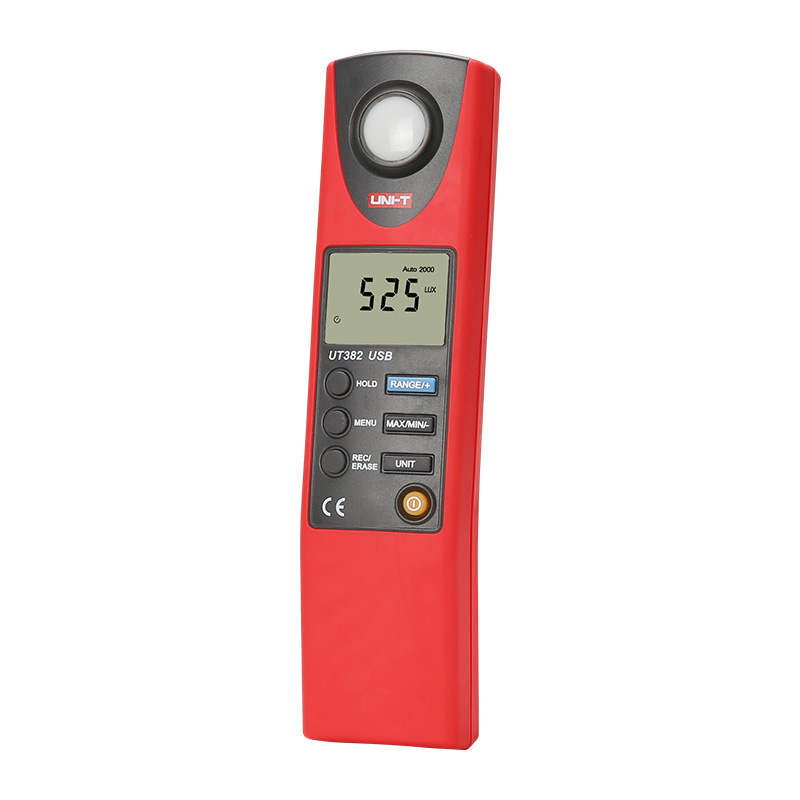

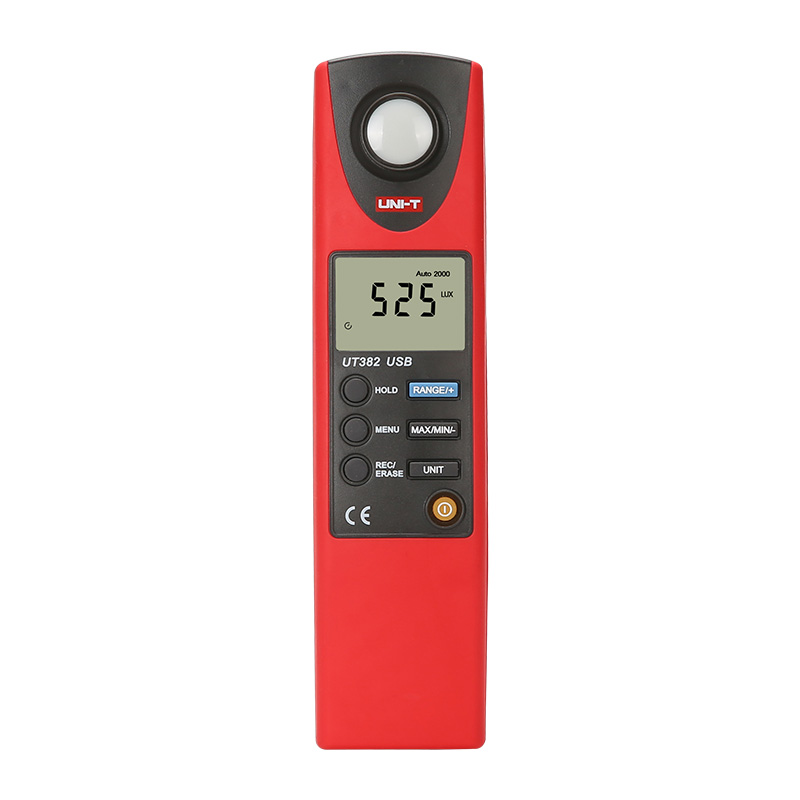

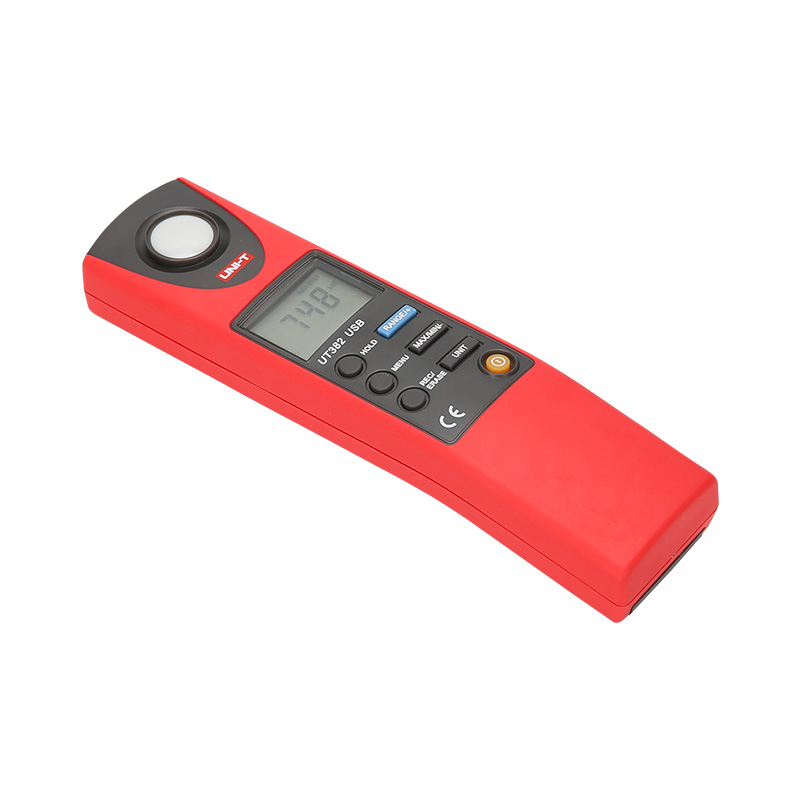

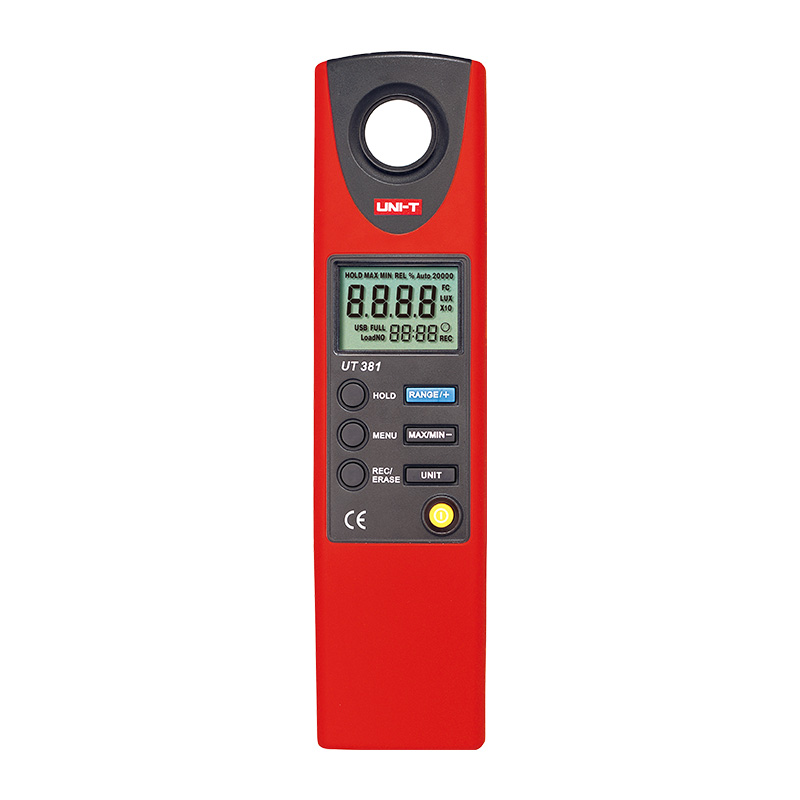

UT380 Series Light Meters
UT380 series light meters measure light intensity and display results in Lux or FC. It has a high sampling rate of 100/s. UT380 series’ low power consumption allows up to 200 hours of continuous operation. Results can be stored within the device and transfered to PC for further analysis, printing and storage.
Models in UT380 Series: UT381, UT382
Description
Features of UT380 Series Light Meters
Certificates: CE, UKCA
● Auto/manual range, data hold
● Auto power off (cancelable)
● MAX/MIN modes
● 2044 sets data storage
● Displays time and adjustable record intervals (0.5~255s)
● Restore to default mode
● Lux/FC selectable
Specifications of UT380 Series Light Meters
| Specifications | Resolution | UT381 | UT382 |
| Illuminance measurement (Lux) | 20 Lux | ±(3%+20) | ±(3%+20) |
| 200 Lux | ±(3%+8) | ±(3%+8) | |
| 2000 Lux | ±(3%+8) | ±(3%+8) | |
| 20000 Lux | ±(3%+8) | ±(3%+8) | |
| Illuminance measurement (Fc) | 2 Fc | √ | √ |
| 20 Fc | √ | √ | |
| 200 Fc | √ | √ | |
| 2000 Fc | √ | √ | |
| Features | |||
| Display count | 2000 | 2000 | |
| Auto range | √ | √ | |
| Data hold | √ | √ | |
| Auto power off | Around 10 minutes | √ | √ |
| Low battery indication | Around ≤7.1V | √ | √ |
| MAX/MIN mode | √ | √ | |
| Data storage | 2044 | 2044 | |
| USB interface | √ | ||
| Auto record time setup | √ | √ | |
| Real-time clock | √ | √ | |
| General Characterisitics | |||
| Power | 9V battery (6LF22) | ||
| Display | 22.5mm x 32.5mm | ||
| Product color | Red and grey | ||
| Product net weight | 185g | ||
| Product size | 195mm x 45mm x 26mm | ||
| Standard accessories | Carrying bag, USB interface cable (UT382), PC software CD (UT382) | ||
| Standard individual packing | Blister, gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 447mm x 300mm x 335mm | ||
| Standard carton gross weight | 7kg | ||
