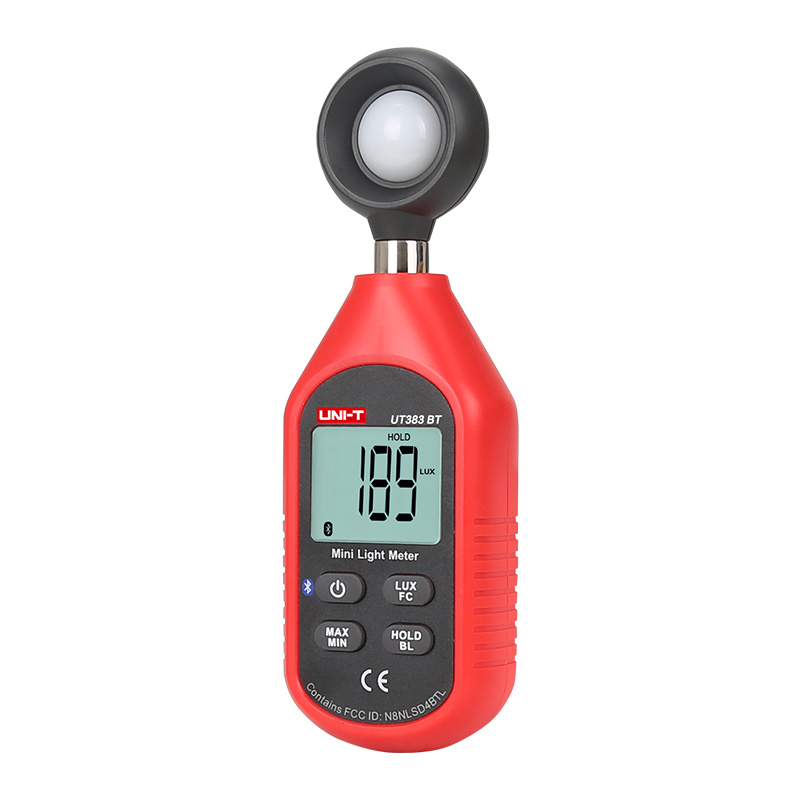

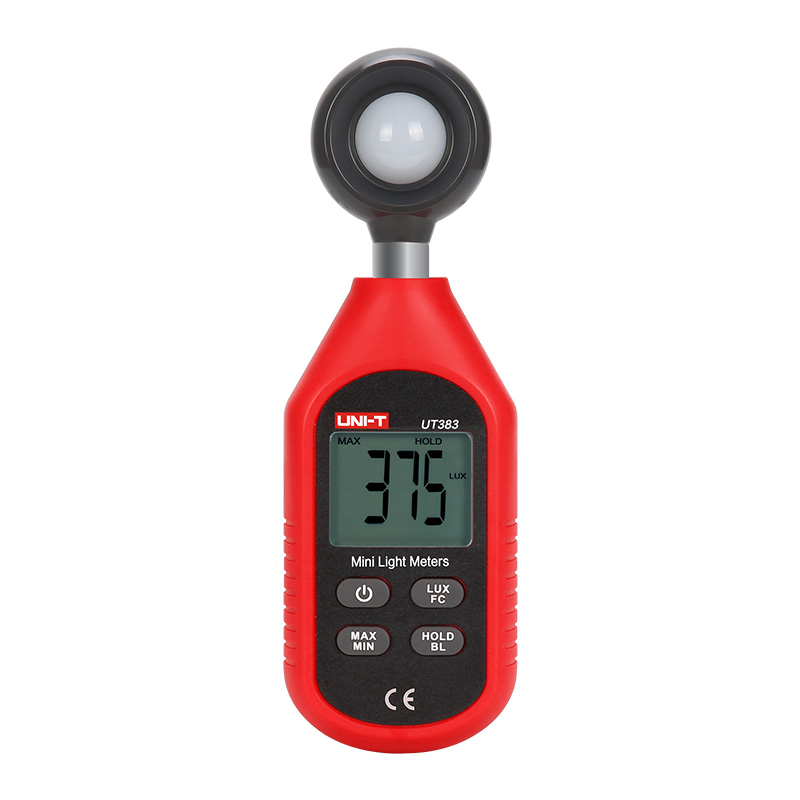

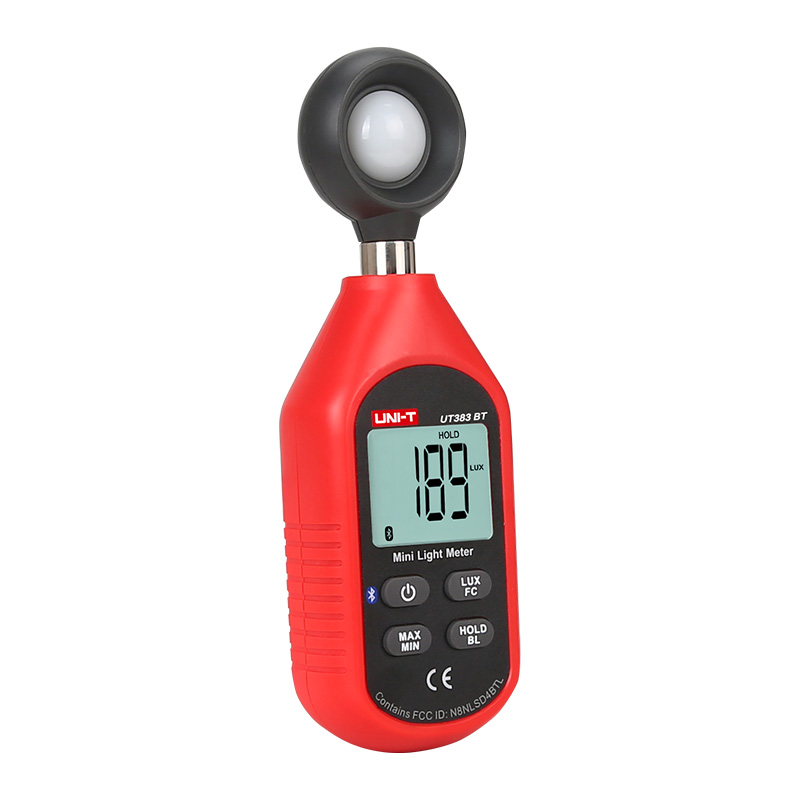

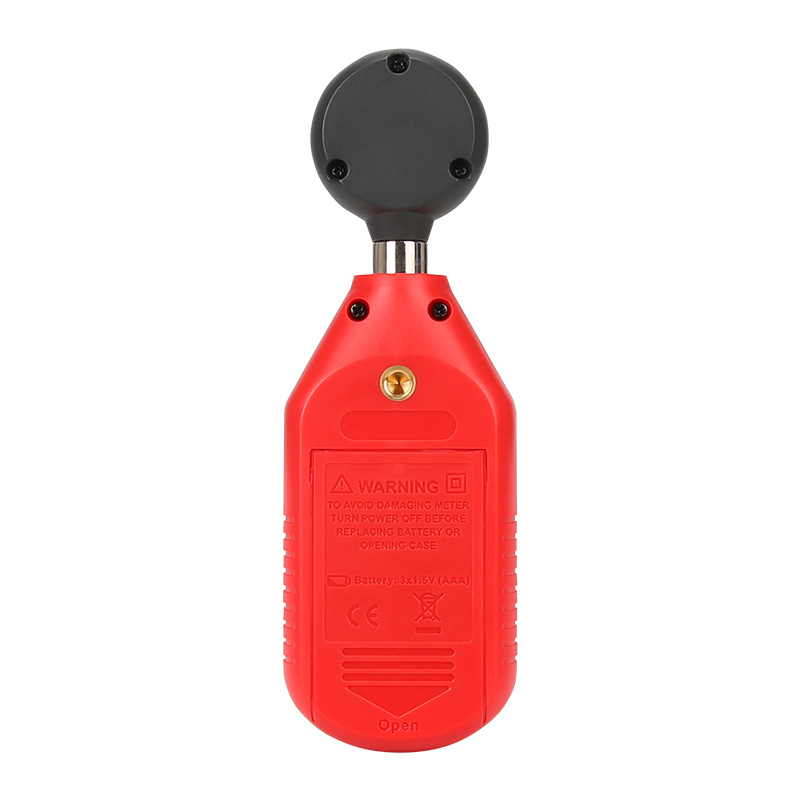

UT383/UT383BT Mini Light Meters
UT383/UT383BT can effectively measure light intensity and display results in units of Lux or FC on screen. UT383BT can transfer measurement data through bluetooth to UNI-T’s custom mobile APP (iENV) for further analysis, storage, and export. iENV can be downloaded from Google Play, Apple Store, or UNI-T’s website by searching ‘iENV’.
Models: UT383, UT383BT
Description
Features of UT383/UT383BT Mini Light Meters
Certificates: CE, UKCA
● MAX/MIN
● Data hold
● LCD backlight
● Auto power off
● Overload indication
● Low battery indication
Specifications of UT383/UT383BT Mini Light Meters
| Specifications | UT383 | UT383 BT |
| Illuminance measurement (LUX) | 0~199,900Lux | 0~199,900Lux |
| Illuminance measurement (FC) | 0~18,500Fc | 0~18,500Fc |
| Accuracy | 0~9999Lux/0~999Fc: ±(4%+8) | |
| ≥10000Lux/≥1000Fc: ±(5%+10) | ||
| ≥100000Lux/≥9999Fc: ±(5%+10) | ||
| Resolution | 1Lux (0~9999Lux) | |
| 10Lux (≥10,000Lux) | ||
| 100Lux (≥100,000Lux) | ||
| 1Fc (0~9999Fc); FC=Lux/10.76 | ||
| 10Fc (≥10,000Fc); FC=Lux/10.76 | ||
| Sampling time | 0.5s | |
| Features | ||
| APP | √ | |
| Bluetooth® | √ | |
| Overload indication | OL | OL |
| MAX/MIN | √ | √ |
| Data hold | √ | √ |
| LCD backlight | √ | √ |
| Auto power off | √ | √ |
| Low battery indication | √ | √ |
| Tripod mounting hole | √ | |
| General Characterisitics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 32mm x 26mm | |
| Product color | Red and grey | |
| Product net weight | 118g | |
| Product size | 160mm x 50mm x 28mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | UT383: 40pcs; UT383 BT: 20pcs | |
| Standard carton measurement | UT383: 505mm x 330mm x 280mm; UT383 BT: 332mm x 262mm x 290mm | |
| Standard carton gross weight | UT383: 8.42kg; UT363 BT: 4.2kg | |
