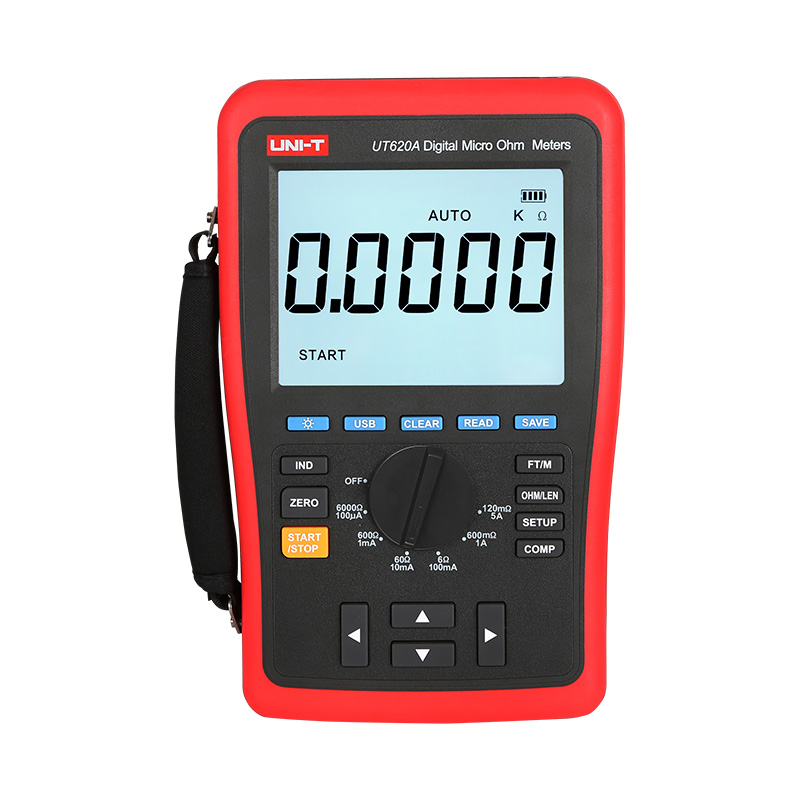

UT620A Digital Micro Ohm Meter
UT620A is used to measure DC low resistance through 4-wire method. Its features are: Comparison function to determine if the device is in good condition, unkown wire length calculation (FT/M); two-way data transmission by USB interface. UT620A can be used in narrow space for on-site troubleshooting, such as metal coating resistance, motor and small transformer winding resistance, welding points, power distribution cabinet bus, lead connection inspections, and more.
Description
Features of UT620A Digital Micro Ohm Meter
Specifications of UT620A Digital Micro Ohm Meter
| Specifications | Range | UT620A |
| Resolution | 10uΩ | |
| Resistance (Ω) | 60mΩ/10A | |
| 120mΩ/5A | ±(0.25%+25) | |
| 600mΩ/1A | ±(0.25%+25) | |
| 6Ω/100mA | ±(0.25%+25) | |
| 60Ω/10mA | ±(0.25%+25) | |
| 600Ω/1mA | ±(0.25%+25) | |
| 6kΩ/100uA | ±(0.75%+30) | |
| Features | ||
| Display count | 60000 | |
| Four-wire measurement | √ | |
| Wire length measurement | √ | |
| High/low limit alarm | √ | |
| Data storage | 1000 | |
| USB data transmission | √ | |
| Manual range | √ | |
| Backlight | √ | |
| Relative value | √ | |
| Low battery indication | √ | |
| Auto power off | ||
| General Characteristics | ||
| Power | Li-ion battery 7.4V 4000mAh, rechargeable | |
| Display | 116mm x 87.5mm | |
| Product color | Red and grey | |
| Product net weight | 1.5kg | |
| Product size | 268mm x 168mm x 60mm | |
| Standard accessories | Test leads with Kelvin clips (red & black), power cord, power adaptor, USB interface cable, PC software CD | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 370mm x 90mm x 290mm | |
| Standard carton gross weight | 3kg | |
| Optional accessories | Four-wire test probes (red & black) x 1 | |
Applications of UT620A Digital Micro Ohm Meter
UT620A can be used in narrow space for on-site troubleshooting, such as metal coating resistance, motor and small transformer winding resistance, welding points, power distribution cabinet bus, lead connection inspections, and more.
