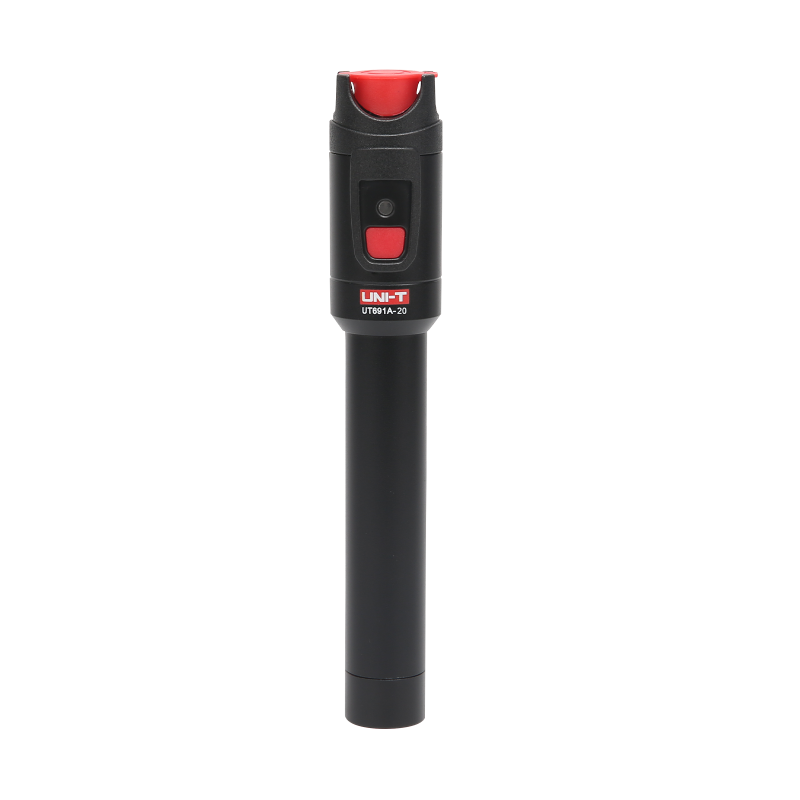

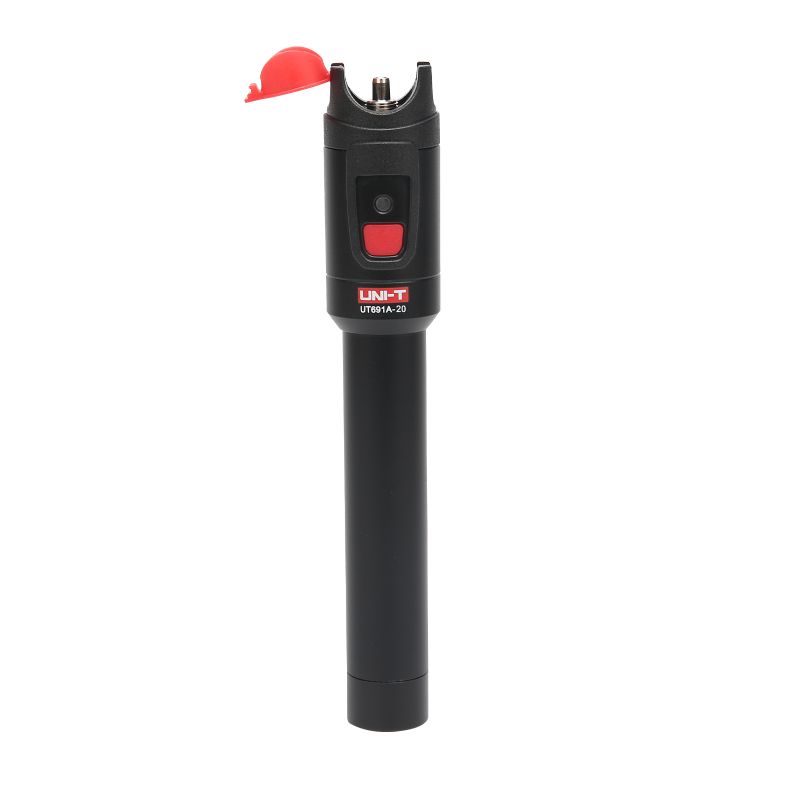

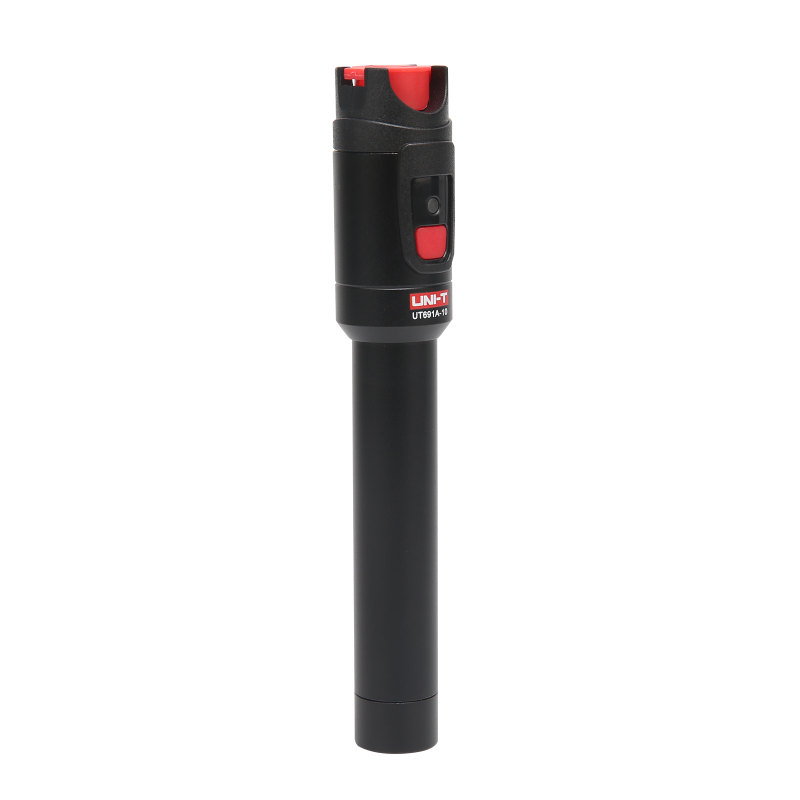

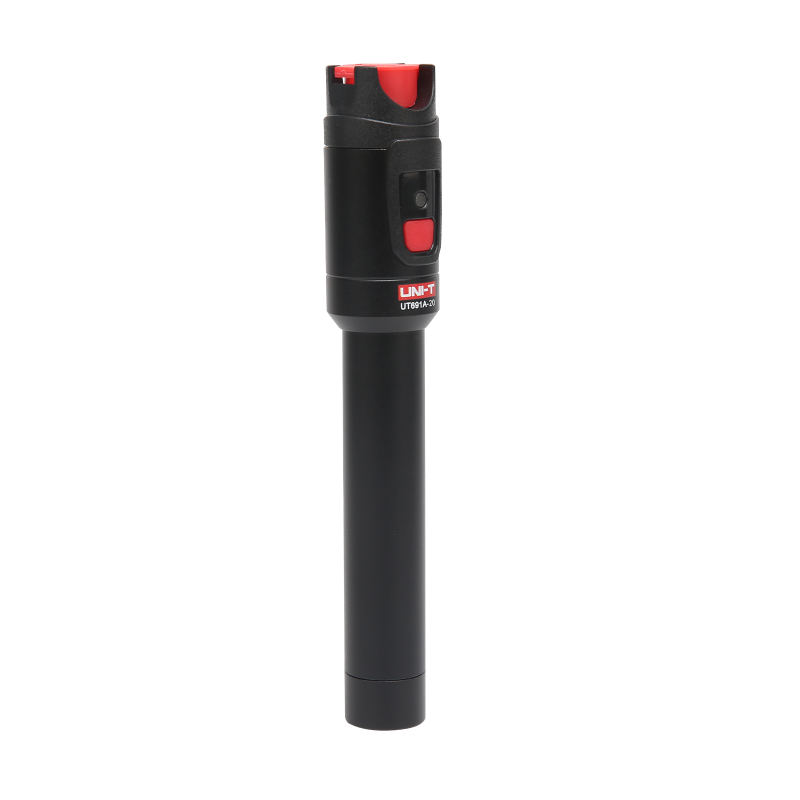

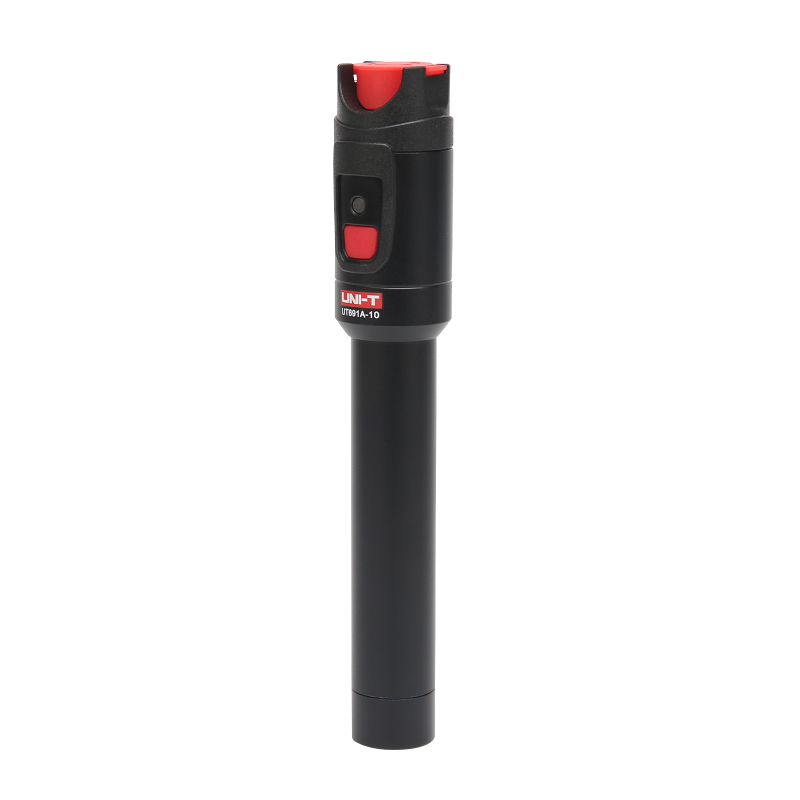

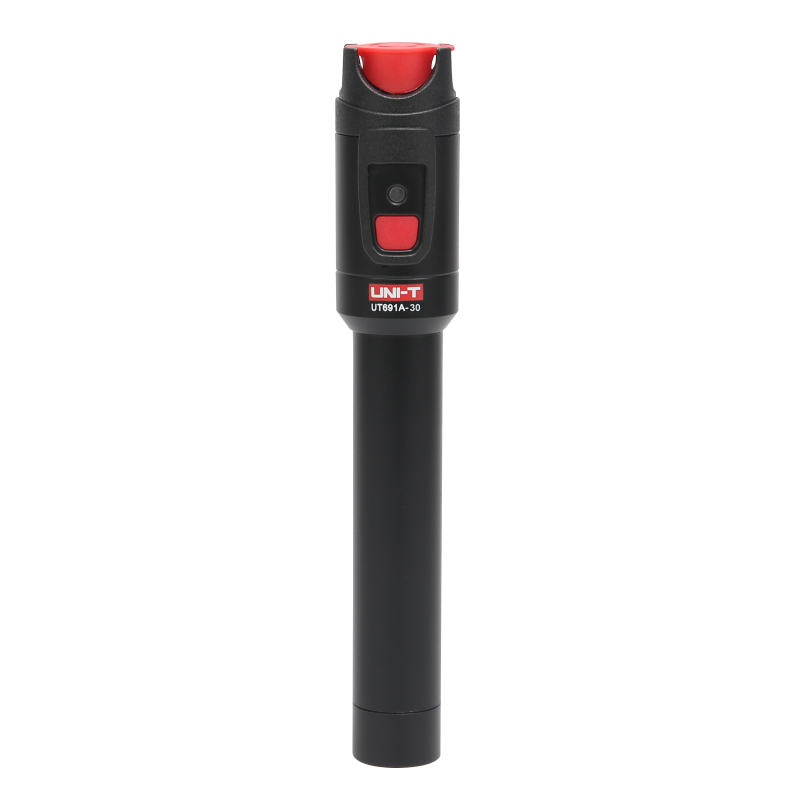

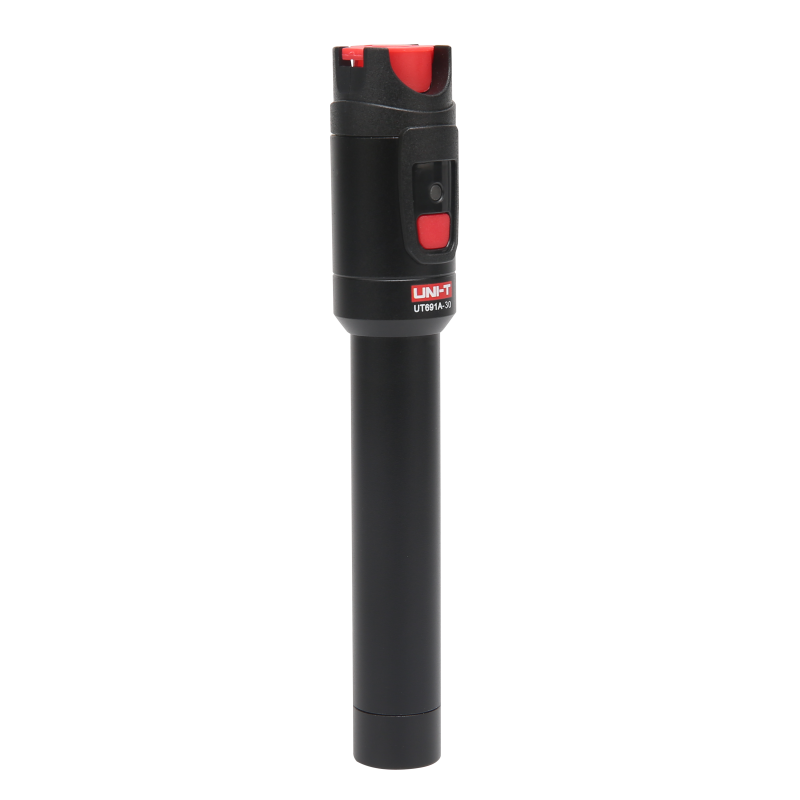

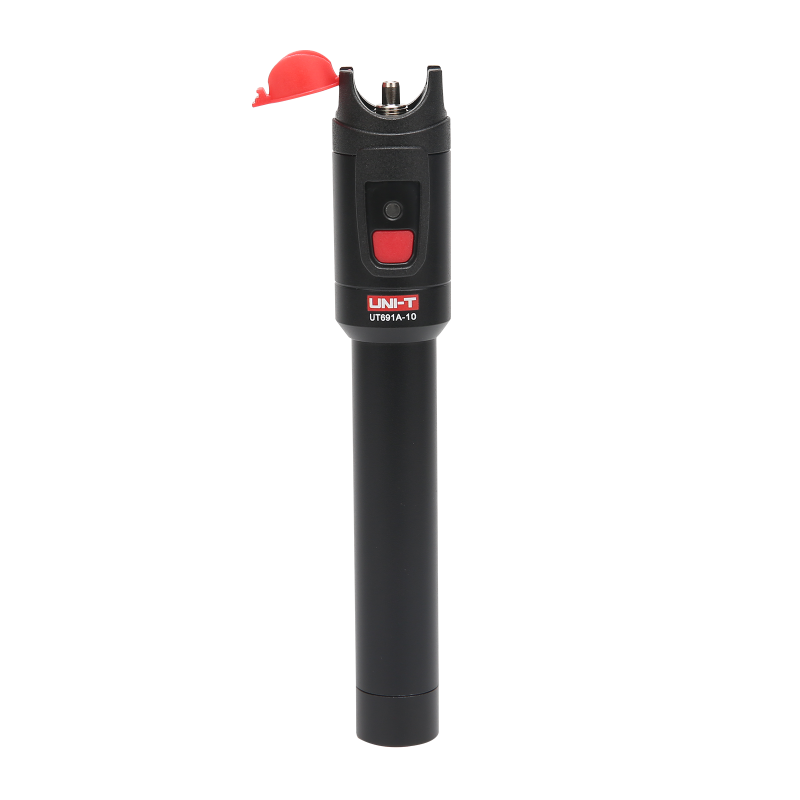

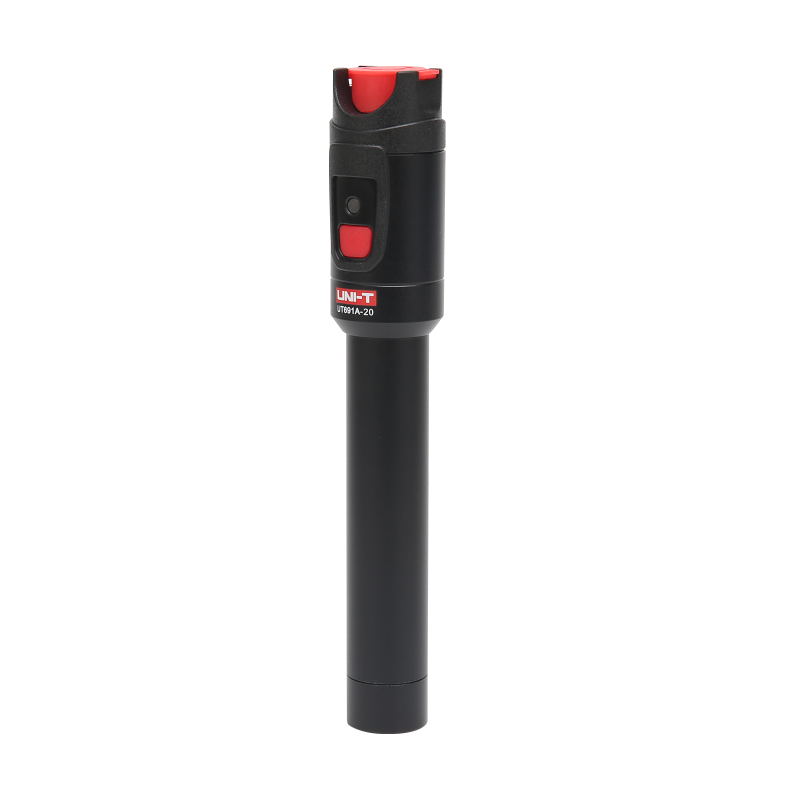

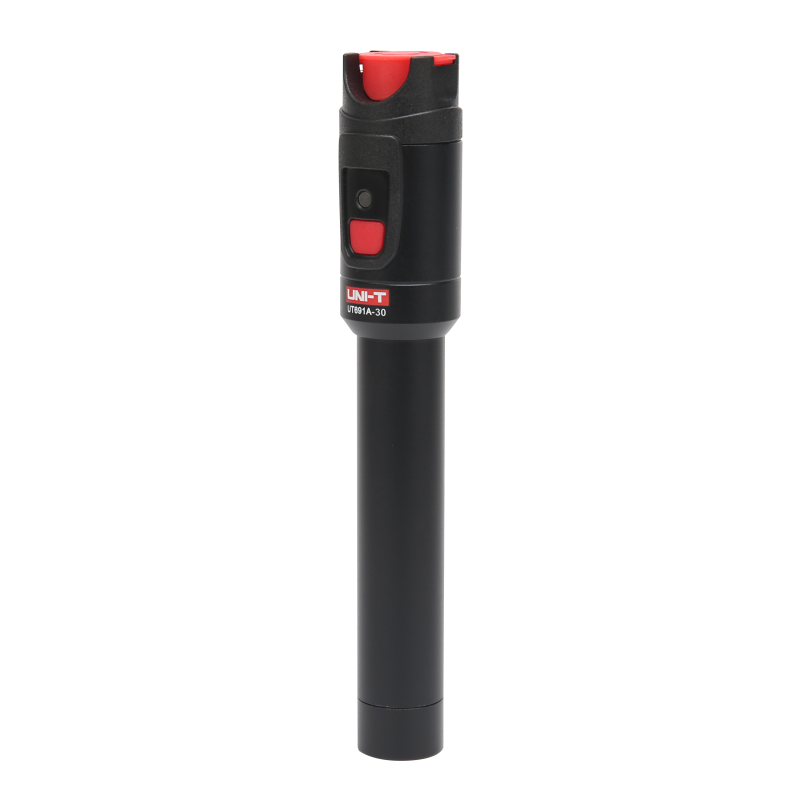

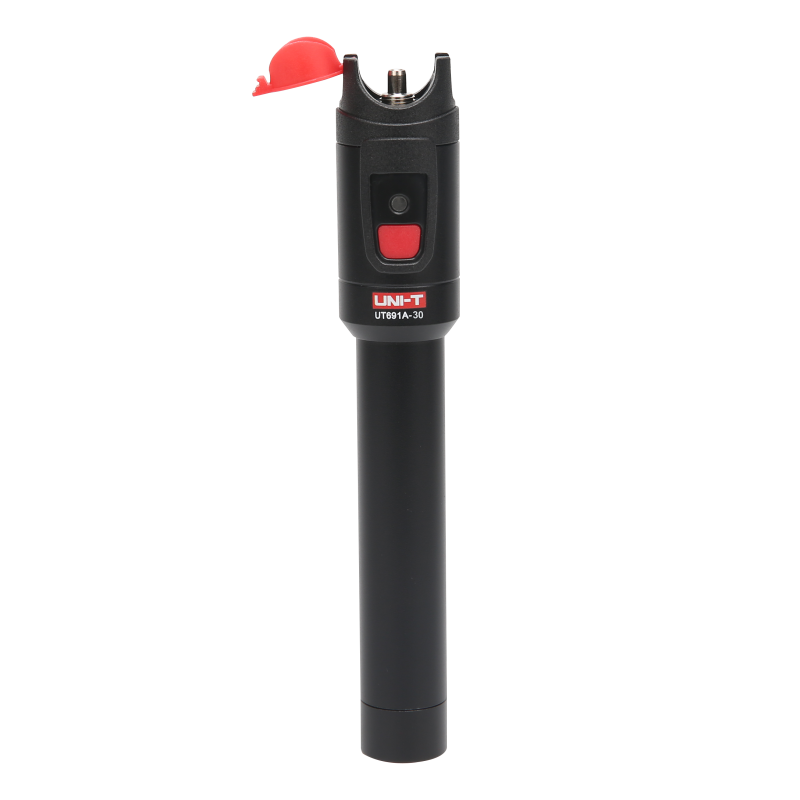

UT691A-10 UT691A-20 UT691A-30 Visual Fault Locator

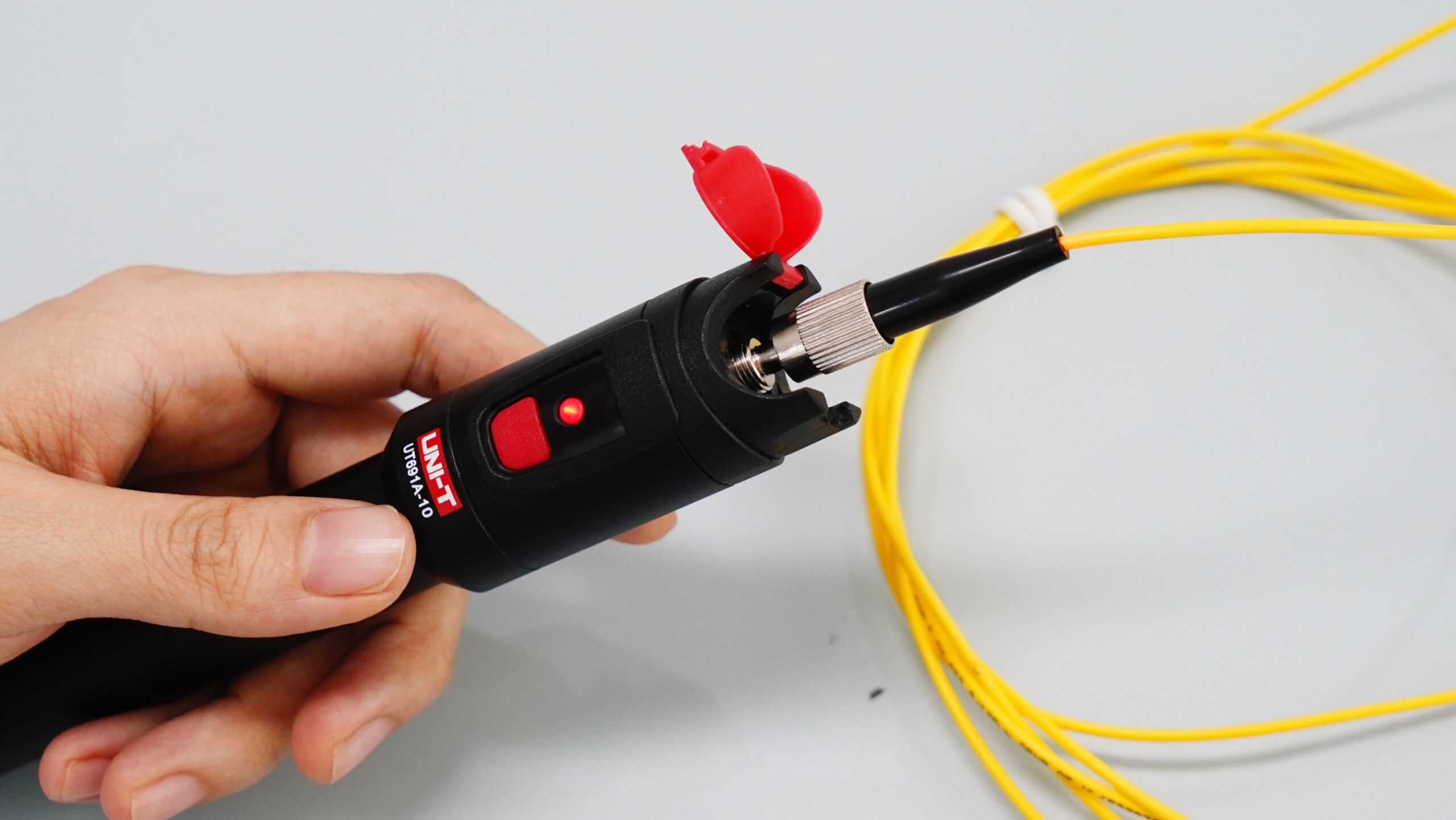

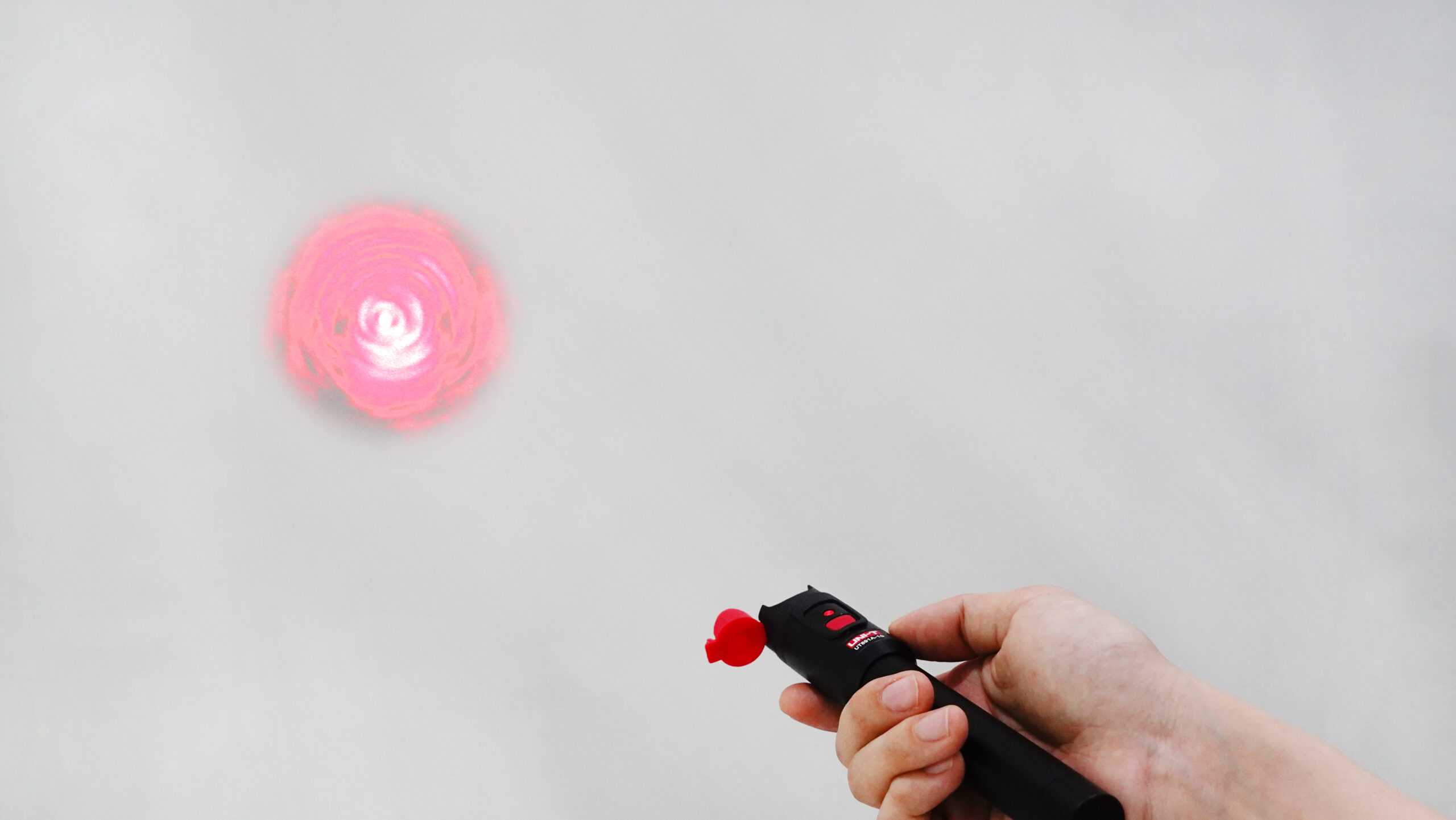

UT691A Series Visual Fault Locator supports 10 mW, 20 mW, and 30 mW output power. The aluminum alloy housing ensures durability. It also features a 2.5mm universal connector for easy connection. It can locate fiber breaks, bends, and other faults, ensuring stable network operation.
Description
Features of UT691A-10 UT691A-20 UT691A-30 Visual Fault Locator
- Powerful Red Light
- One-Button Operation
- 2.5m Universal Connector
- Aluminum Alloy Body
- Mini & Portable
Specifications
| Specification | |||
| Mode | UT691A-10 | UT691A-20 | UT691A-30 |
| Laser Output Power | 10mW | 20mW | 30mW |
| Red Light Wavelength | 650±20nm | ||
| Interface | 2.5mm Universal Connector | ||
| Operating Mode | CW/2±1Hz Flash | ||
| Laser Class | Class 3B | ||
| Operating Temperature | -10℃~60℃ | ||
| General Characteristics | |||
| Standard Accessories | 1Visual Fault Locator 1Gift Box 1Cloth Bag 1User Manual 2*AA Battery | ||
| Product Weight | About 69g | ||
| Product Dimensions | 1602727mm | ||
| Battery Type | 2* AA Battery | ||
| Standard Quantity Per Carton | 60pcs | ||
