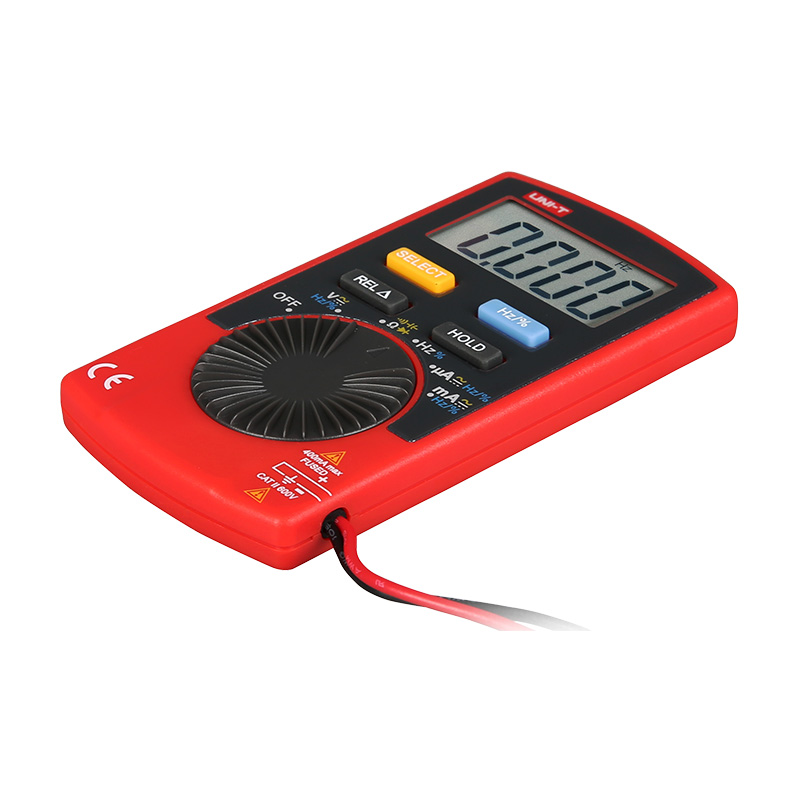

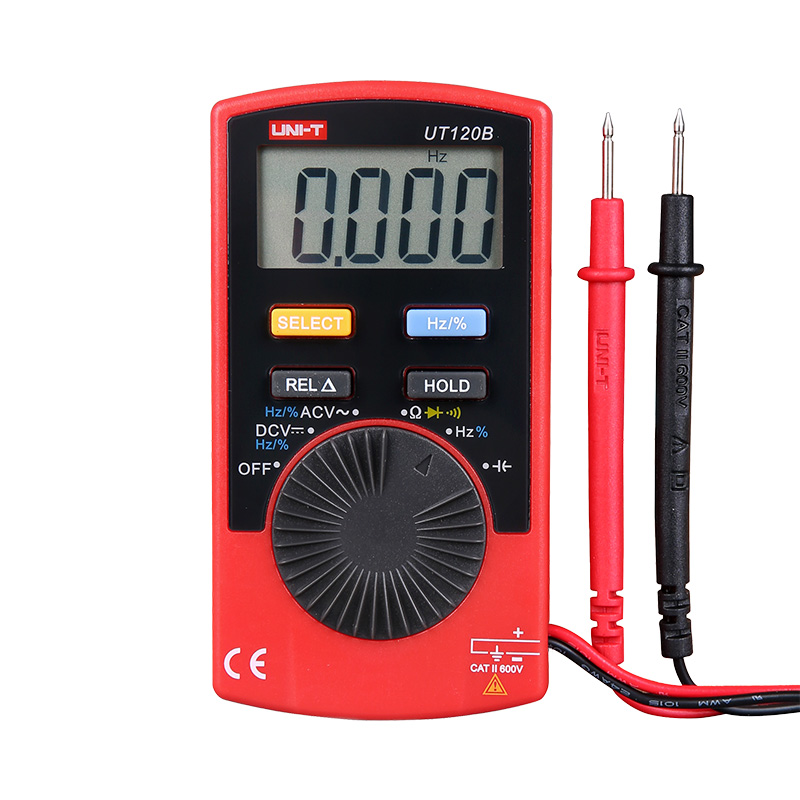

UT120 Series Pocket Size Digital Multimeters
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Models in UT120 Series: UT120A, UT120B, UT120C
Description
Features of UT120 Series Pocket Size Digital Multimeters
Certifications: CE, UKCA, cETLus (UT120A/UT120B)
● Auto power off
● Auto range
● 4000 display count
● Data hold and relative mode
Specifications of UT120 Series Pocket Size Digital Multimeters
| Specifications | Range | UT120A | UT120B | UT120C |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC current (A) | 400mA | ±(1%+3) | ||
| AC current (A) | 400mA | ±(1.5%+5) | ||
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) | ±(4%+3) | |
| Frequency (Hz) | 10MHz | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Duty cycle | 0.1%~99.9% | √ | √ | √ |
| Diode | √ | √ | √ | |
| Auto power off | Around 30 minutes | √ | √ | √ |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | ≤2.4V | √ | √ | √ |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ | √ |
| General Characteristics | ||||
| Power | 3V battery (CR2032) | |||
| Display | 43mm x 22mm | |||
| Product color | Red and grey | |||
| Product net weight | 76g | |||
| Product size | 110mm x 58.2mm x 10.8mm | |||
| Standard accessories | Battery, carrying case | |||
| Standard individual packing | Blister, English manual | |||
| Standard quantity per carton | 100pcs | |||
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |||
| Standard carton gross weight | 20kg | |||
