UT131 Series Palm Size Multimeters
The new generation UT131 series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 250V environment. Special features are: 2mF capacitance test (UT131A); battery test (UT131B); temperature measurement function (UT131C); non-contact voltage (NCV) test (UT131D).

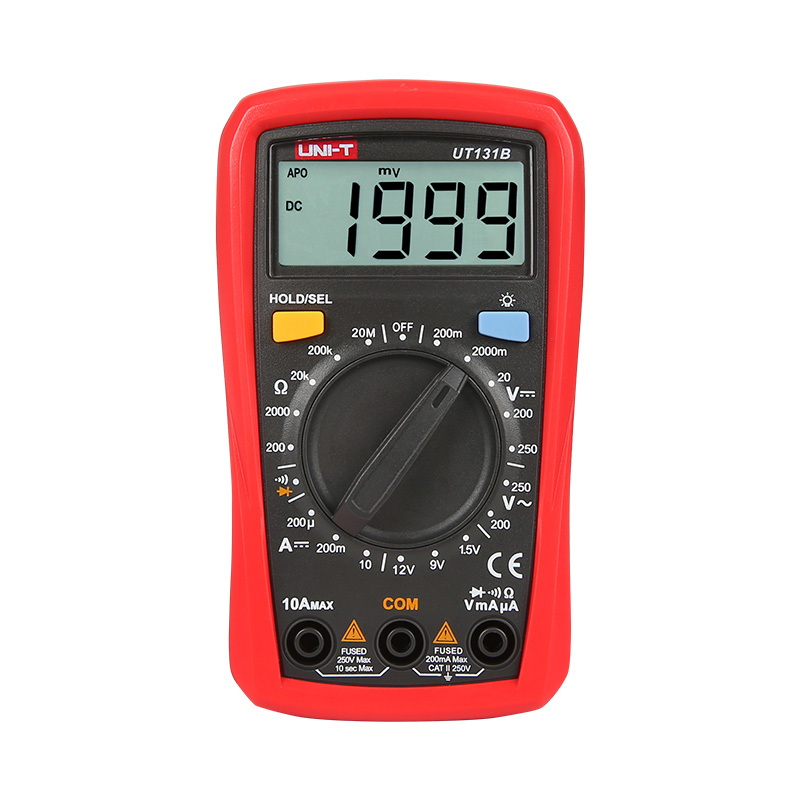

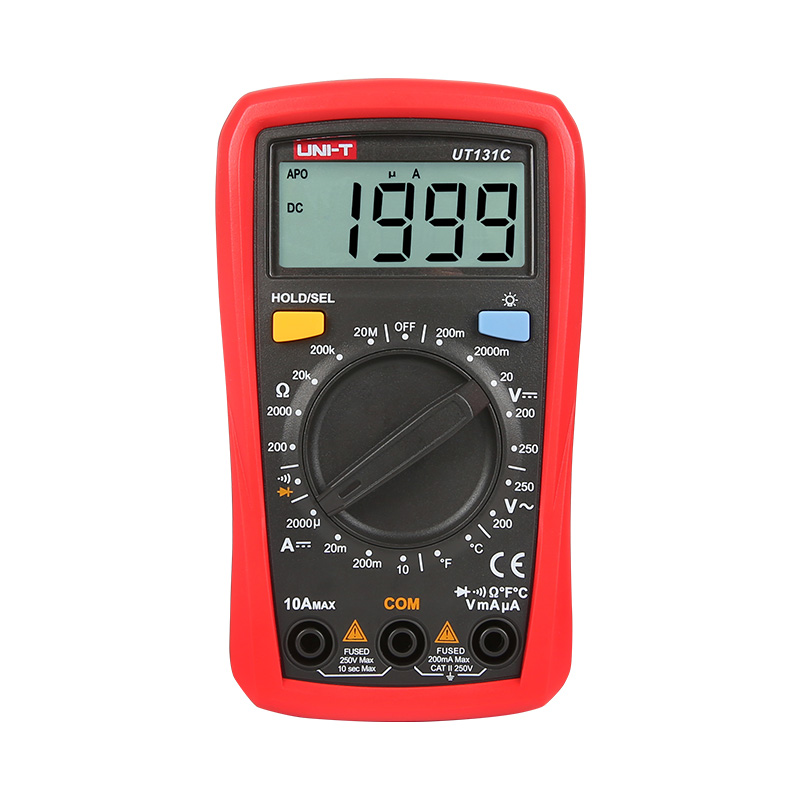

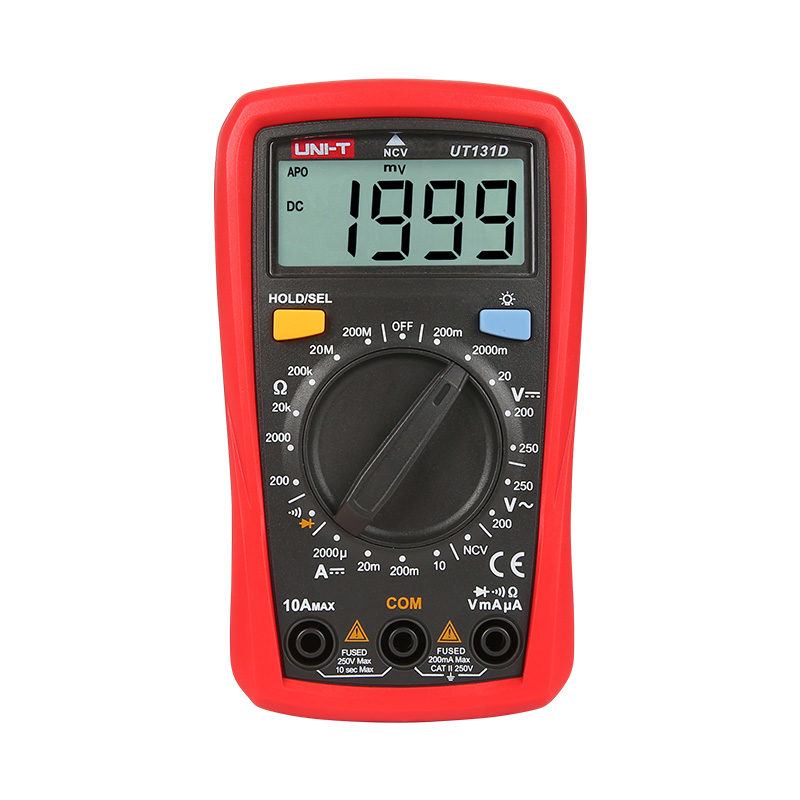

Models in UT131 series: UT131A, UT131B, UT131C, UT131D
Description
Features of UT131 Series Palm Size Multimeters
Certifications: CE, UKCA, cETLus
● Clear LCD display
● Comfortable protective cover, with test lead hanging groove
● 2 meters drop test, precision protection
● Loud buzzer sound
● Ergonomic design
Specifications of UT131 Series Palm Size Multimeters
| Specifications | Range | UT131A | UT131B | UT131C | UT131D |
| DC voltage (V) | 200mV~250V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.5%＋2) | ±(0.5%＋2) |
| AC voltage (V) | 200mV~250V | ±(0.7%+3) | |||
| 200V~250V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+10) | ||
| DC current (A) | 200μA~10A | ±(1%+3) | ±(1%+2) | ||
| 2000μA~10A | ±(1%+2) | ±(1%+2) | |||
| AC current (A) | 200μA~10A | ±(1.2%+3) | |||
| Resistance (Ω) | 200Ω～200MΩ | ±(0.8%+2) | ±(0.8%+2) | ||
| 200Ω～20MΩ | ±(0.8%+2) | ±(0.8%+2) | |||
| Capacitance (F) | 2nF~2mF | ±(3%+5) | |||
| Temperature | -40℃~1000℃ | ±(1%+4) | |||
| ‒40℉~1832℉ | ±(1.5%+5) | ||||
| Features | |||||
| Display count | 2000 | 2000 | 2000 | 2000 | |
| Auto power off/Auto backlight off | √ | √ | √ | √ | |
| Diode test/Continuity buzzer | √ | √ | √ | √ | |
| Drop test | 2m | 2m | 2m | 2m | |
| Test probe holder | √ | √ | √ | √ | |
| Range selection | Auto | Manual | Manual | Manual | |
| Battery test | 1.5V/9V/12V | ||||
| NCV | √ | ||||
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display | 53mm x 28mm | ||||
| Product net weight | 473g | ||||
| Product Color | Red and grey | ||||
| Product size (W x H x D) | 131mm x 95mm x 58mm | ||||
| Standard accessories | Test lead, manual, point contact temperature probe (UT131C only) | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 60pcs | ||||
| Standard carton measurement | 640mm x 310mm x 350mm | ||||
| Standard carton gross weight | 19.4kg | ||||
