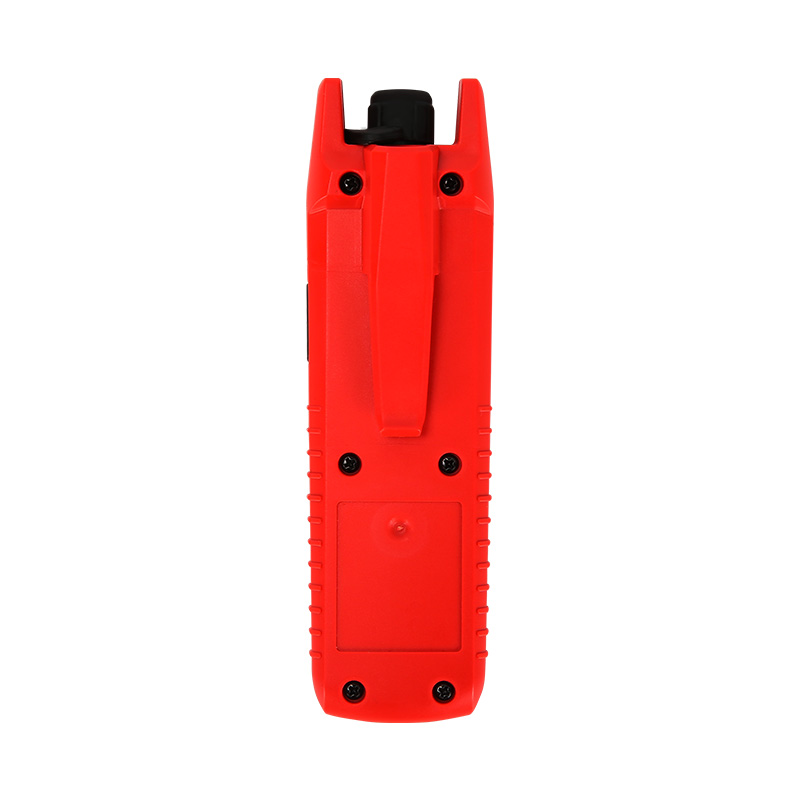

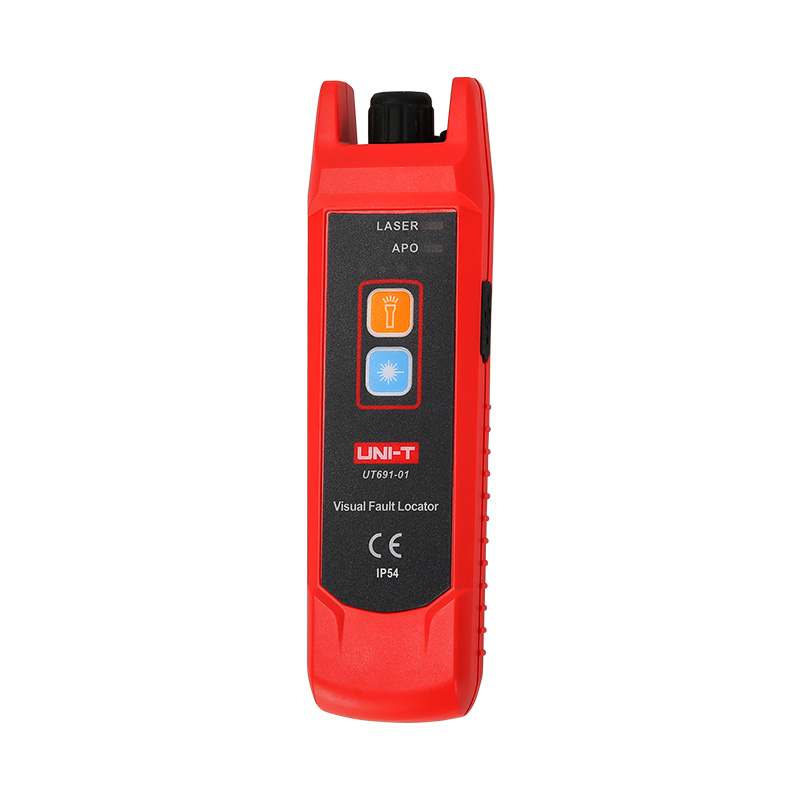

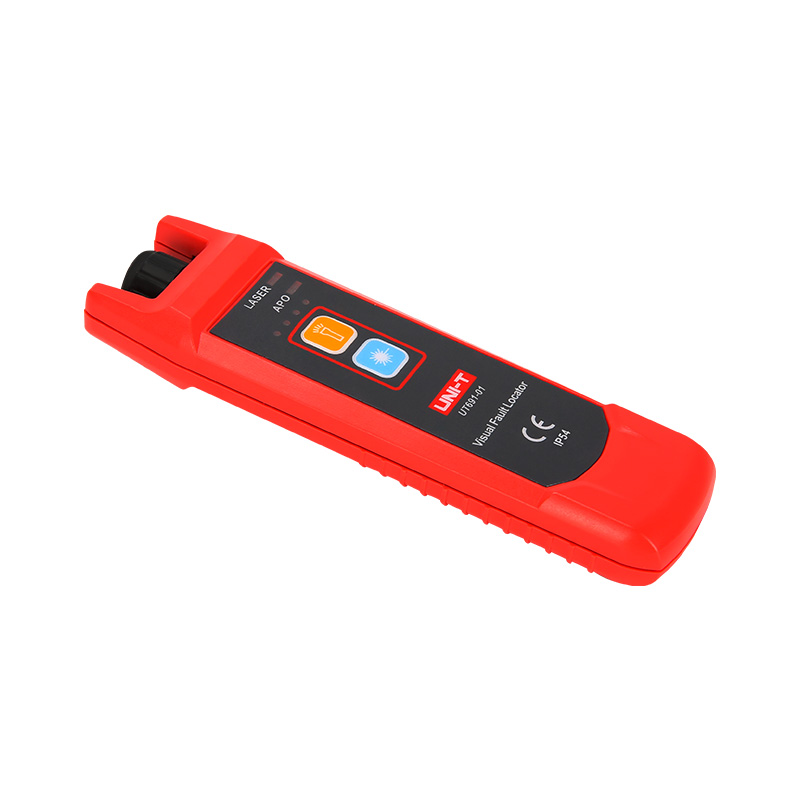

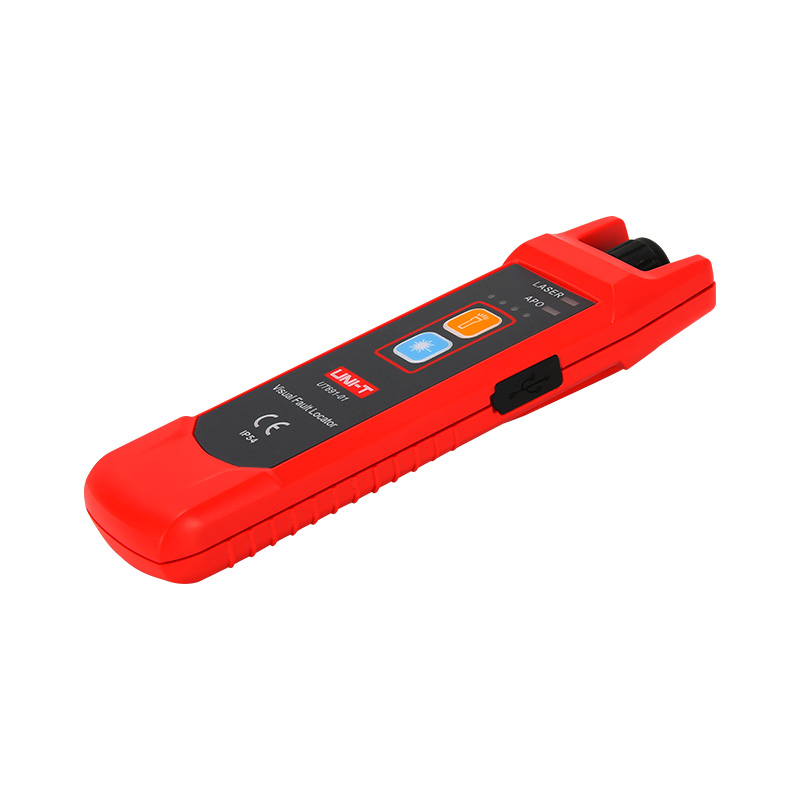

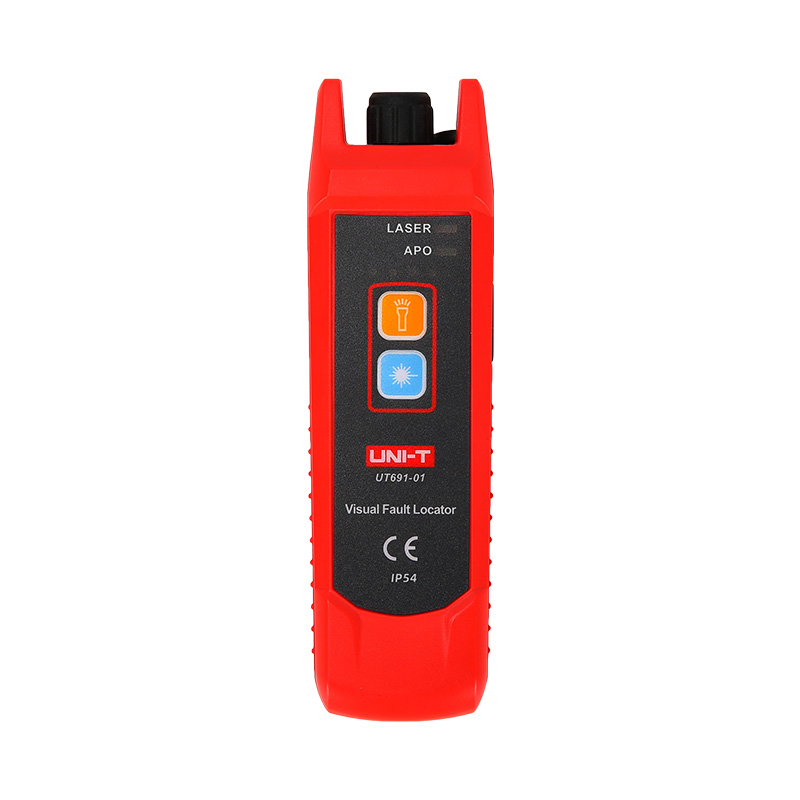

UT691 Series Visual Fault Locators

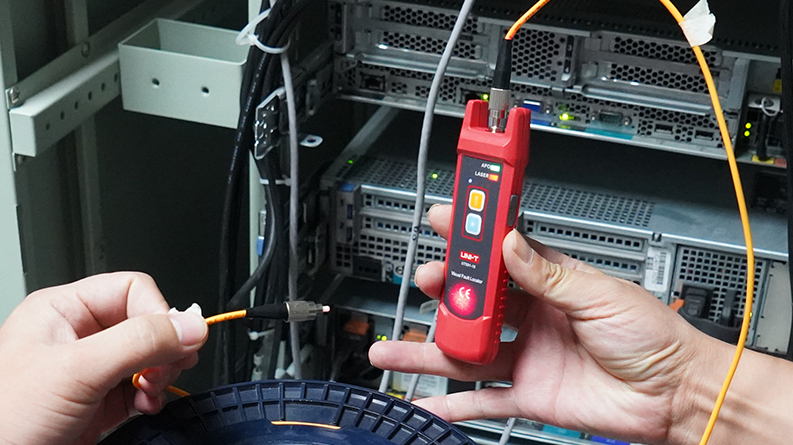

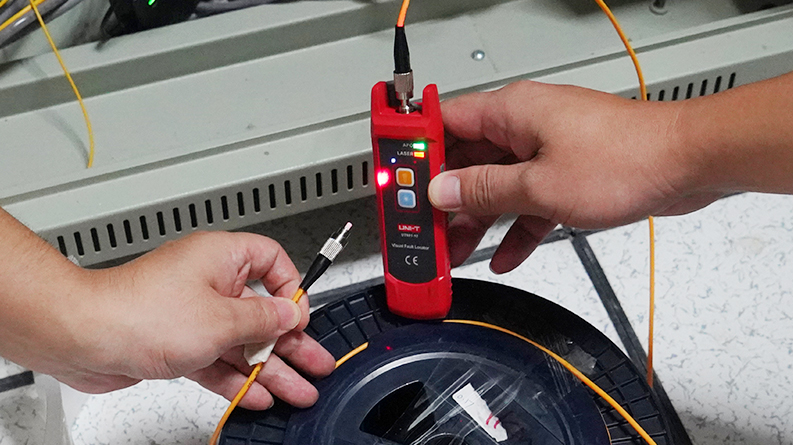

UT691 series visual fault locator is designed for optical fiber fault detection and locating, end to end optical fiber identification and more. It is IP54 rated, uses 650nm visible redlight with 2 emitting modes. With the functions of APO, battery statusindicator and flashlight, it can be widely used in the fields of optical cable construction and maintenance, optical fiber communication or sensing, and optical CATV.

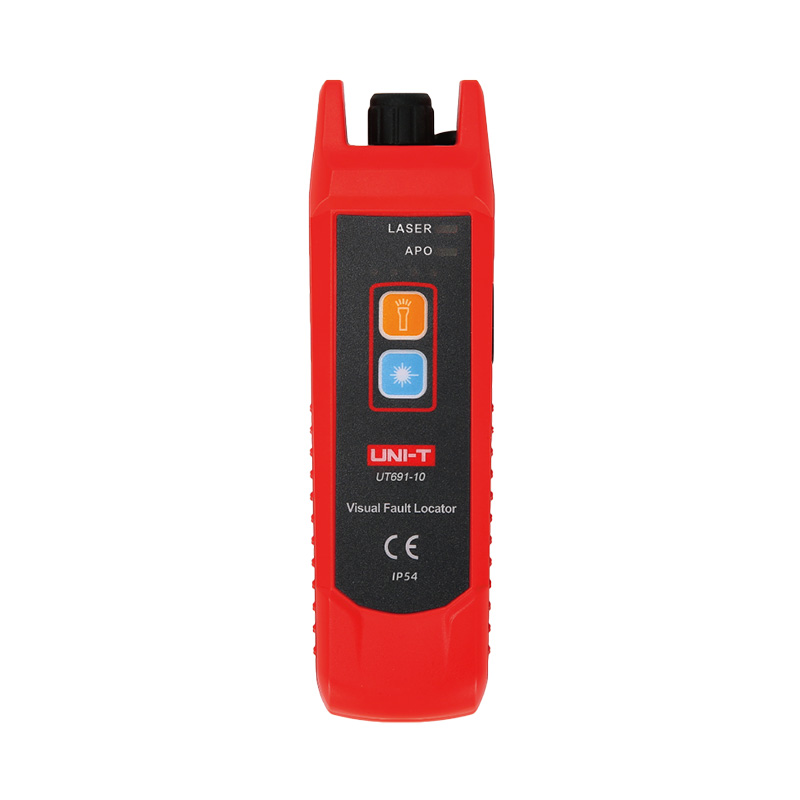

Models in UT691 Series: UT691-01, UT691-10
Description
Features of UT691 Series Visual Fault Locators
Certifications: CE, UKCA
● Non-slip humanized design
● Equipped with LED flashlight
● 3.7V 1050mAh rechargeable lithium battery
● Battery level indicator shows, laser indicator shows
● Red light wavelength 650+/-20nm
● 2.5mm universal connector
● Automatic shut-down
● IP54 protection level
Specifications of UT691 Series Visual Fault Locators
| Specifications | UT691-01 | UT691-10 |
| Laser output power | ≥1mW | ≥10mW |
| Optical fiber length range | 2~3km | 8~10km |
| Wavelength of redight | 650±10nm | |
| Optical fiber adapter | 2.5mm FC general connector | |
| Battery type | 3.7V 1050mAh polymer lithium battery | |
| Battery life | ＞12h | ＞7h |
| Battery status display | The battery status will be shown by 4 blue LED (not in flashlight) | |
| Green indicator | Indicates auto power off state which LED will flash white light for 3 times | |
| Laser mode | Continuous mode/Pulse mode | |
| Charge voltage and current | DC 5V, < 1A | |
| APO | 15min auto power off (manual adjustable) | |
| Warning symbol | √ | |
| Warning | √ | |
| Key press test | ＞5000 times | |
| Drop test | 1m | |
| General Characteristics | ||
| Power | 1050mAh rechargeable battery | |
| Product color | Red and grey | |
| Product net weight | 62g | |
| Product size | 130mm x 38mm x 27mm | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 285mm x 245mm x 155mm | |
| Standard carton gross weight | About 2.8kg | |
