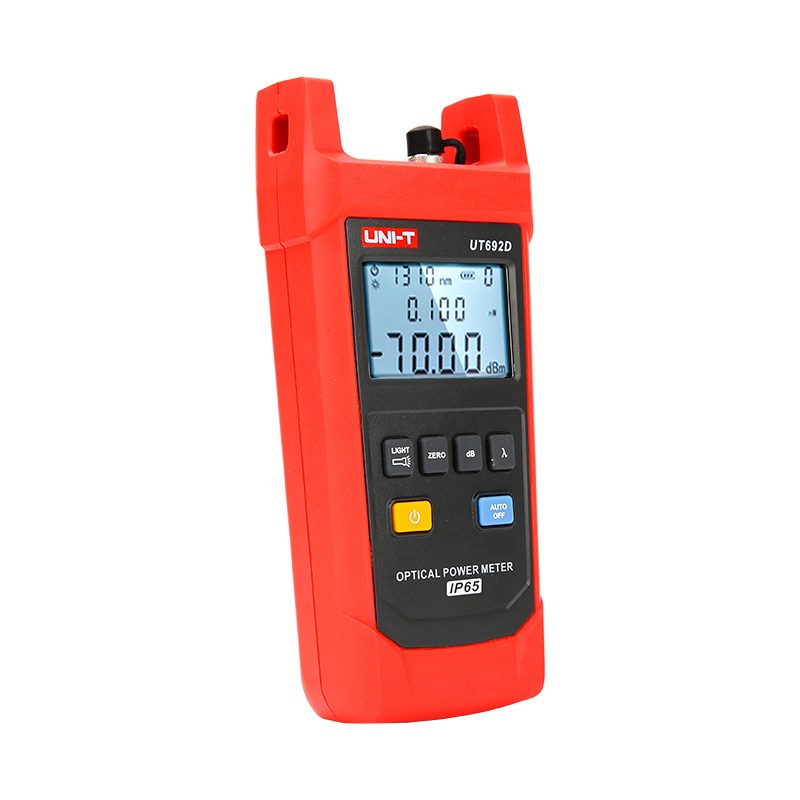

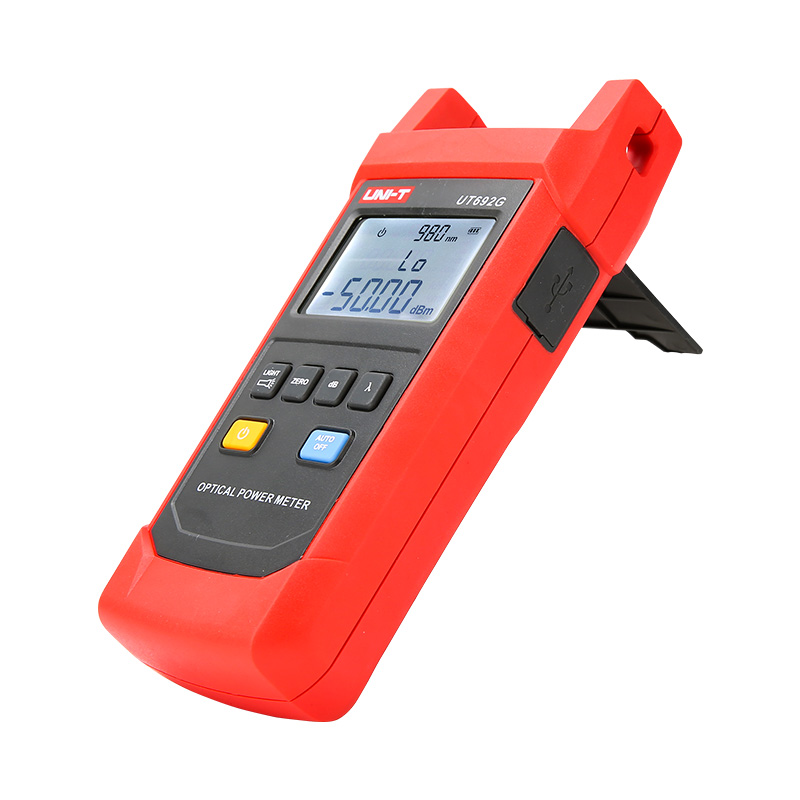

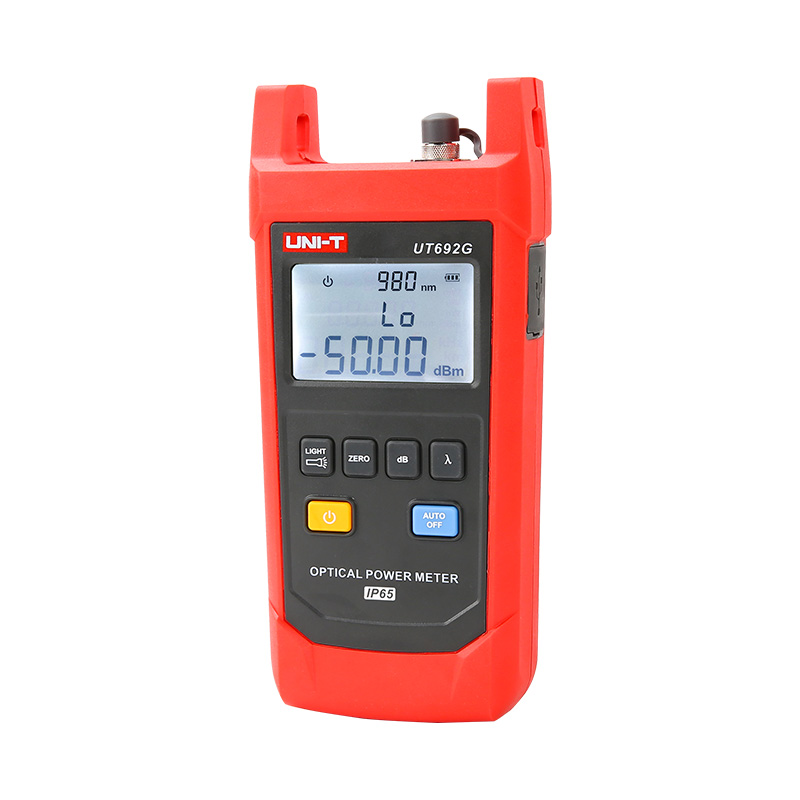

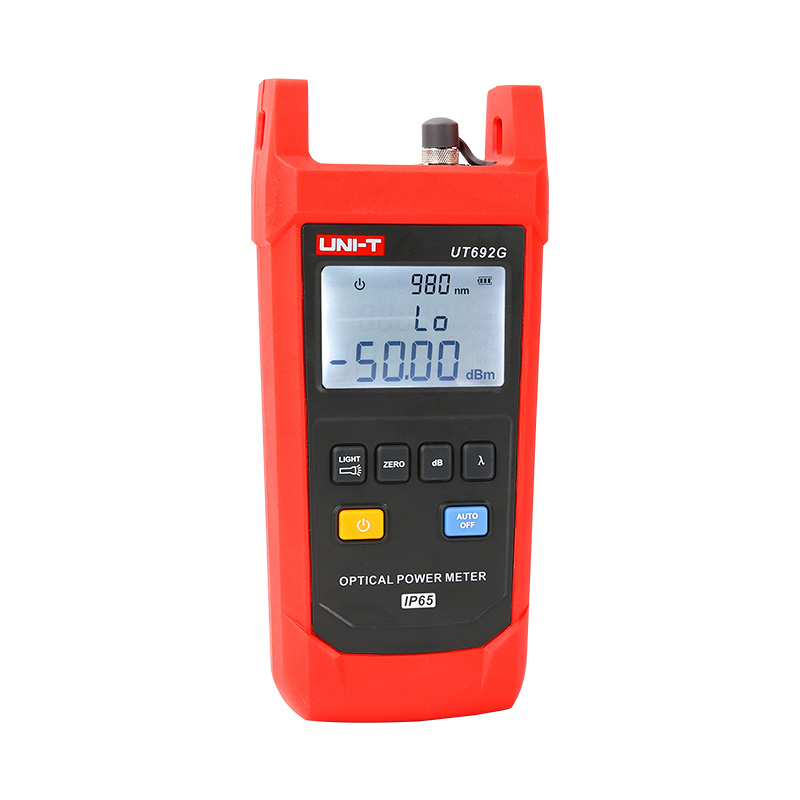

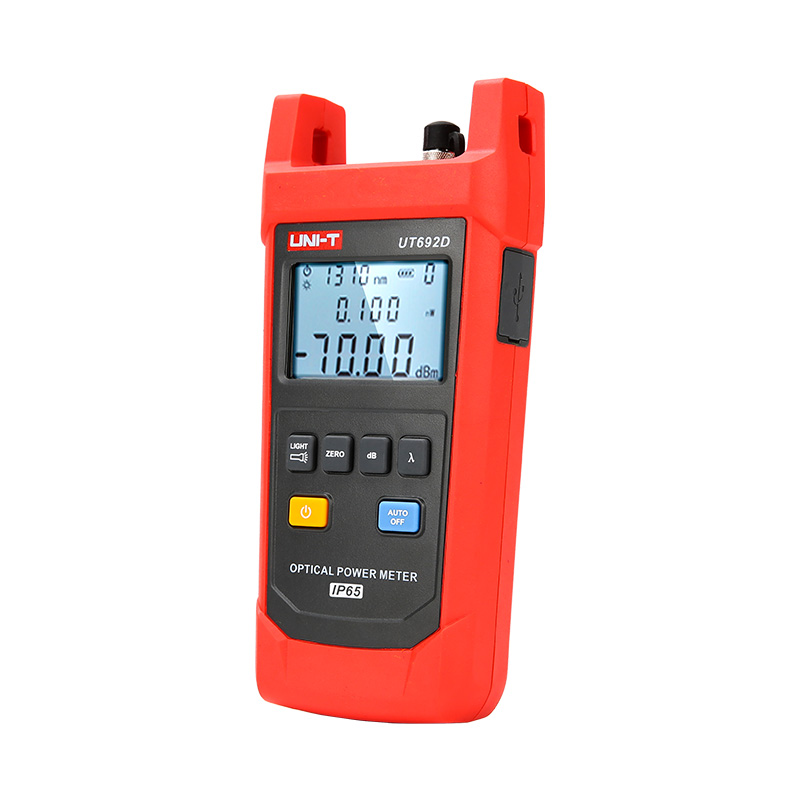

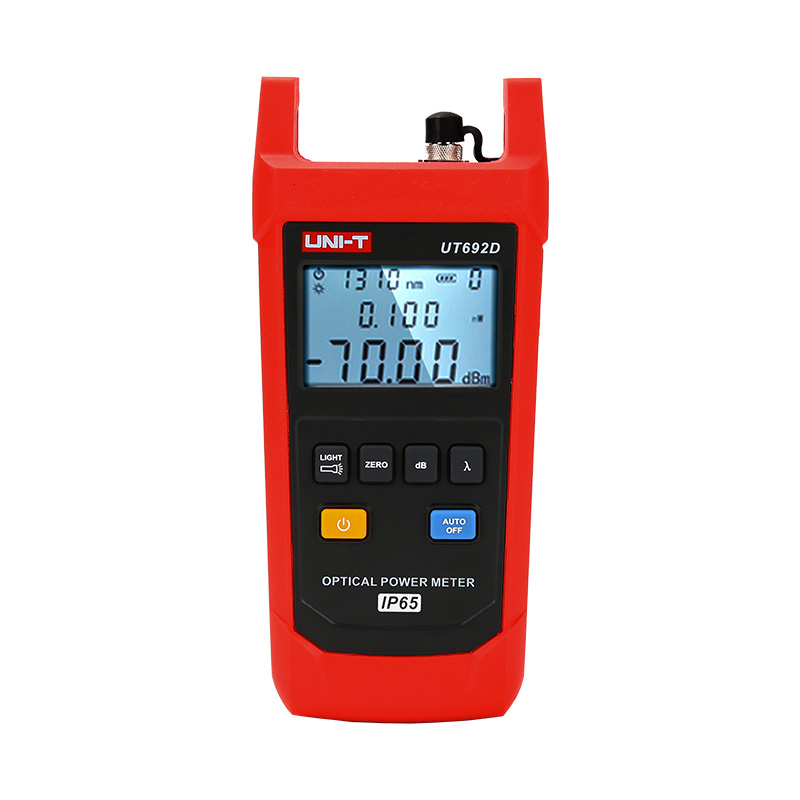

UT692 Series Optical Power Meters

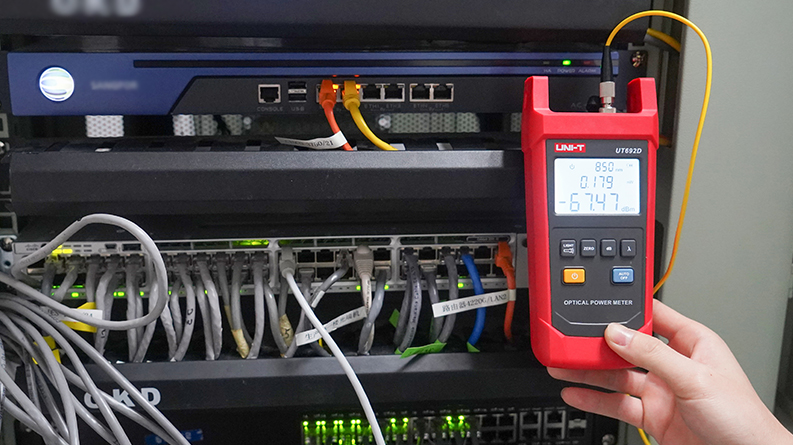

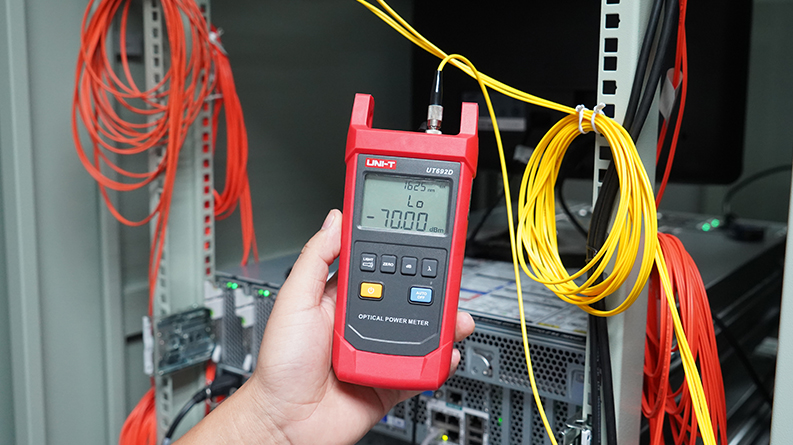

The UT692 series handheld optical power meters are used to measure absolute optical power or relative loss of optical power through length of fiber optic wires. UT692 series are designed to be durable, the meters can withstand 2m drop and have a dust/water resistance rating of IP65. In addition, UT692’s other features include backlight display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.

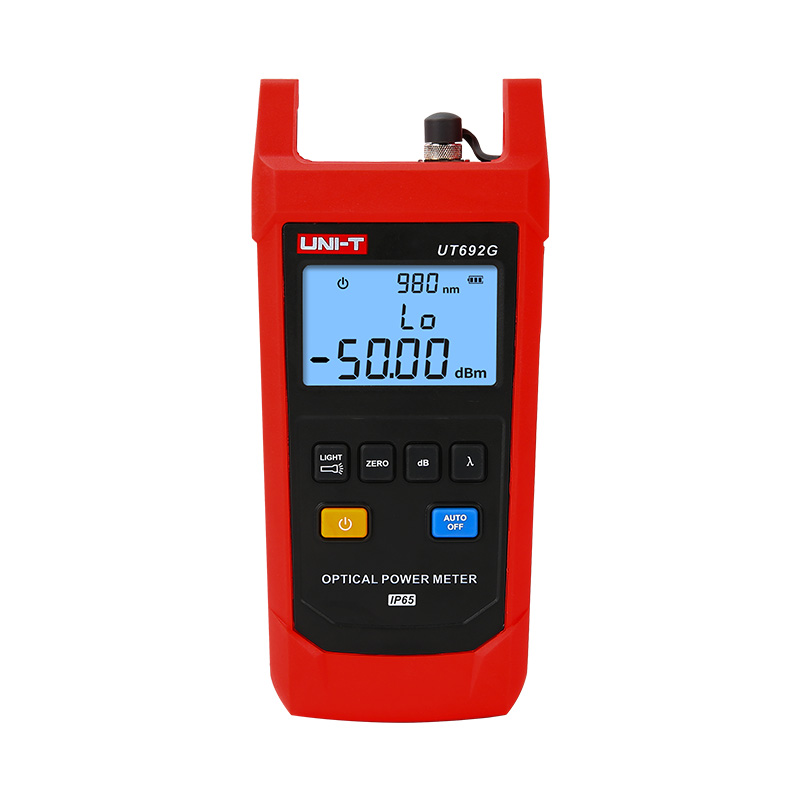

Models in UT692 Series: UT692D, UT692G
Description
Features of UT692 Series Optical Power Meters
Certifications: CE, UKCA
● Low battery indication
● Auto power off
● IP65/2m drop proof
● Flashlight
Specifications of UT692 Series Optical Power Meters
| Specifications | UT692D | UT692G |
| Measurement Range (dBm) | -70~+10 | -50~+26 |
| Wavelength Range (nm) | 800-1700 | |

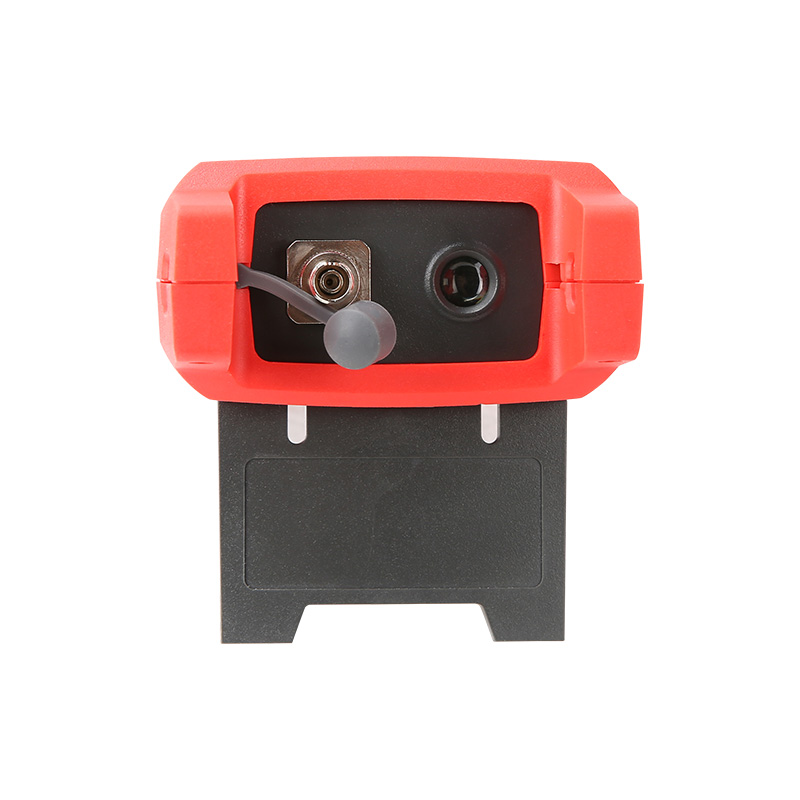

| Connector | Universal connector FC/SC/ST ( FC as standard, SC and ST adapter as options) | |
| Detector Type | InGaAs | |
| Uncertainty | ±5% | |
| Calibrated Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 | |
| Display Resolution | Linear: 0.1%, logarithmic: 0.01dBm | |
| Auto Power Off (min) | 10 | |
| Power Supply | 1. 5V AA alkaline battery (3 pcs) | |
| Low Battery Indication | Low battery indication at about 3.3V, auto power off at about 3V | |
| Battery Operation Time (h) | ≥60 | |
| Drop Height (M) | 2 | |
| Operating Temperature | 0℃~40℃ | |
| Storage Temperature | -10℃~50℃ | |
| Dimensions (mm) | 189×87×45 | |
| Net Weight (g) | 286 | |
| Certification | CE, IP65,RoHS | |
| General Characteristics | ||
| Power | 1.5V battery x 3 | |
| Product color | Red and grey | |
| Product net weight | 286g | |
| Product size | 189mm x 87mm x 45mm | |
| Standard accessories | 1.5V Batteries, English manual, Dedicated pouch | |
| Standard individual packing | gift box | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 295mm x 250mm x 210mm | |
| Standard carton gross weight | 14.5Kg（TBC） | |
Documents
Tittle
Download
Related Products
-
UT691 Series Visual Fault Locators
Designed for optical fiber fault detection and locating, end to end optical fiber identification, etcLearn moreCompare Models -

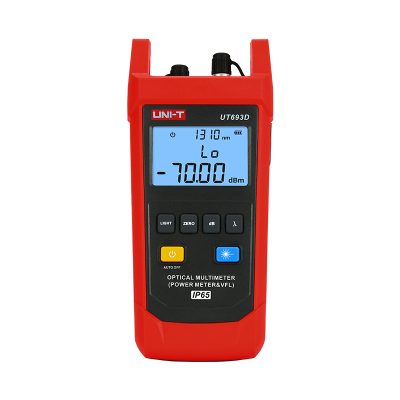

UT693D Optical Multimeter (Power Meter & VFL)
