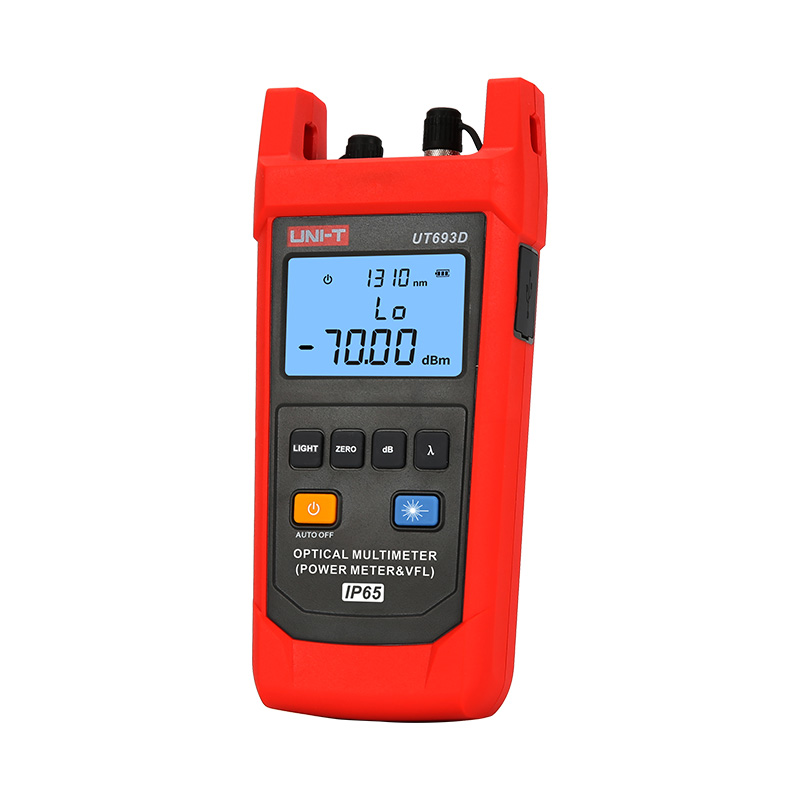

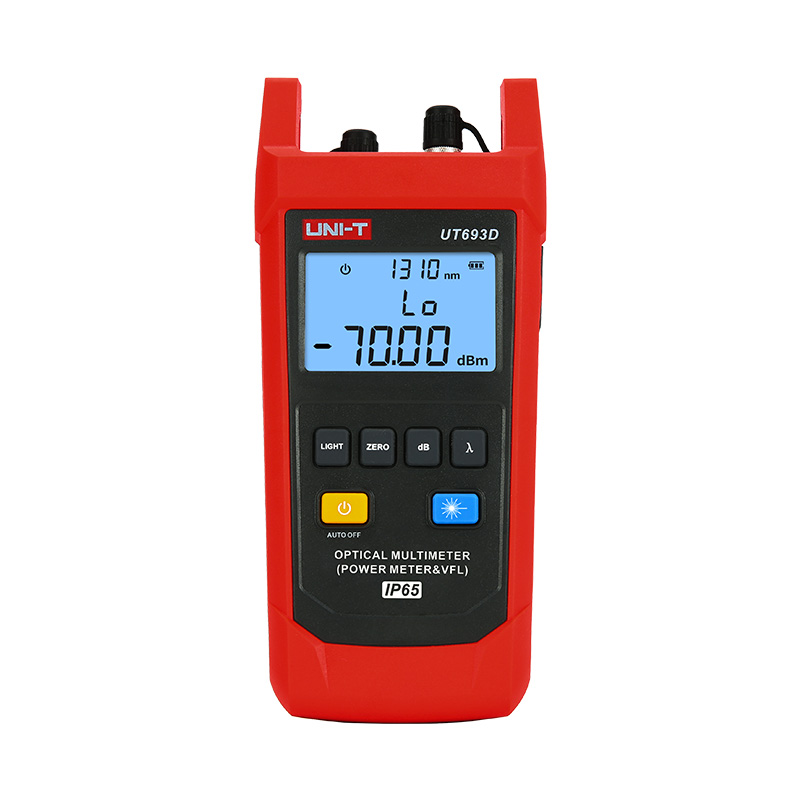

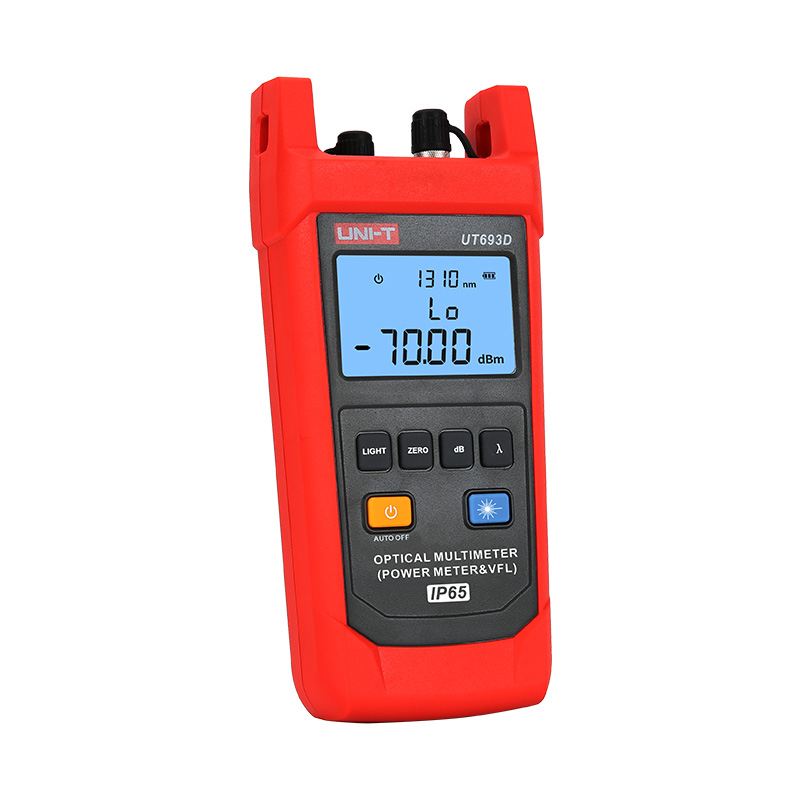

UT693D Optical Multimeter (Power Meter & VFL)
UT693D handheld optical integrated machine is mainly used for continuous optical signal power measurement, using low-power single-chip microprocessor for control, full-featured, with 10mw red light pen. The product uses a built-in detector to protect it. In addition, it also has IP65 waterproof and dustproof, backlight display, auto power off function, wavelength memory function, user calibration function and ultra wide optical power test range. Widely used in fiber optic cable construction and maintenance, fiber optic communications, fiber optic sensing, optical CATV and other fields.
Description
Features of UT693D Optical Multimeter (Power Meter & VFL)
Certifications: CE, UKCA

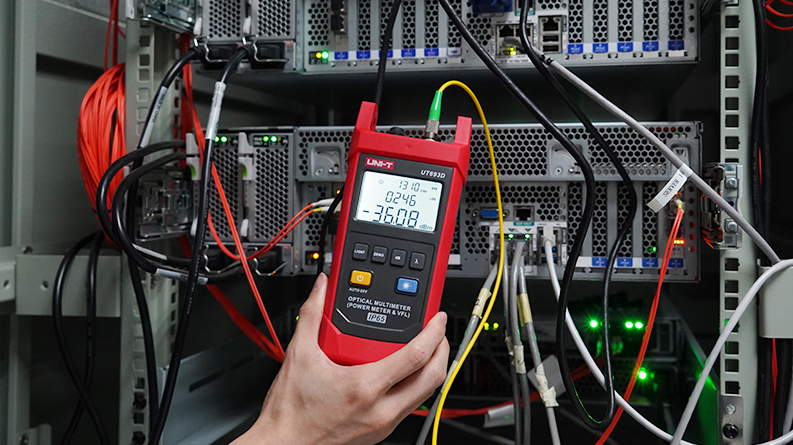

● Cable construction and maintenance
● Optical fiber communication
Specifications of UT693D Optical Multimeter (Power Meter & VFL)
| Specifications | Description | UT693D | |
| Optical power meter | Wavelength range | 800nm~1700nm | √ |
| Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm | ||
| Measurement range | UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm | ||
| Uncertainty | ±5% | ||
| Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | ||
| Connector | FC/SC/ST | ||
| Detector type | InGaAs | ||

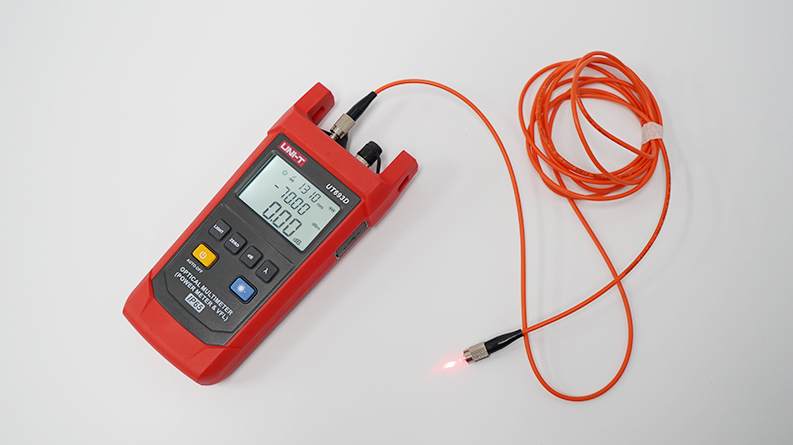

| Visual faultlocator | Wavelength | 650nm±10nm | √ |
| Power | 10mW (measurable optical fiber length: approximately 8~10km) | ||
| Mode | Continuous/Pulse | ||
| Connector | FC/SC/ST | ||
| Features | |||
| Low battery indication | √ | ||
| Auto power off | √ | ||
| IP rating | IP65 | ||
| Drop test | 2m | ||
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 3 | ||
| Display | 63mm x 40mm | ||
| Product color | Red and grey | ||
| Product net weight | 300g | ||
| Product size | 189mm x 87mm x 45mm | ||
| Standard accessories | Batteries, carrying bag | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 295mm x 250mm x 210mm | ||
| Standard carton gross weight | 5.66kg | ||
Documents
Related Products
-

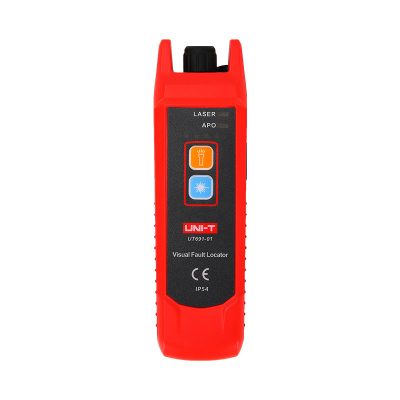

UT691 Series Visual Fault Locators
Designed for optical fiber fault detection and locating, end to end optical fiber identification, etcLearn moreCompare Models -

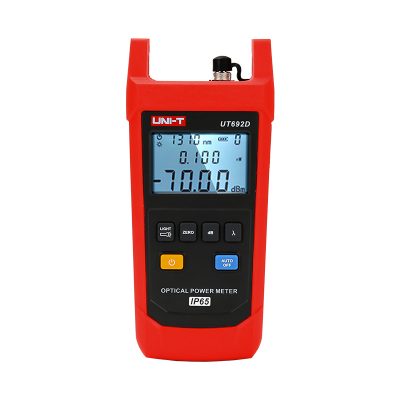

UT692 Series Optical Power Meters
