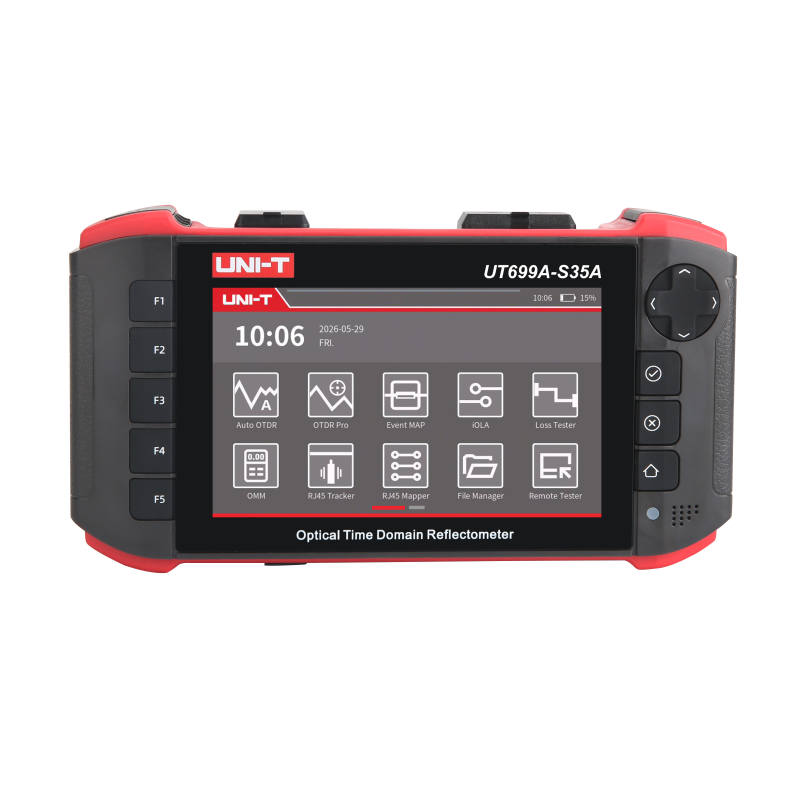

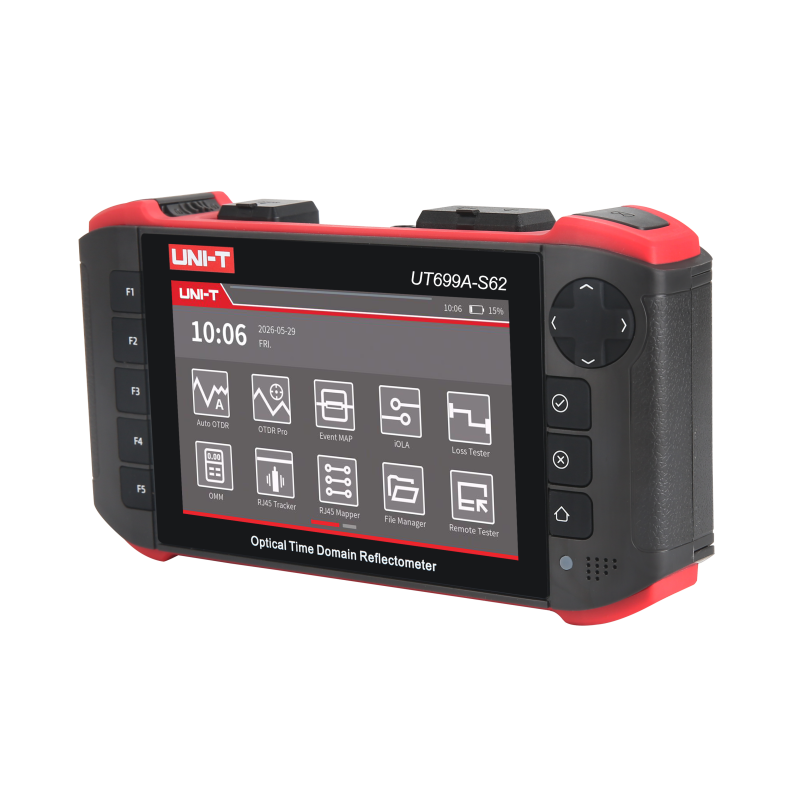

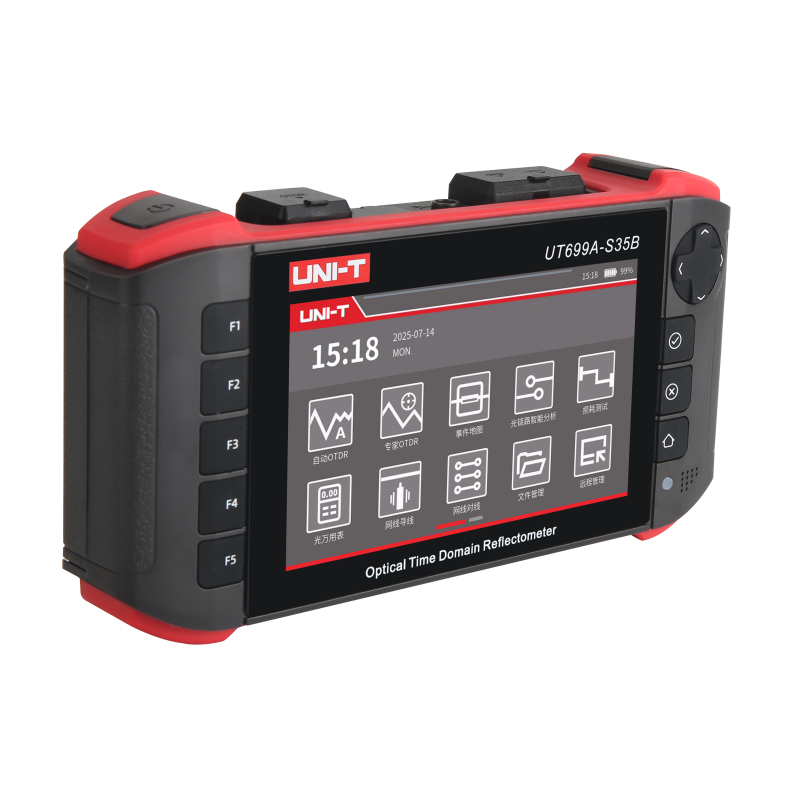

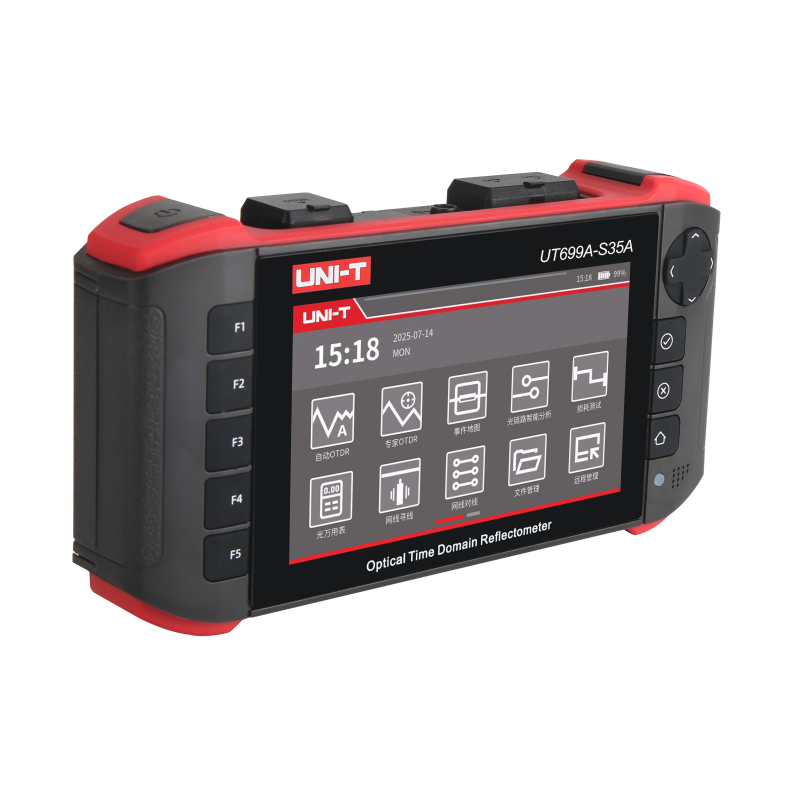

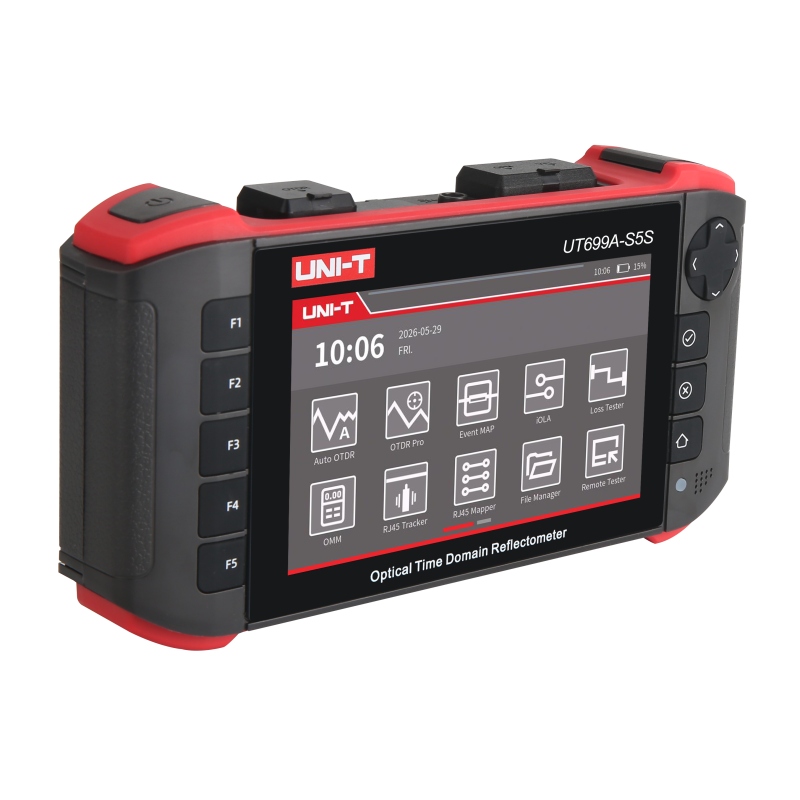

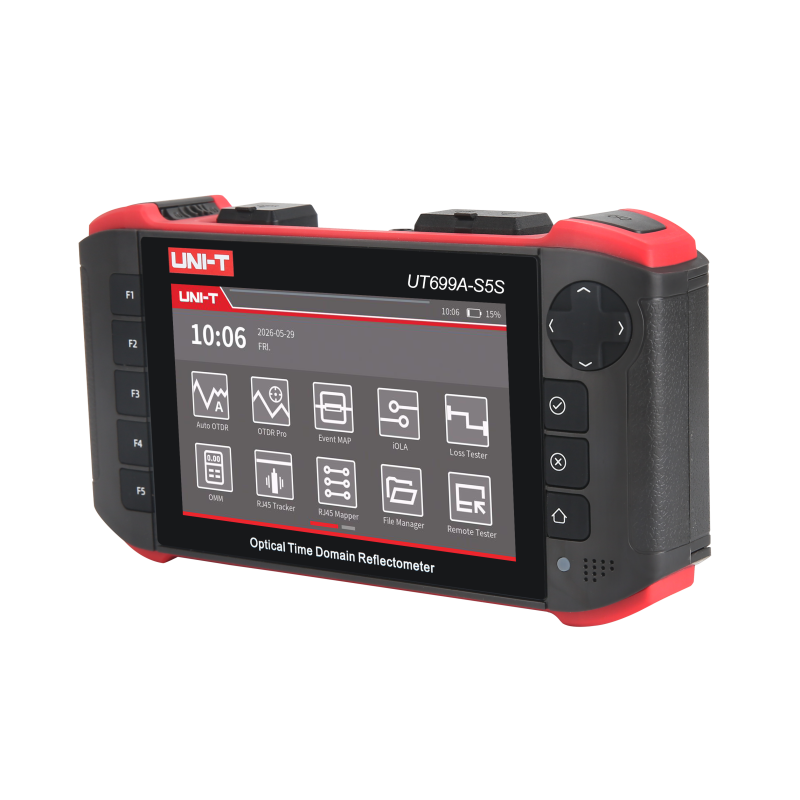

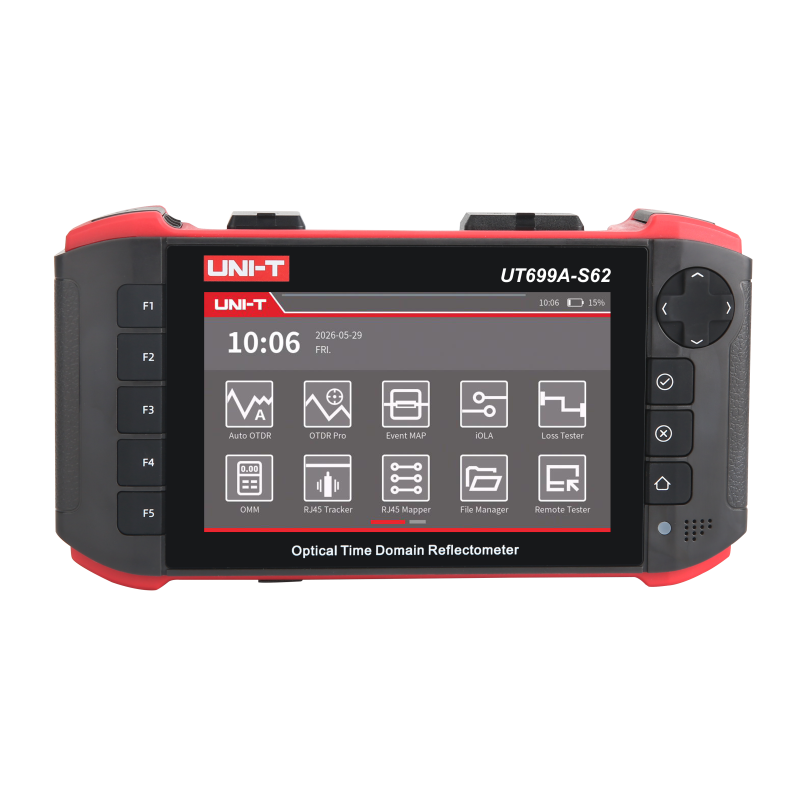

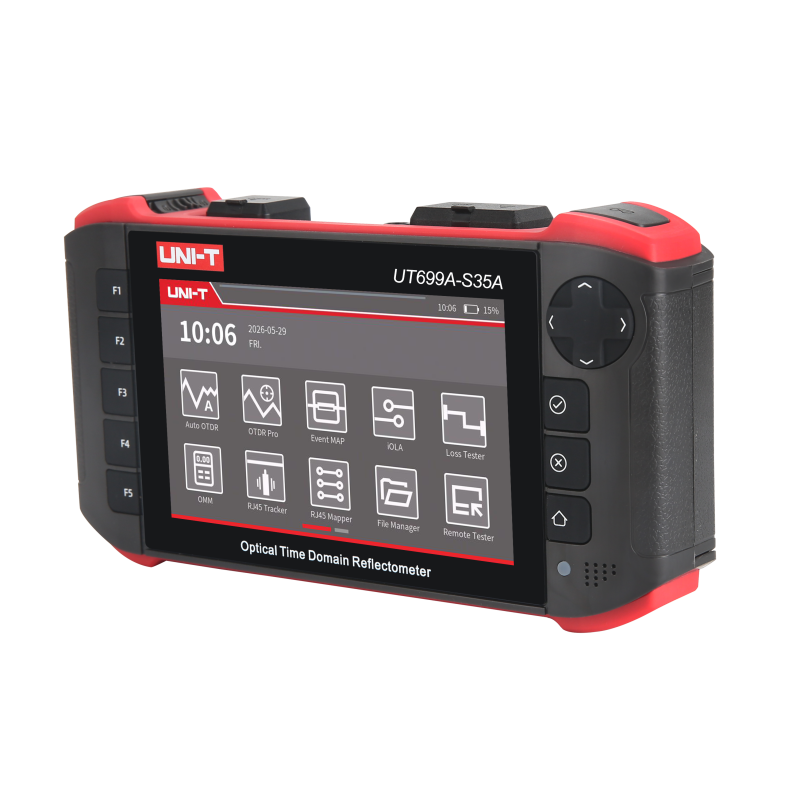

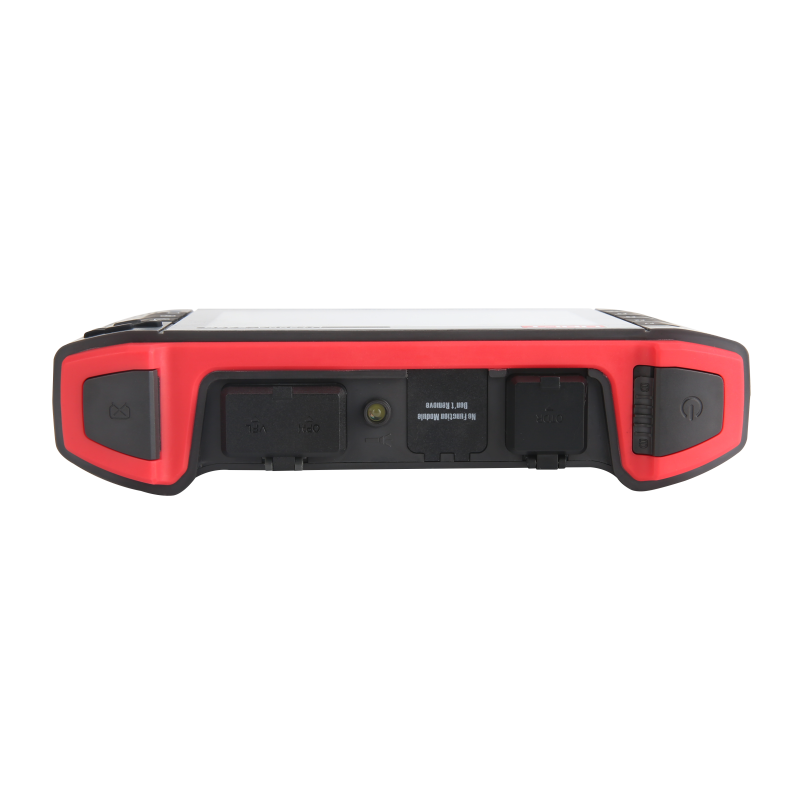

UT699A Series Optical Time Domain Reflectometer

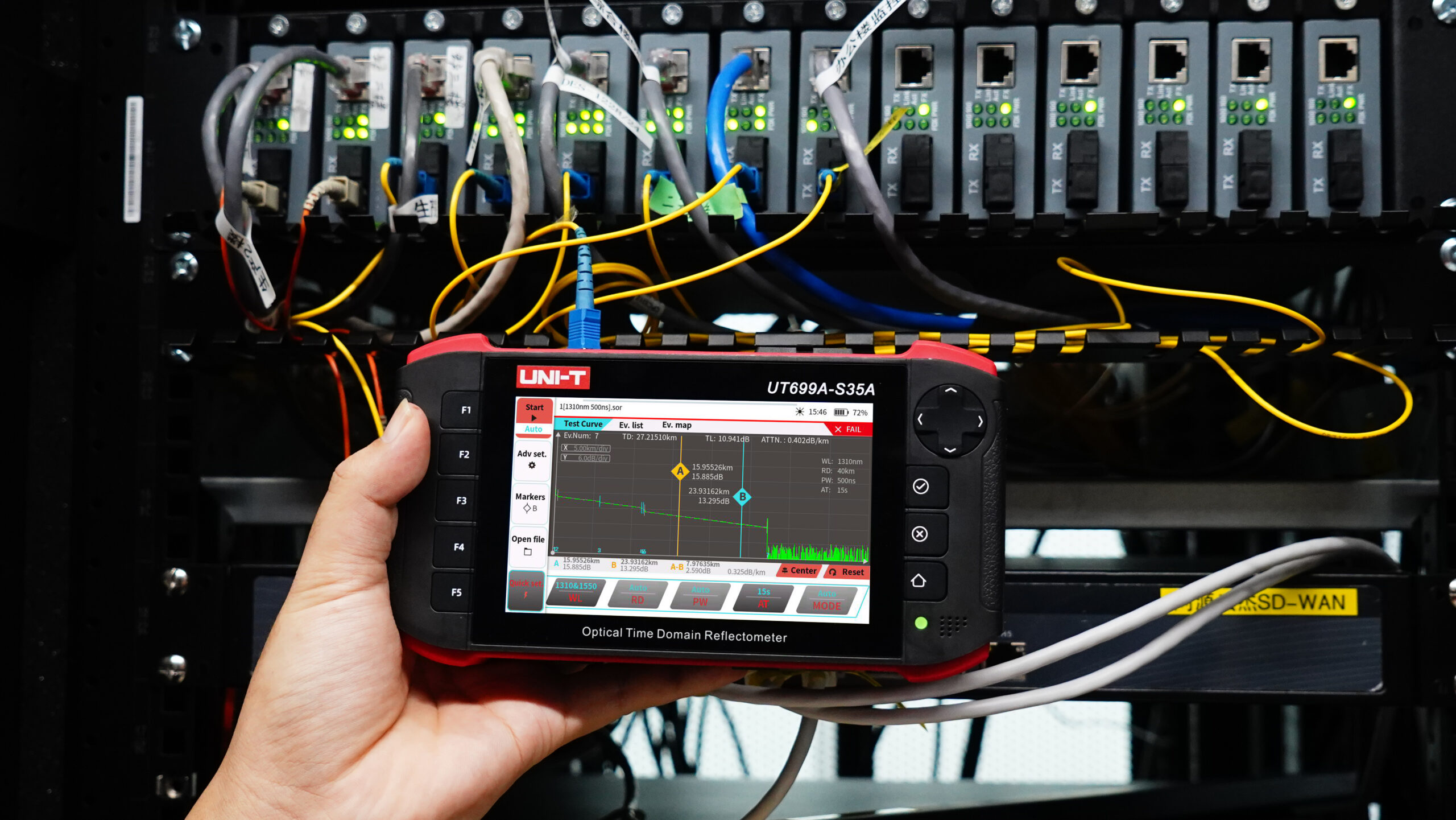

The UT699A series is a multifunctional Optical Time Domain Reflectometer (OTDR). Featuring a 5-inch HD touchscreen with dual touch and button controls, it integrates OTDR, event map, optical multimeter, LAN cable testing, remote management and file management. Compact and lightweight, and powered by a high-capacity lithium battery, it is well suited for optical cable construction & maintenance, carrier-grade network deployment, as well as research and educational applications.
Description
Features of UT699A Series Optical Time Domain Reflectometer
- 5” HD Display, Touch & Key Control
- OTDR, Event Map, OPM, LAN Test

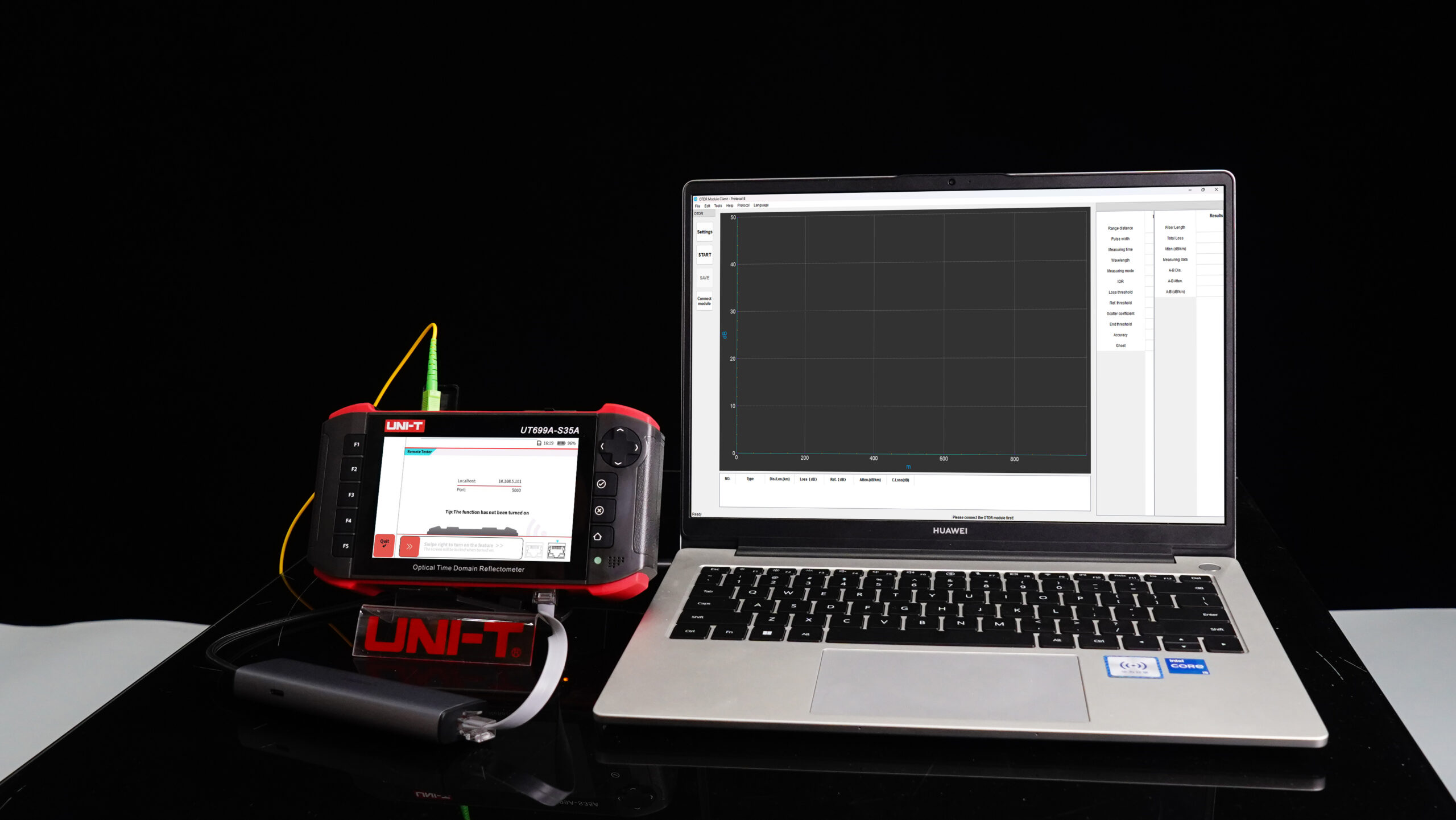

- Remote & File Management
- Optional Wavelengths, Weak Fiber Correction
- Live Fiber Test (UT699A-S5S, UT699A-S62 only)
- Max. 150 km Range
- High Dynamic Range (Model-Dependent)
- LAN Tracer / Sequencer Compatible
- Remote Management & FTP
- 3.6V / 5000mAh Li-ion Battery
Specifications
| Model | UT699A-S5S | UT699A-S62 | UT699A-S35A | UT699A-S35B |
| Wavelength | 1550nm±20nm | 1625nm±20nm | 1310nm±20nm/1550nm±20nm | |
| Dynamic range | 20dB | 30dB | 26dB/24dB | 32dB/30dB |
| Test range | 0.1 to 150km | |||
| Fiber type | Single mode | |||
| Optical port | SC/UPC | |||
| Pulse width | 5ns to 20μs | |||
| Measurement time | 5s to 180s | |||
| Real-time refresh rate | 2Hz | |||
| Attenuation dead zone | 8m | |||
| Event dead zone | 2m | |||
| Sampling point | 15600 | |||
| Min sampling interval | 0.16m | |||
| Linearity | ±0.05dB/dB | |||
| Loss threshold | 0.01dB | |||
| Loss resolution | 0.001dB | |||
| Distance uncertainty | ± (0.8 + 0.005% *Distance + Sampling Resolution) m | |||
| Input light detection | ✔ | |||
| Refractive index setting | 1.0000 to 2.0000 | |||
| Opm functions | ||||
| Port | 2.5mm universal port | |||
| Detector type | InGaAs | |||
| Response wavelength | 700 to 1700nm | |||
| Calibrated wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm | |||
| Power range | +30 to -50dBm (C-type) | |||
| Accuracy | C-type: ±0.4dB(1310/1490/1550/1625nm) ±1dB(850/980/1270/1300/1577/1650nm) | |||
| Display precision | 0.01dBm | |||
| Frequency identification | 270/1K/2KHz | |||
| Wavelength memory | ✔ | |||
| User self-calibration | ✔ | |||
| Relative measurement | ✔ | |||

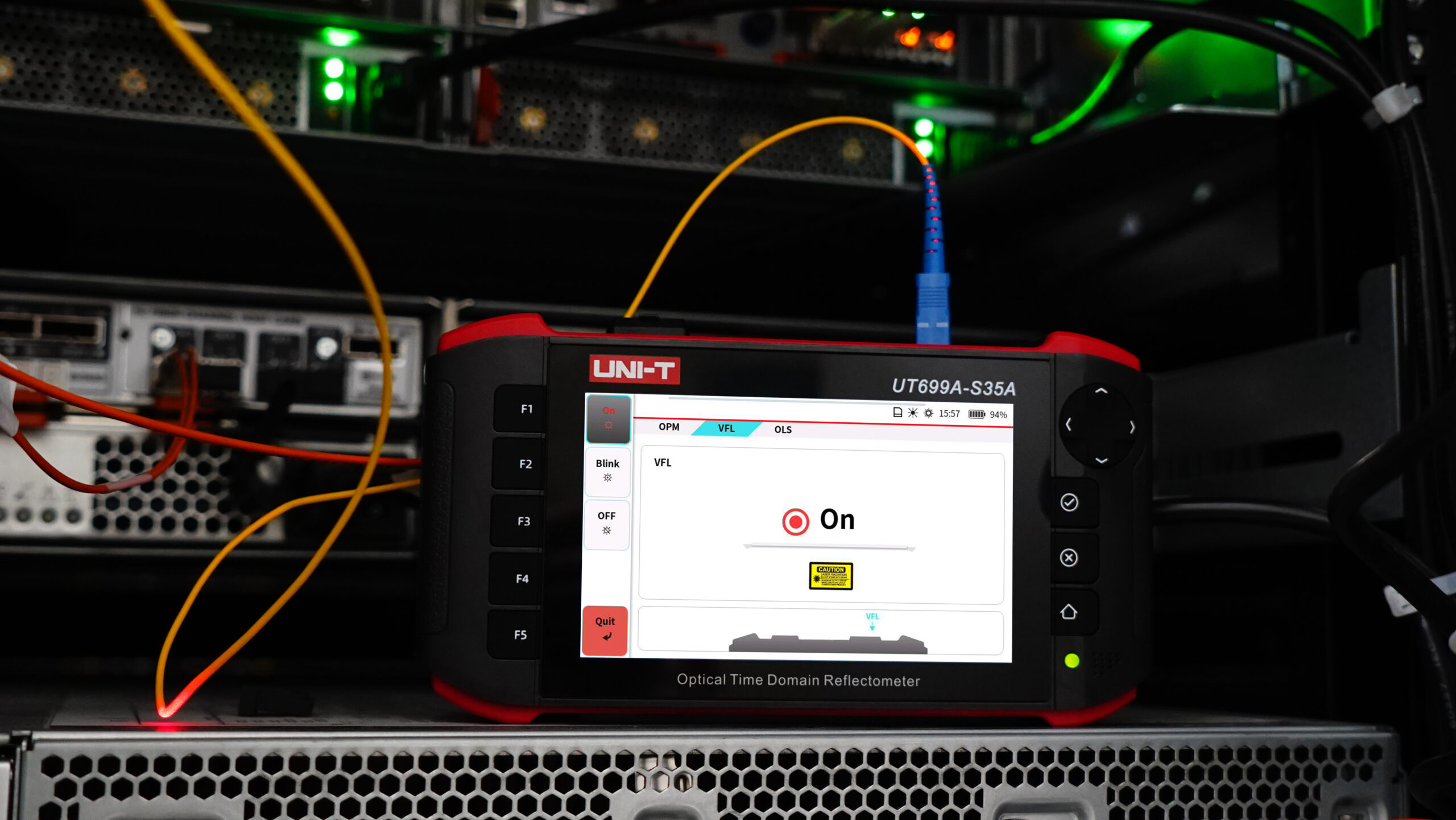

| Vfl functions | ||||
| Port | 2.5mm universal port | |||
| Wavelength | 650±20nm | |||
| Output power | 10mW | |||
| Mode | CW/Flashing 1Hz | |||
| Ols functions | ||||
| Port | SC/UPC | |||
| Wavelength | 1550nm±20nm | 1550nm±20nm | 1310nm±20nm/1550nm±20nm | |
| Output power | ＞-5dBm | |||
| Mode | CW/270Hz/1kHz/2kHz/1kHz+Flashing/2kHz+Flashing | |||
| Others | ||||
| Operating time | Standby > 9 hours, Measuring > 5 hours | |||
| Led light | ✔ | |||
| Auto power off | ✔ | |||
| Charging port | Type-C port | |||

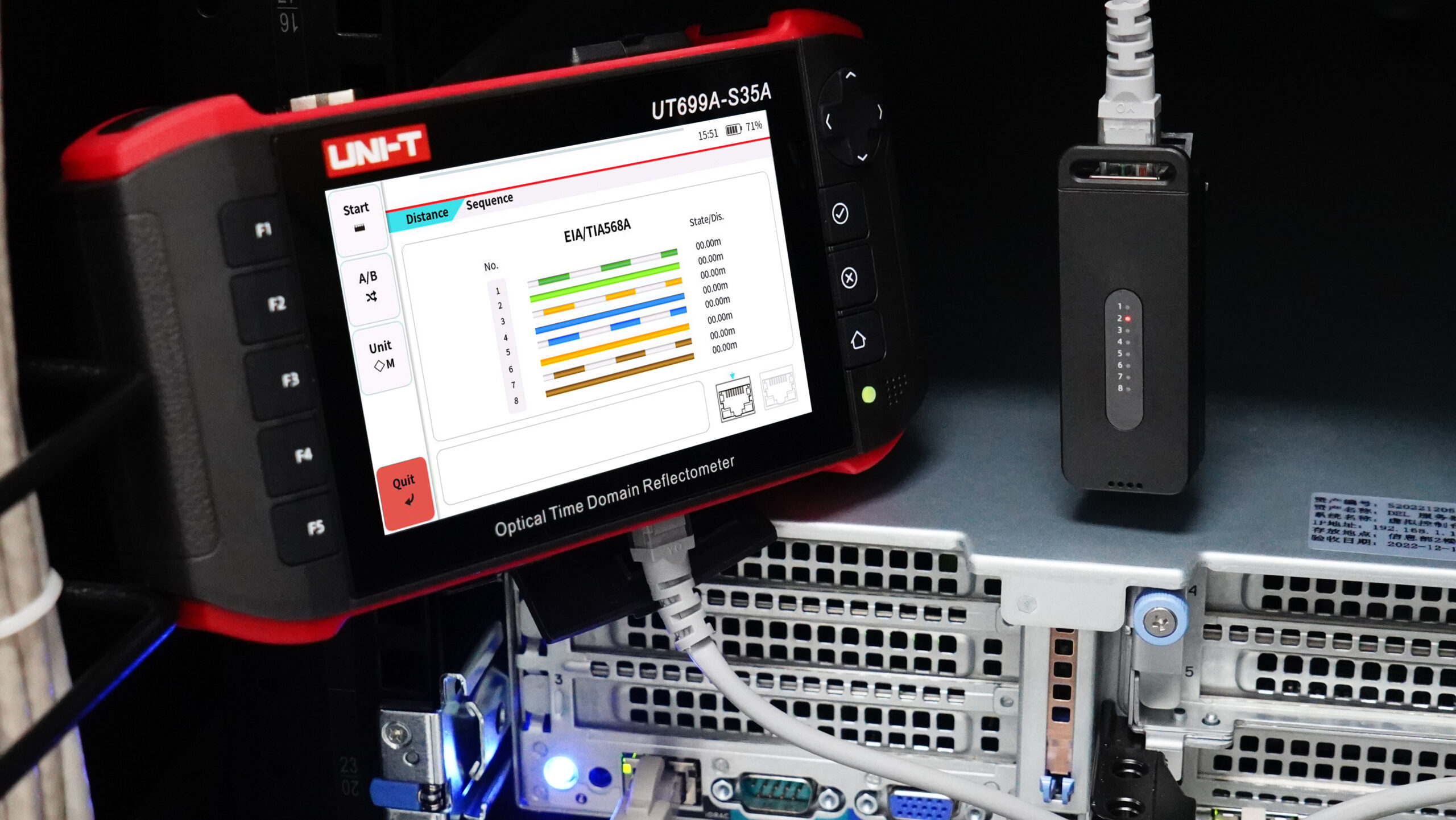

| Network cable test | RJ45 interface (Cable Length/RJ45 Mapper/RJ45 Tracker) | |||
| Storage method | Supports TF card or USB | |||
| Screenshot function | Screenshot button | |||
| Characteristics | ||||
| Battery | 3.6V/5000mAh/Lithium battery | |||
| Size | 190mm x 102mm x 45mm | |||
| Accessories | Optical time domain reflectometer*1, Gift box*1, User manual *1, Power adapter *1, Type-C cable *1, Cotton swabs *1, Wire map module*1, Cloth bag*1 | |||
| Weight | About 500g | |||
| Screen | 5-inch color screen, 800*480 resolution, touch screen | |||
| Standard quantity per carton | 5pcs | |||
