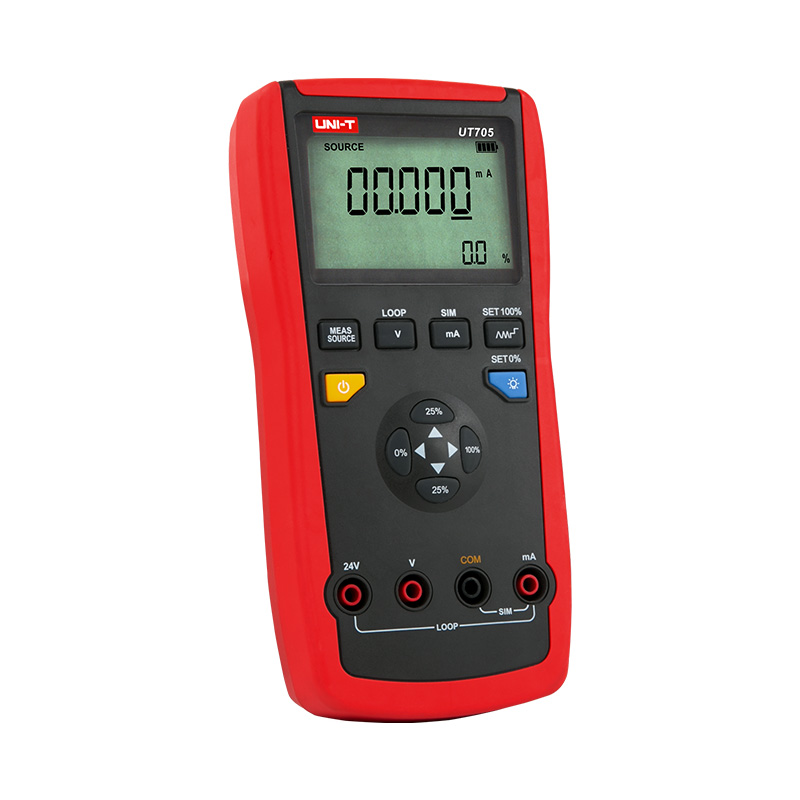

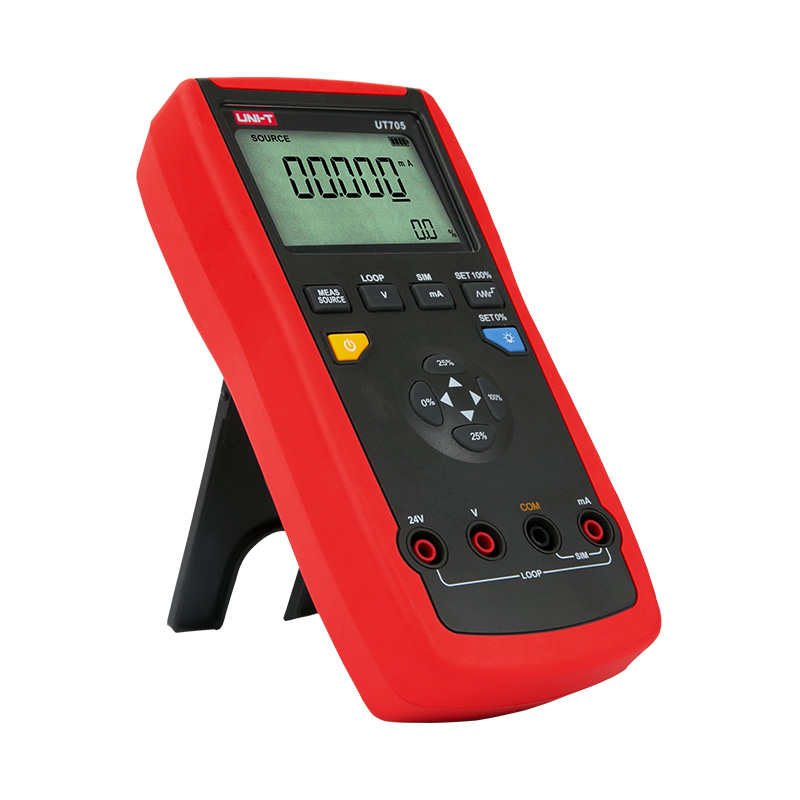

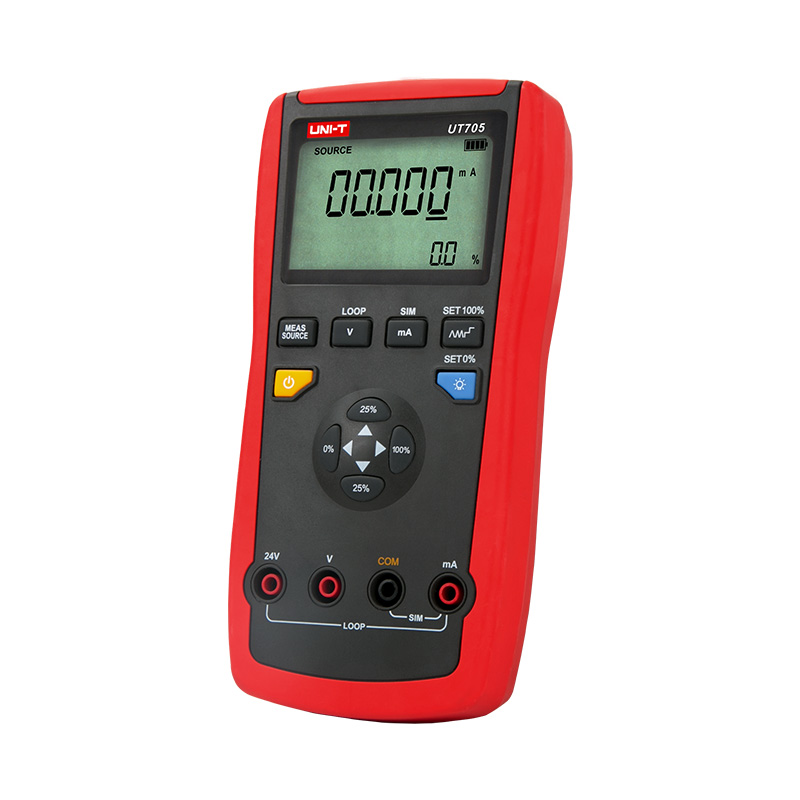

UT705 Single Function Loop Calibrator
UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.
Description
Features of UT705 Single Function Loop Calibrator
Certifications: CE, UKCA
● Automatic ramp for DC current output
● Manual/automatic stepping and ramping output
● Stores and recalls setups
● Measures: DC voltage, DC current, 4-20mA loop current
● Output functions: DC current, analog transmitter, 24V loop
● Up to 0.02% accuracy current measurement at same time
Specifications of UT705 Single Function Loop Calibrator
| Specifications | Range | UT705 |
| Measure accuracy | ||
| DC voltage (V) | 30.000V | ±(0.02+2) |
| DC current (A) | 24.000mA | ±(0.02+2) |
| Loop current | 24.000mA | ±(0.02+2) |
| Source accuracy | ||
| DC current (source) | 24.000mA | ±(0.02+2) |
| DC current (simulate) | 24.000mA | ±(0.02+2) |
| Features | ||
| Loop power function | Voltage: 24V | |
| Accuracy: 10% | ||
| Ramp functions | Source functions: Voltage, resistance, temperature | |
| Ramps: Slow ramp, fast ramp, 25% step-ramp | ||
| Step functions | Source functions: Voltage, resistance, temperature | |
| Steps: 25% of range, 100% of range | ||
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 63mm x 40mm | |
| Product color | Red and grey | |
| Product net weight | 410g | |
| Product size | 96mm x 193mm x 47mm | |
| Standard accessories | Test leads, battery | |
| Standard individual packing | Gift box, English manual, cloth bag | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 325mm x 225mm x 285mm | |
| Standard carton gross weight | 4.5kg | |
Documents
Tittle
Download
Related Products
-
UT701 Single Function Temperature Calibrator
Convenient for users to calibrate and repair various temperature testersLearn moreCompare Models -
UT714 Multifunction Temperature Process Calibrator
Powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, etcLearn moreCompare Models -

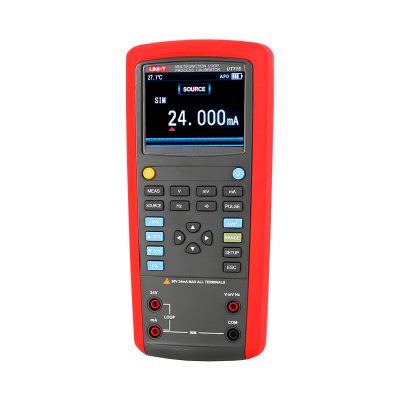

UT715 Multifunction Loop Process Calibrator
