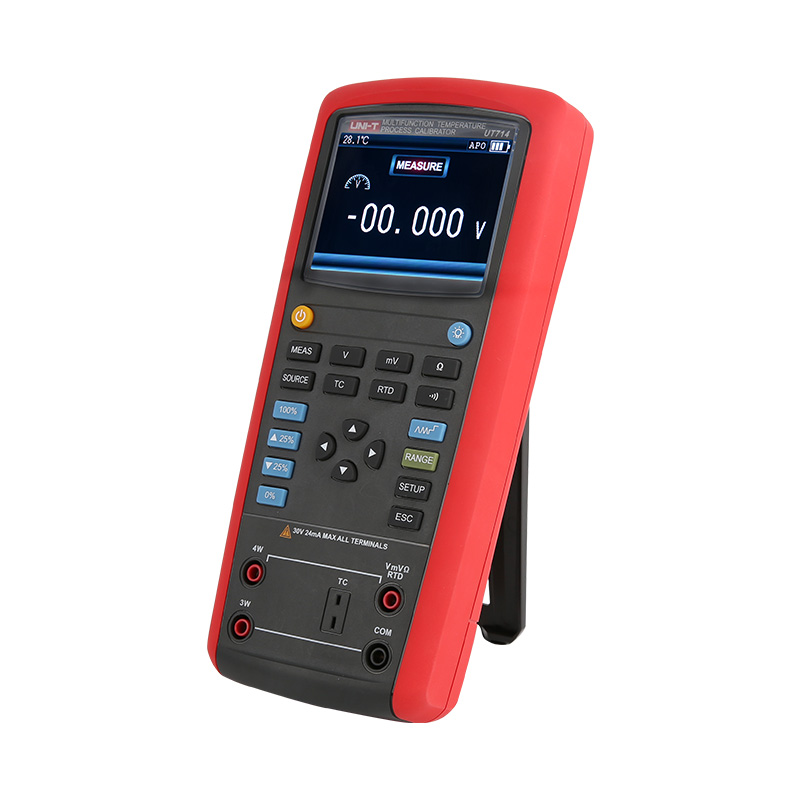

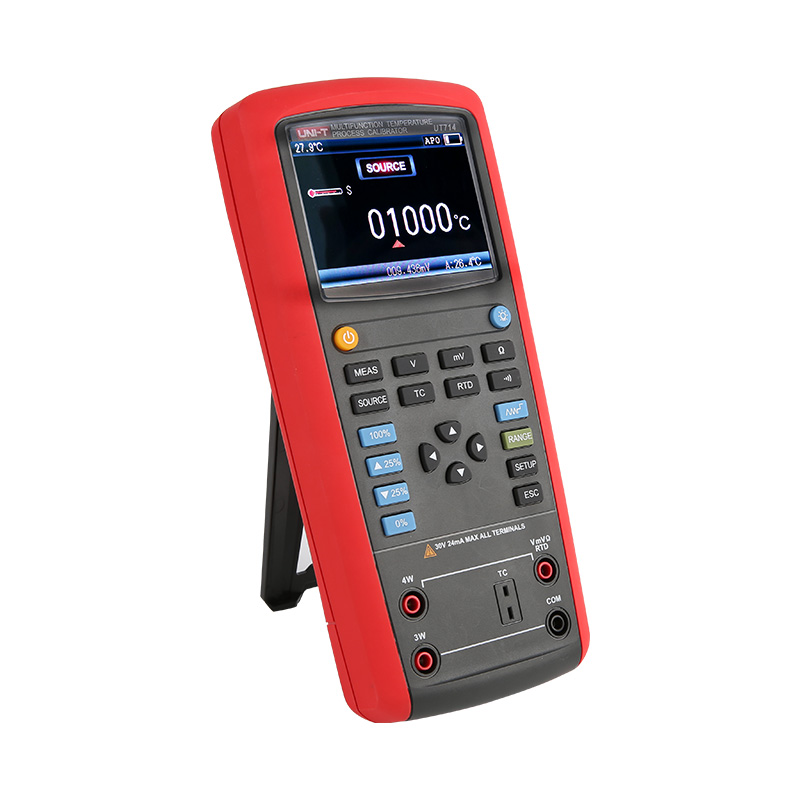

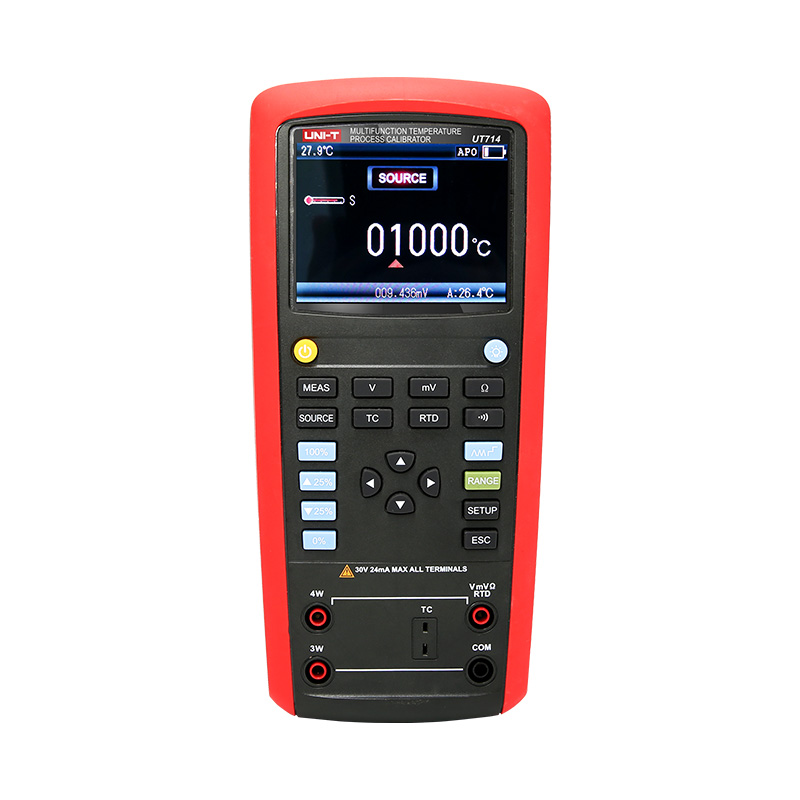

UT714 Multifunction Temperature Process Calibrator
The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate diffrent types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
Description
Features of UT714 Multifunction Temperature Process Calibrator
Certifications: CE, UKCA
● Step/ramp functions
● Source and measure accuracy up to 0.02%
● Rechargeable battery
● Contrast adjustment
● Auto power off (Time adjustable)
● Stores and recalls setups
● USB communication
Specifications of UT714 Multifunction Temperature Process Calibrator
| Specifications | Range | UT714 |
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |

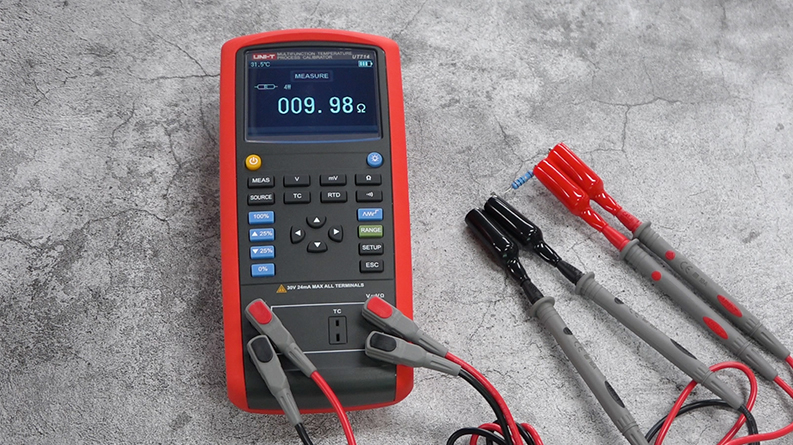

| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |

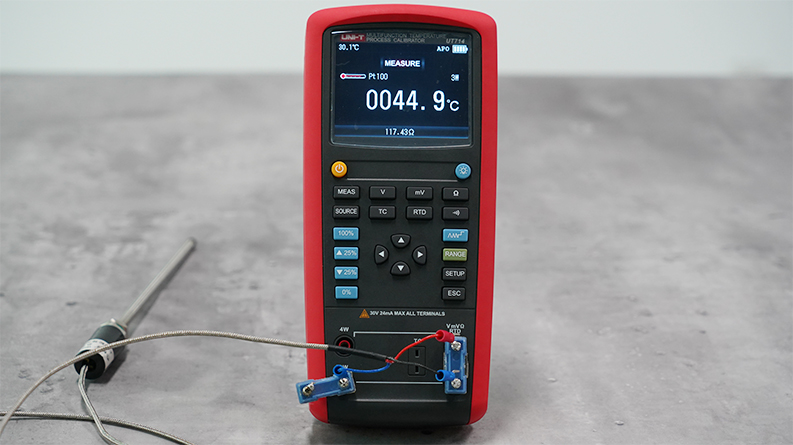

| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature | -10°C~55°C | |
| General Characteristics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
