This product has been discontinued.

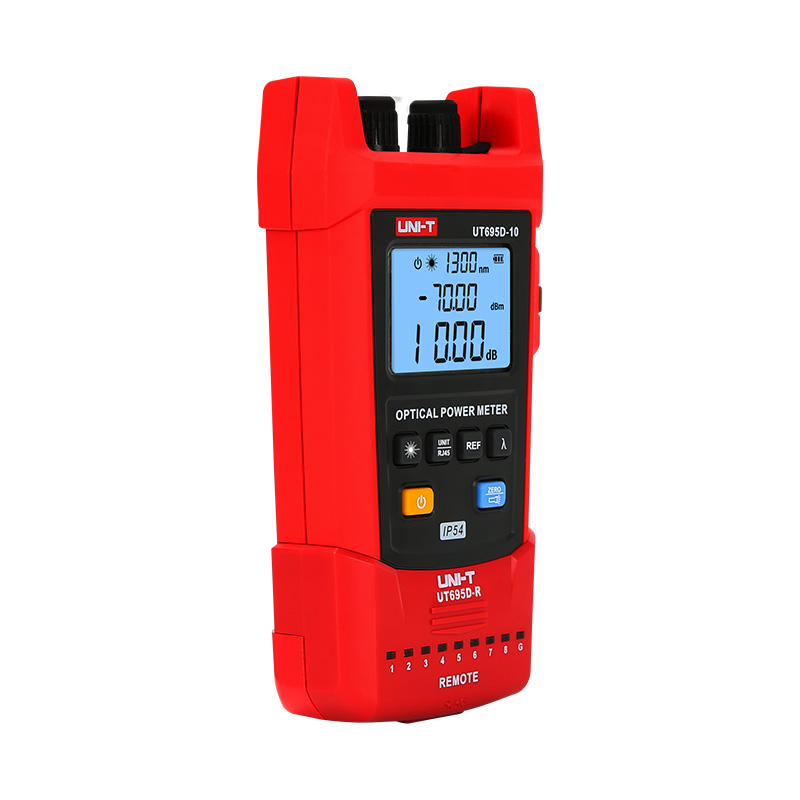

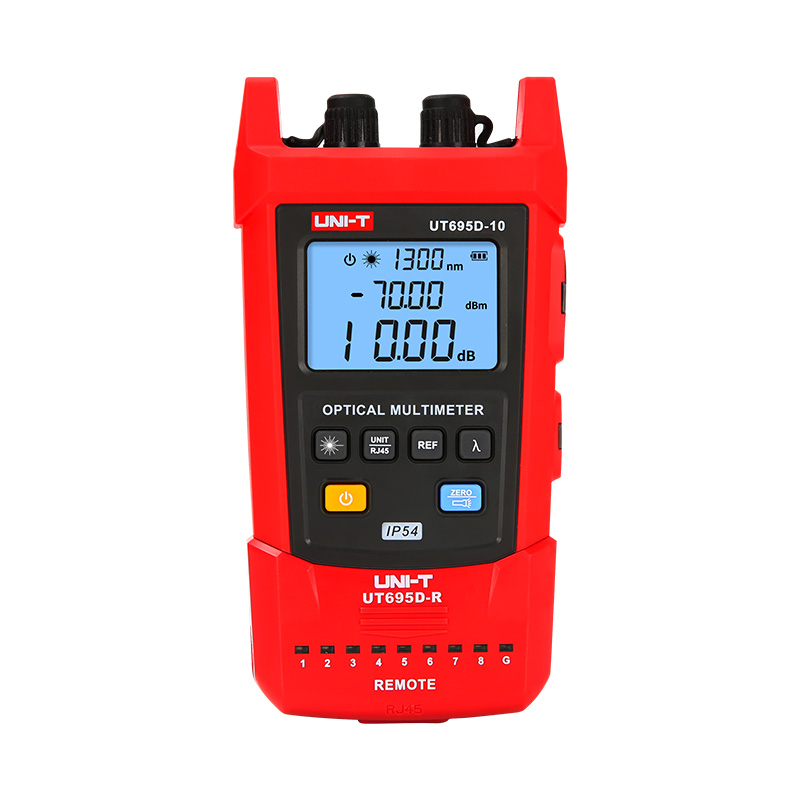

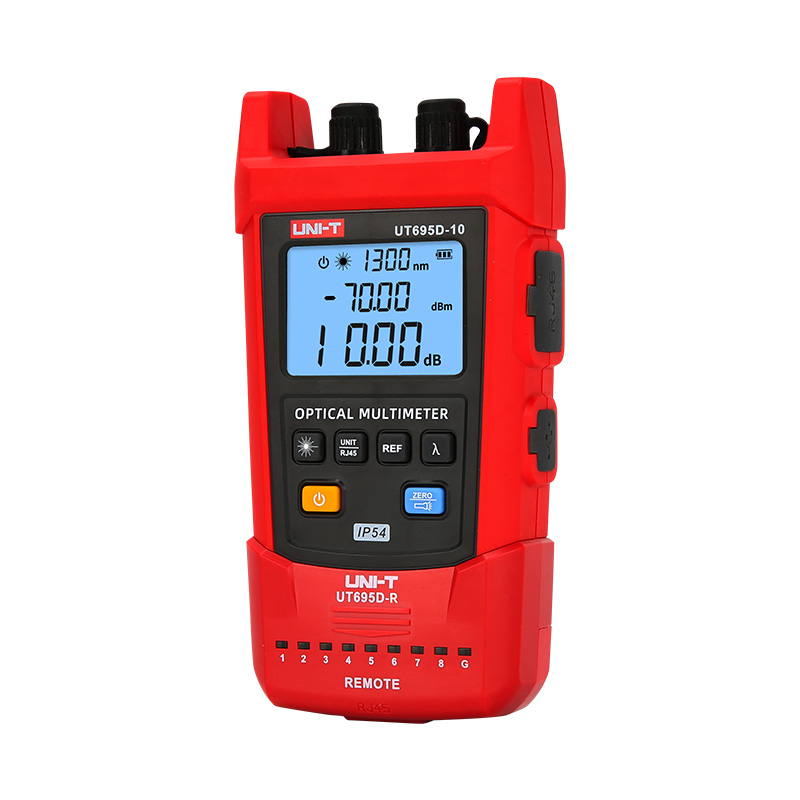

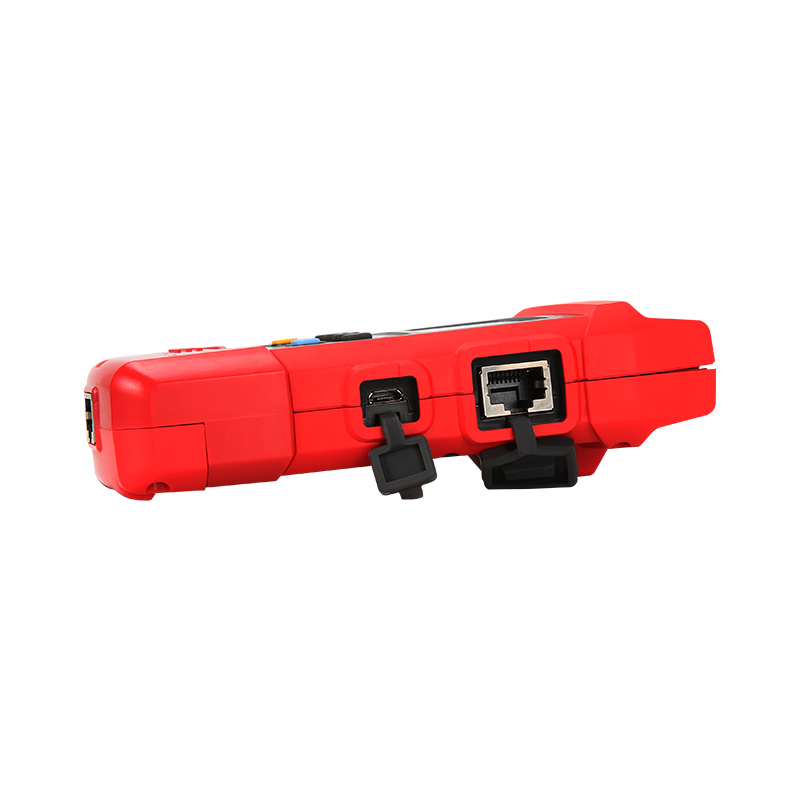

UT695D-10 Optical Multimeter (Discontinued)

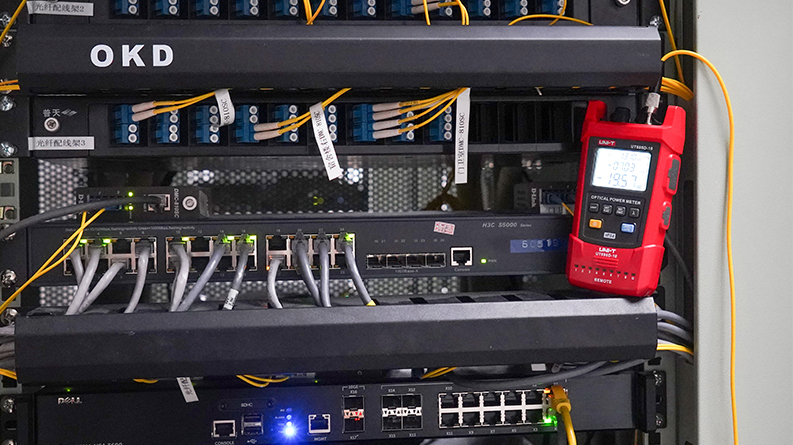

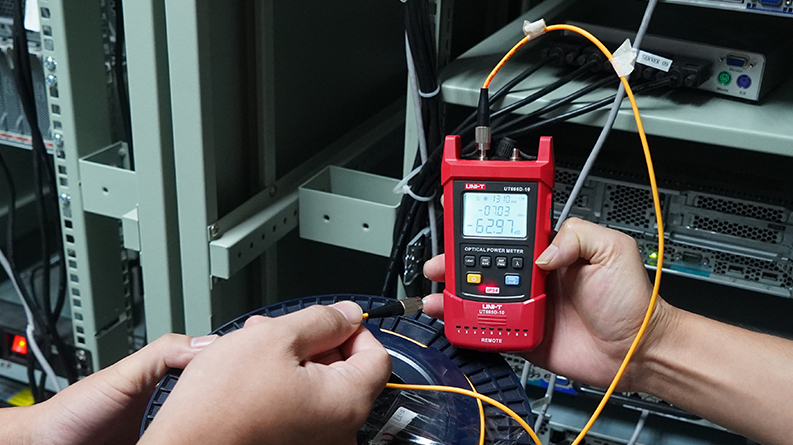

UT695D-10 includes optical power meter, visual fault locator, flashlight, and remotecable tester. UT695D-10 is used for optical signal power measurement, opticalfiber line loss test, optical device insertion loss test, optical fiber fault detection,optical fiber breakpoint location, end-to-end optical fiber identification and more. Designed with IP54 dust and water prevention function, UT695D-10 can be appliedto optical cable construction and maintenance, optical fiber communication,optical fiber sensing, optical CATV and other fields.
Description
Features of UT695D-10 Optical Multimeter
Certifications: CE, UKCA
● Low battery indication
● Auto power off
● IP54/2m drop proof
● Flashlight
Specifications of UT695D-10 Optical Multimeter
| Specifications | UT695D-10 | |
| Optical power meter | Wavelength range | 800nm~1700nm |
| Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm | |
| Measurement range | -70~3dBm | |
| Uncertainty | ±5% | |
| Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | |

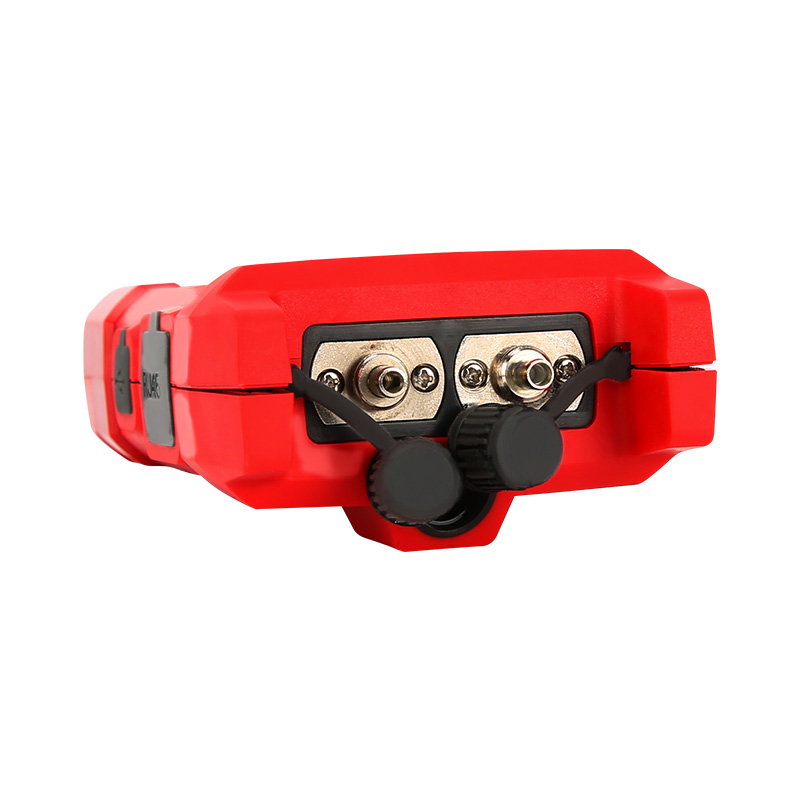

| Connector | FC/SC/ST | |
| Detector type | InGaAs | |
| Visual fault locator | Wavelength | 650nm±10nm |
| Power | 10mW (measurable optical fiber length: approximately 8~10km) | |
| Mode | Continuous/Pulse | |
| Connector | FC/SC/ST | |
| Flashlight | √ | |

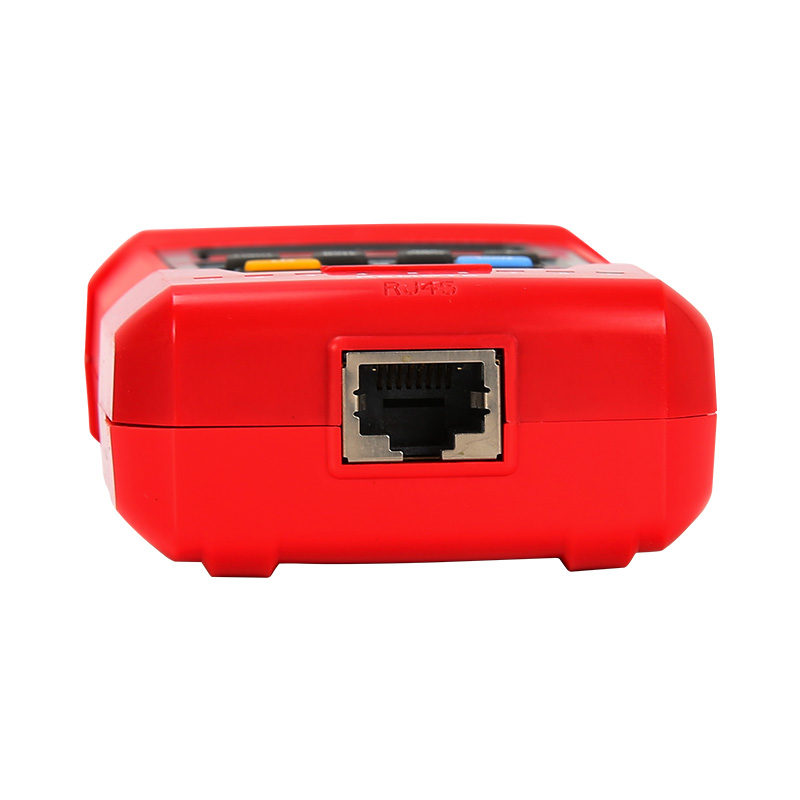

| LAN cable sequence test | Line sequence measurement (LED1~8, LED_G) | |
| General Characteristics | ||
| Power | 1050mAh rechargeable battery | |
| Display | 42mm x 33mm | |
| Product color | Red and grey | |
| Product net weight | 168g | |
| Product size | 132mm x 68mm x 31mm | |
| Standard accessories | USB cable | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 305mm x 270mm x 130mm | |
| Standard carton gross weight | About 2.7kg | |
