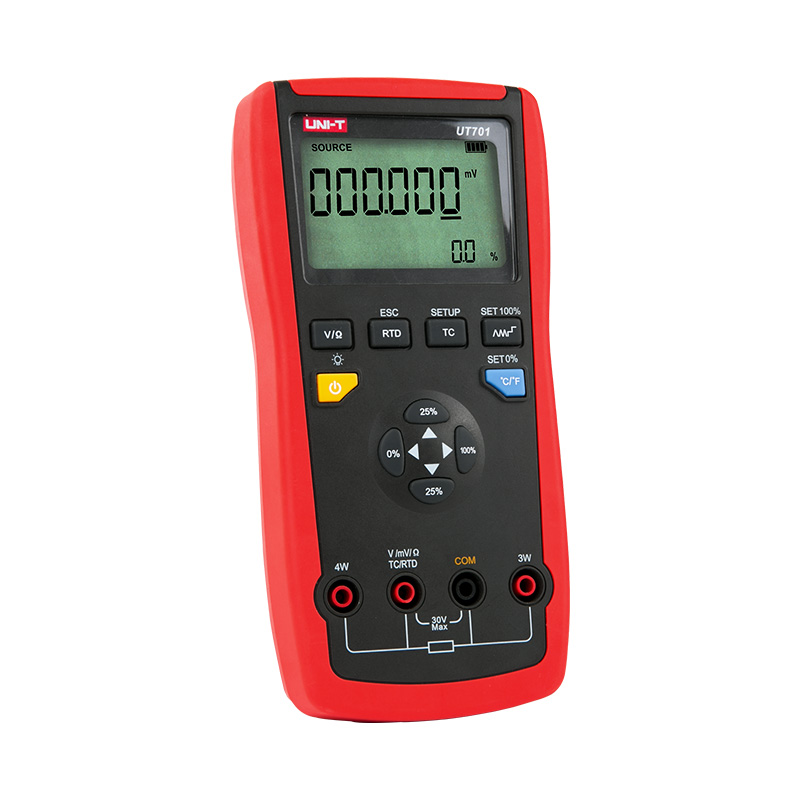

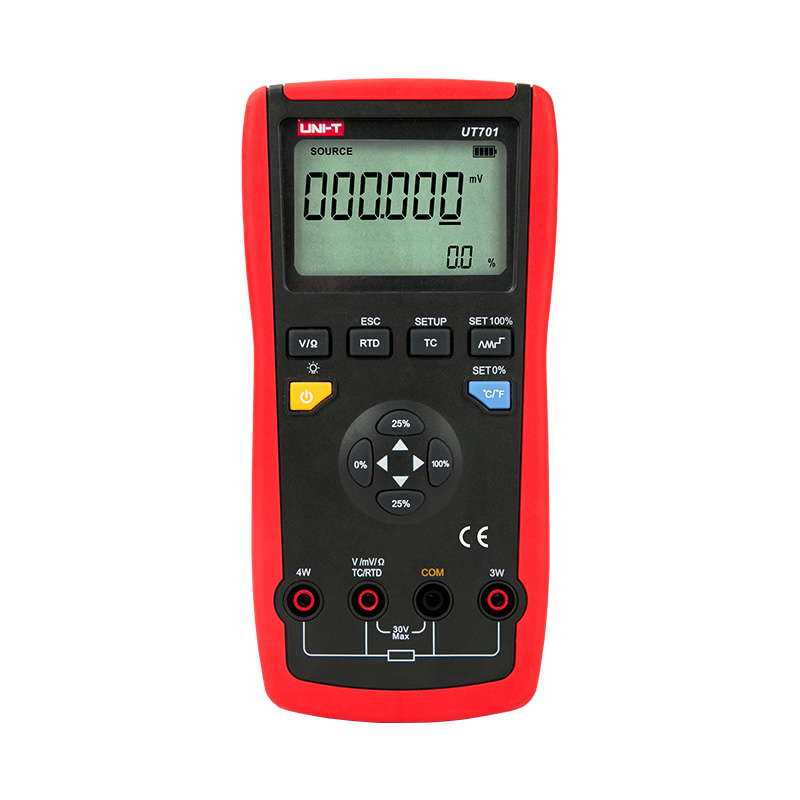

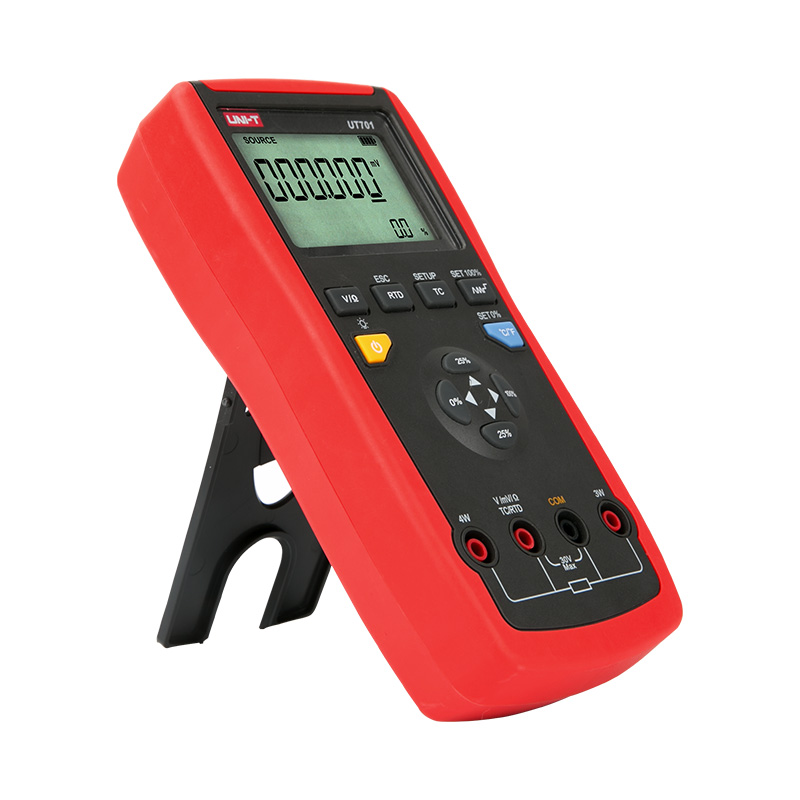

UT701 Single Function Temperature Calibrator
Equipped with 10 thermocuple types, 4 RTD types, and voltage/resistance output function, UT701 is professional and convenient for users to calibrate and repair various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operations efficient and accurate. It features LCD backlight, auto power off, bi-color injection case and 1m drop proof.
Description
Features of UT701 Single Function Temperature Calibrator
Certifications: CE, UKCA
● Up to 0.05% output accuracy
● 6-digit display
● Output functions: DC voltage, resistance, thermocouple, and thermal resistance
● 10 thermocouple scales
● 4 thermal resistance scales
● High precision automatic cold junction compensation for thermocouple outputs
● Manual stepping and automatic stepping and ramping
● Stores and recalls setups
Specifications of UT701 Single Function Temperature Calibrator
| Specifications | Type | Range | UT701 |
| Source accuracy | |||
| DC mV | 100.000mV | ±(0.05%＋3) | |
| 1000.0mV | ±(0.05%＋3) | ||
| Resistance (Ω) | 500.0Ω | ±(0.05%+2) | |
| 5000Ω | ±(0.05%+2) | ||
| Thermocouples | J | -20~1200℃ (-328~2192℉) | ±0.7℃ |
| K | -200~1370℃ (-328~2498℉) | ±1℃ | |
| T | -200~400℃ (-328~752℉) | ±0.8℃ | |
| E | -200~950℃ (-328~1742℉) | ±0.7℃ | |
| R | -20~1750℃ (-4~3182℉) | ±1.4℃ | |
| S | -20~1750℃ (-4~3182℉) | ±1.5℃ | |
| B | 600~1800℃ (1112~3272℉) | ±1.4℃ | |
| N | -200~0~1300℃ (-328~2372℉) | ±0.9℃ | |
| Wre325 | 0~2000℃ (32~3632℉) | ±1.8℃ | |
| Wre526 | 0~2300℃ (32~4172℉) | ±1.8℃ | |
| RTDs | Pt10 | -200~850℃ (-328~1562℉) | ±(0.5%+6℃) |
| Pt100 | ±(0.05%+0.6℃) | ||
| Cu50 | -50~150℃ (-58~302℉) | ±(0.05%+0.6℃) | |
| Cu100 | ±(0.05%+0.6℃) | ||
| Features | |||
| Ramp functions | Source functions: Voltage, resistance, temperature | ||
| Ramps: Slow ramp, fast ramp, 25% step-ramp | |||
| Step functions | Source functions: Voltage, resistance, temperature | ||
| Steps: 25% of range, 100% of range | |||
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| Display | 63mm x 40mm | ||
| Product color | Red and grey | ||
| Product net weight | 410g | ||
| Product size | 96mm x 193mm x 47mm | ||
| Standard accessories | Test leads, battery | ||
| Standard individual packing | Gift box, English manual, cloth bag | ||
| Standard quantity per carton | 5pcs | ||
| Standard carton measurement | 325mm x 225mm x 285mm | ||
| Standard carton gross weight | 4.5kg | ||
